Wire to Wire Signal
WW250 TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Wire Signal

WW250

Part numbers
WW250-02FWW250-02MWW250-03FWW250-03MWW250-04FWW250-04MWW250-05FWW250-05MWW250-06FWW250-06MWW250-07FWW250-07MWW250-08FWW250-08MWW250-09FWW250-09MWW250-10FWW250-10MWW250-11FWW250-11MWW250-12FWW250-12MWW250-FTWW250-MT
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

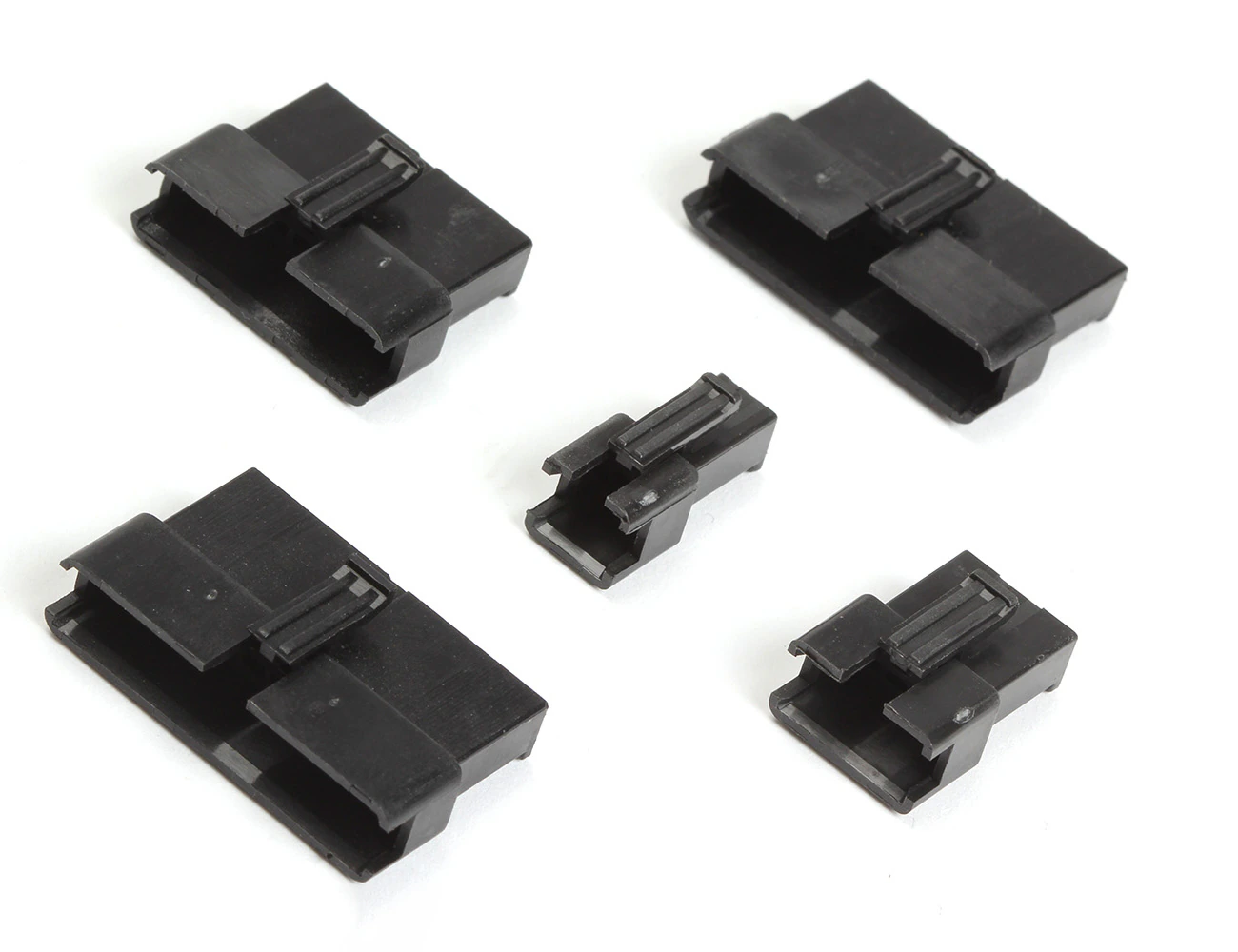

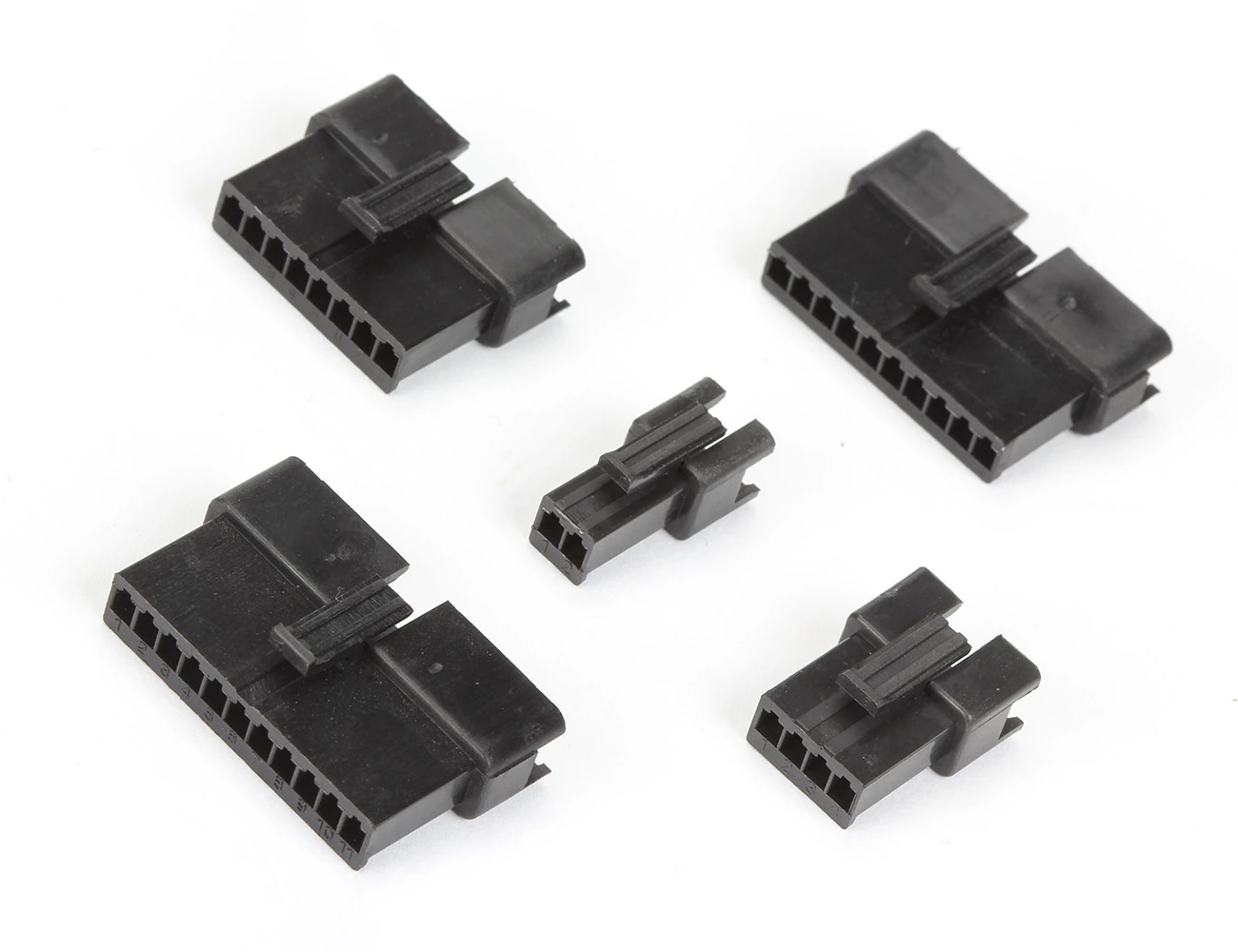

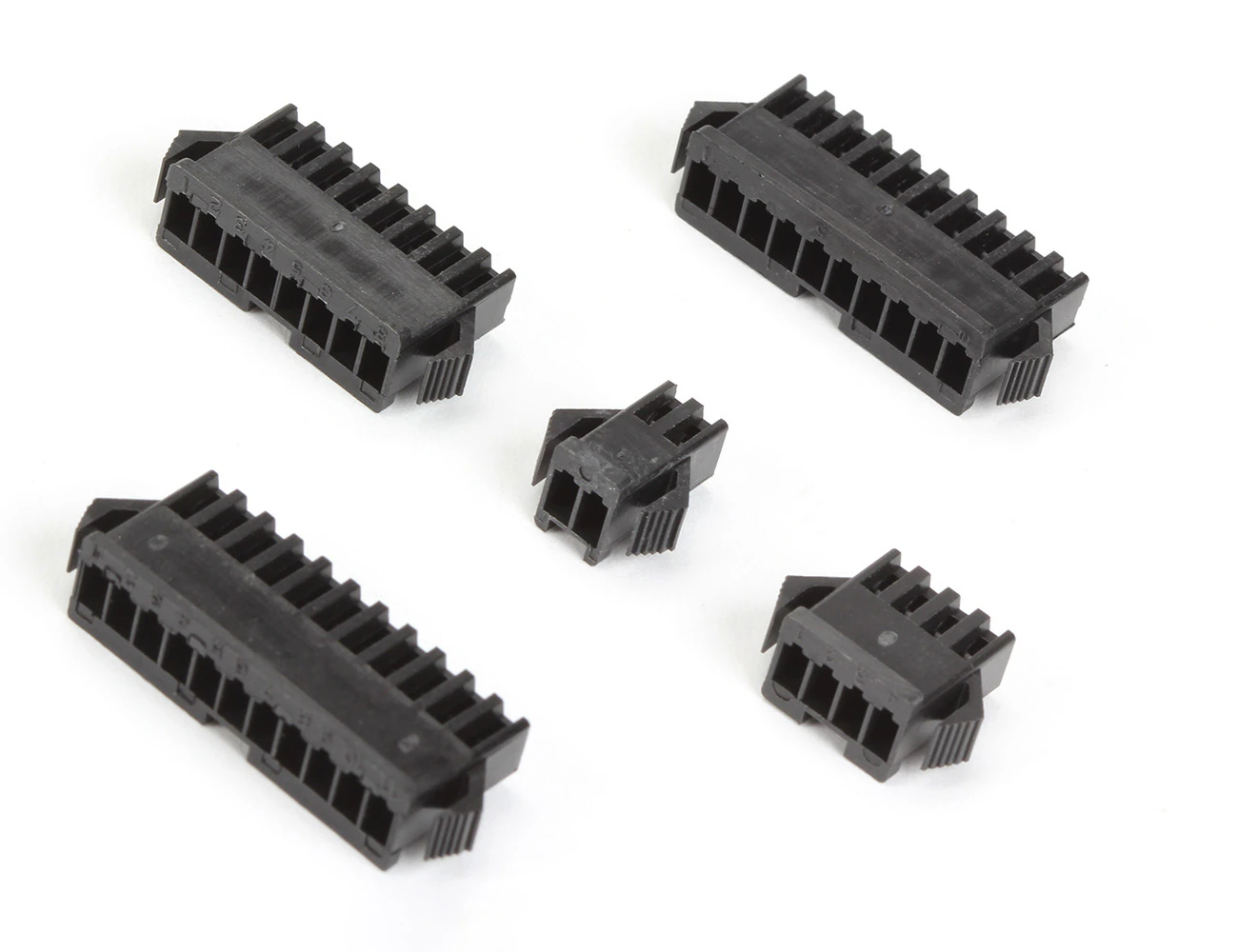

WW250-02F2 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-02M2 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-03F3 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-03M3 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-04F4 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-04M4 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-05F5 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-05M5 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-06F6 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-06M6 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-07F7 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-07M7 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-08F8 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-08M8 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-09F9 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-09M9 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-10F10 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-10M10 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-11F11 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-11M11 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-12F12 Pin 2.50mm Female Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C
WW250-12M12 Pin 2.50mm Male Housing2.5A250V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C to +85°C

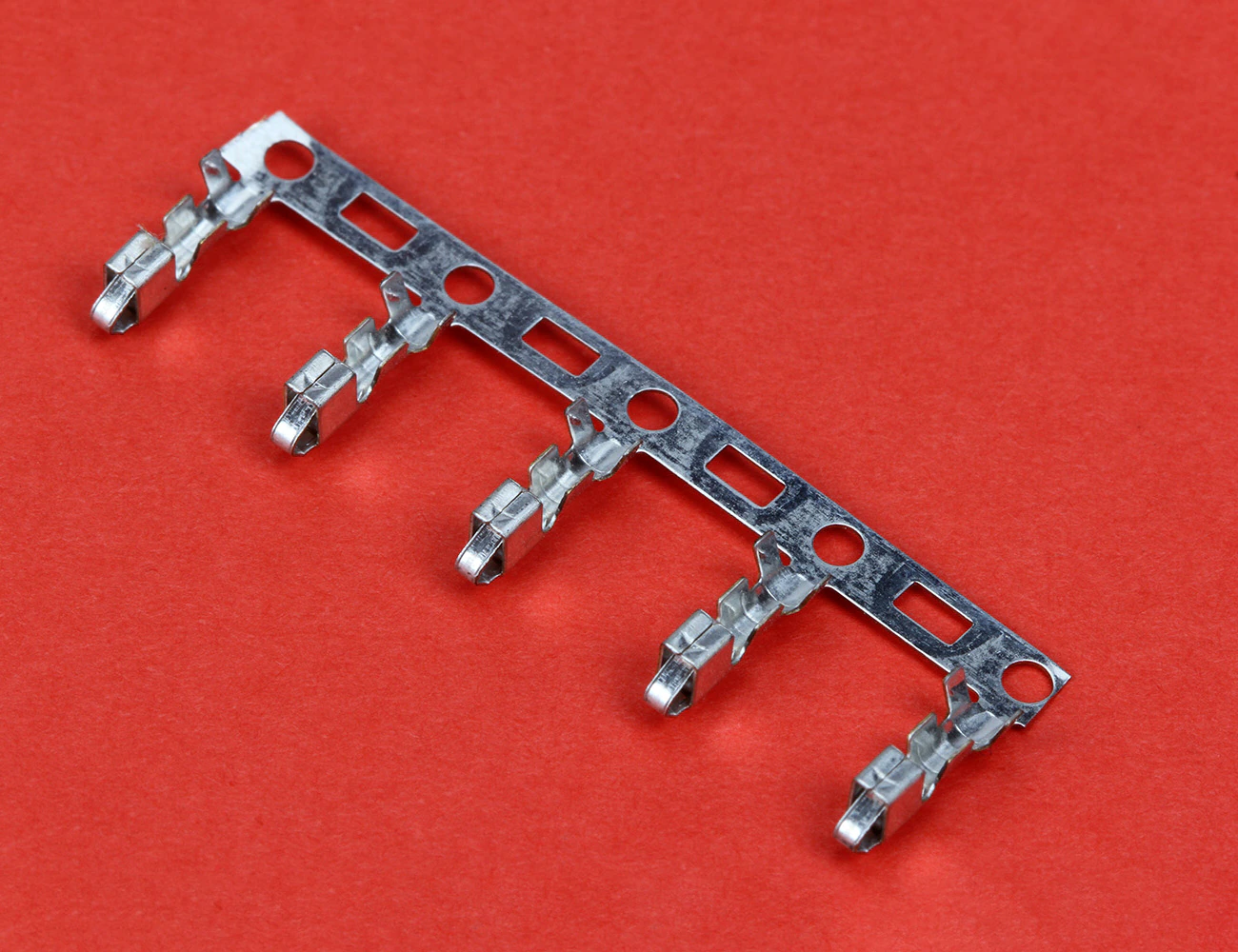

WW250-FTCrimp Terminal Female WW250 Series Connector---Phosphor Bronze-

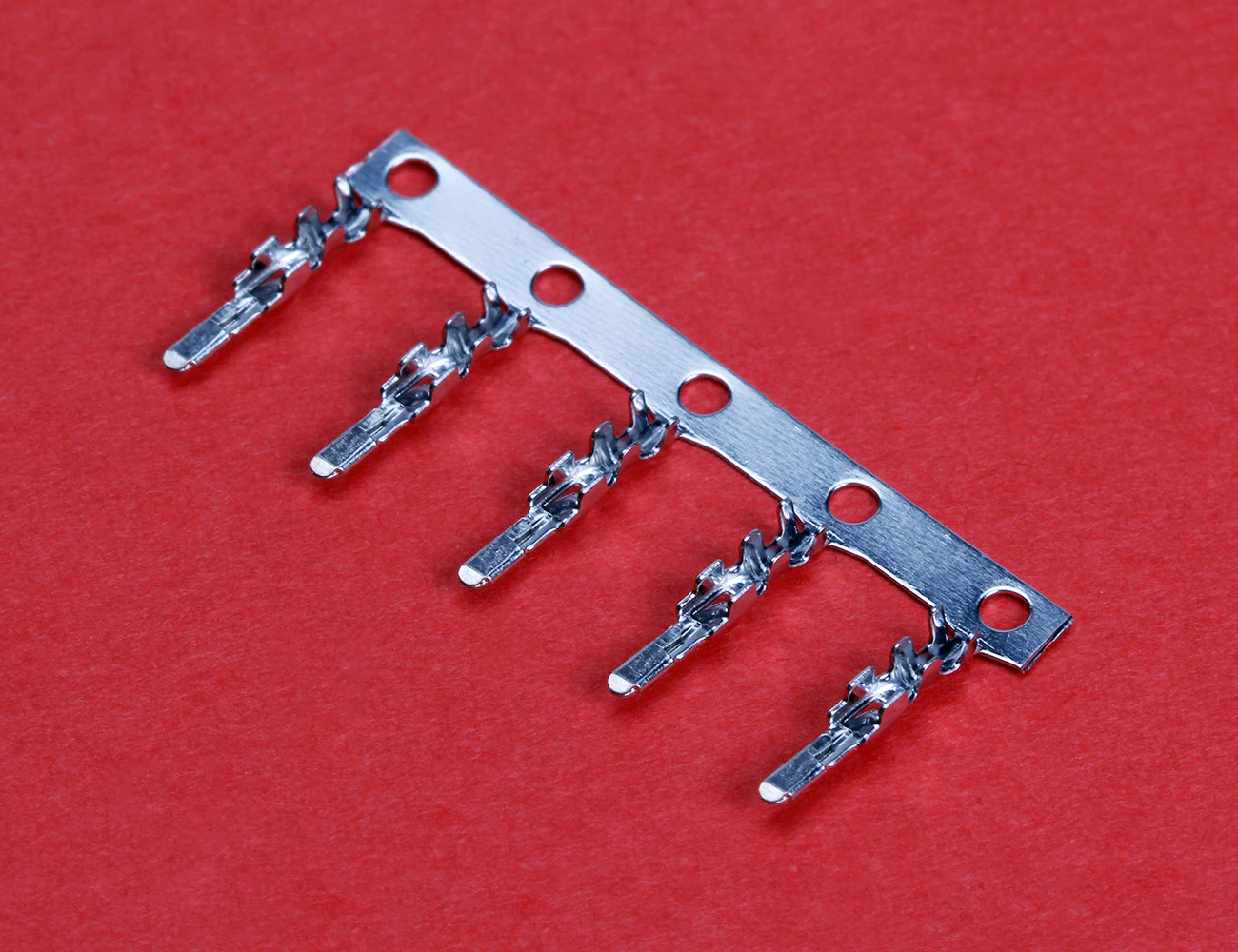

WW250-MTCrimp Terminal Male WW250 Series Connector---Phosphor Bronze-
