Images are for reference only See Product Specifications
Waterproof Connector Solutions

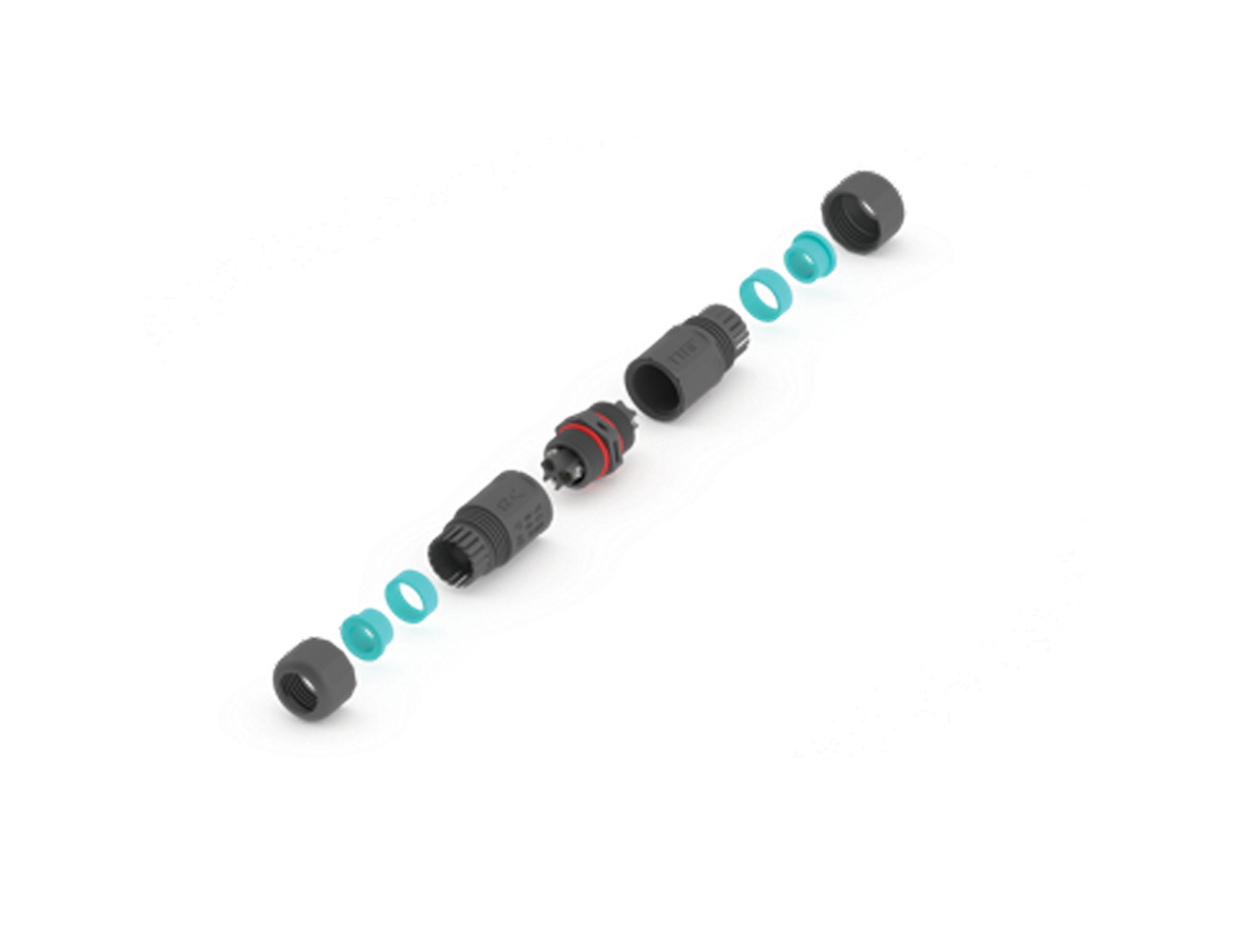

Waterproof OD:14 Straight Connector with Screw Connection
Part number
WPI-0302M20/14 Manufacturer
TTAF Elektronik
| Current Rating | 20A max |
|---|---|
| Voltage Rating | 250VAC max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 14mm |
| IP Rating | IP68 (10 / 60min) |
| Temperature Range | -40°C ~ +85°C |
| Durabillty Valotage | 1500VAC @ 60 s. |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Mold Material | PA6 |
| Contact/Terminal Material | Pirinç-Nikel Kaplama |
| Seal Material | Silicone |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
