Waterproof Connector Solutions

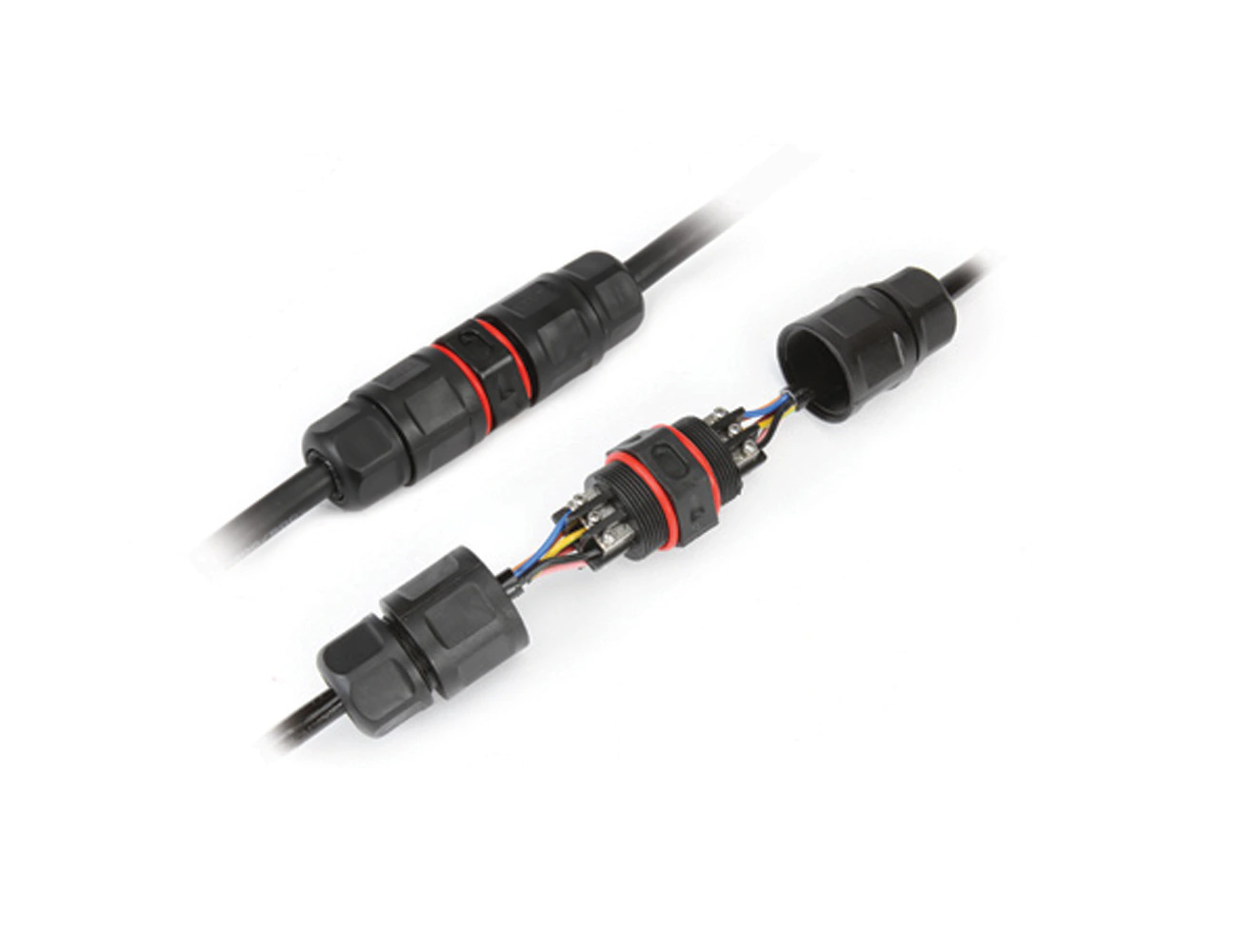

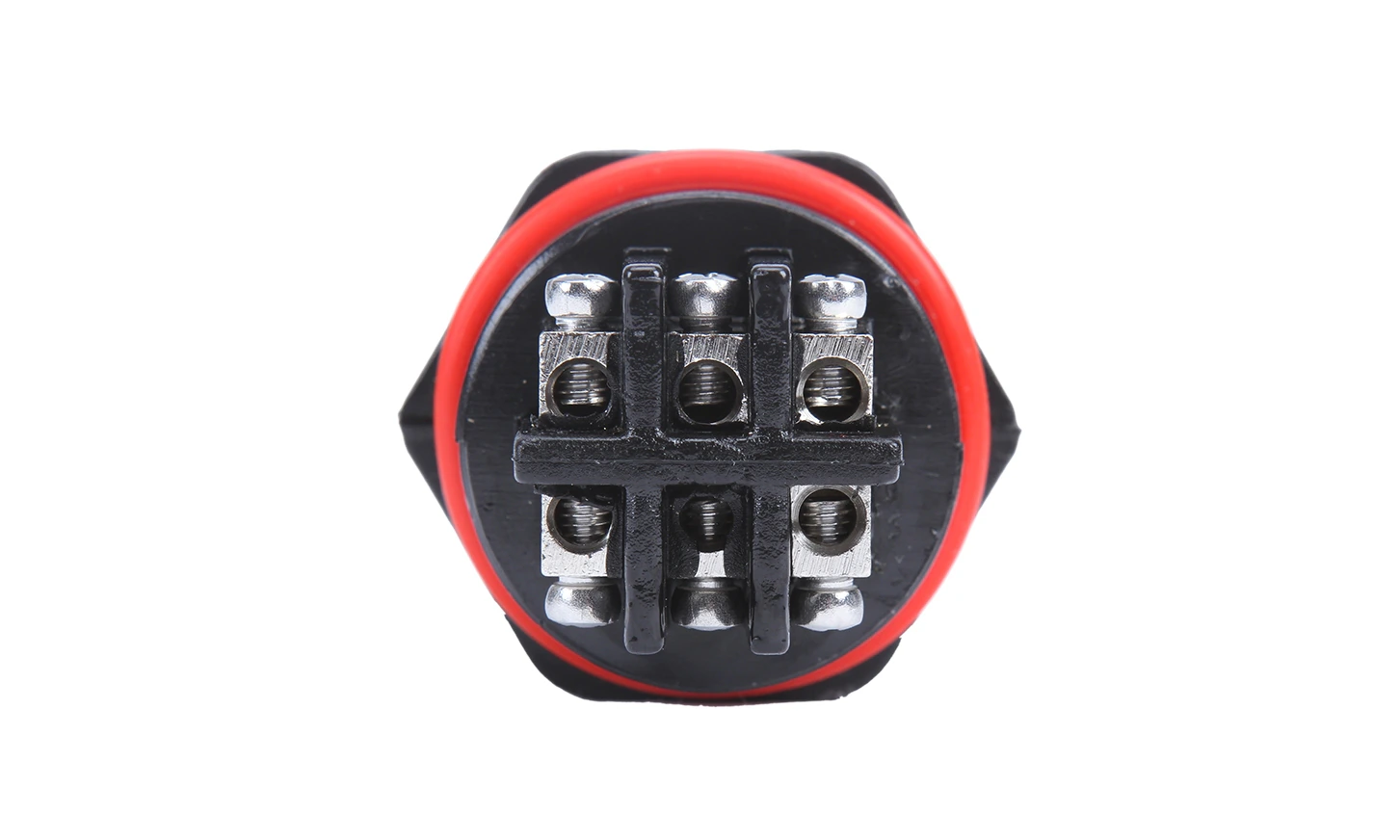

Waterproof 6 Pin Connector With Screw Connection

Part number

0602M25

Manufacturer

TTAF Elektronik

Voltage Rating	250VAC max
Current Rating	25A max
Min Wire Size OD	10mm
Max Wire Size OD	14mm
Max.Cable Cross Section Area	0.75mm2 ~ 4mm2
Contact Resistance	1 mΩ max
Insulation Structure	1000 MΩ at 1000VDC
Mold Material	PA6
IP Class	IP68
Contact/Terminal Material	Nickel-Plated Brass
Seal Material	Silicone
Durability Voltage	1500VAC @ 60 s
