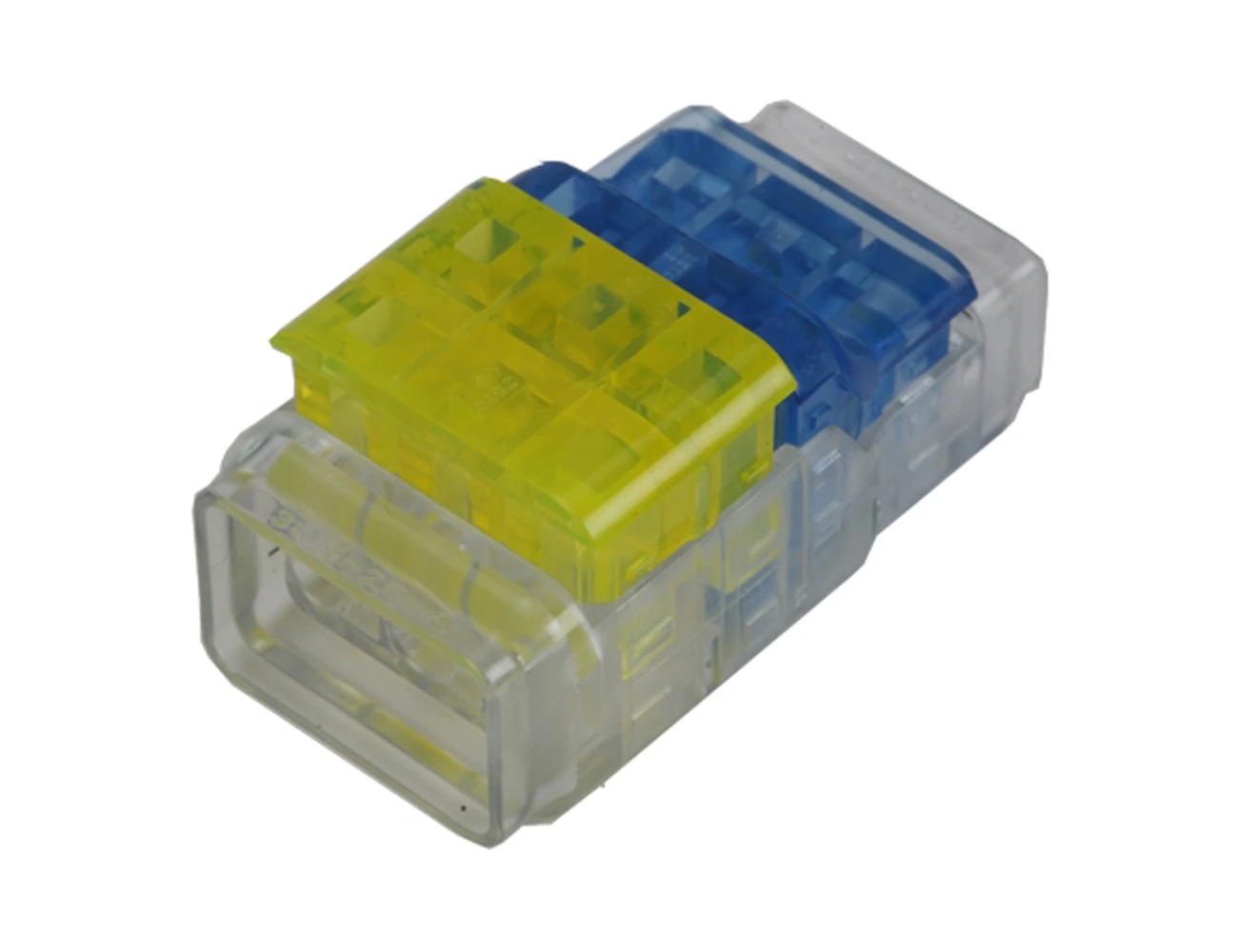

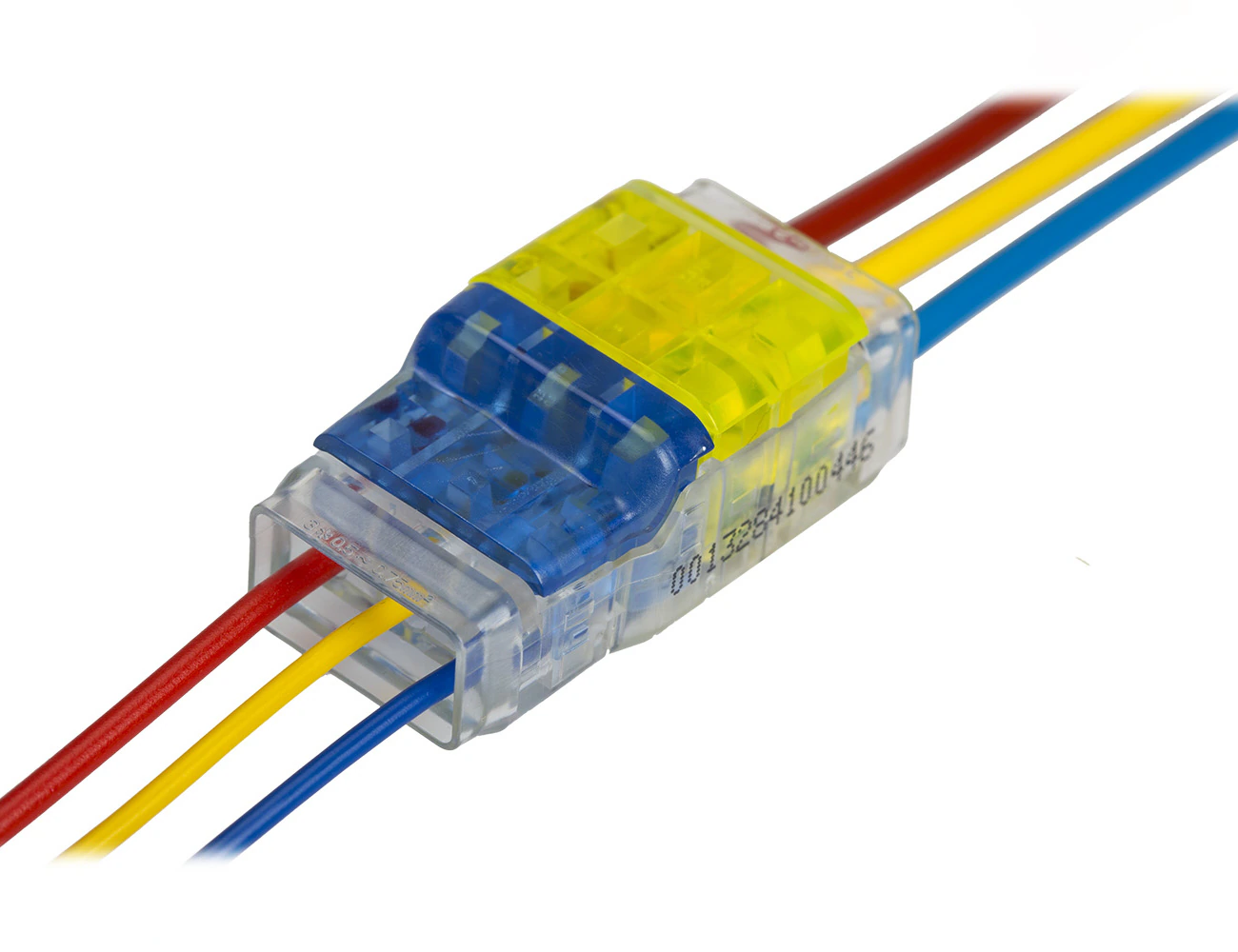

Splice Connectors

Two Way Series 3 to 3 1.5-2.5mm² to 0.5-0.75mm²'

TTAF Elektronik

Images are for reference only See Product Specifications

Splice Connectors

Two Way Series 3 to 3 1.5-2.5mm² to 0.5-0.75mm²'

Part number

LD-1001-4

Manufacturer

TTAF Elektronik

Fast connection solutions 1.5-2.5mm² to (15-13 AWG) 0.5-0.75mm² (20-18 AWG) make your life easier!

Size	44.4x23x16mm
Wire Retention Force	8kg Min. (Wire) 3kg Min. (Wire)

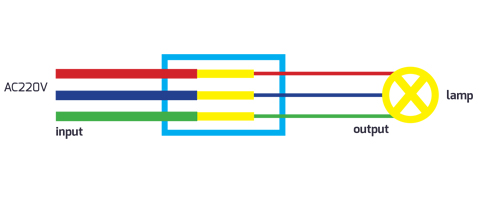

Application Guide	Lamps
Rated Voltage	250V
Rated Current	0.5 mm² - 7A Max. 0.75 mm² - 10.5 A Max.
Applicable Wire Type	All Cables
