Splice Connectors
Two Way Series 1 to 1 1.5-2.5mm² TTAF Elektronik

Images are for reference only See Product Specifications

Splice Connectors

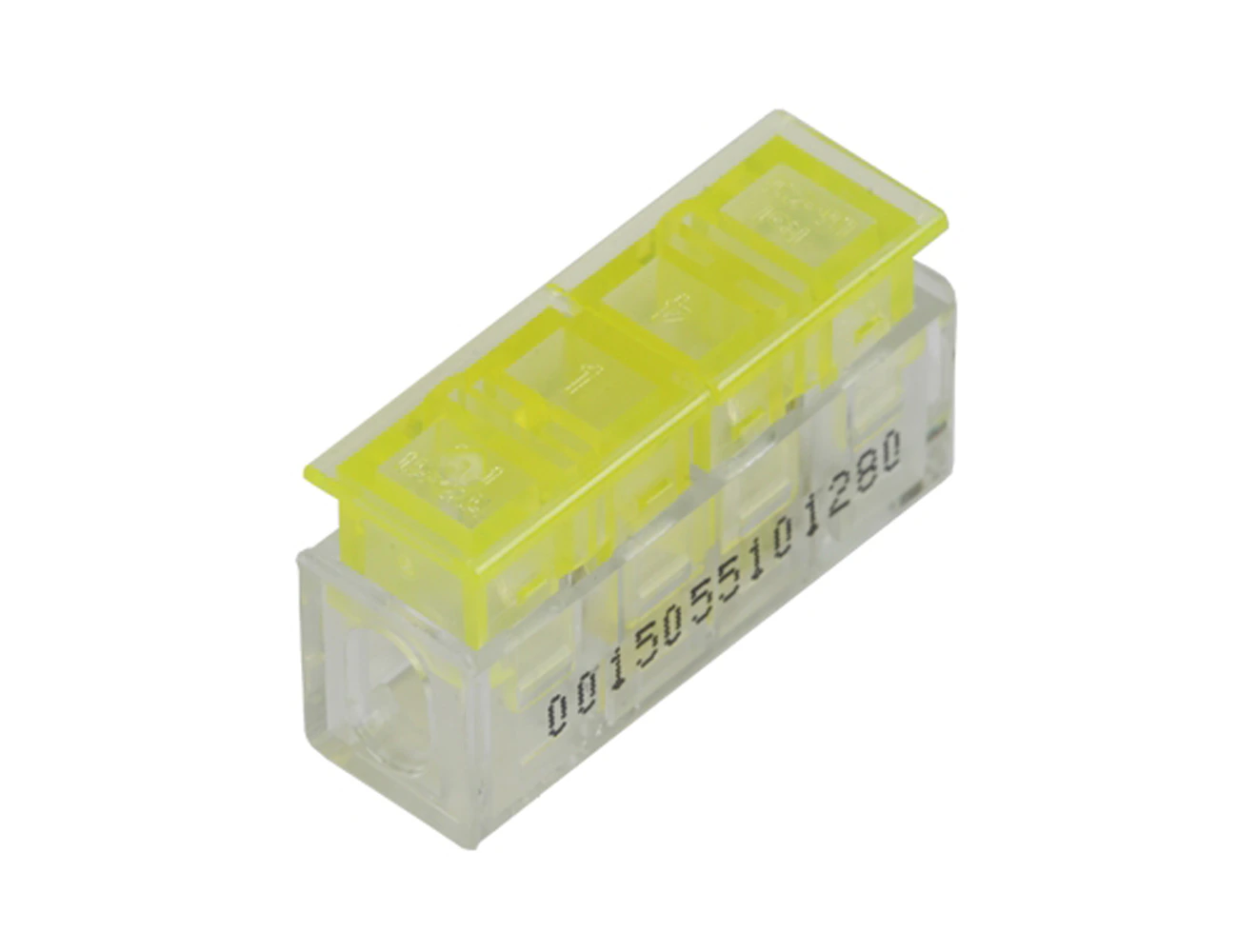

Two Way Series 1 to 1 1.5-2.5mm²

Part number
LD-1001-1
Manufacturer
TTAF Elektronik

Fast connection solutions 1.5-2.5mm² (15-13AWG) make your life easier!

Size29x9.5x11.3 mm
Wire Retention Force8kg Min. (Cable)

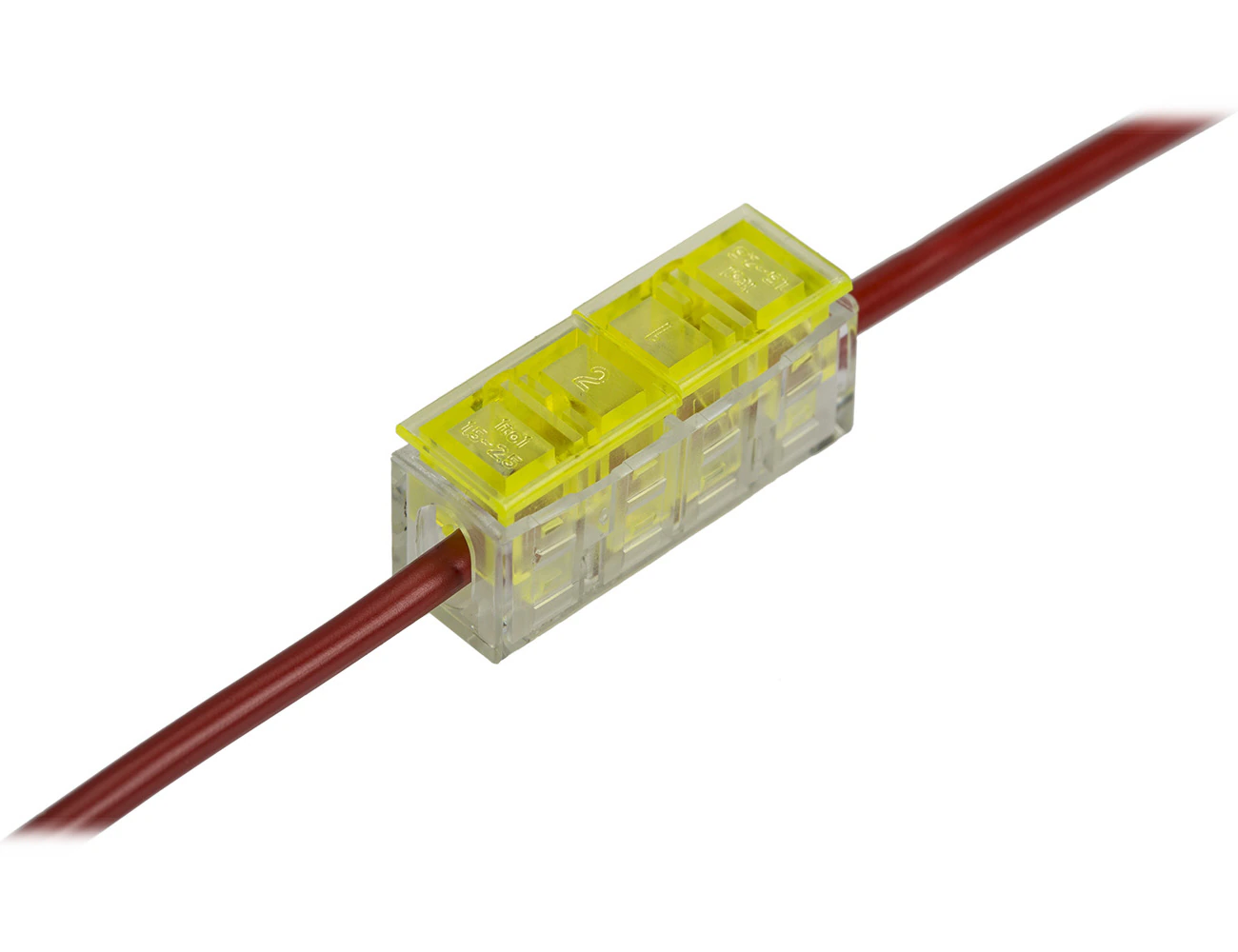

Application GuideWhere Cable Splicing is Required
Rated Voltage250V
Rated Current1.5 mm² - 17.5AMax. 2.5 mm² - 24A Max
Applicable Wire TypeAll Cables
