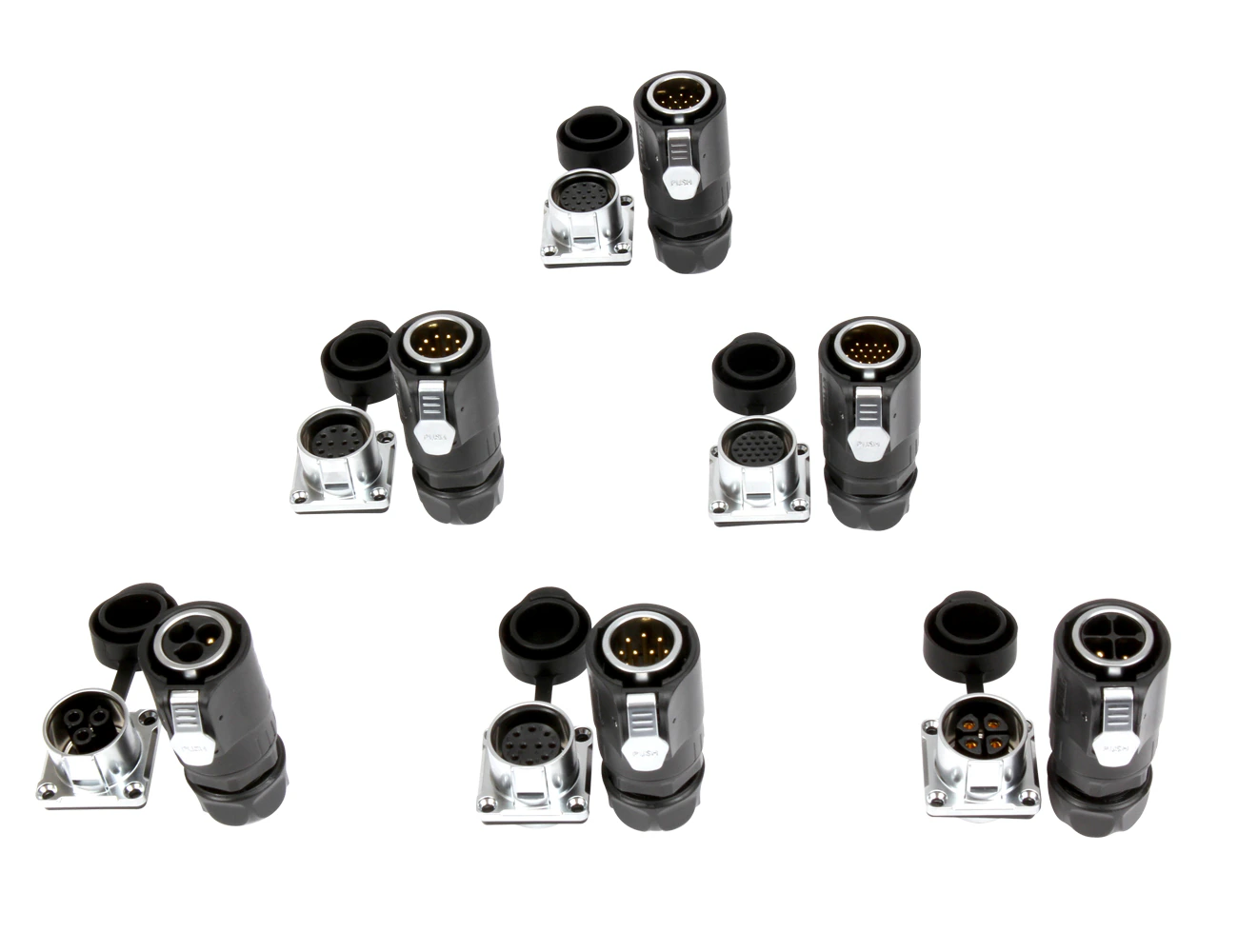

TT30 Series

Part numbers

TT30TT30-07FM-PE-01-001TT30-03F-PE-01-001TT30-03M-SX-01-001TT30-04F-PE-01-001TT30-04M-SX-01-001TT30-10F-PE-01-001TT30-10M-SX-01-001TT30-12F-PE-01-001TT30-12M-SX-01-001TT30-19F-PE-01-001TT30-19M-SX-01-001TT30-24F-PE-01-001TT30-24M-SX-01-001

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

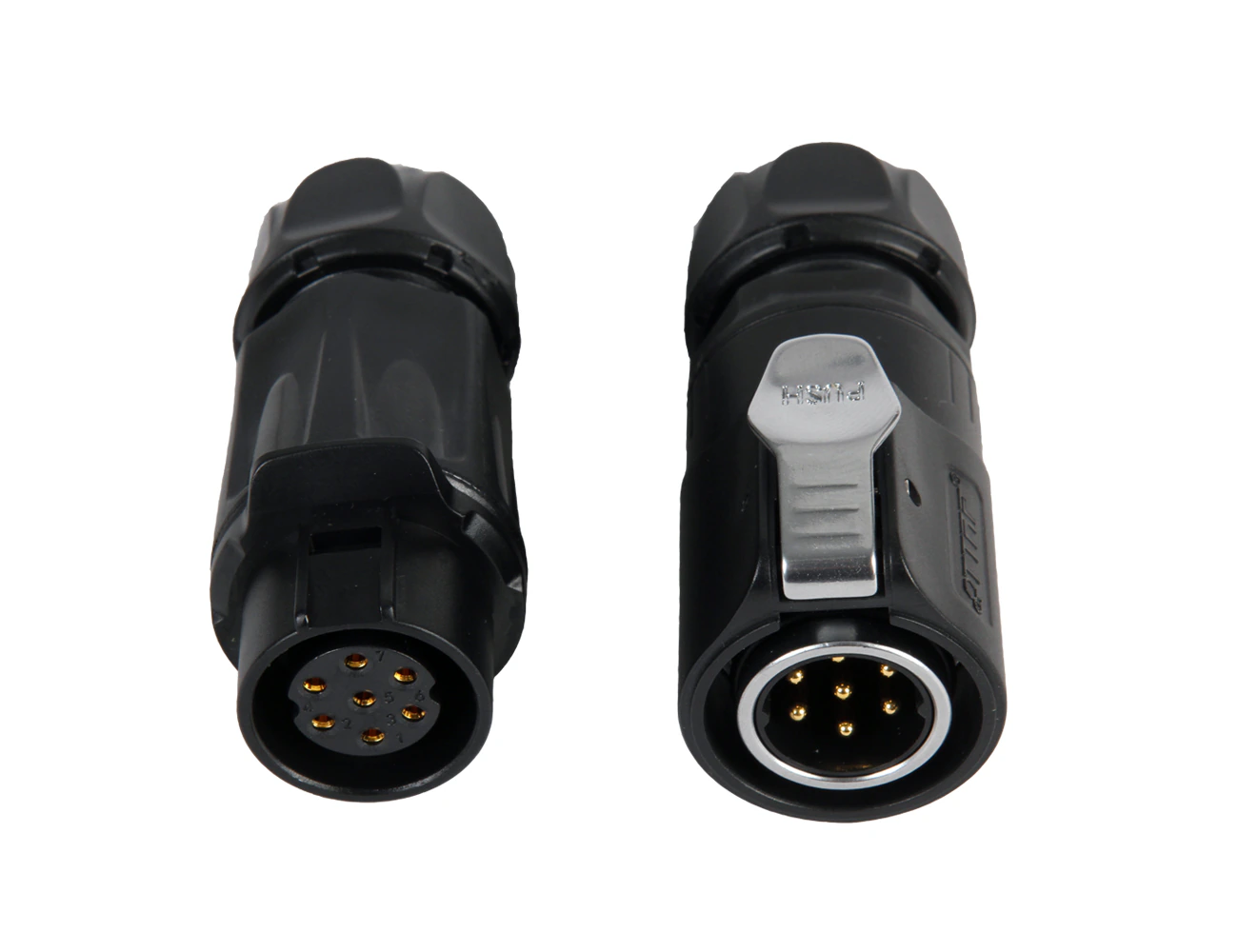

TT30-07FM-PE-01-001	7 PIN FEMALE MALE CONNECTOR TYPE	22A	500V	2500V	PBT	-40°C ∼ +80°C
TT30-03F-PE-01-001	3 Panel Type Female	22A	500V	2500V	PBT	-40°C ∼ +80°C
TT30-03M-SX-01-001	3 Cable Type Male	22A	500V	2500V	PBT	-40°C ∼ +80°C
TT30-04F-PE-01-001	4 Panel Type Female	22A	500V	2500V	PBT	-40°C ∼ +80°C
TT30-04M-SX-01-001	4 Cable Type Male	22A	500V	2500V	PBT	-40°C ∼ +80°C
TT30-10F-PE-01-001	10 Panel Type Female	10A	250V	2500V	PBT	-40°C ∼ +80°C
TT30-10M-SX-01-001	10 Cable Type Male	10A	250V	2500V	PBT	-40°C ∼ +80°C
TT30-12F-PE-01-001	12 Panel Type Female	10A	250V	2500V	PBT	-40°C ∼ +80°C
TT30-12M-SX-01-001	12 Cable Type Male	10A	250V	2500V	PBT	-40°C ∼ +80°C
TT30-19F-PE-01-001	19 Panel Type Female	3A	125V	1500V	PBT	-40°C ∼ +80°C
TT30-19M-SX-01-001	19 Cable Type Male	3A	125V	1500V	PBT	-40°C ∼ +80°C
TT30-24F-PE-01-001	24 Cable Type Female	3A	125V	1500V	PBT	-40°C ∼ +80°C
TT30-24M-SX-01-001	24 Cable Type Male	3A	125V	1500V	PBT	-40°C ∼ +80°C
