Card Edge
Solder to Cable Type Series TTAF Elektronik

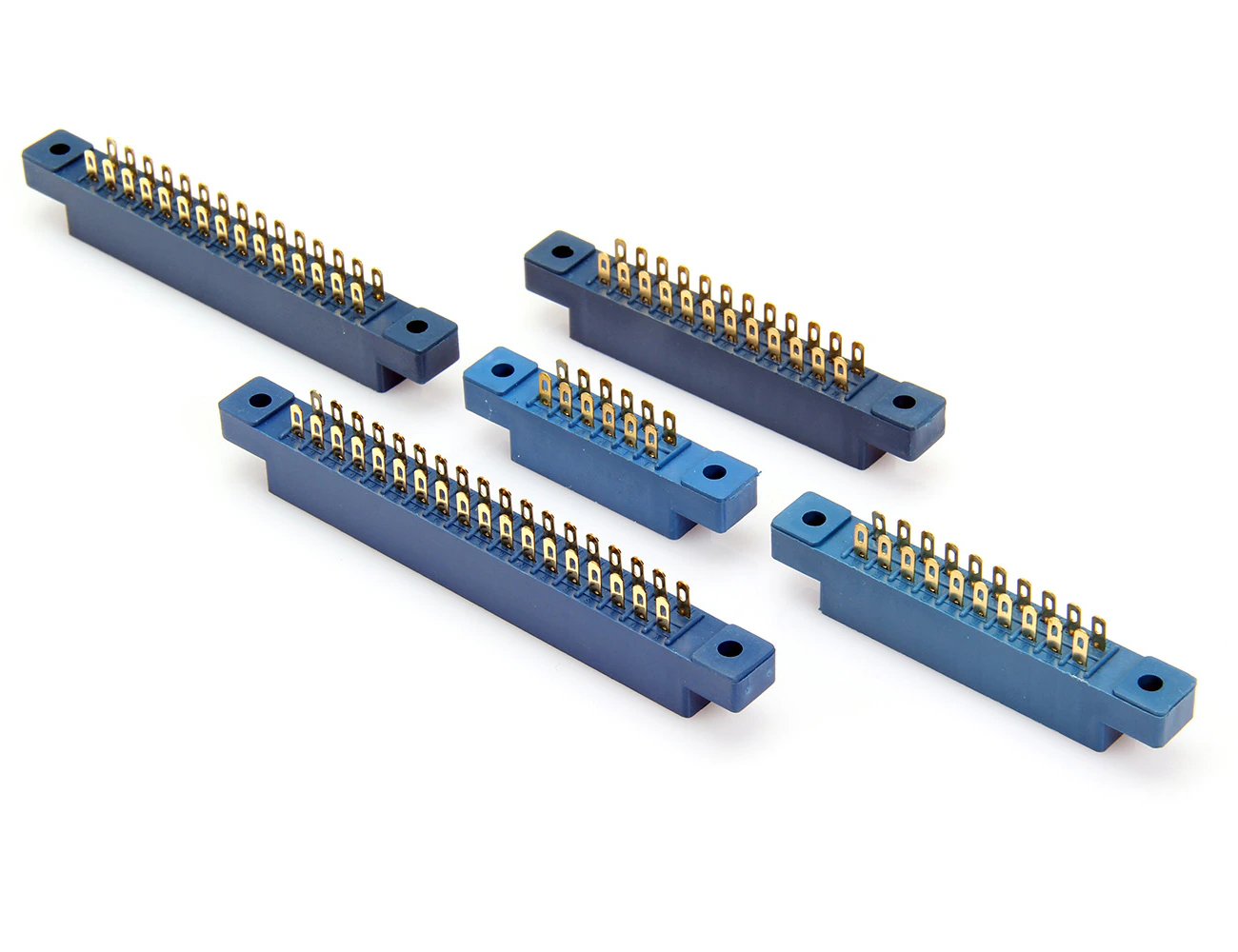

Images are for reference only See Product Specifications

Card Edge

Solder to Cable Type Series

Part numbers
LW-2x06SLW-2x10SLW-2x12SLW-2x15SLW-2x18SLW-2x22SLW-2x28SLW-2x30SLW-2x36S
Manufacturer
TTAF Elektronik

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody Material
LW-2x06S2 x 6 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x10S2 x 10 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x12S2 x 12 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x15S2 x 15 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x18S2 x 18 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x22S2 x 22 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x28S2 x 28 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x30S2 x 30 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x36S2 x 36 Pin 3.96 mm Double Row Cable Solder Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
