Wire to Board Signal
Signal 5558 Series TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 5558 Series

Part numbers
5558 Series5558-02S5558-02R5558-02H5558-04S5558-04R5558-04H5558-06S5558-06R5558-06H5558-08S5558-08R5558-08H5558-10S5558-10R5558-10H5558-12S5558-12R5558-12H5558-14S5558-14R5558-14H5558-16S5558-16R5558-16H5558-18S5558-18R5558-18H5558-20S5558-20R5558-20H5558-22S5558-22R5558-22H5558-24S5558-24R5558-24H5558-FT
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24 Datasheet 25

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

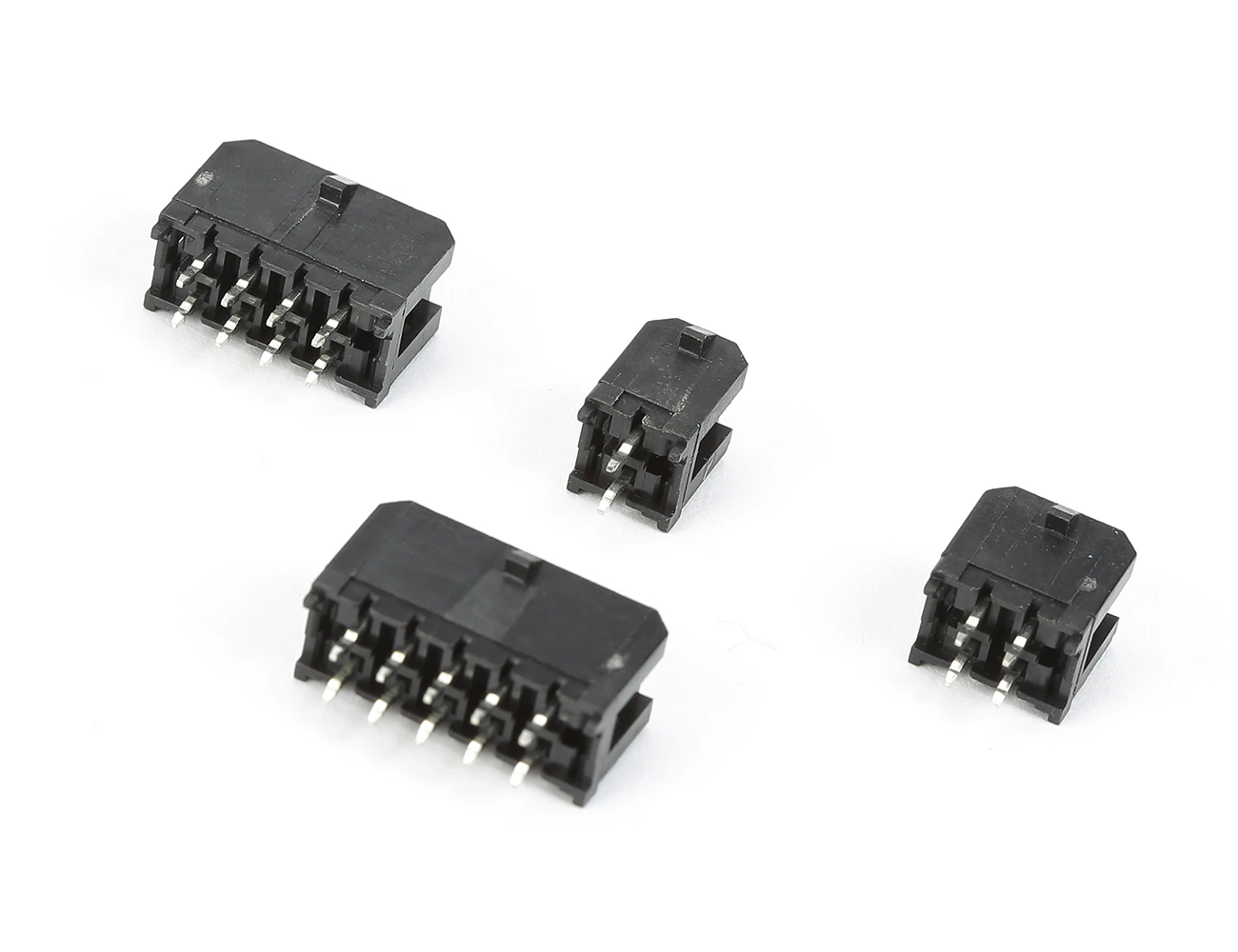

5558-02S2 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C

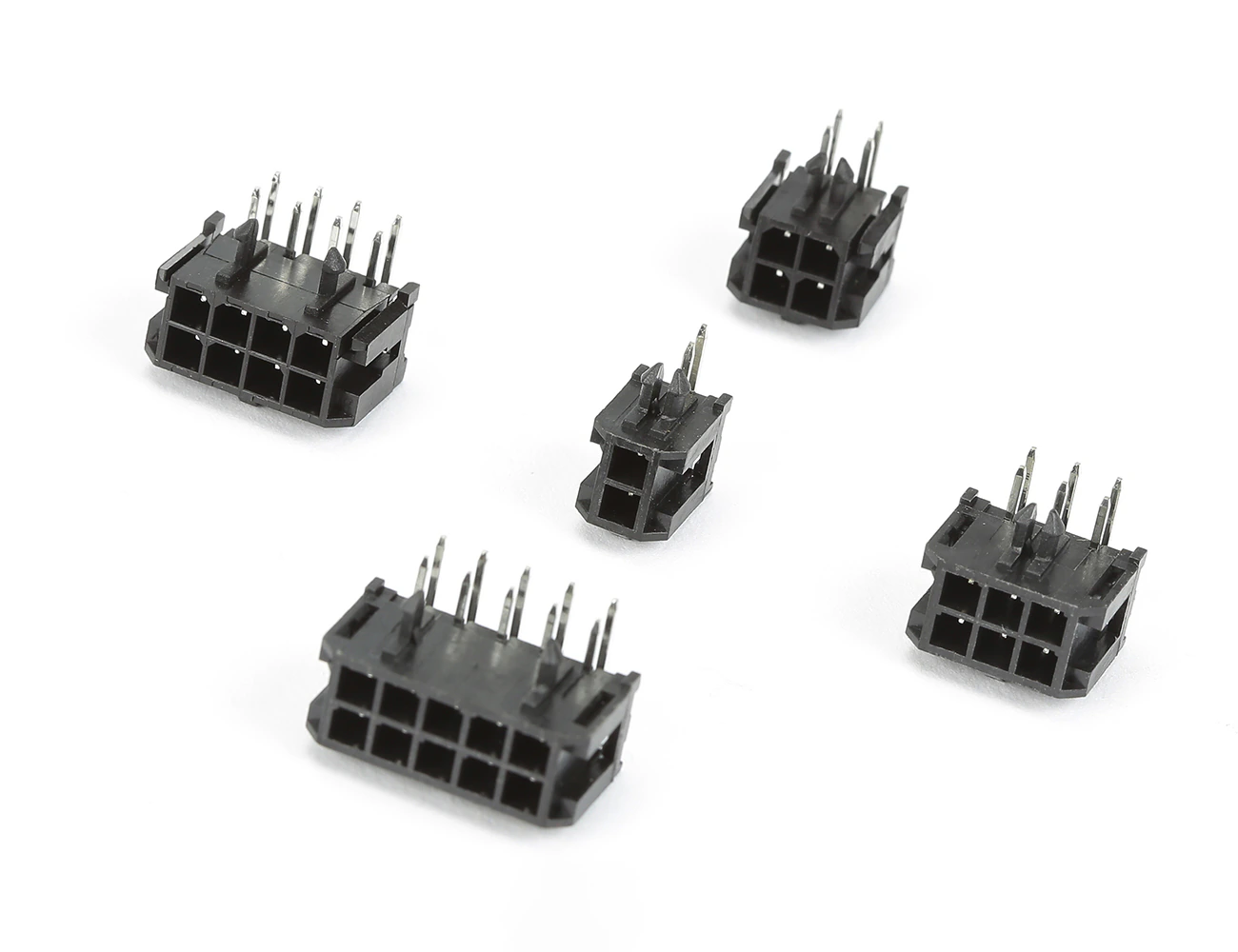

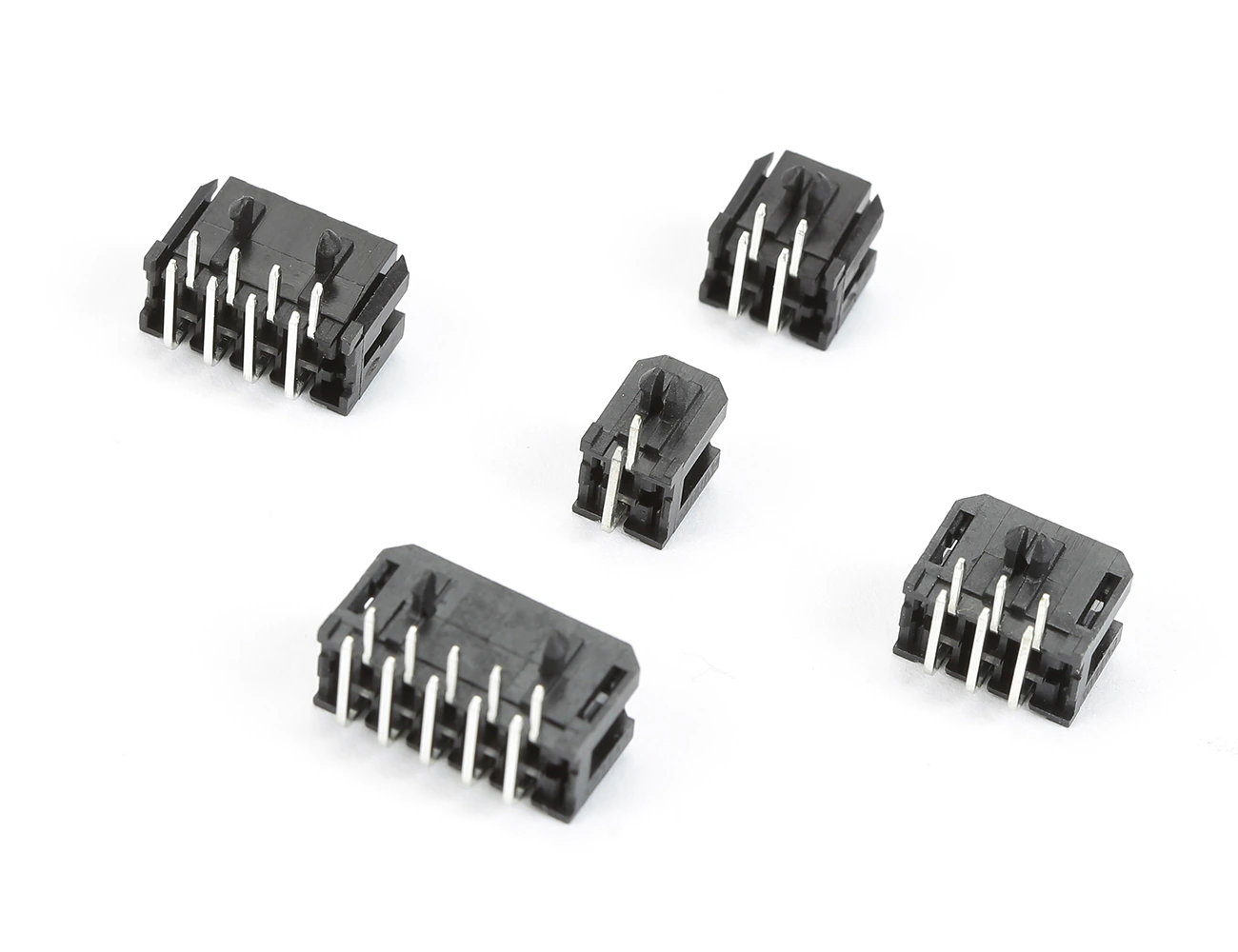

5558-02R2 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C

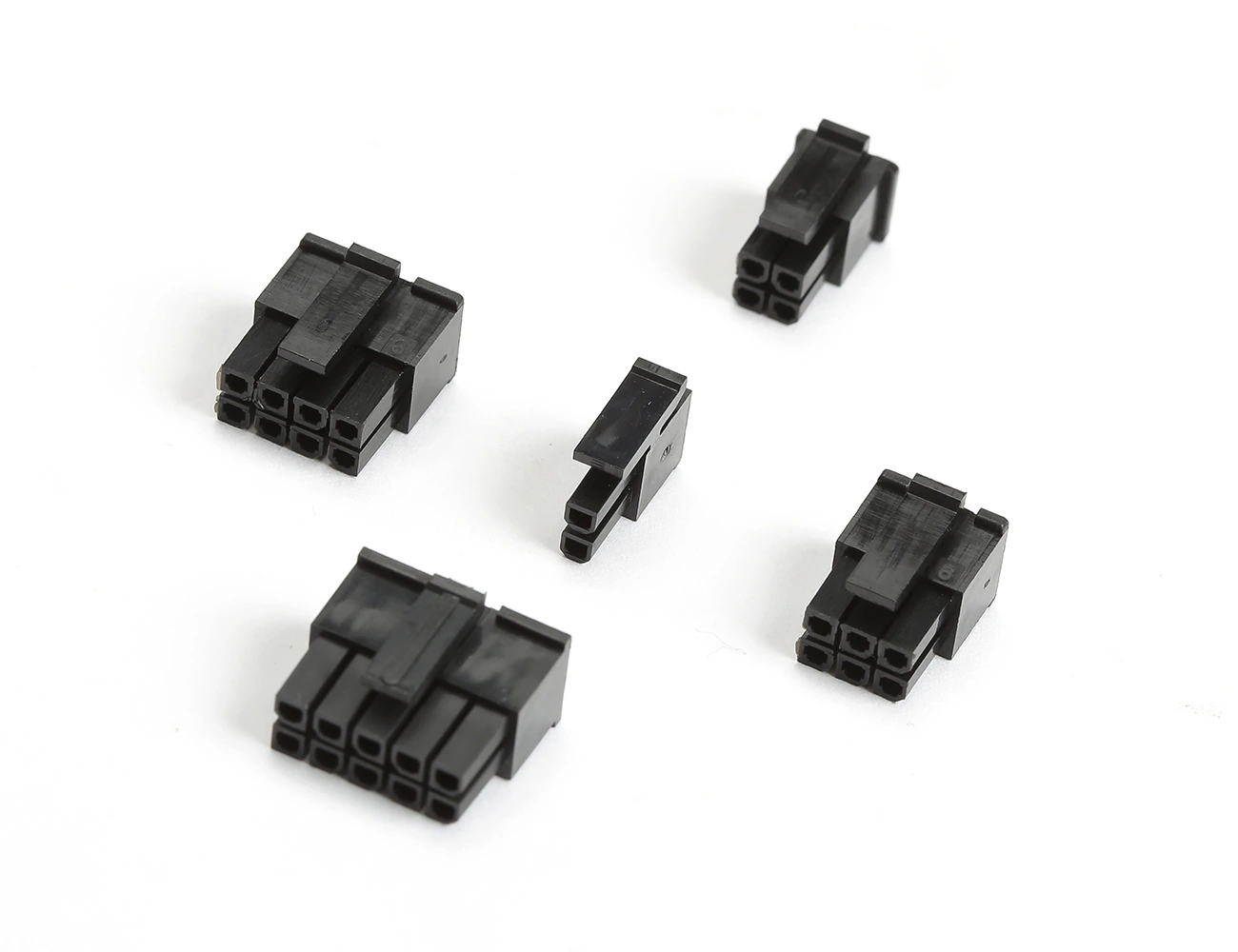

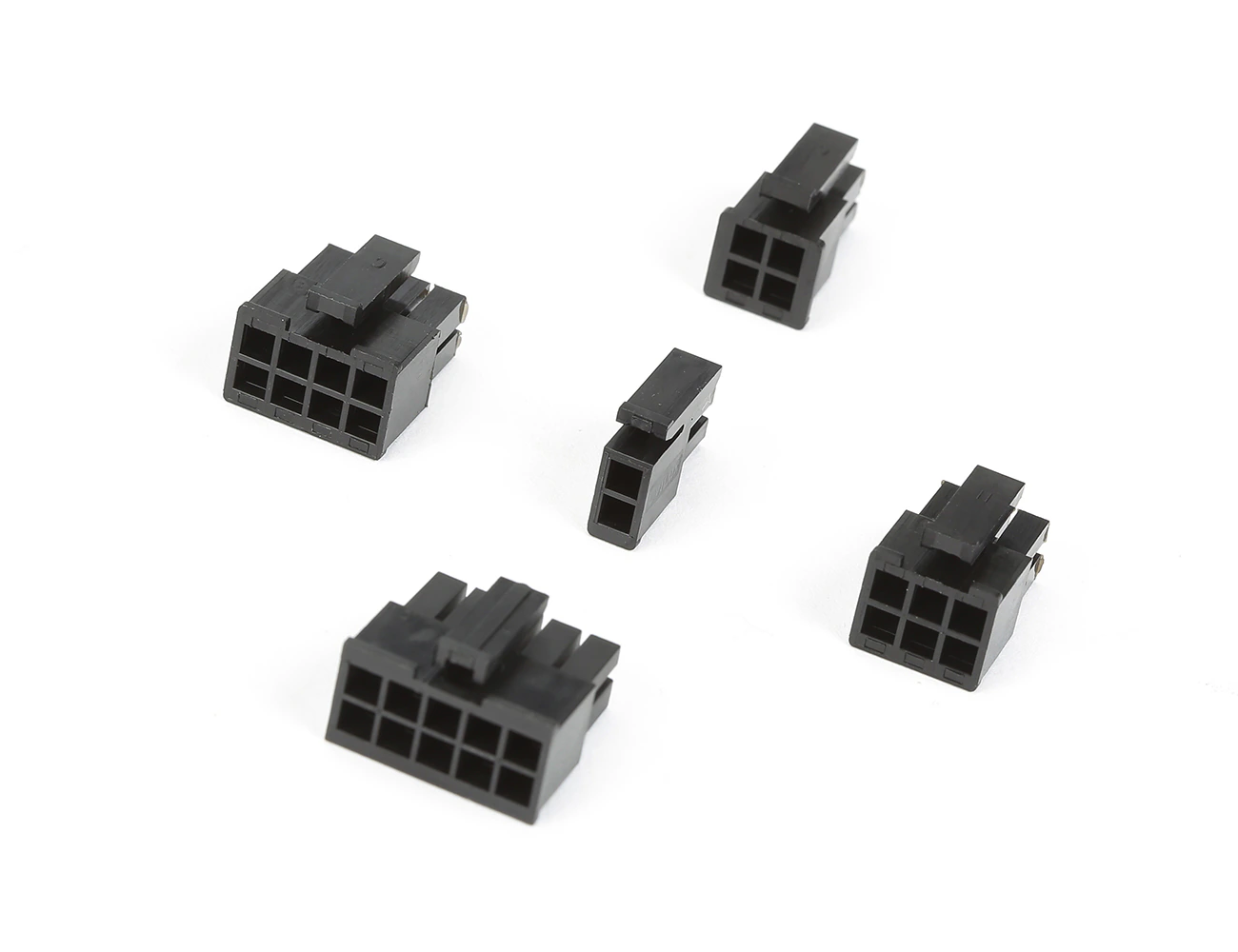

5558-02H2 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-04S4 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-04R4 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-04H4 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-06S6 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-06R6 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-06H6 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-08S8 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-08R8 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-08H8 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-10S10 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-10R10 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-10H10 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-12S12 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-12R12 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-12H12 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-14S14 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-14R14 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-14H14 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-16S16 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-16R16 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-16H16 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-18S18 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-18R18 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-18H18 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-20S20 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-20R20 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-20H20 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-22S22 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-22R22 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-22H22 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-24S24 Pin 3.00mm Double Row DIP Pcb Type Male Upright Micro Fit2A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-24R24 Pin 3.00mm Double Row DIP Pcb Type Male 90º Micro Fit5A250V1000VAC @ 60 sNylon 66 UL94V-0-25°C ~ +85°C
5558-24H24 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

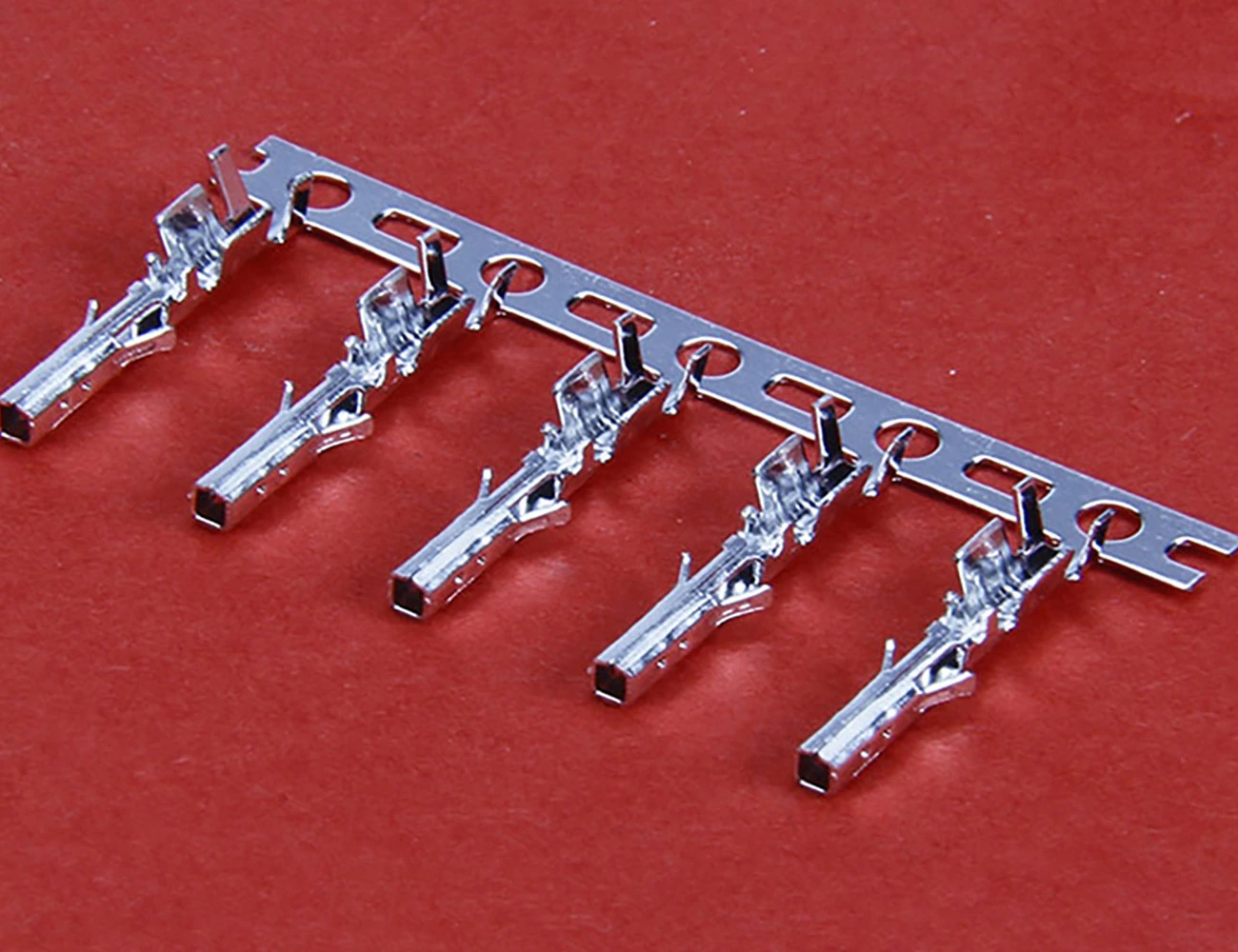

5558-FTCrimp Terminal Female-----
