Wire to Board Signal
Signal 200G1 Series TTAF Elektronik

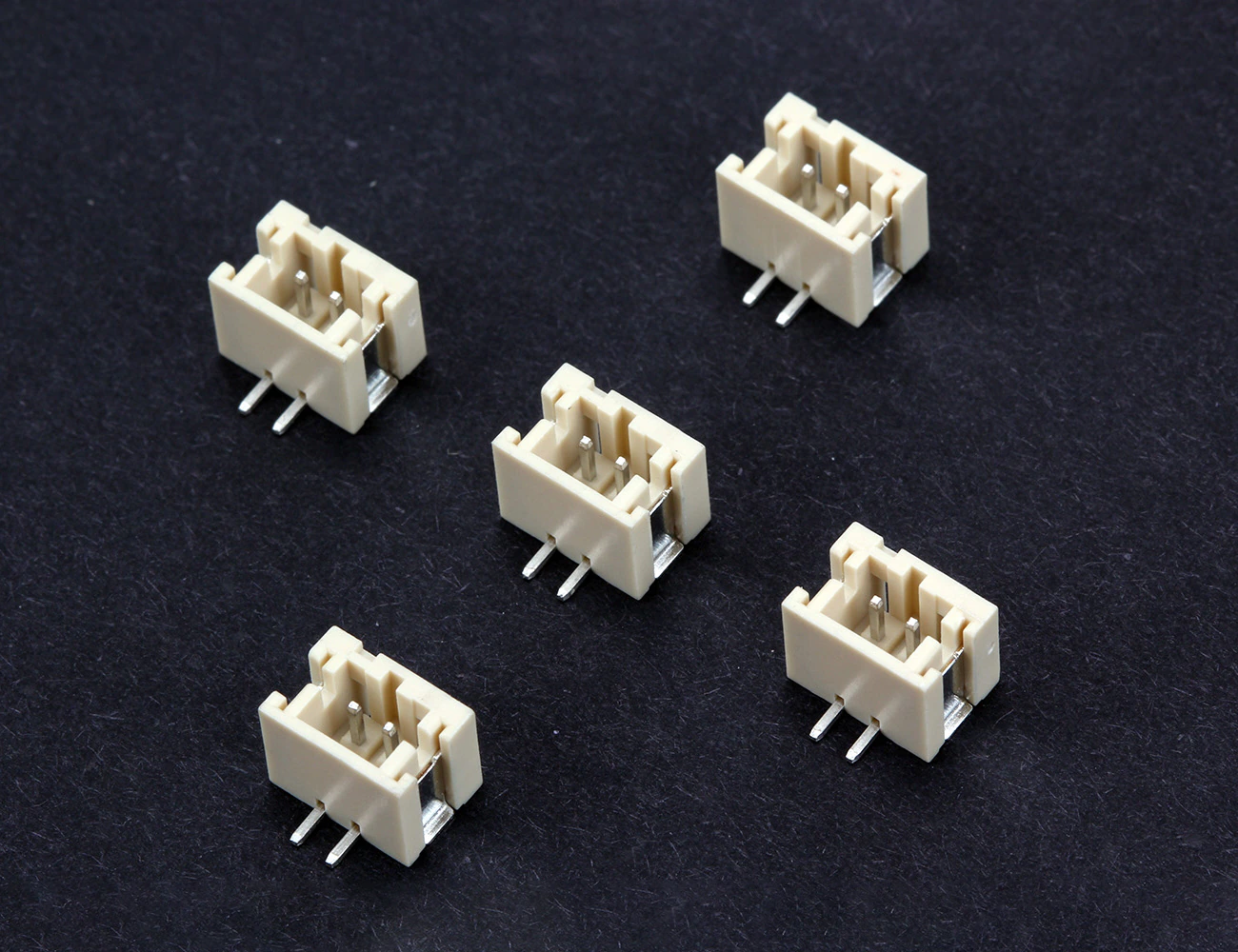

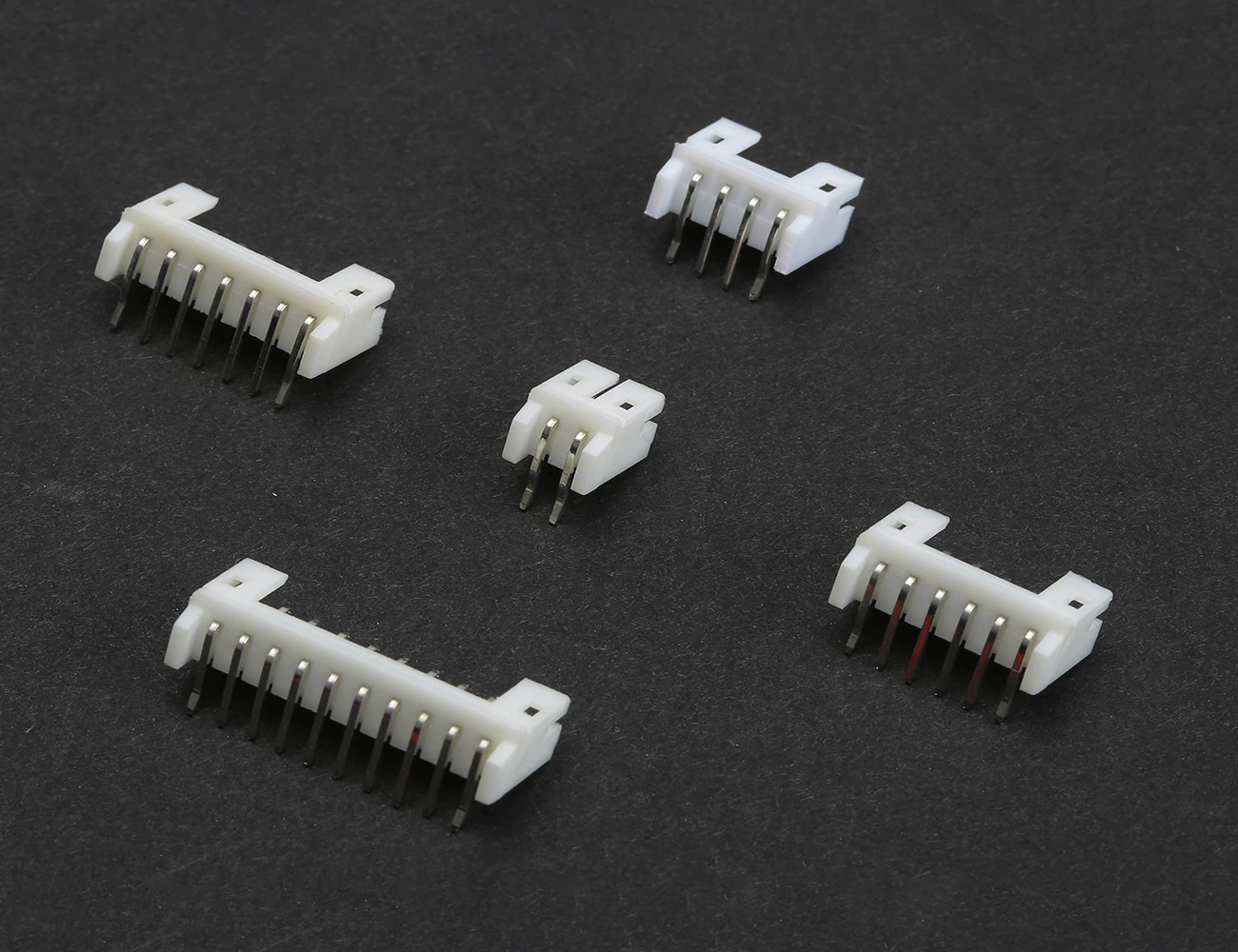

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 200G1 Series

Part numbers
200G1 Series200G1-02R200G1-02S200G1-02SP200G1-02RP200G1-02H200G1-03R200G1-03S200G1-03SP200G1-03RP200G1-03H200G1-04R200G1-04S200G1-04SP200G1-04RP200G1-04H200G1-05R200G1-05S200G1-05SP200G1-05RP200G1-05H200G1-06R200G1-06S200G1-06SP200G1-06RP200G1-07R200G1-07S200G1-07SP200G1-07RP200G1-07H200G1-08R200G1-08S200G1-08SP200G1-08RP200G1-08H200G1-09R200G1-09S200G1-09SP200G1-09RP200G1-09H200G1-10R200G1-10S200G1-10SP200G1-10RP200G1-10H200G1-11R200G1-11S200G1-11SP200G1-11RP200G1-11H200G1-12R200G1-12S200G1-12SP200G1-12RP200G1-12H200G1-13R200G1-13S200G1-13SP200G1-13RP200G1-13H200G1-14S200G1-14SP200G1-14RP200G1-14H200G1-15R200G1-15S200G1-15SP200G1-15RP200G1-15H200G1-16R200G1-16SP200G1-16RP200G1-16H200G1-TP
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24 Datasheet 25 Datasheet 26 Datasheet 27 Datasheet 28 Datasheet 29 Datasheet 30 Datasheet 31 Datasheet 32 Datasheet 33 Datasheet 34 Datasheet 35 Datasheet 36 Datasheet 37 Datasheet 38 Datasheet 39 Datasheet 40 Datasheet 41 Datasheet 42 Datasheet 43 Datasheet 44 Datasheet 45

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

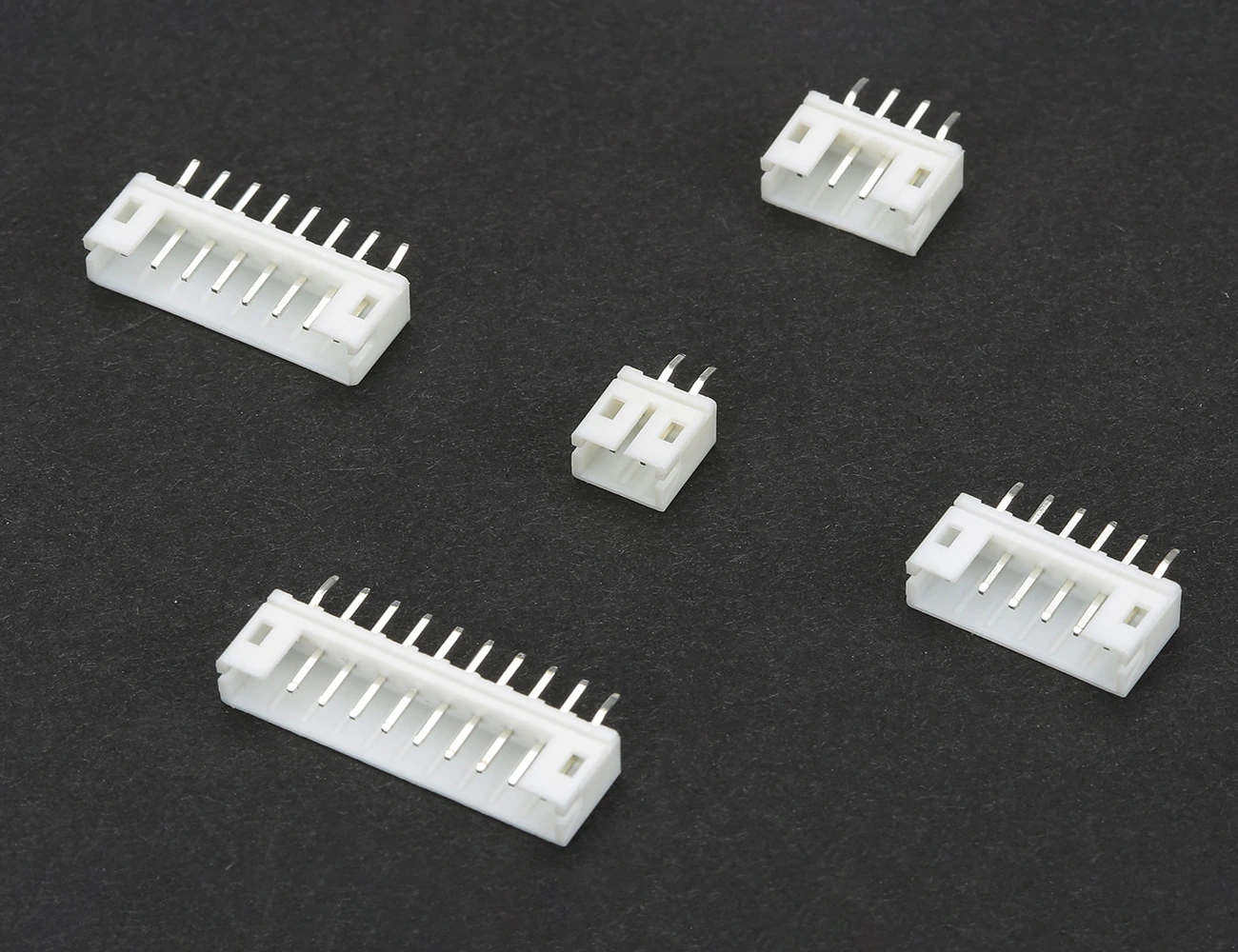

200G1-02R2 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

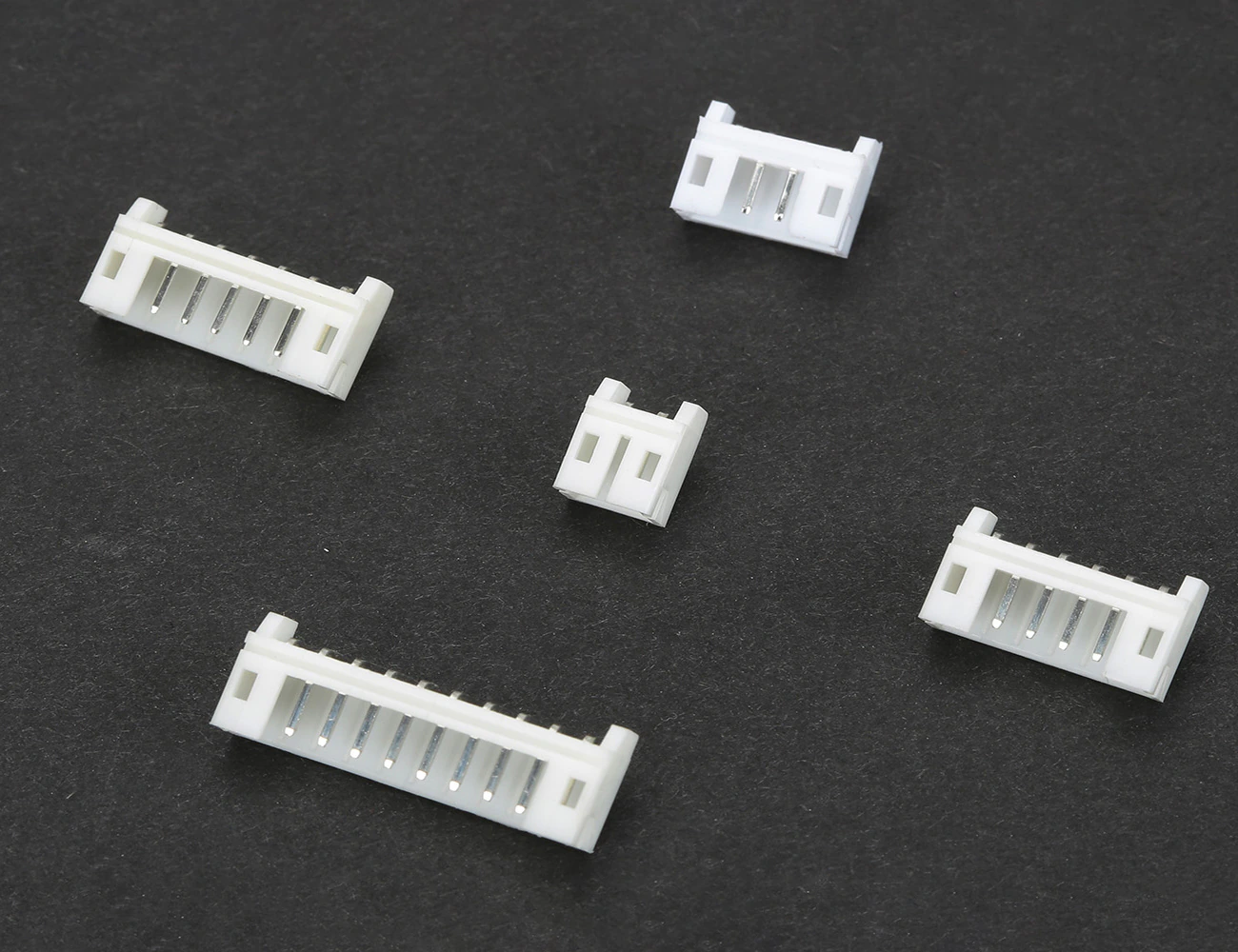

200G1-02S2 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

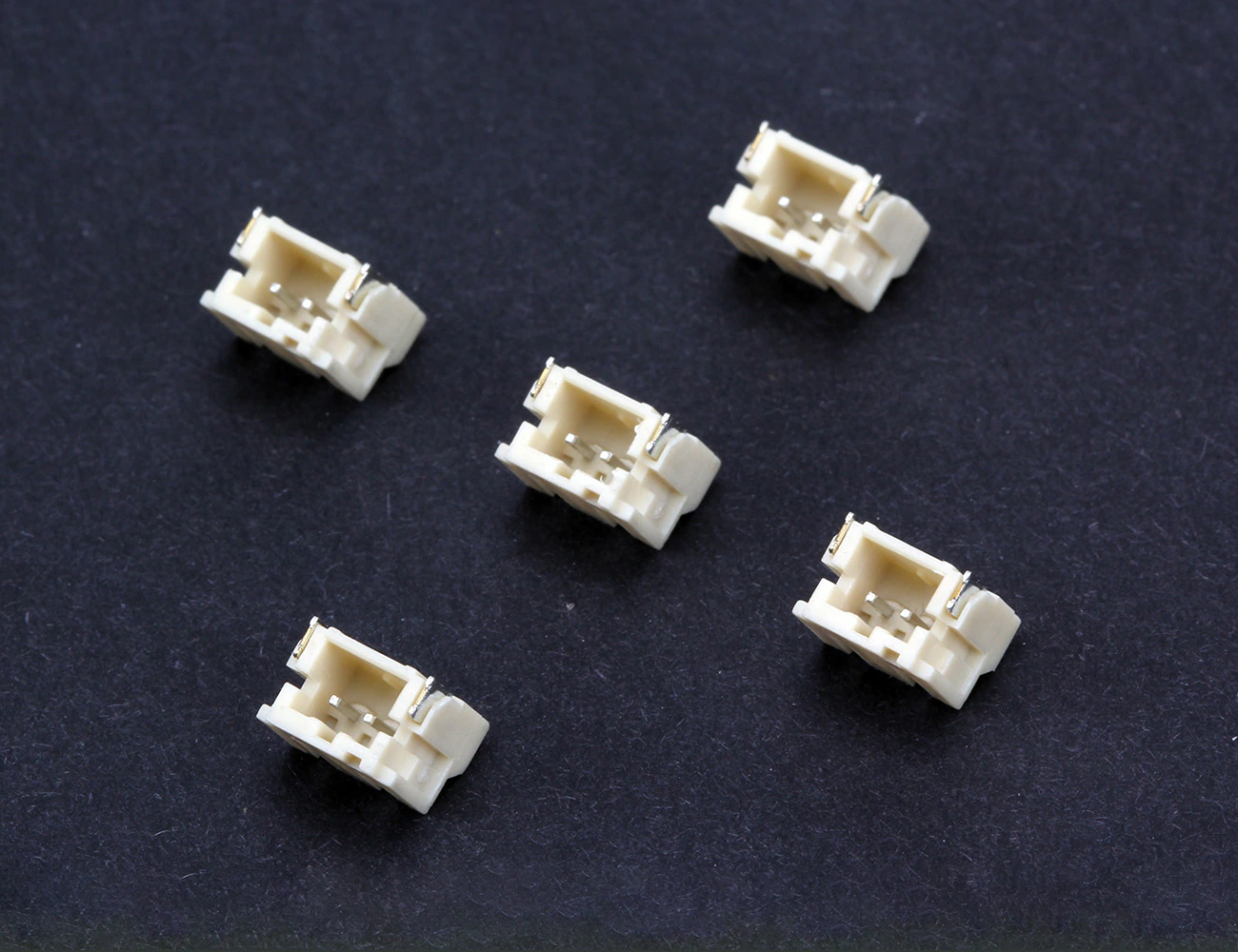

200G1-02SP2 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C

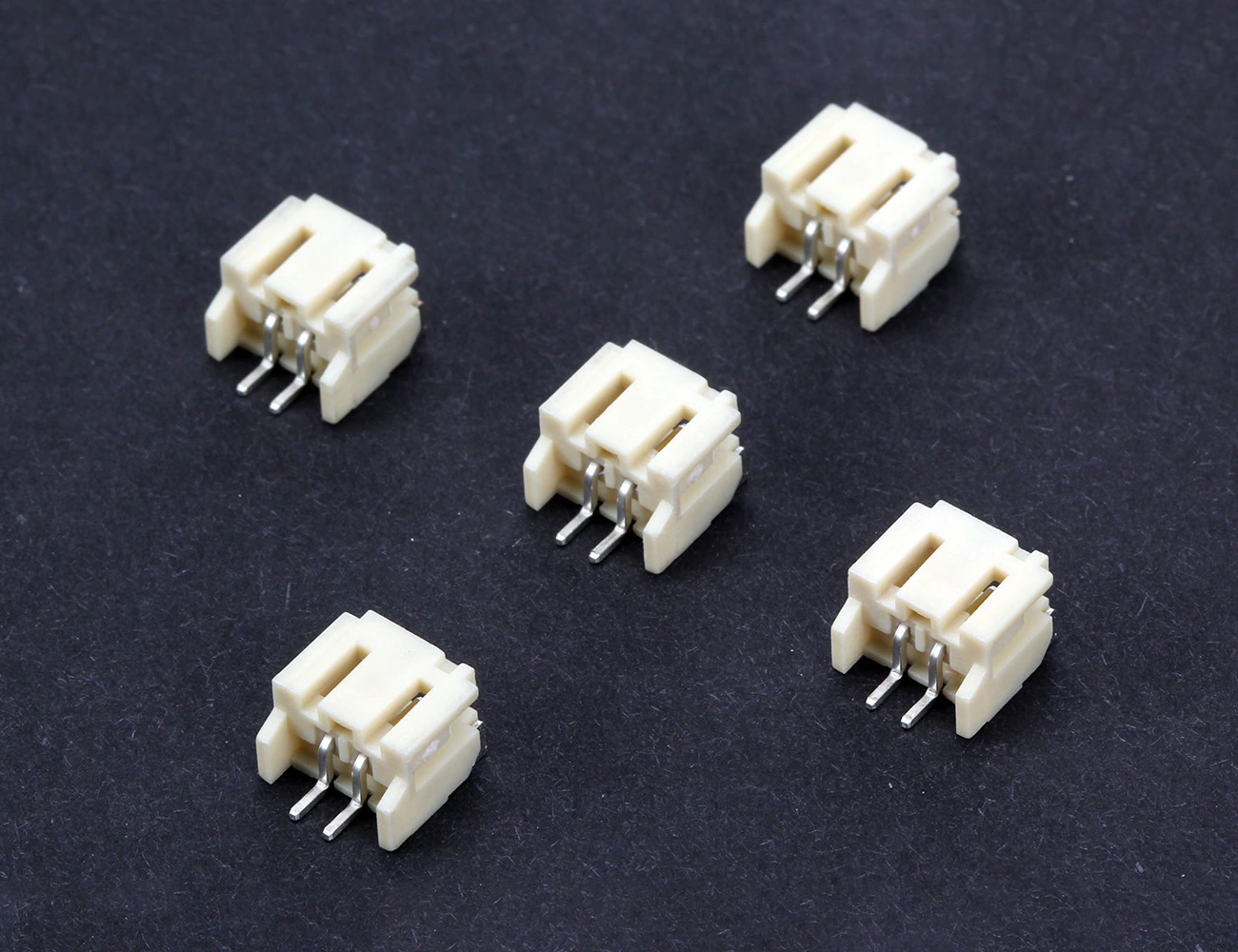

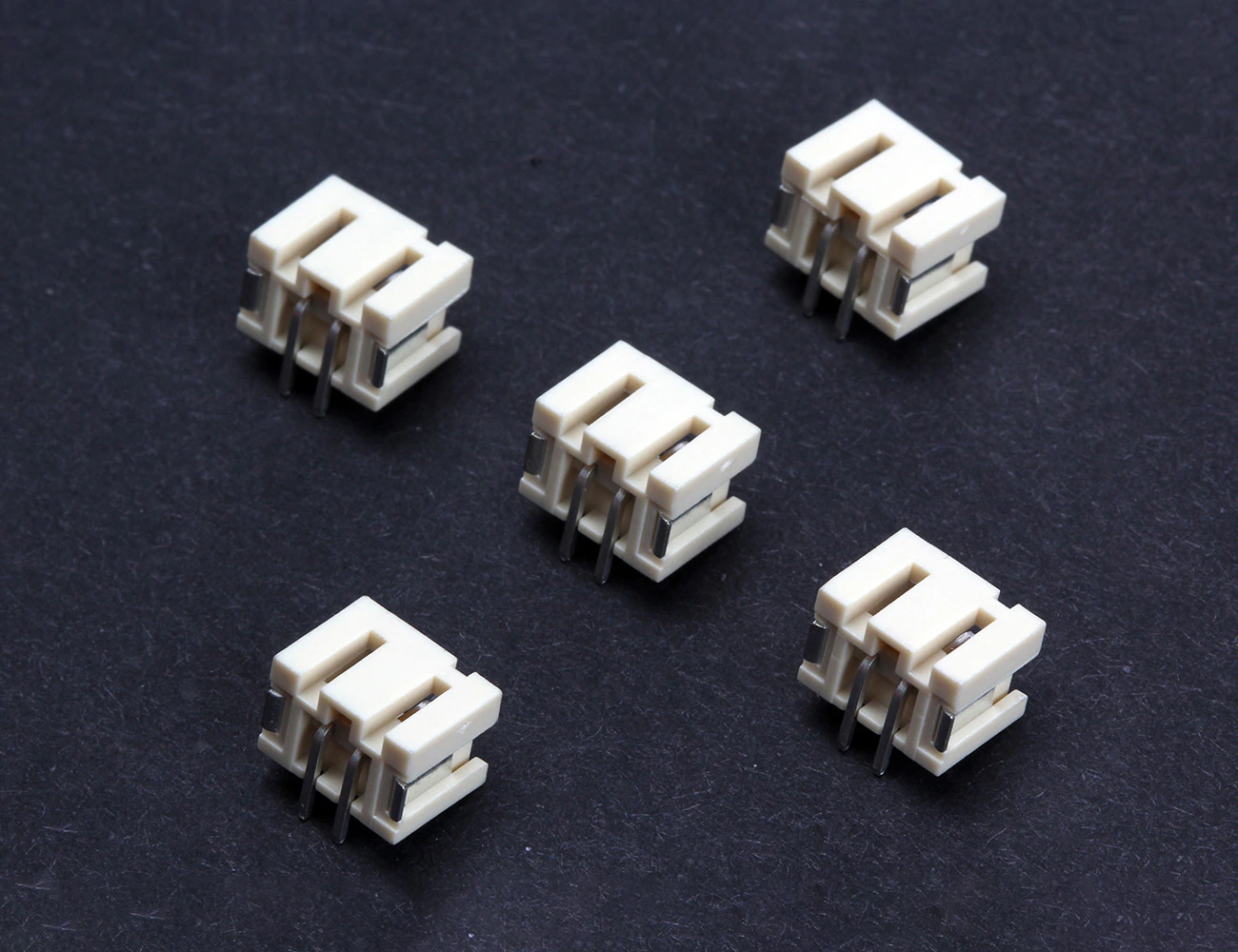

200G1-02RP2 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C

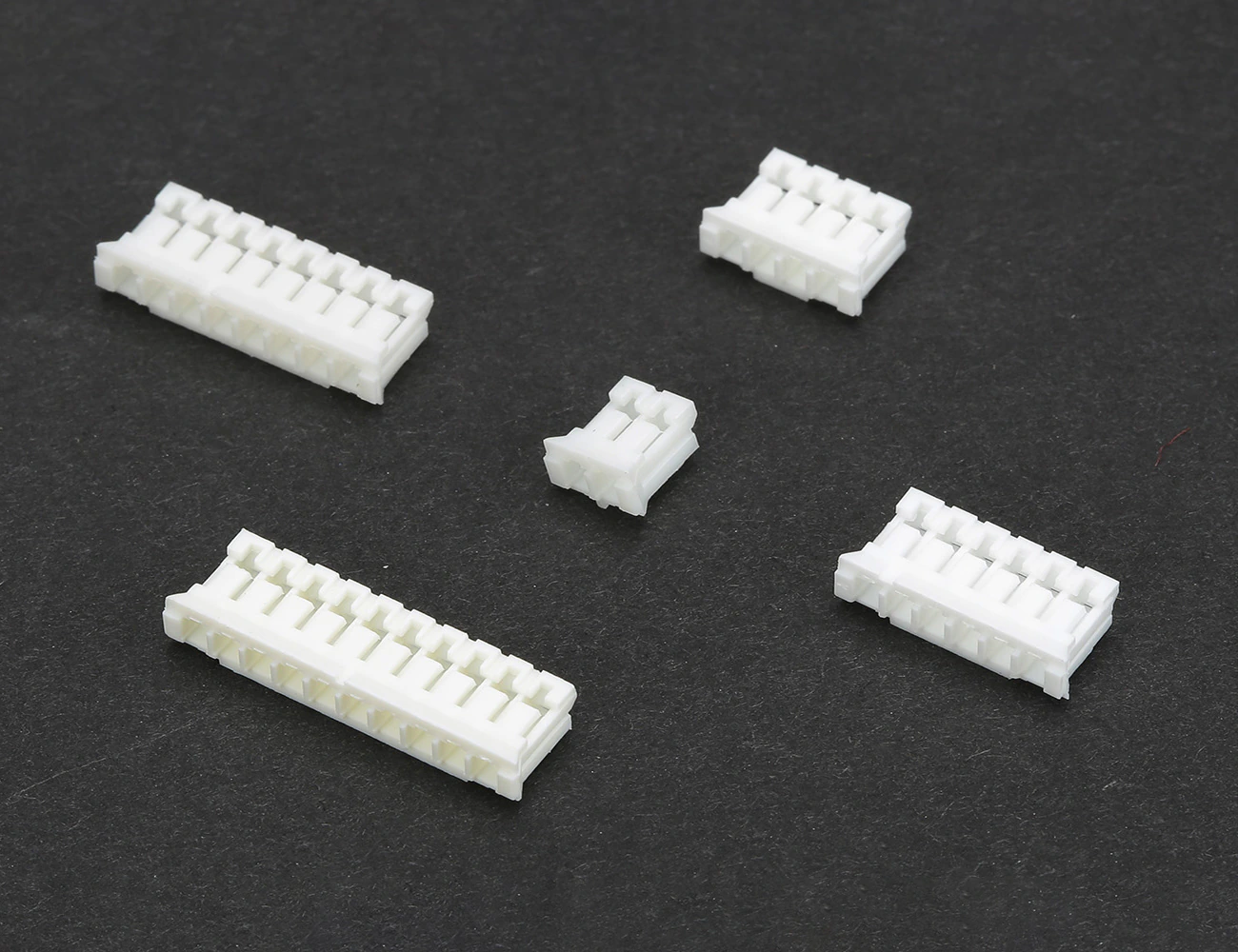

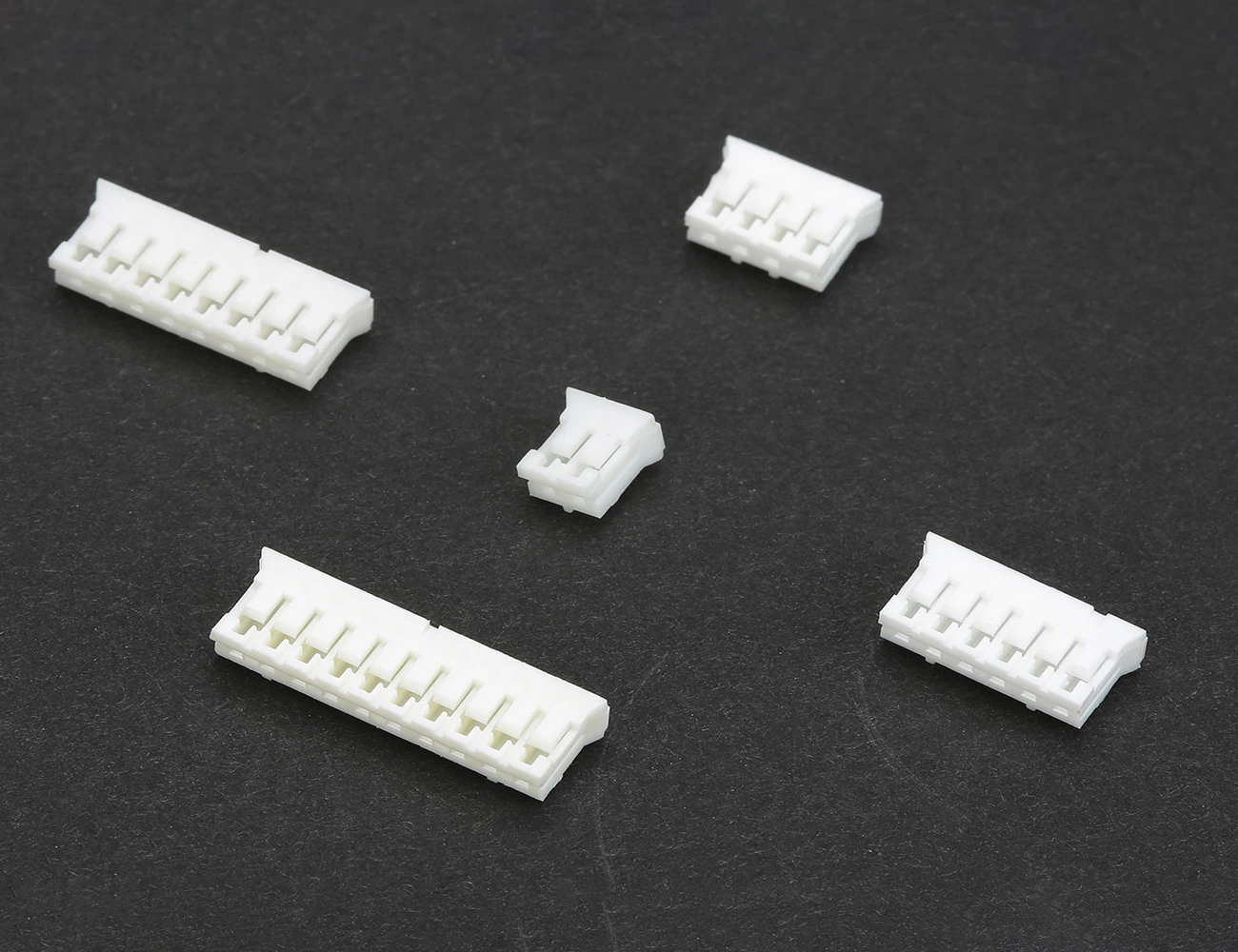

200G1-02H2 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-03R3 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-03S3 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-03SP3 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-03RP3 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-03H3 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-04R4 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-04S4 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-04SP4 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-04RP4 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-04H4 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-05R5 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-05S5 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-05SP5 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-05RP5 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-05H5 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-06R6 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-06S6 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-06SP6 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-06RP6 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
6 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-07R7 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-07S7 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-07SP7 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-07RP7 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-07H7 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-08R8 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-08S8 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-08SP8 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-08RP8 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-08H8 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-09R9 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-09S9 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-09SP9 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-09RP9 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-09H9 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-10R10 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-10S10 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-10SP10 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-10RP10 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-10H10 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-11R11 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-11S11 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-11SP11 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-11RP11 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-11H11 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-12R12 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-12S12 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-12SP12 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-12RP12 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-12H12 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-13R13 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-13S13 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-13SP13 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-13RP13 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-13H13 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-14S14 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-14SP14 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-14RP14 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-14H14 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-15R15 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-15S15 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-15SP15 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-15RP15 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-15H15 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-16R16 Pin 2.00mm DIP Pcb Type Male 90º2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-16SP16 Pin 2.00mm DIP Pcb Type Male Upright2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-16SP16 Pin 2.00mm SMD Pcb Type Male Upright2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-16RP16 Pin 2.00mm SMD Pcb Type Male 90º2A100V / AC/ DC800V / AC / muniteNylon 66 UL94V-0-25°C ~ +85°C
200G1-16H16 Pin 2.00mm Female2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

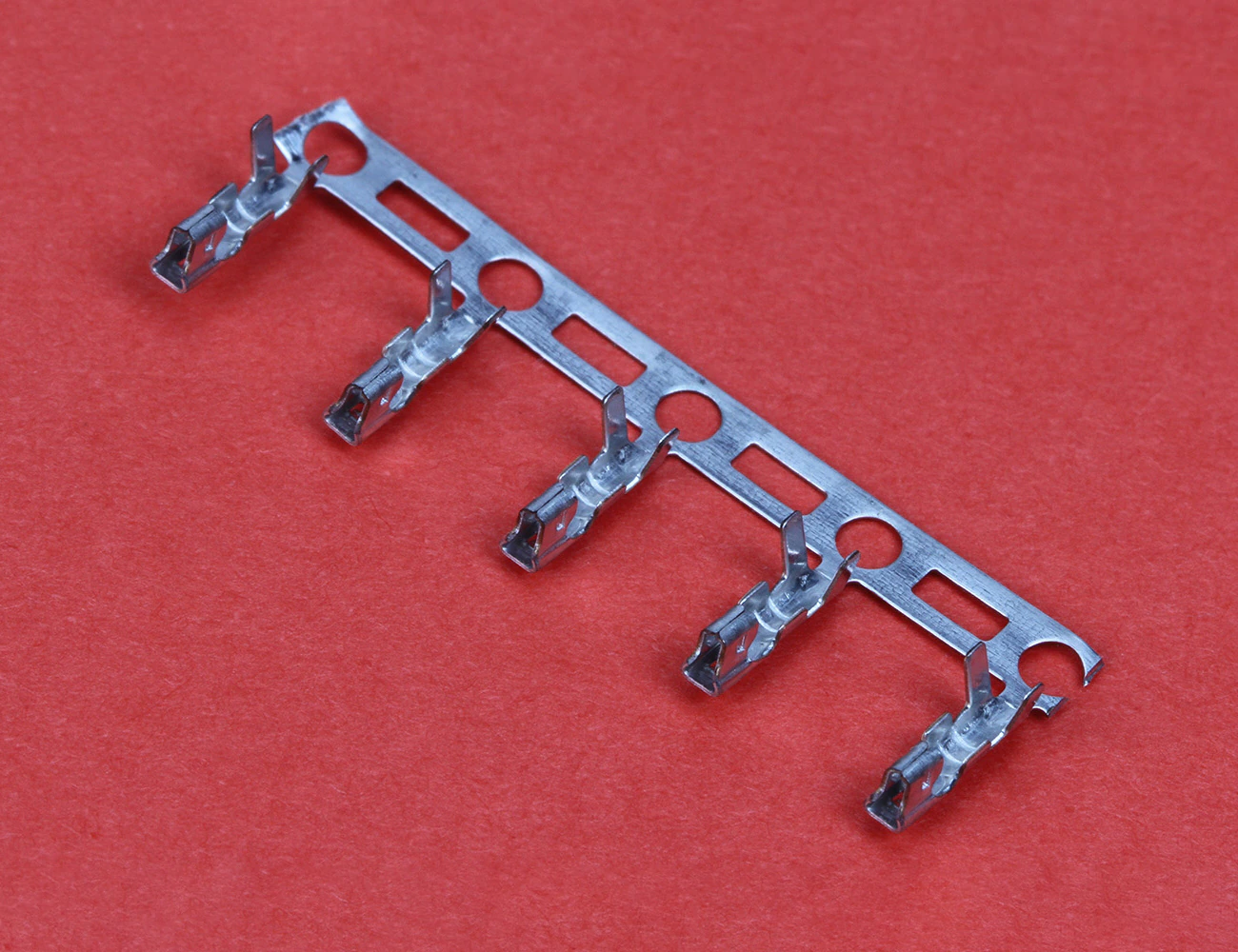

200G1-TPCrimp Terminal Female-----
