Wire to Board Signal
Signal 200G1 L Series TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 200G1 L Series

Part numbers
200G1 L Series200G1-02SL200G1-02RL200G1-02HL200G1-03SL200G1-03RL200G1-03HL200G1-04SL200G1-04RL200G1-04HL200G1-05SL200G1-05RL200G1-05HL200G1-06SL200G1-06RL200G1-06HL200G1-07SL200G1-07RL200G1-07HL200G1-08SL200G1-08RL200G1-08HL200G1-09SL200G1-09RL200G1-09HL200G1-10SL200G1-10RL200G1-10HL200G1-11S200G1-11RL200G1-11HL200G1-12SL200G1-12RL200G1-12HL200G1-13SL200G1-13RL200G1-13HL200G1-14SL200G1-14RL200G1-14HL200G1-15SL200G1-15RL200G1-15HL200G1-TPL
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24 Datasheet 25 Datasheet 26 Datasheet 27 Datasheet 28 Datasheet 29

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

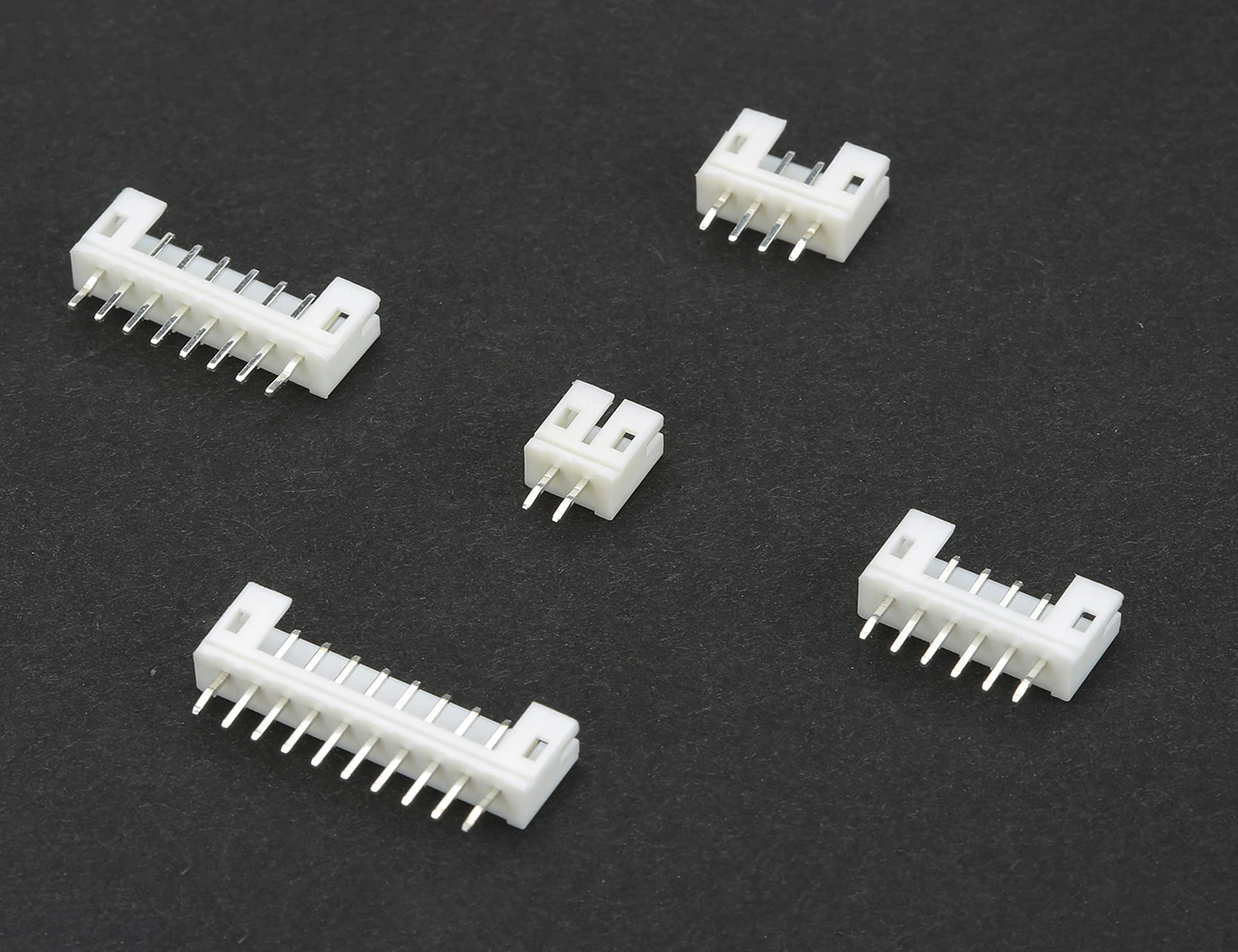

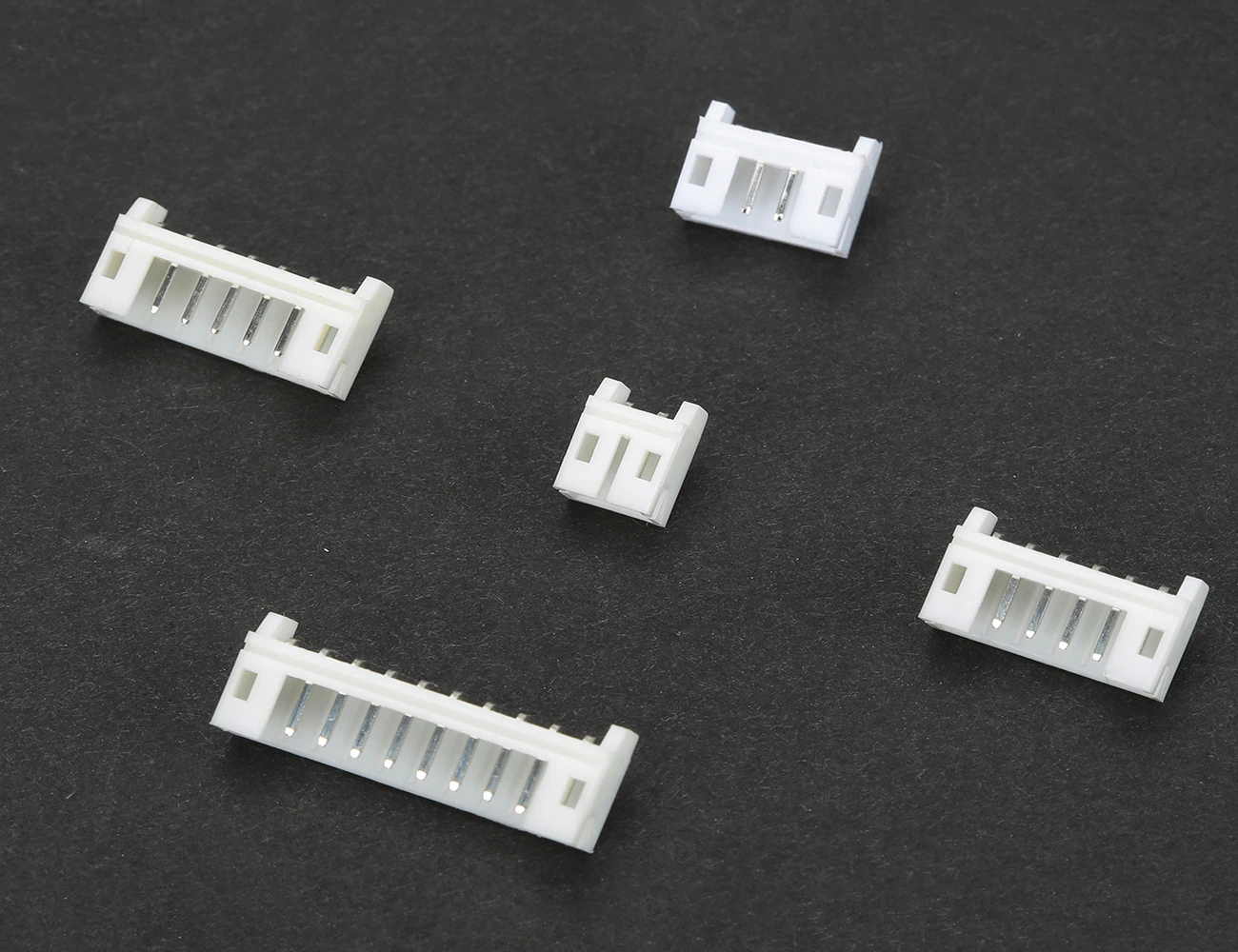

200G1-02SL2 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

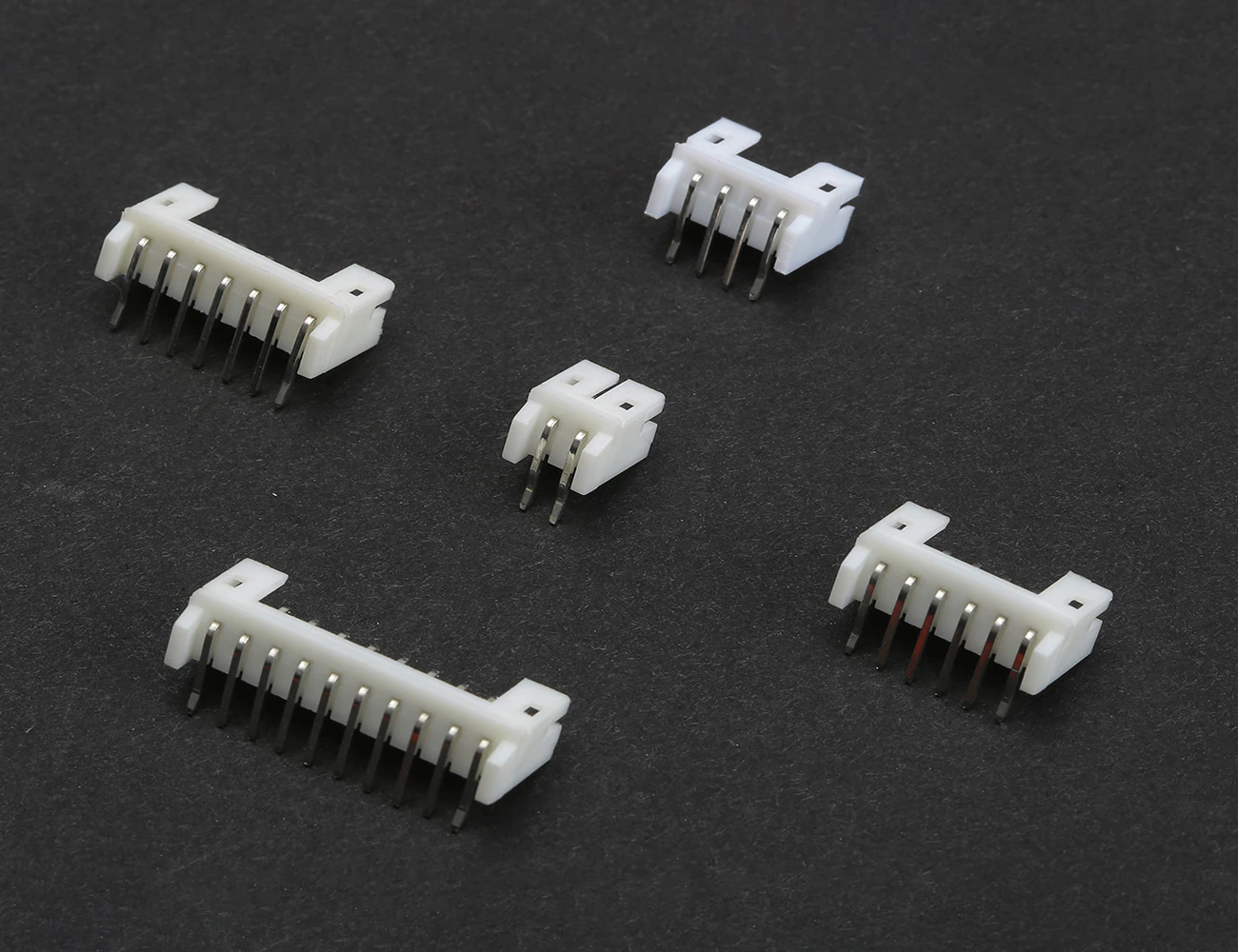

200G1-02RL2 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

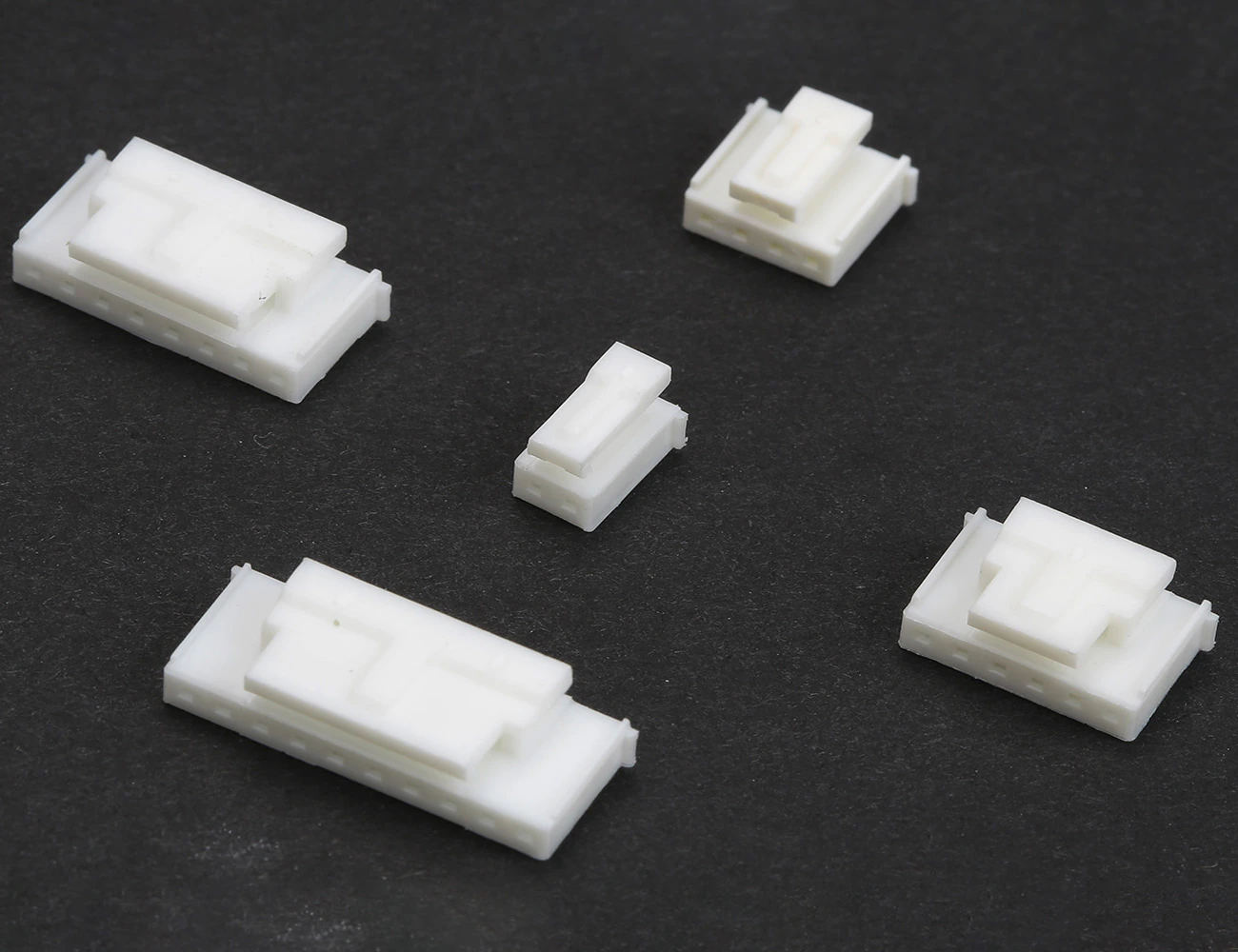

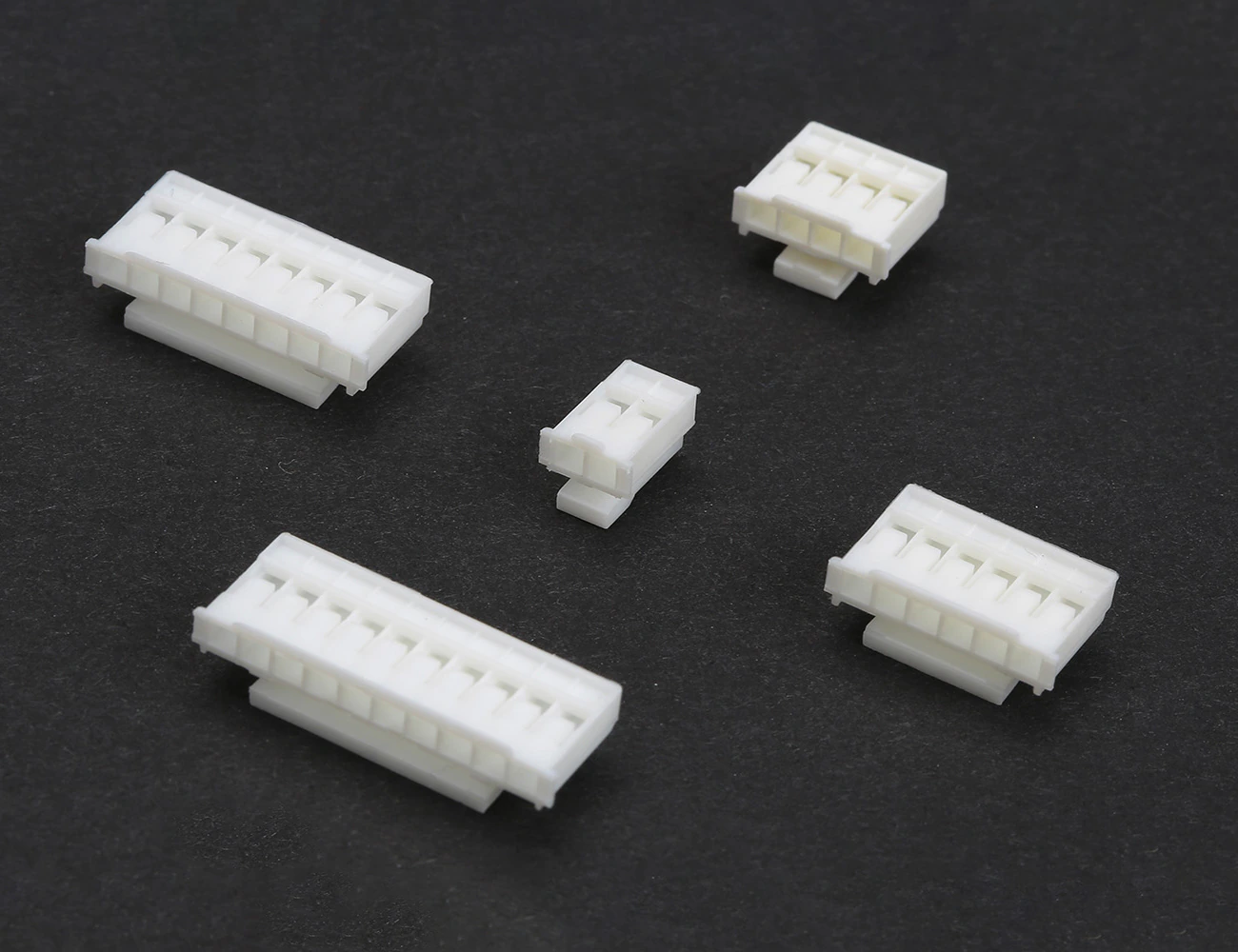

200G1-02HL2 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-03SL3 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-03RL3 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-03HL3 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-04SL4 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-04RL4 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-04HL4 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-05SL5 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-05RL5 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-05HL5 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-06SL6 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-06RL6 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-06HL6 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-07SL7 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-07RL7 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-07HL7 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-08SL8 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-08RL8 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-08HL8 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-09SL9 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-09RL9 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-09HL9 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-10SL10 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-10RL10 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-10HL10 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-11S11 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-11RL11 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-11HL11 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-12SL12 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-12RL12 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-12HL12 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-13SL13 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-13RL13 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-13HL13 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-14SL14 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-14RL14 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-14HL14 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-15SL15 Pin 2.00mm DIP Pcb Type Male Vertical Lock2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-15RL15 Pin 2.00mm DIP Pcb Type Male 90º Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
200G1-15HL15 Pin 2.00mm Female Locked2A100V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

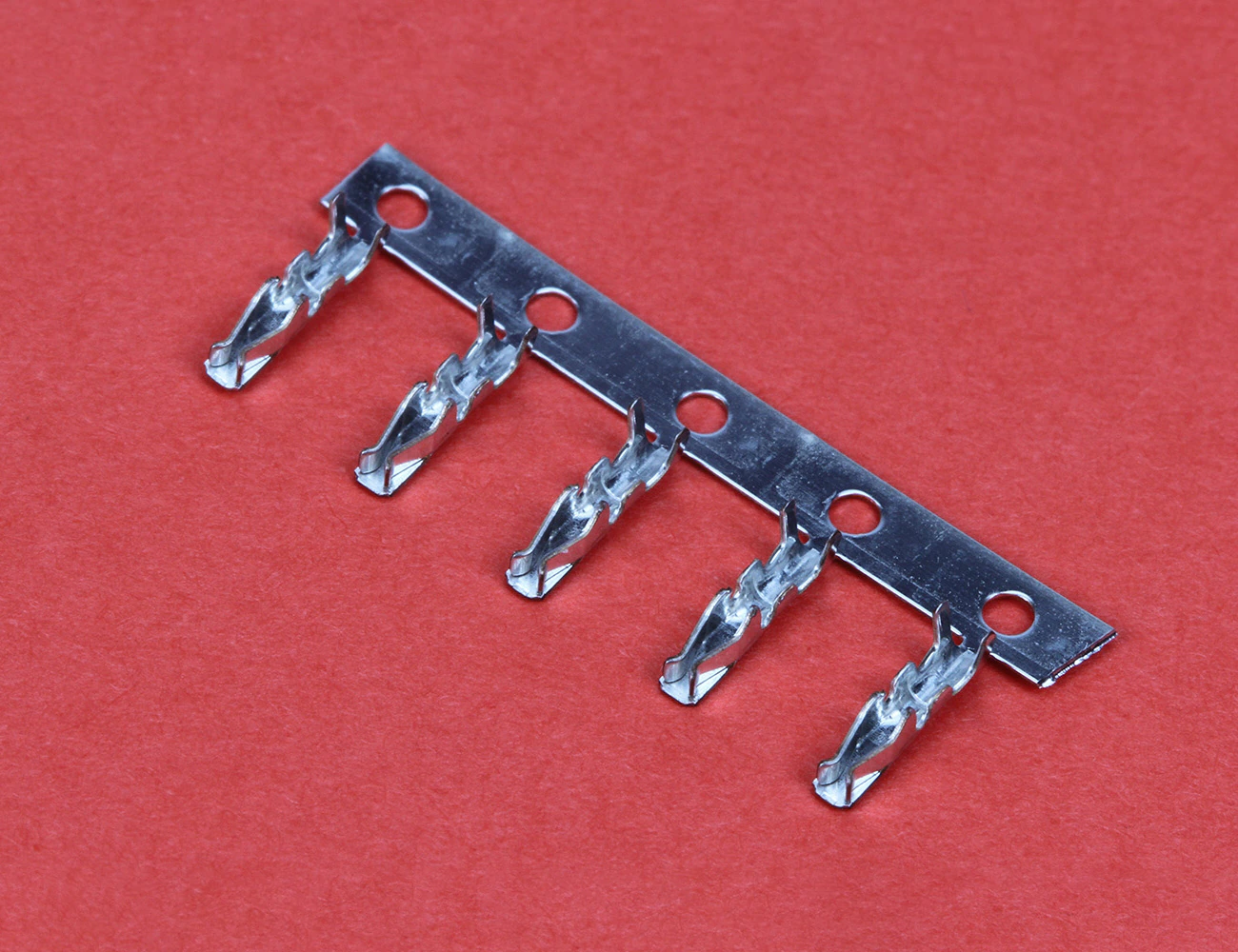

200G1-TPLCrimp Terminal Female-----
