Wire to Board Signal

Signal 1950 Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1950 Series

Part numbers

1950 Series1950-02HB1950-03HB1950-04HB1950-05HB1950-06HB1950-07HB1950-08HB1950-09HB1950-10HB1950-15HB1950-20HB1950-30HB1950-TP

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

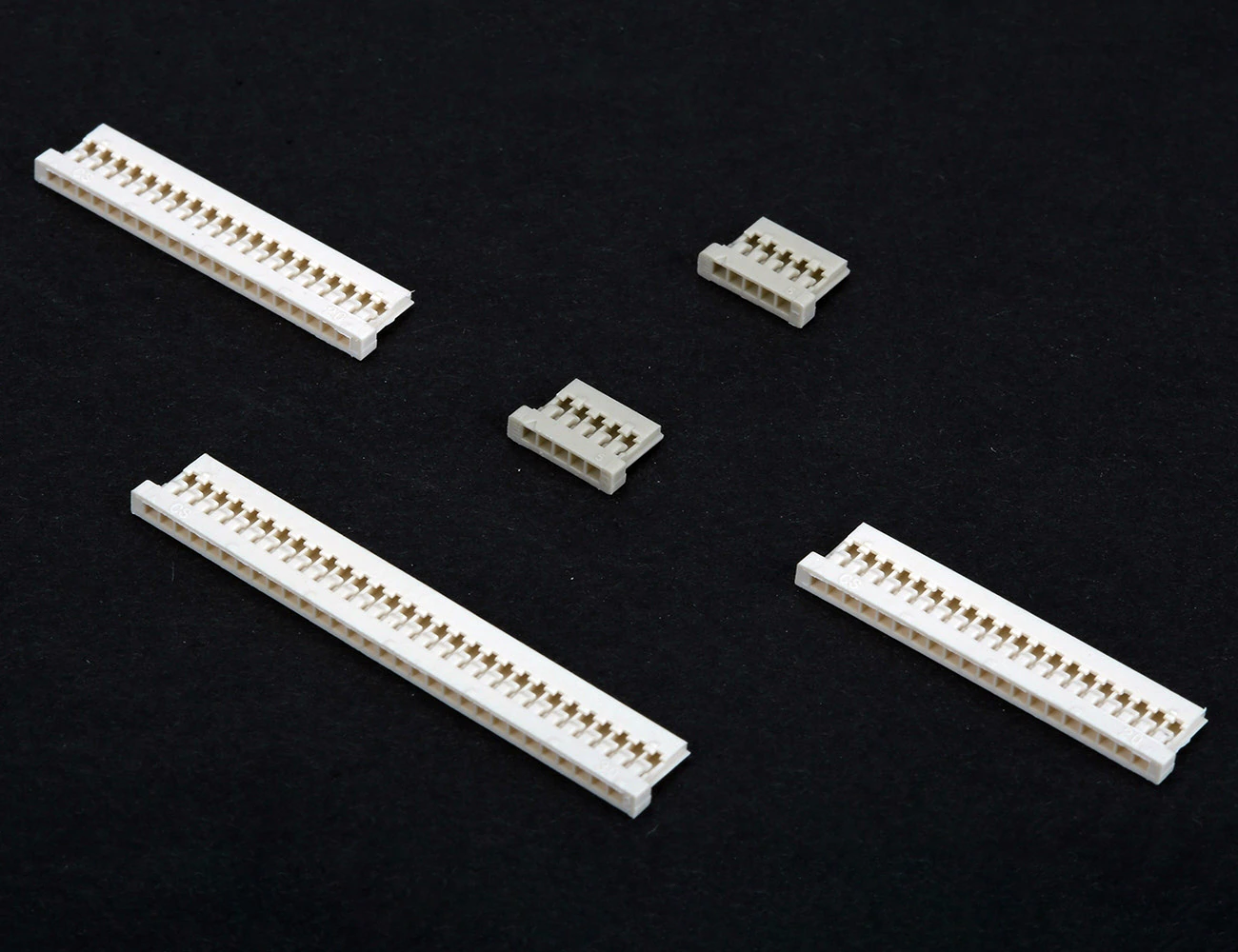

1950-02HB	2 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-03HB	3 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-04HB	4 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-05HB	5 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-06HB	6 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-07HB	7 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-08HB	8 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-09HB	9 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-10HB	10 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-15HB	15 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-20HB	20 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1950-30HB	30 Pin 1.25mm Female	1A	150V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C

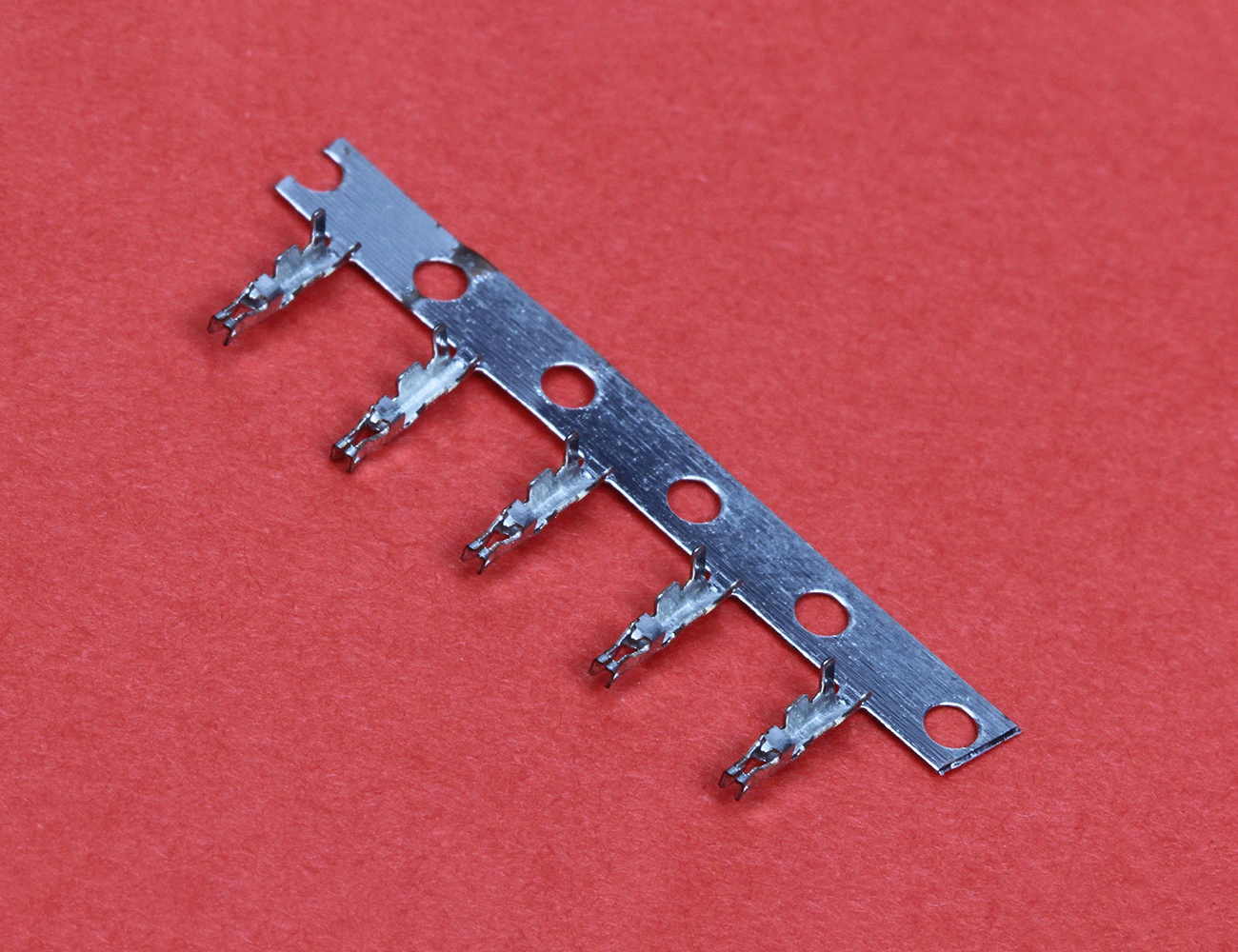

1950-TP	Crimp Terminal Female	-	-	-	-	-
