Wire to Board Signal

Signal 1900 Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1900 Series

Part numbers

1900 Series1900-20RPR1900-20HB1900-30HB1900-TP

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1900-20RPR	20 Pin 1.25mm SMD Pcb Type Male 90º	1A	200V / AC/ DC	500V / munite	LCP UL94V-0	-25°C ~ +85°C

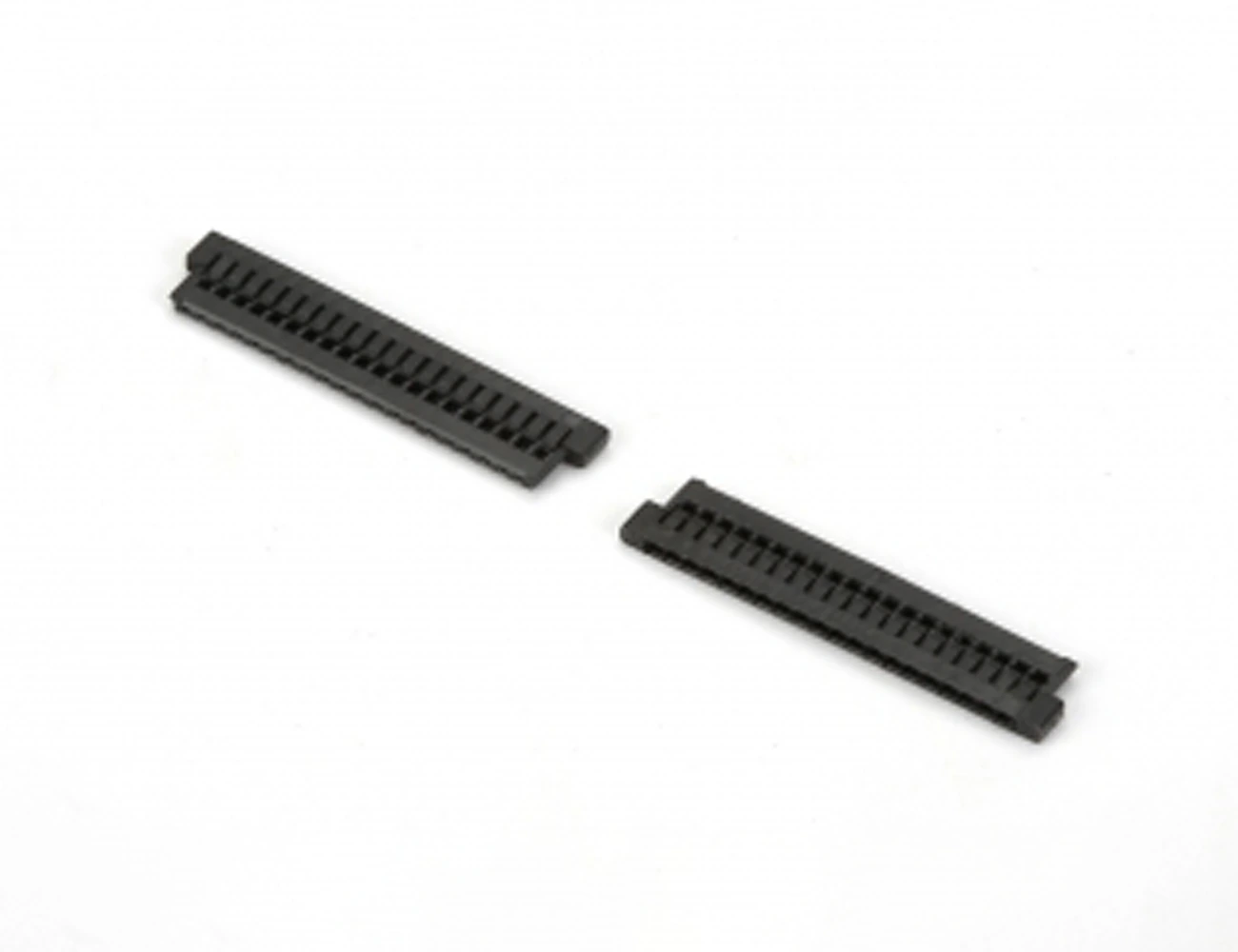

1900-20HB	20 Pin 1.25mm Female	1A	200V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1900-30HB	30 Pin 1.25mm Female	1A	200V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C

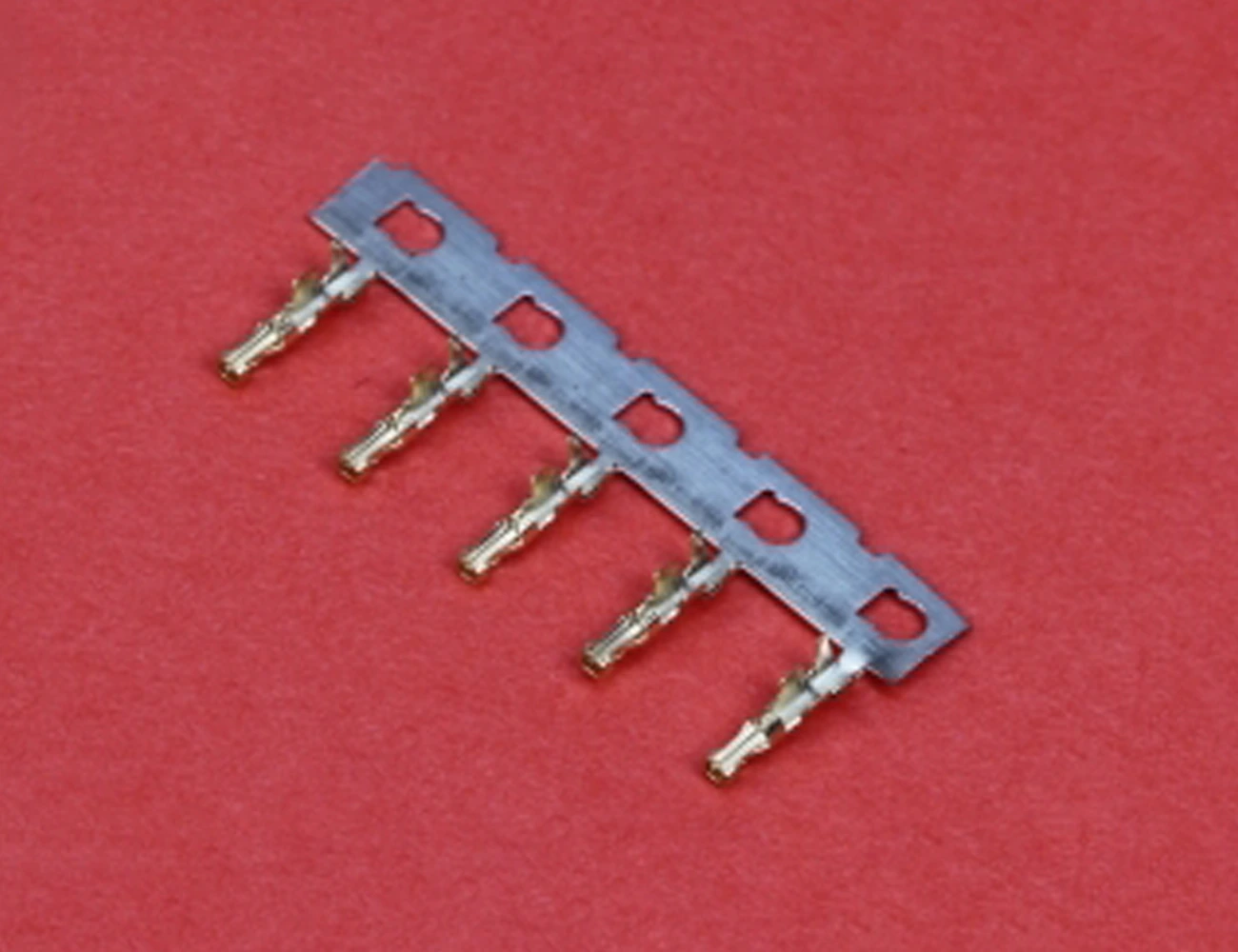

1900-TP	Crimp Terminal Female	-	-	-	-	-
