Signal 1800 Series

Part numbers

1800 Series1800-02SB1800-02RB1800-02SPR1800-02RPR1800-02HB1800-03SB1800-03RB1800-03SPR1800-03RPR1800-03HB1800-04SB1800-04RB1800-04SPR1800-04RPR1800-04HB1800-05SB1800-05RB1800-05SPR1800-05RPR1800-05HB1800-06SB1800-06RB1800-06SPR1800-06RPR1800-06HB1800-07SB1800-07RB1800-07SPR1800-07RPR1800-07HB1800-08SB1800-08RB1800-08SPR1800-08RPR1800-08HB1800-09SB1800-09RB1800-09SPR1800-09RPR1800-09HB1800-10SB1800-10RB1800-10SPR1800-10RPR1800-10HB1800-11SB1800-11RB1800-11SPR1800-11RPR1800-11HB1800-12SB1800-12RB1800-12SPR1800-12RPR1800-12HB1800-13SB1800-13RB1800-13SPR1800-13RPR1800-13HB1800-14SB1800-14RB1800-14SPR1800-14RPR1800-14HB1800-15SB1800-15RB1800-15SPR1800-15RPR1800--15HB1800-TP

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

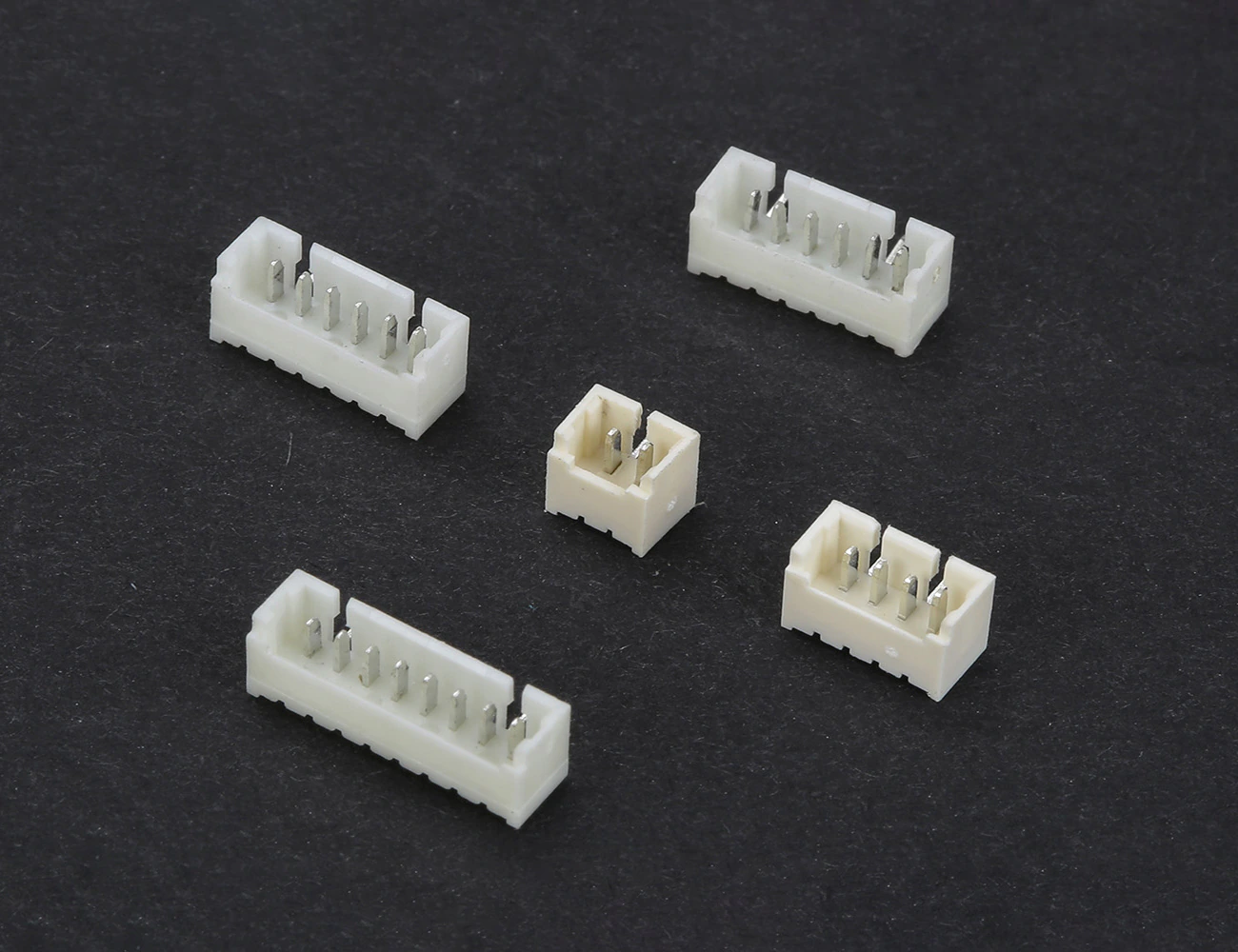

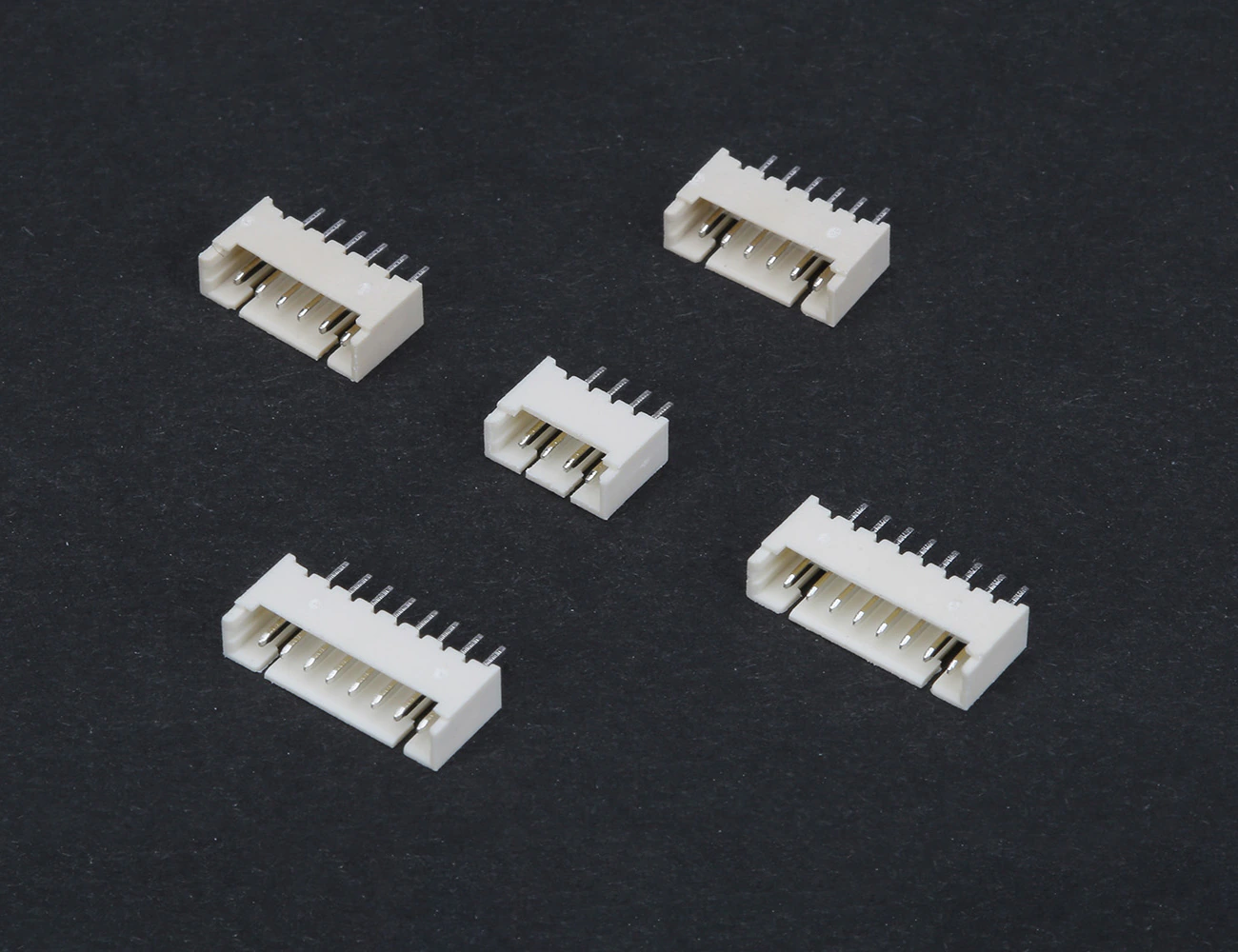

1800-02SB	2 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C

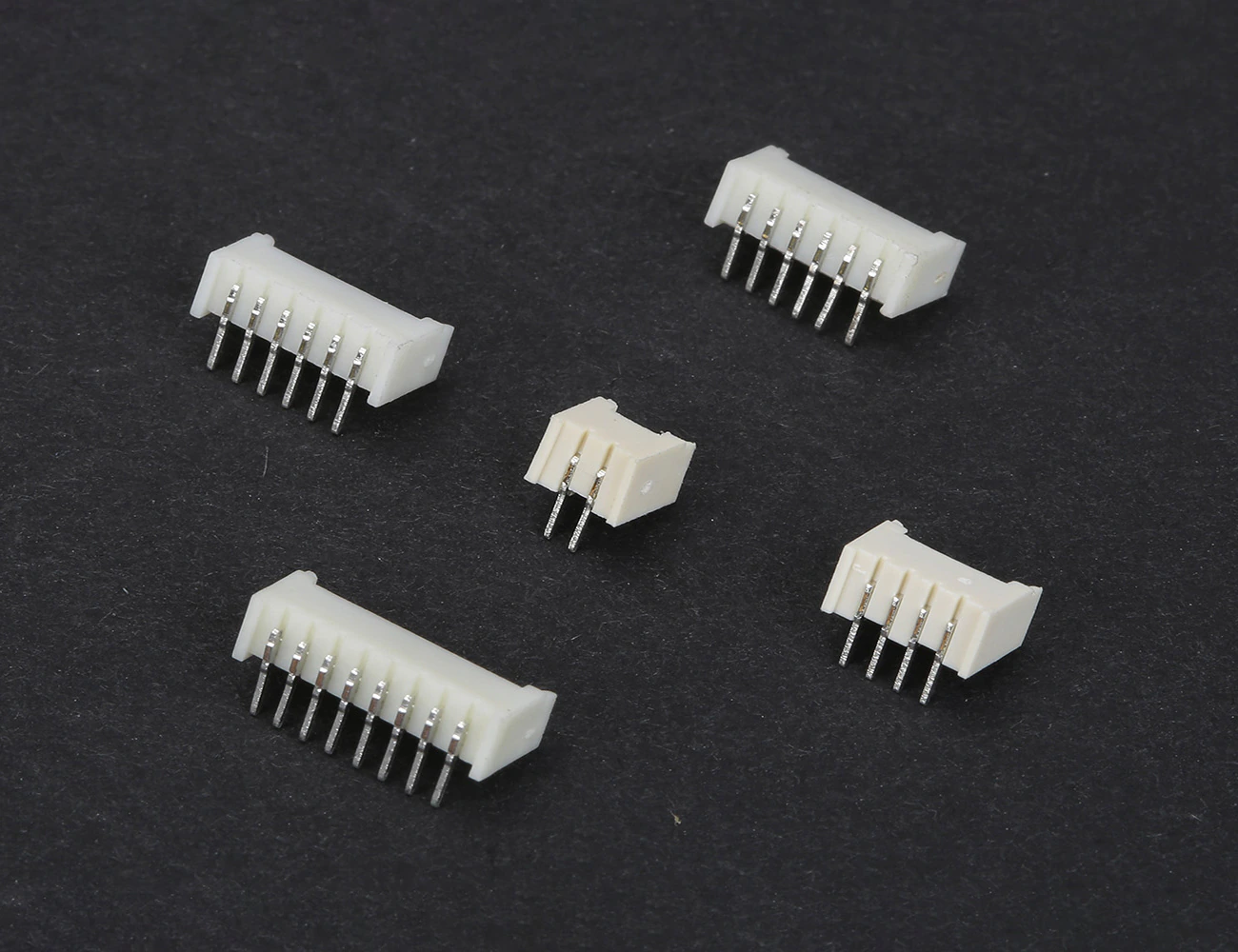

1800-02RB	2 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C

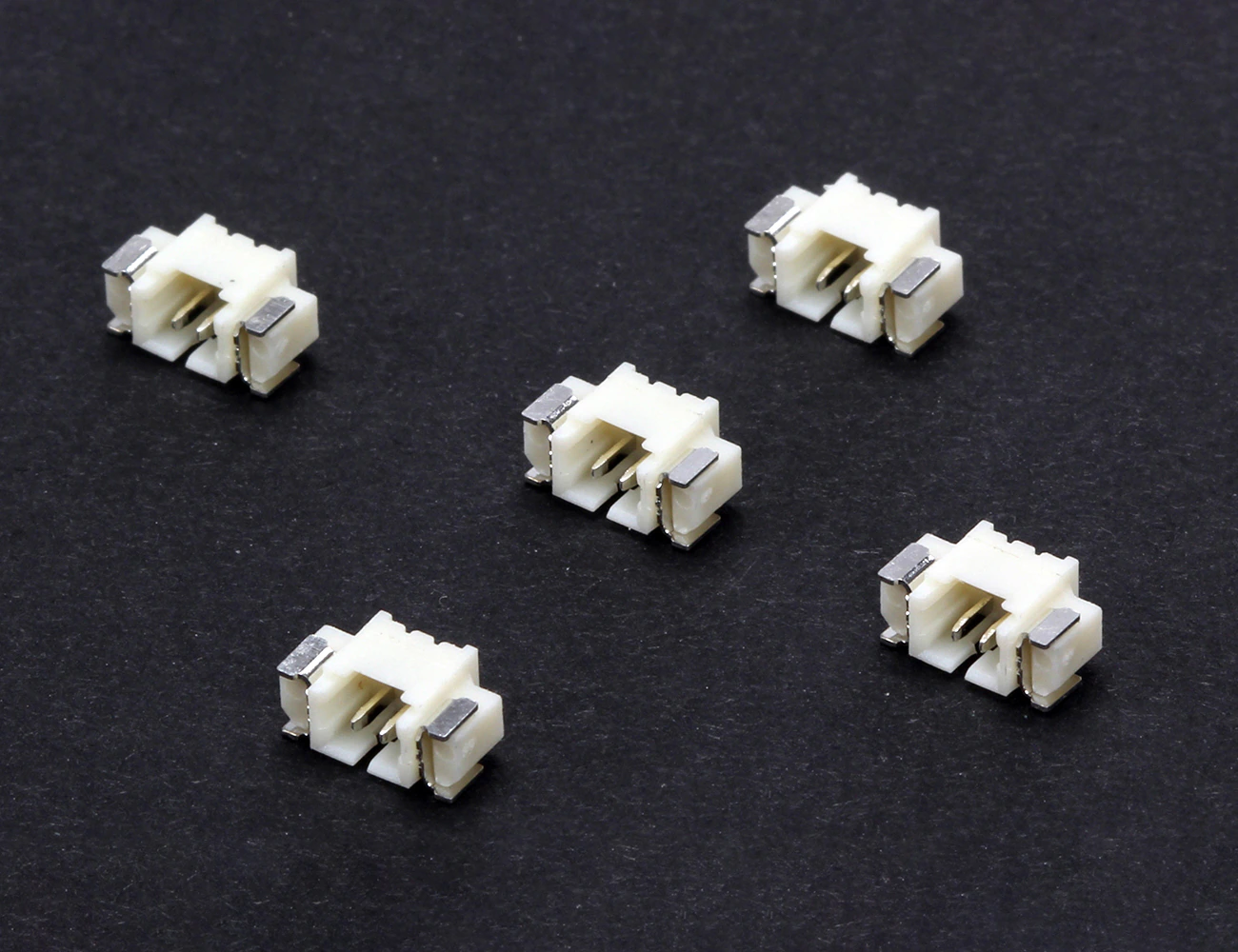

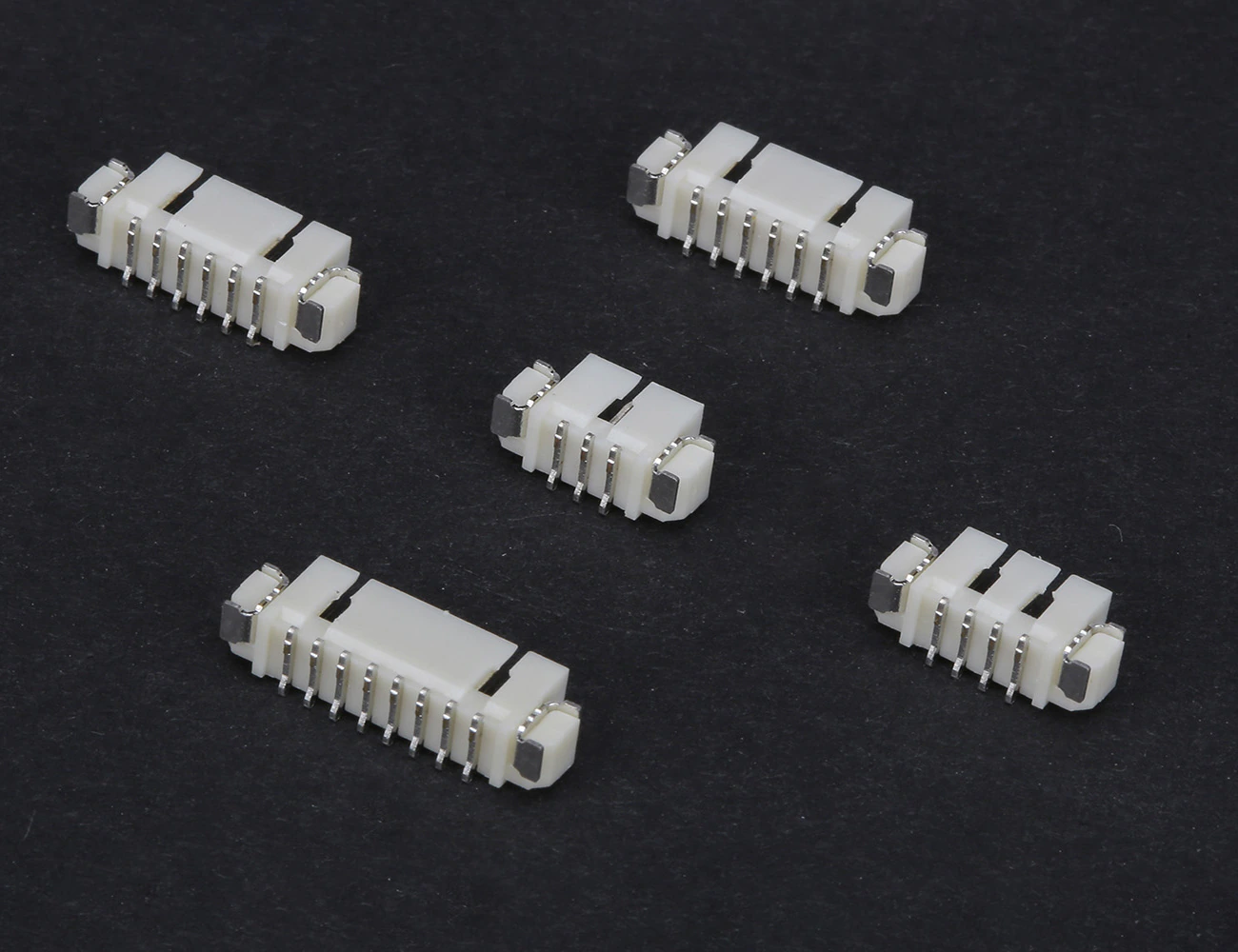

1800-02SPR	2 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C

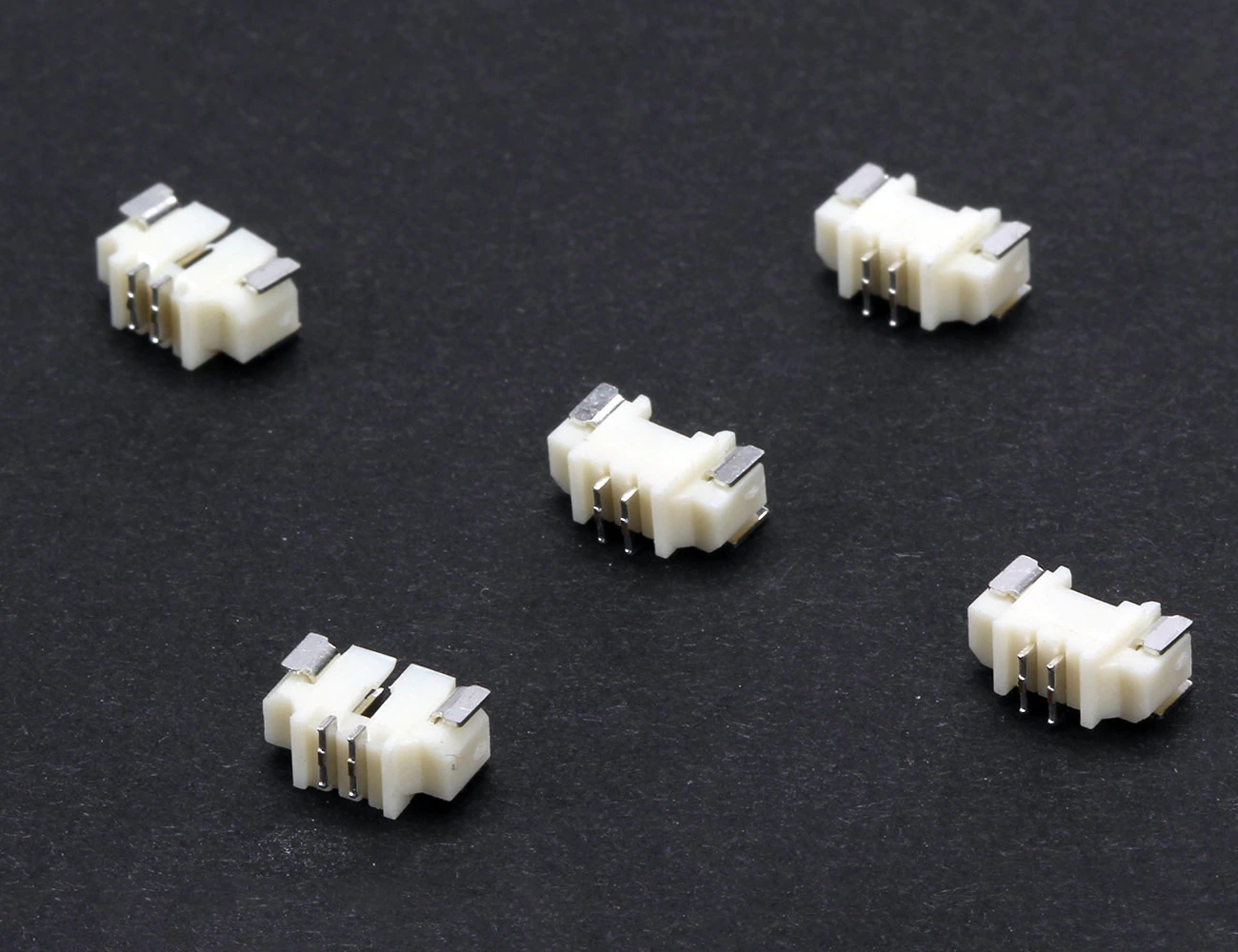

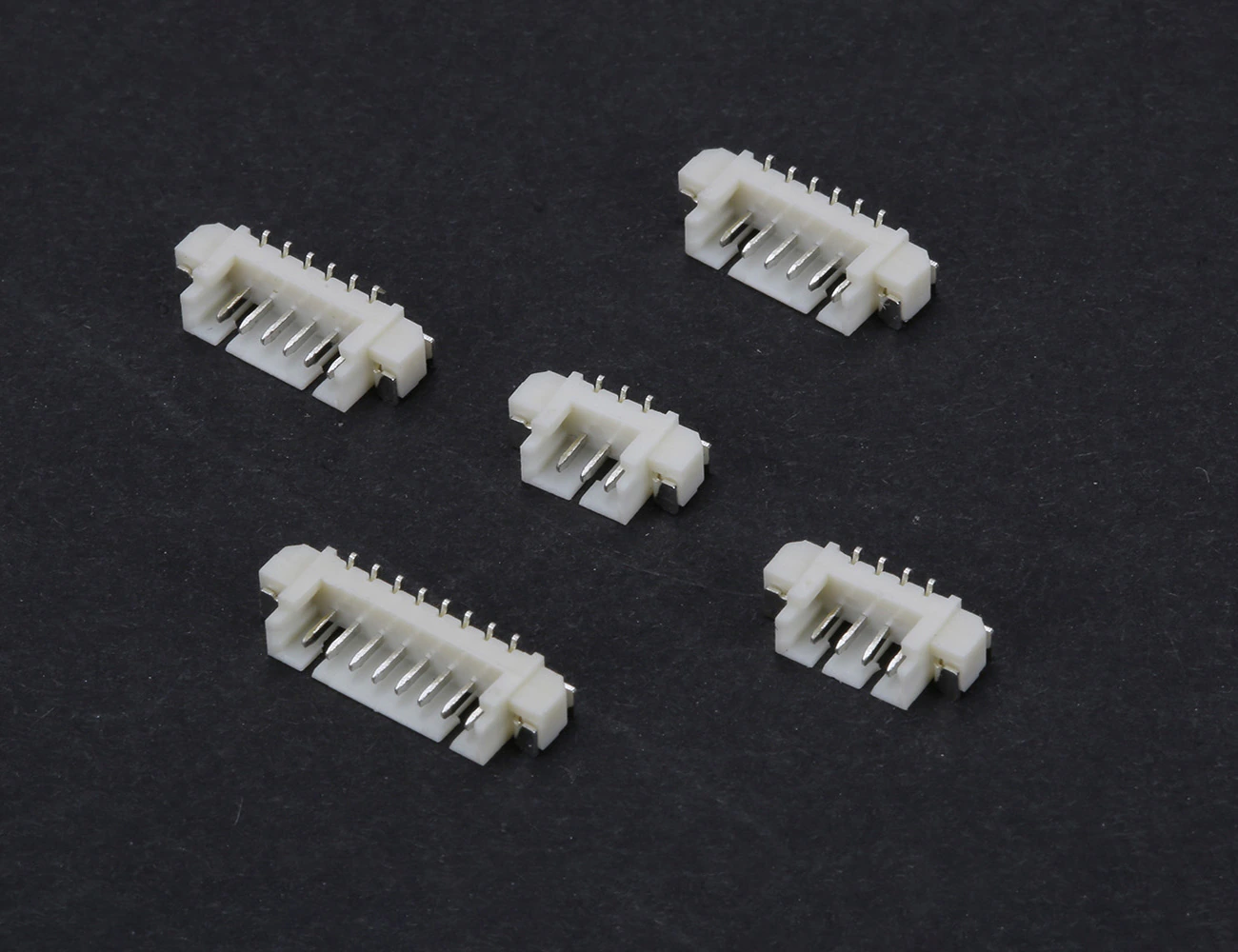

1800-02RPR	2 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C

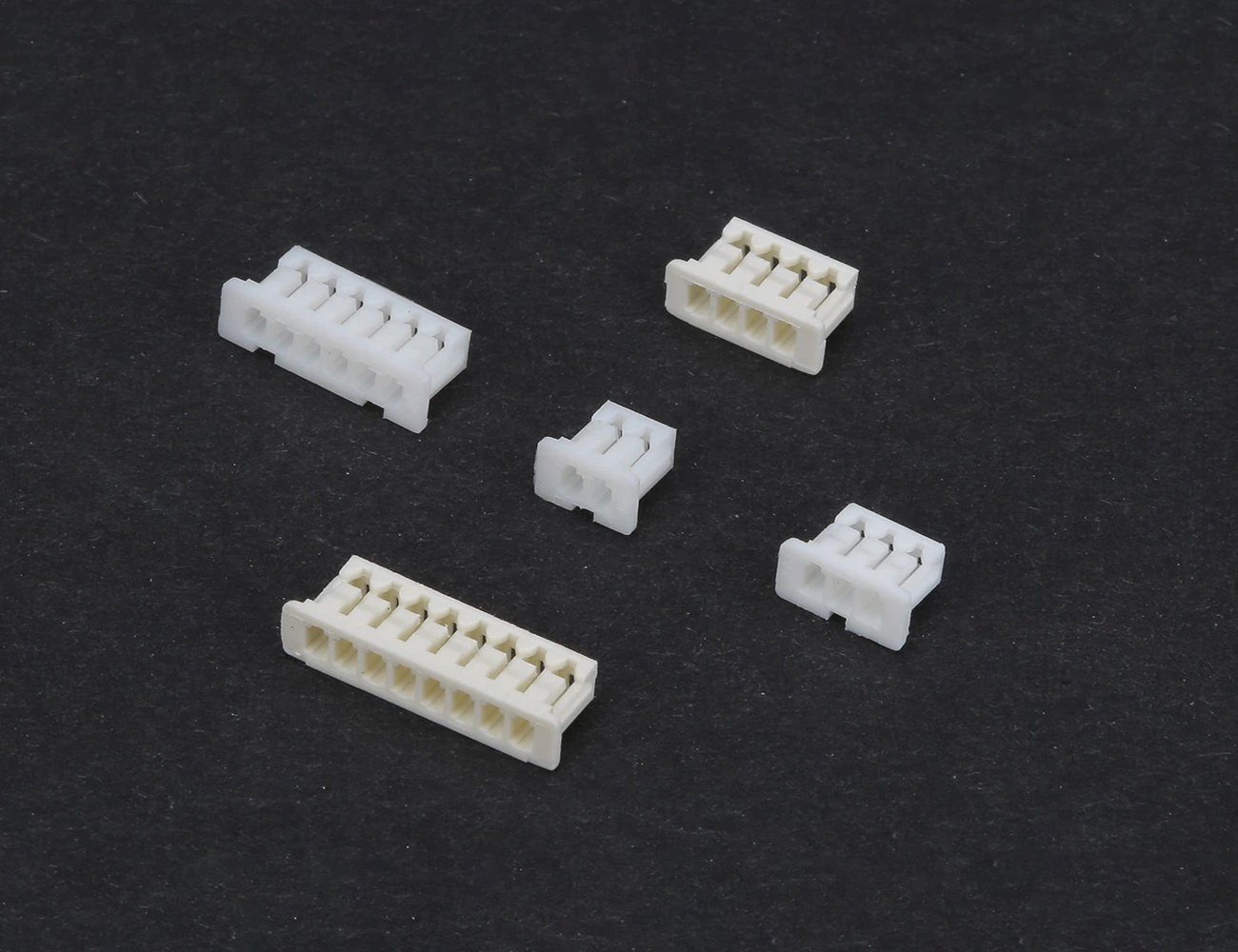

1800-02HB	2 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-03SB	3 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-03RB	3 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-03SPR	3 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-03RPR	3 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-03HB	3 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-04SB	4 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-04RB	4 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-04SPR	4 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-04RPR	4 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-04HB	4 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-05SB	5 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-05RB	5 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-05SPR	5 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-05RPR	5 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-05HB	5 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-06SB	6 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-06RB	6 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-06SPR	6 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-06RPR	6 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-06HB	6 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-07SB	7 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-07RB	7 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-07SPR	7 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-07RPR	7 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 6T UL94V-0	-25°C ~ +85°C
1800-07HB	7 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-08SB	8 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-08RB	8 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-08SPR	8 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-08RPR	8 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-08HB	8 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-09SB	9 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-09RB	9 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-09SPR	9 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-09RPR	9 Pin 1.25mm SMD Pcb Type Male 90º	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-09HB	9 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-10SB	10 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-10RB	10 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-10SPR	10 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-10RPR	10 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-10HB	10 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-11SB	11 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-11RB	11 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-11SPR	11 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-11RPR	11 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-11HB	11 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-12SB	12 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-12RB	12 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-12SPR	12 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-12RPR	12 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-12HB	12 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-13SB	13 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-13RB	13 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-13SPR	13 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-13RPR	13 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-13HB	13 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-14SB	14 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-14RB	14 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-14SPR	14 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-14RPR	14 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-14HB	14 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-15SB	15 Pin 1.25mm DIP Pcb Type Male Upright	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-15RB	15 Pin 1.25mm DIP Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-15SPR	15 Pin 1.25mm SMD Pcb Type Male Upright	1A	125V	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1800-15RPR	15 Pin 1.25mm SMD Pcb Type Male 90º	1A	125V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1800--15HB	15 Pin 1.25mm Female	1A	150V	250VAC @ 60 s.	Nylon 66 UL94V-0	-40°C ~ +85°C
1800-TP	Crimp Terminal Female	-	-	-	-	-
