Wire to Board Signal

Signal 1640 Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1640 Series

Part numbers

1640-20S1640-20HL1640-30S1640-30HL1640-40S1640-40HL1640-50S1640-50HL1640-TP

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

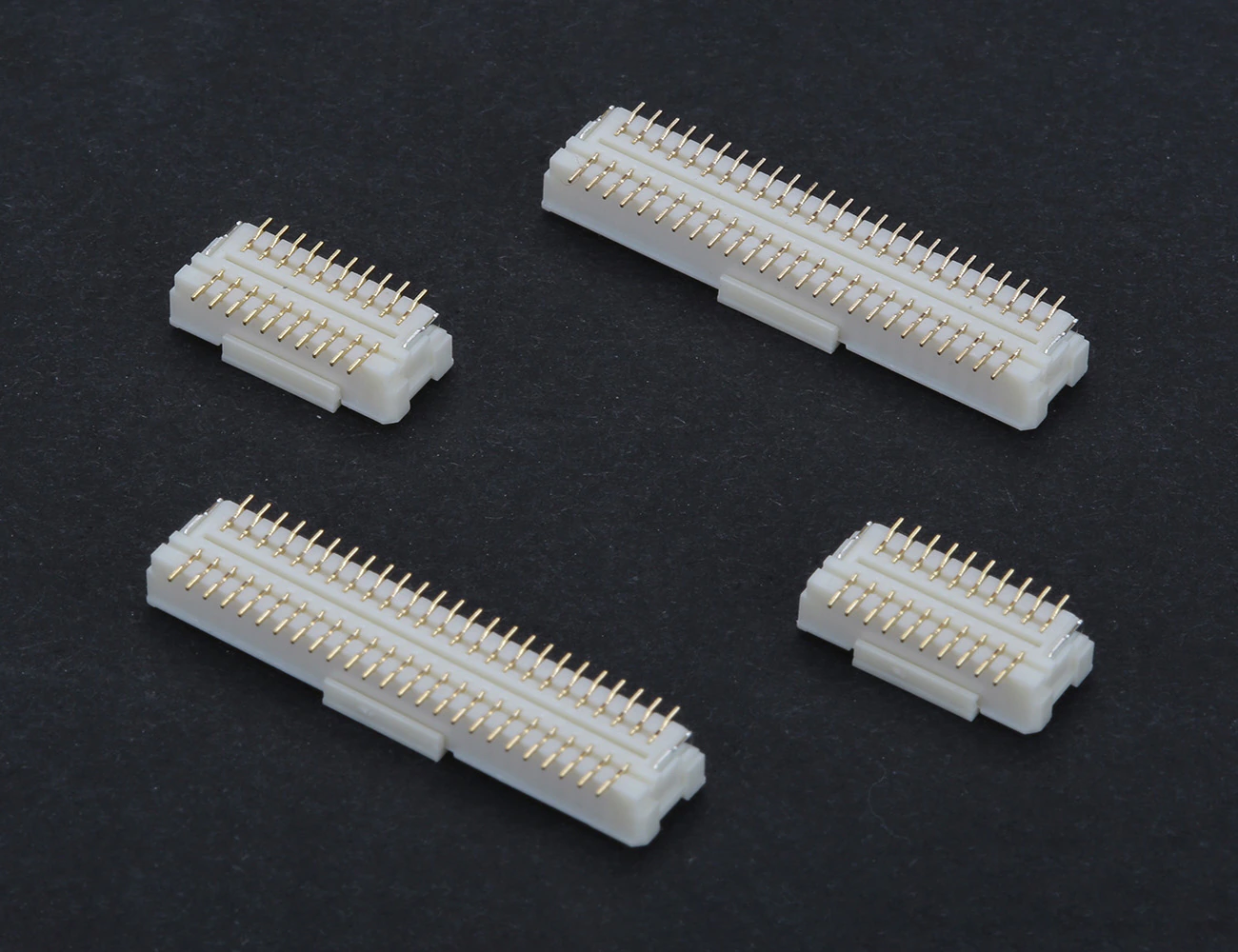

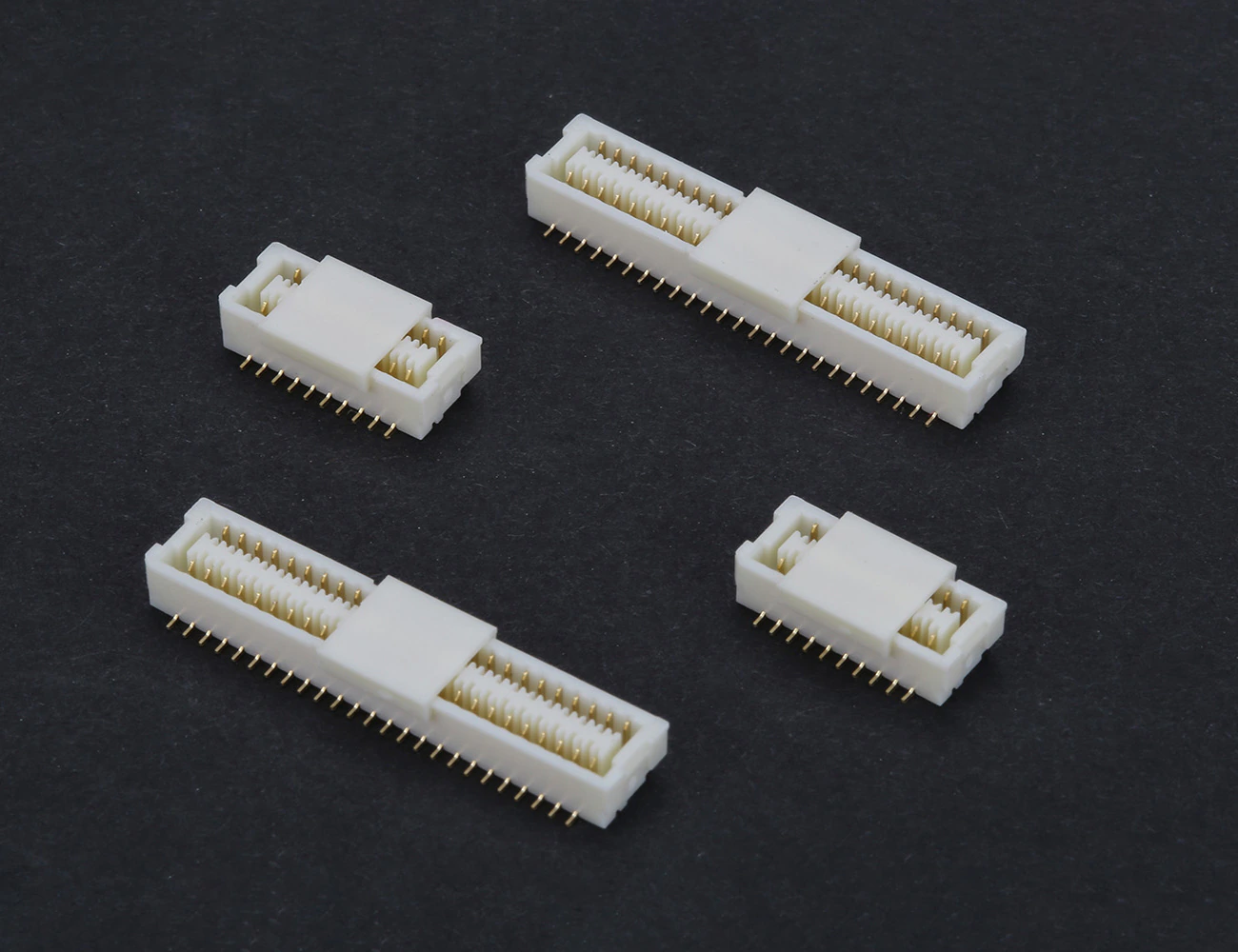

1640-20S	20 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C

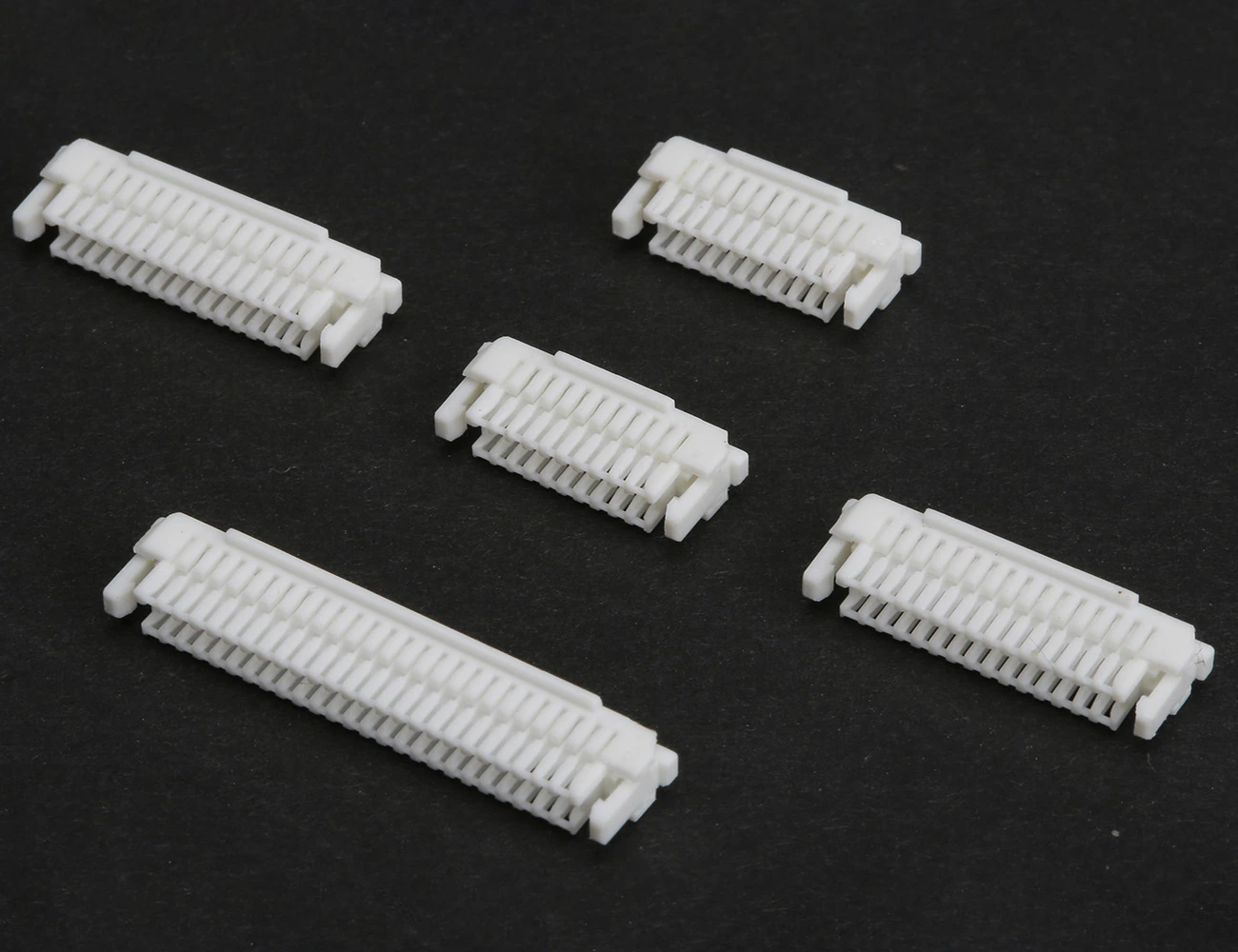

1640-20HL	20 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1640-30S	30 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C
1640-30HL	30 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1640-40S	40 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C
1640-40HL	40 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1640-50S	50 Pin 1.00mm Double Row SMD Pcb Type Male Upright	1A	50V	1000VAC @ 60 s.	PA9T UL94V-0	-25°C ~ +85°C
1640-50HL	50 Pin 1.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C ~ +85°C

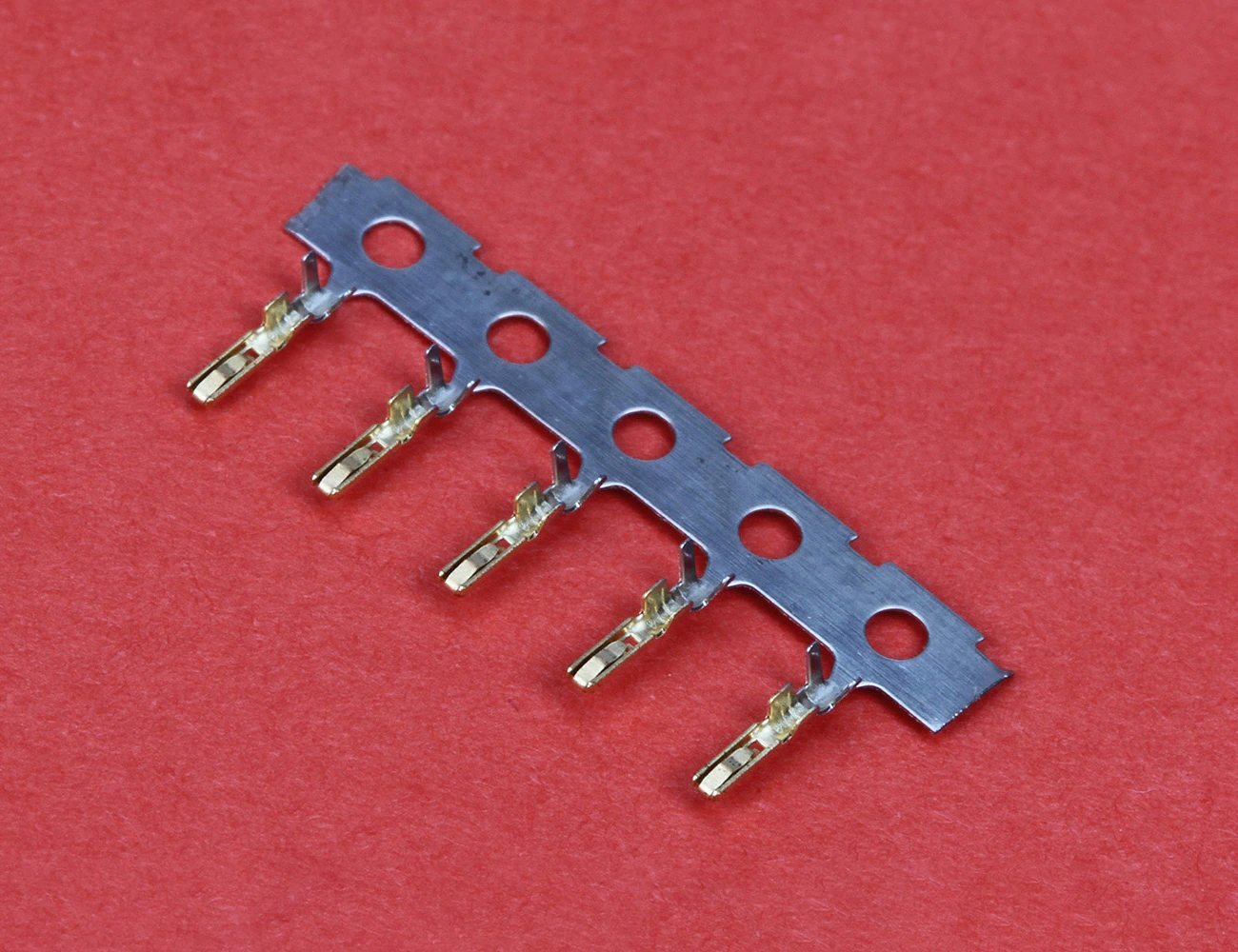

1640-TP	Crimp Terminal Female	-	-	-	-	-
