Wire to Board Signal

Signal 1600 Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1600 Series

Part numbers

1600 Series1600-02H1600-03H1600-04H1600-05H1600-06H1600-07H1600-08H1600-09H1600-10H1600-11H1600-12H1600-13H1600-14H1600-TP

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14

Ordering information

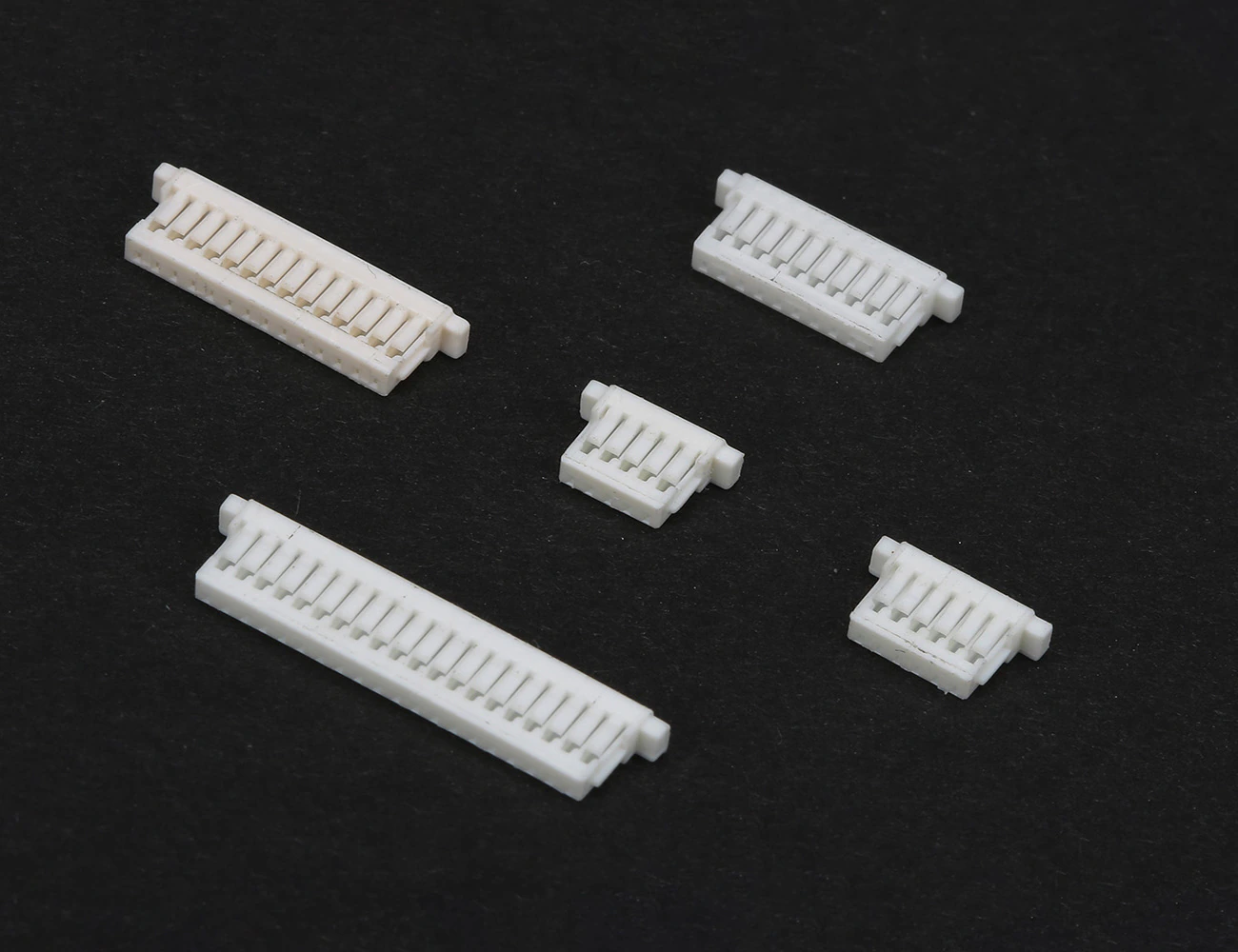

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1600-02H	2 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-03H	3 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-04H	4 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-05H	5 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-06H	6 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-07H	7 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-08H	8 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-09H	9 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-10H	10 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-11H	11 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-12H	12 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-13H	13 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C
1600-14H	14 Pin 1.00mm Female	1A	50V / AC/ DC	500V / munite	PBT-GF15%UL94V-0	-25°C ~ +85°C

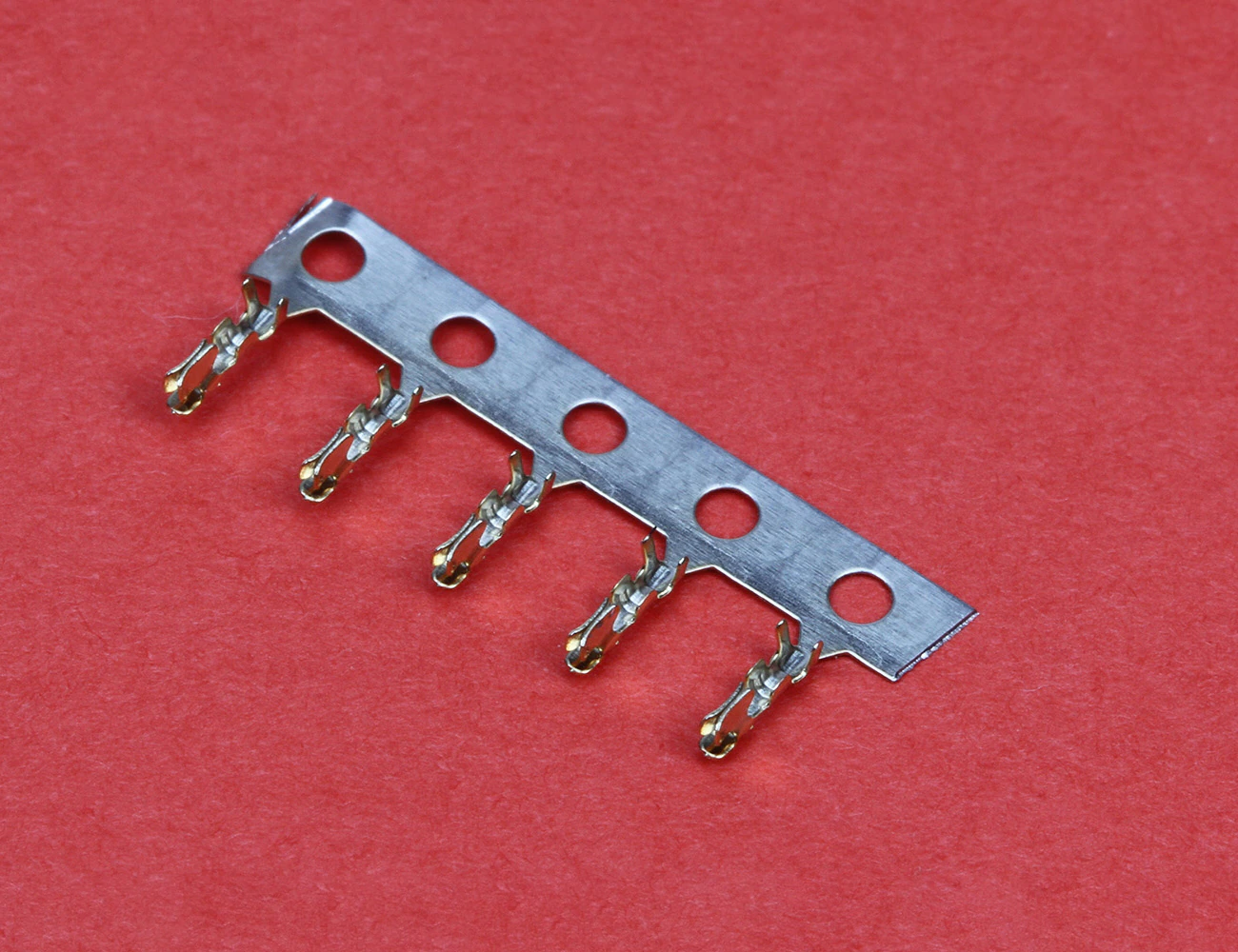

1600-TP	Crimp Terminal Female	-	-	-	-	-
