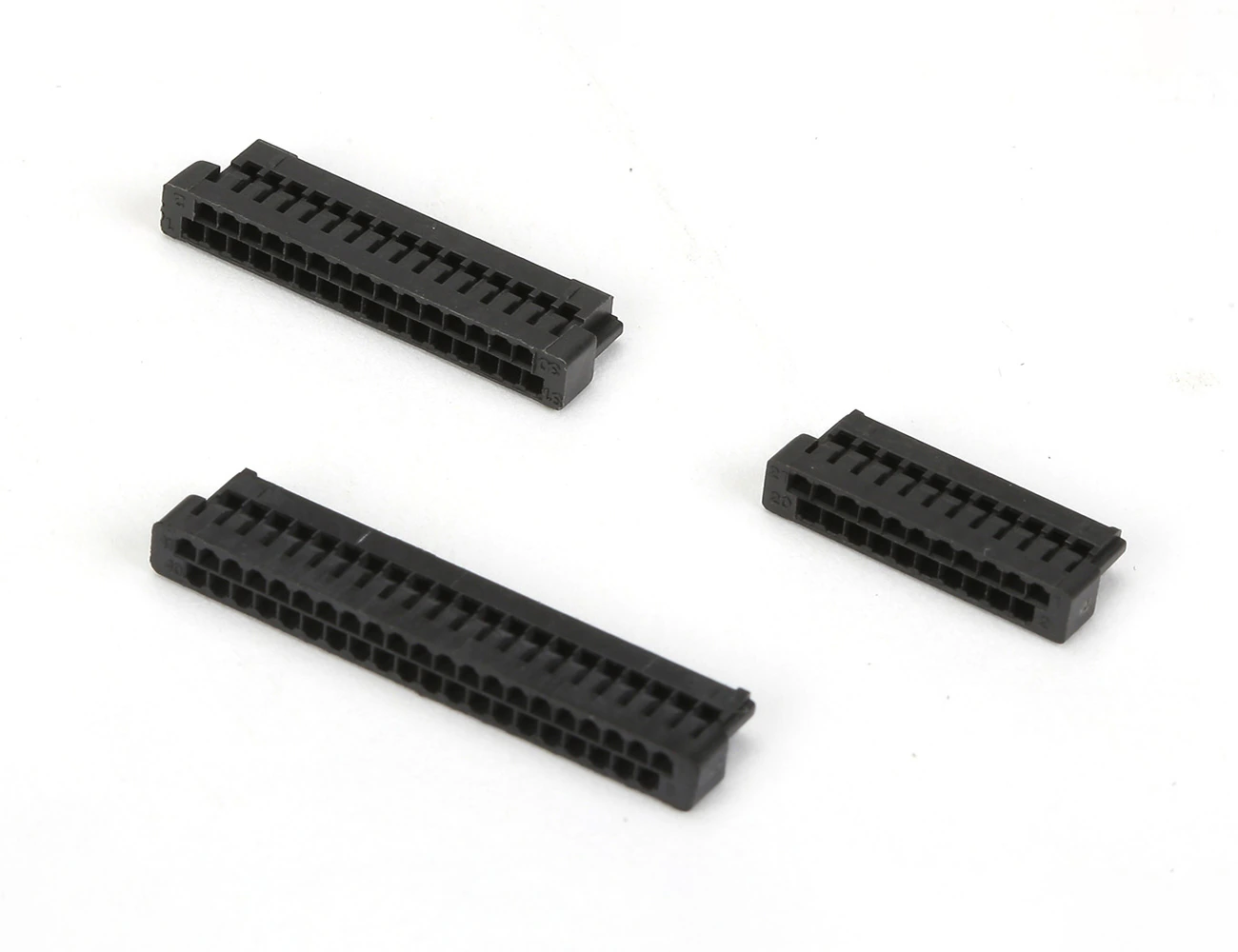

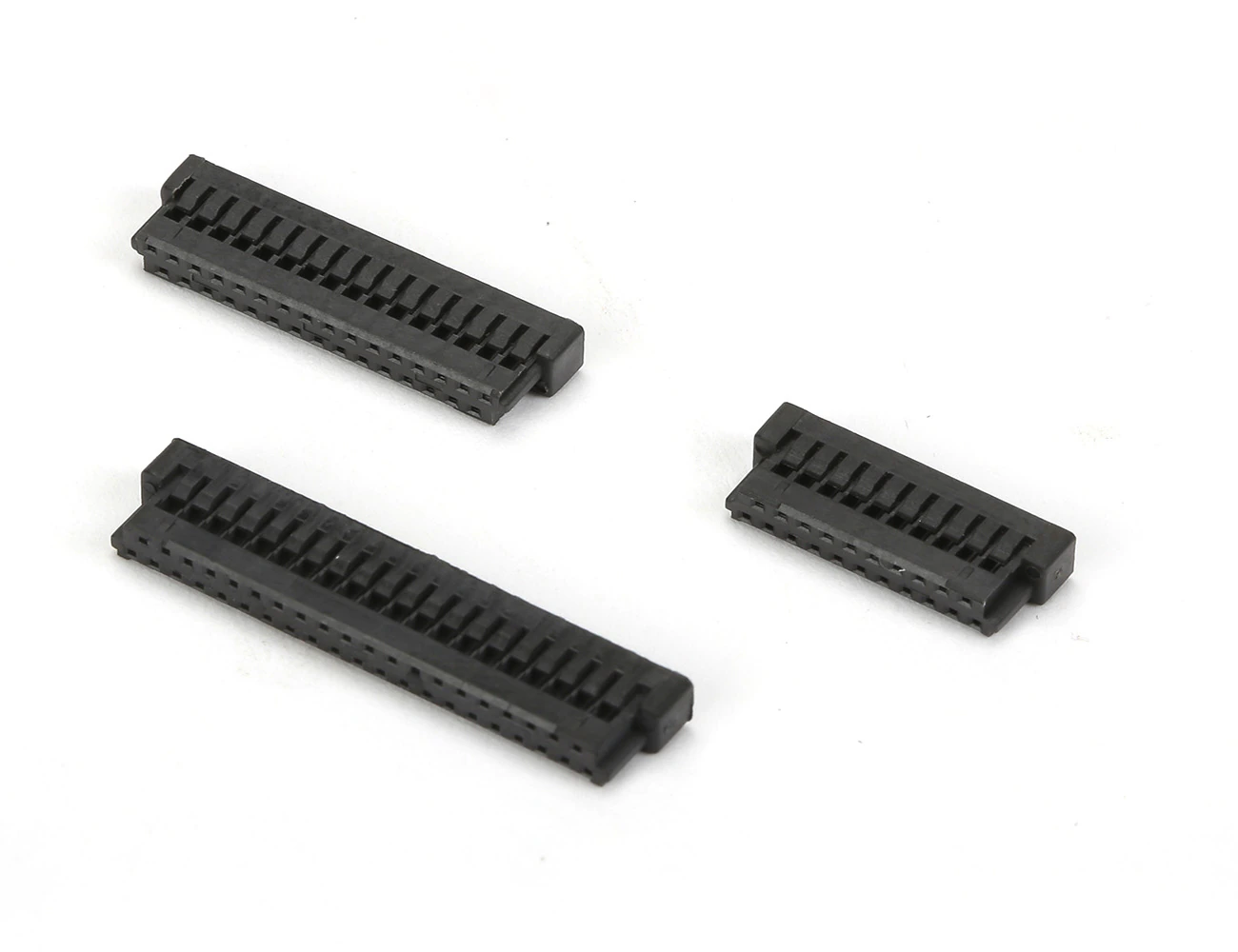

Images are for reference only See Product Specifications
Wire to Board Signal
Signal 1500 Series
Part numbers
1500 Series1500-21HB1500-31HB1500-41HB1500-TP Manufacturer
TTAF Elektronik
Ordering information
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature |
|---|---|---|---|---|---|---|
| 1500-21HB | 21 Pin 1.25mm Double Row Female | 1A | 200V / AC/ DC | 500V / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
| 1500-31HB | 31 Pin 1.25mm Double Row Female | 1A | 200V / AC/ DC | 500V / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
| 1500-41HB | 41 Pin 1.25mm Double Row Female | 1A | 200V / AC/ DC | 500V / munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
| 1500-TP | 1500 Terminal | - | - | - | - | - |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
