Wire to Board Signal

Signal 1314 Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1314 Series

Part numbers

1314 Series1314-1x2P1314-2x2P1314-2x3P1314-2x8P1314-1x16P1314-2x15P1314-1x18P1314-2x18P1314-2x20P1314-1x40P1314-2x40P1314-T

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

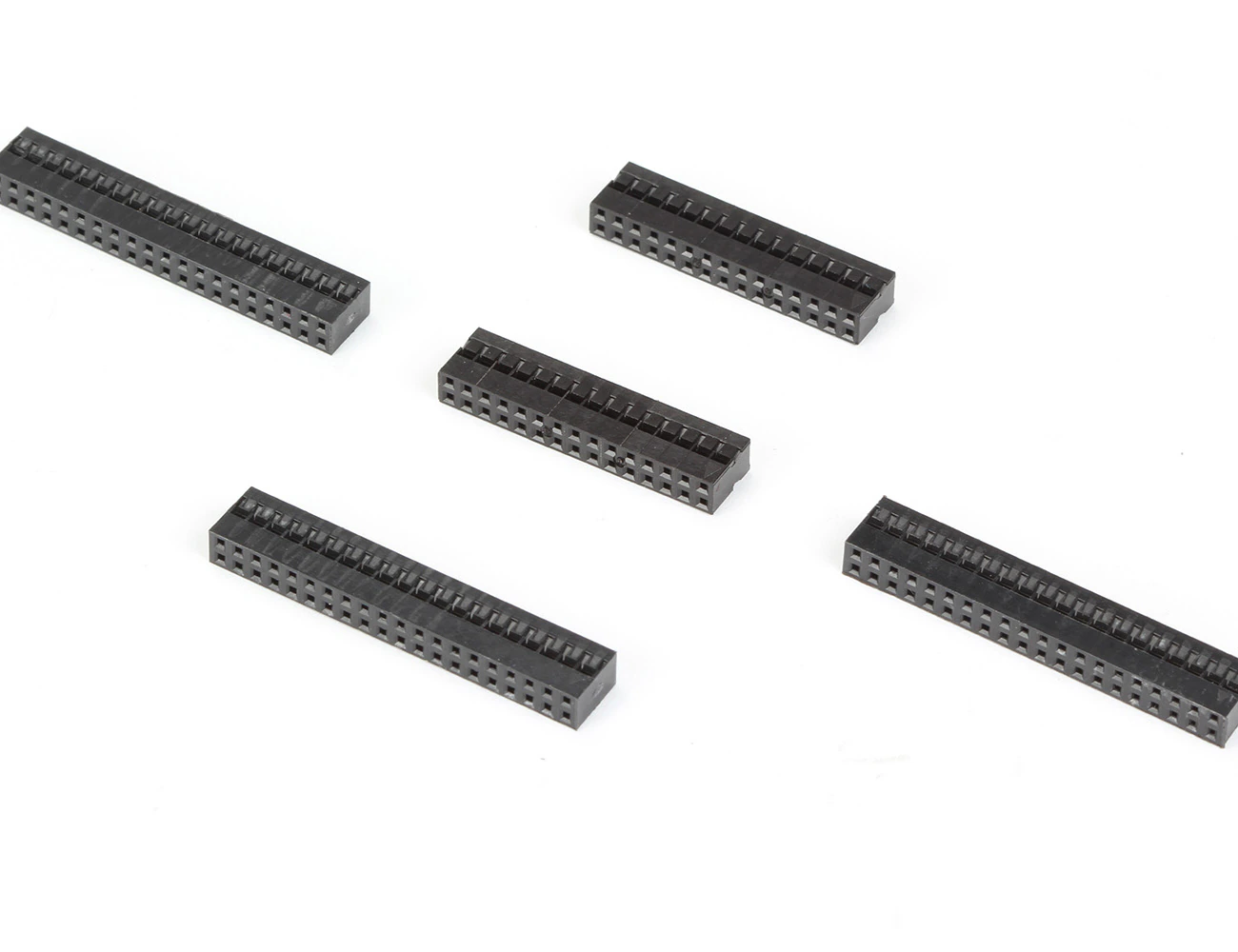

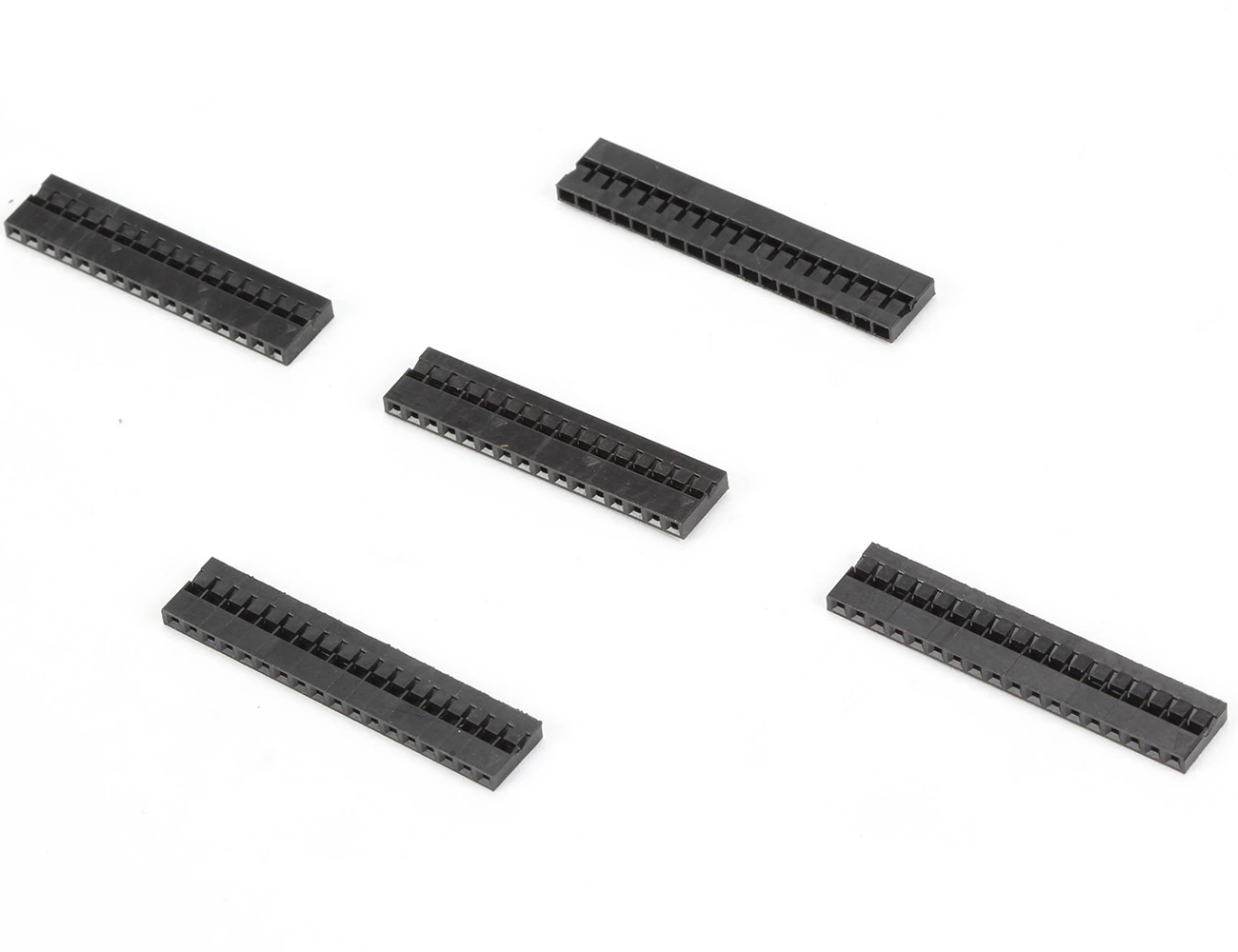

1314-1x2P	1x2 Pin 2.00mm Single Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C

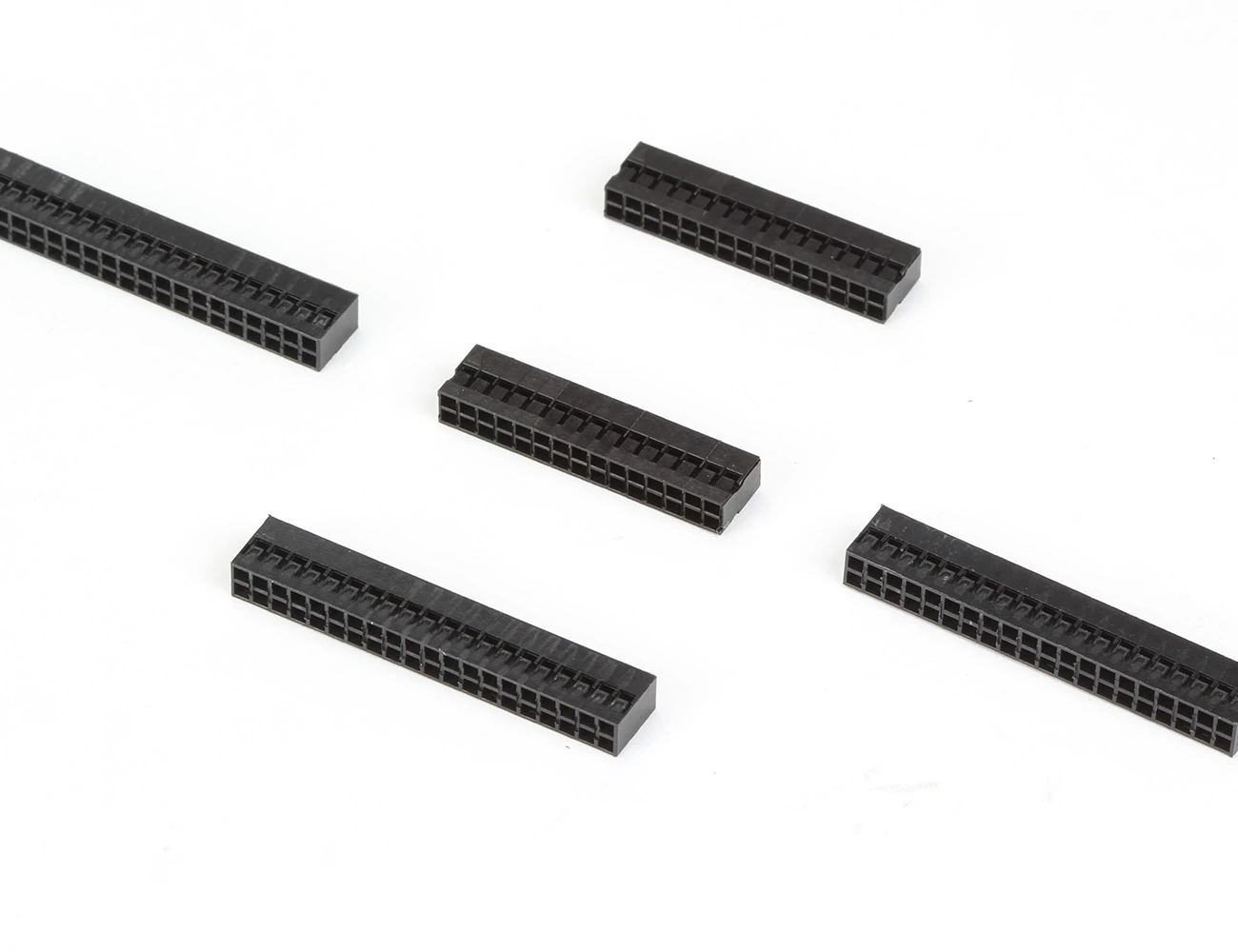

1314-2x2P	2x2 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-2x3P	2x3 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-2x8P	2x8 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-1x16P	1x16 Pin 2.00mm Single Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-2x15P	2x15 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-1x18P	1x18 Pin 18 Pin 2.00mm Single Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-2x18P	2x18 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-2x20P	2x20 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-1x40P	1X40 Pin 2.00mm Single Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C
1314-2x40P	2x40 Pin 2.00mm Double Row Female	1A	50V / AC/ DC	500V / AC / munite	Nylon 66 UL94V-0	-25°C to +85°C

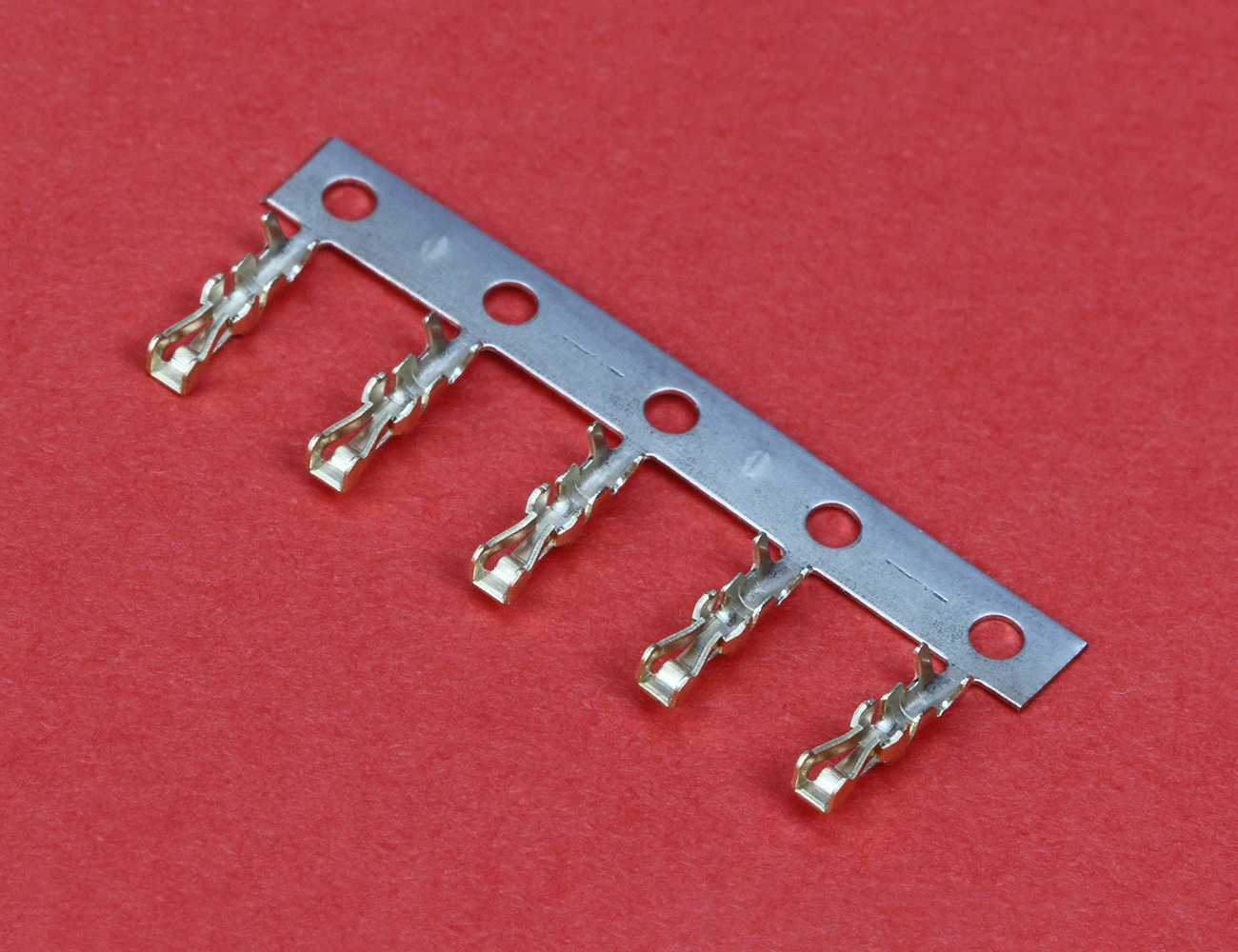

1314-T	Crimp Terminal Female	-	-	-	-	-
