Wire to Board Signal

Signal 1312 Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1312 Series

Part numbers

1312 Series1312-1x1P1312-2x2P1312-1x2P1312-2x4P1312-1x40P1312-2x40P1312-T

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

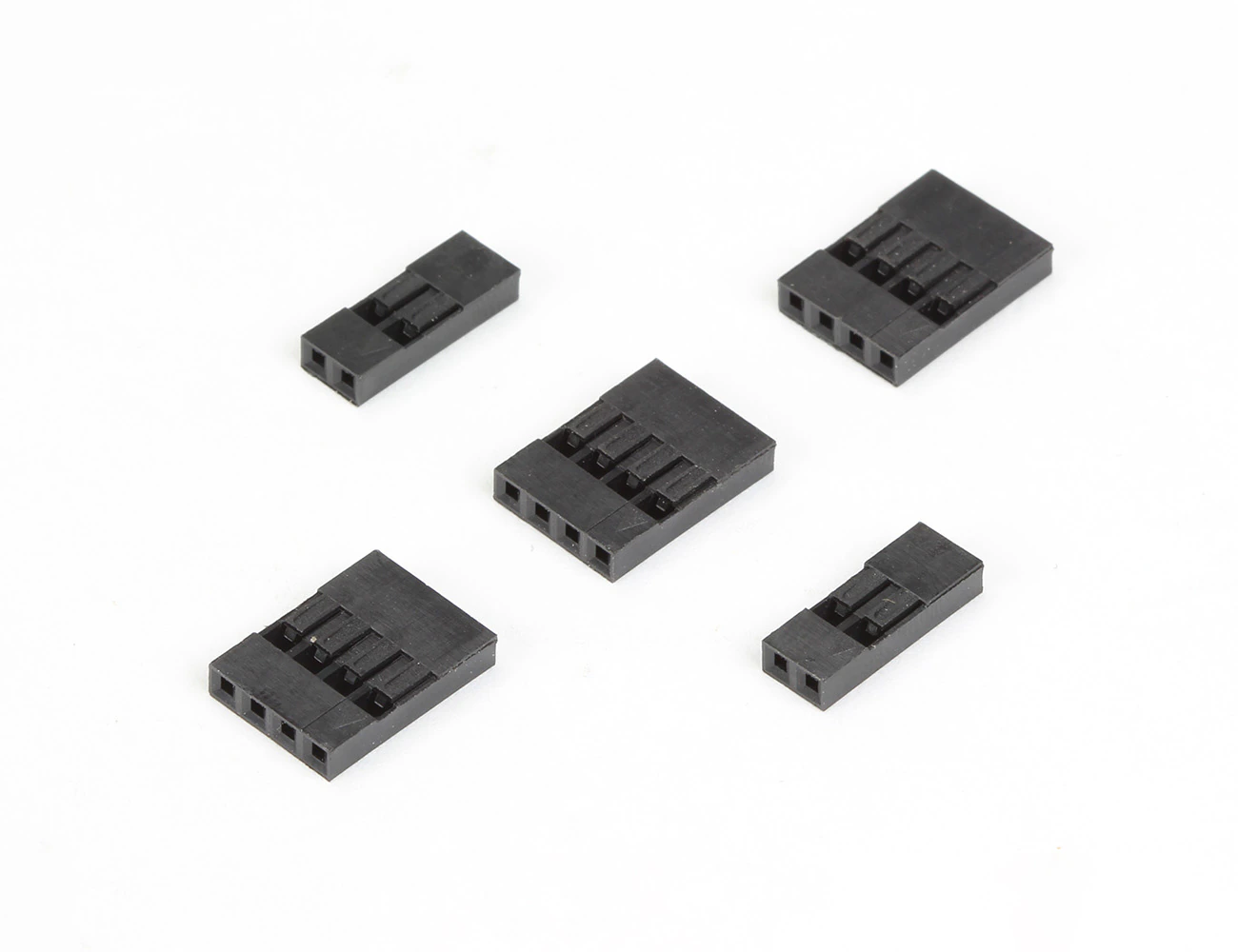

1312-1x1P	1x1 Pin 2.54mm Single Row Female	3A	250V / AC/ DC	800V AC / munite	P.B.T UL94V-0	-25°C to +85°C

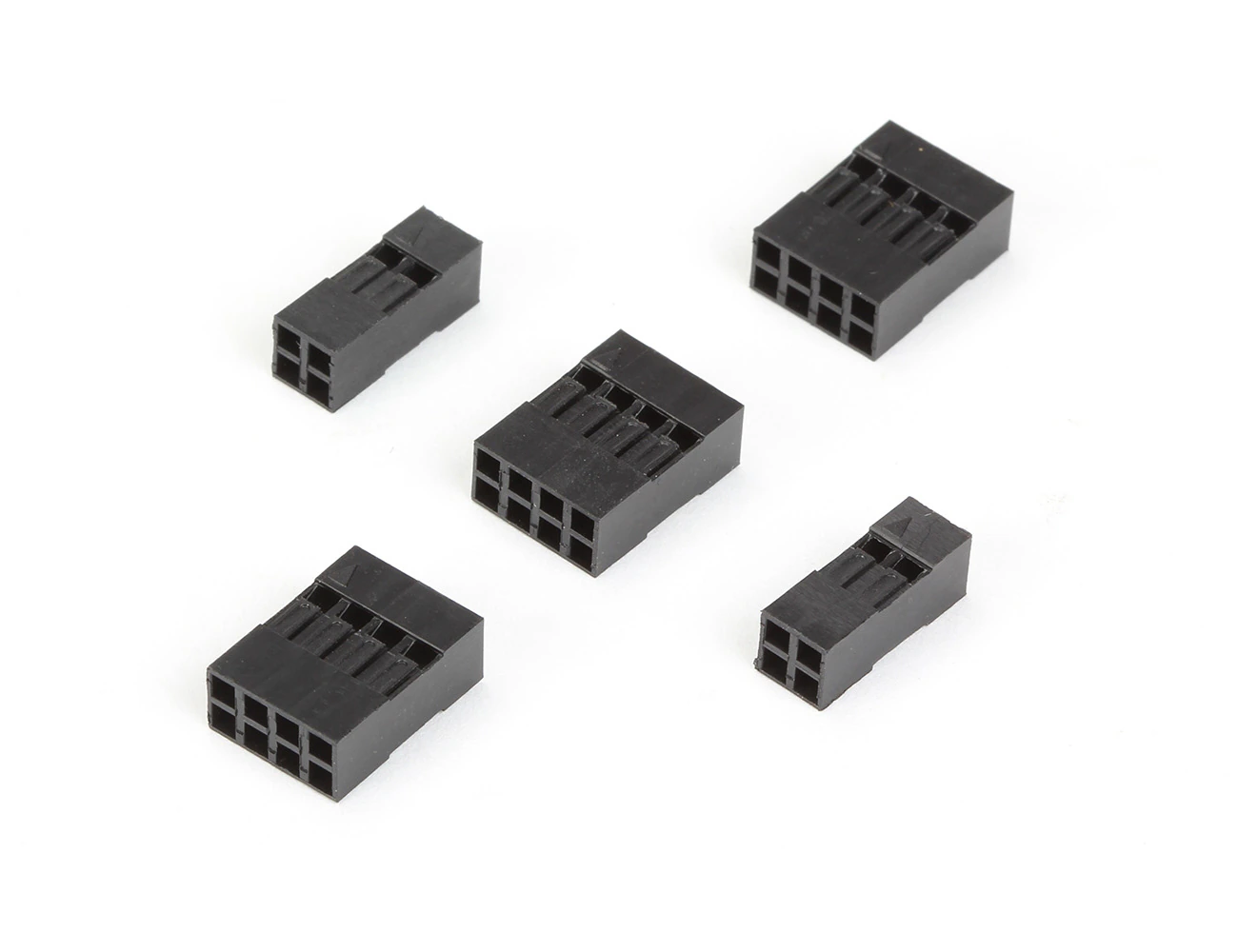

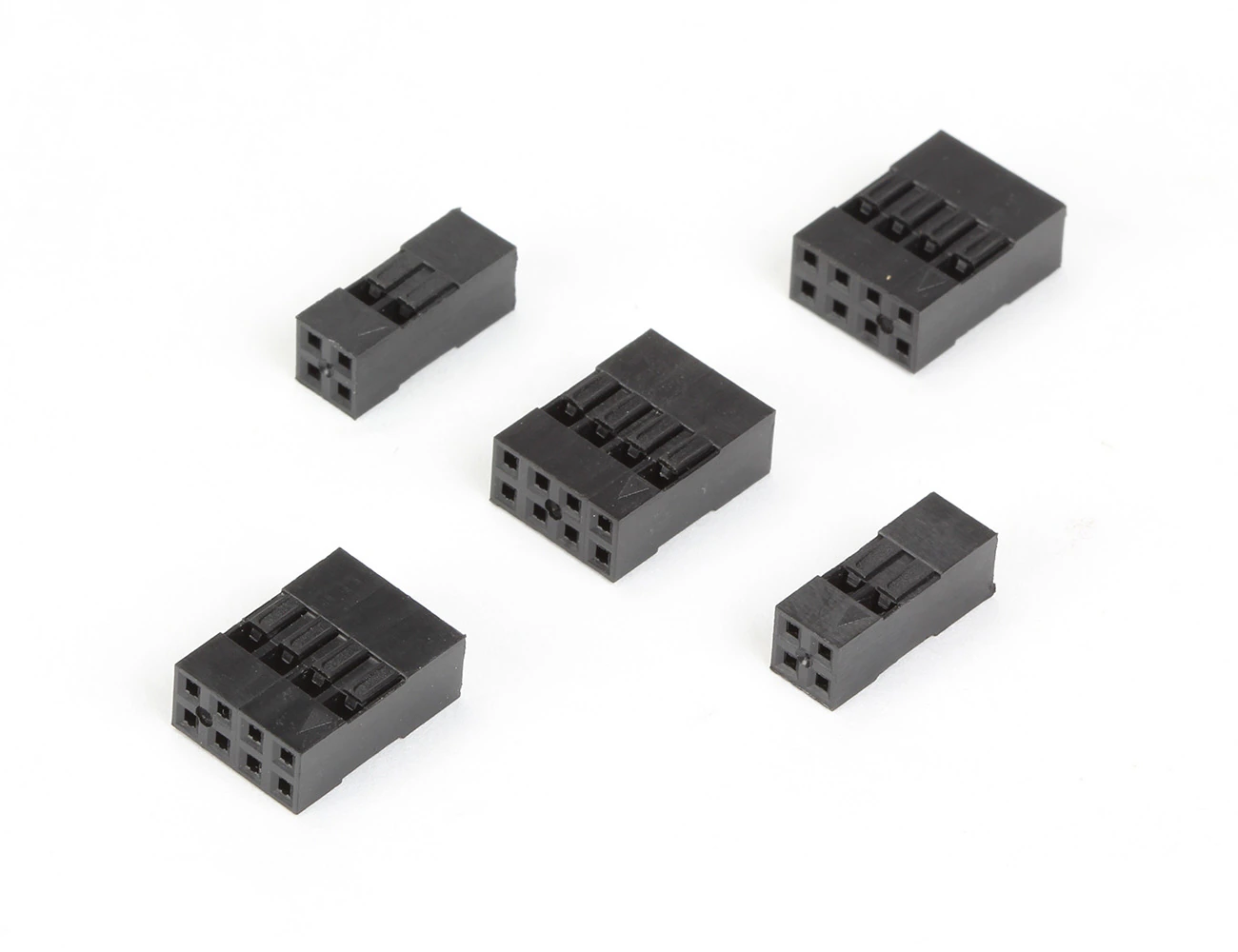

1312-2x2P	2x2 Pin 2.54mm Double Row Female	3A	250V / AC/ DC	800V AC / munite	P.B.T UL94V-0	-25°C to +85°C
1312-1x2P	1x2 Pin 2.54mm Single Row Female	3A	250V / AC/ DC	800V AC / munite	P.B.T UL94V-0	-25°C to +85°C
1312-2x4P	2x4 Pin 2.54mm Double Row Female	3A	250V / AC/ DC	800V AC / munite	P.B.T UL94V-0	-25°C to +85°C
1312-1x40P	1x40 Pin 2.54mm Single Row Female	3A	250V / AC/ DC	800V AC / munite	P.B.T UL94V-0	-25°C to +85°C
1312-2x40P	2x40 Pin 2.54mm Double Row Female	3A	250V / AC/ DC	800V AC / munite	P.B.T UL94V-0	-25°C to +85°C

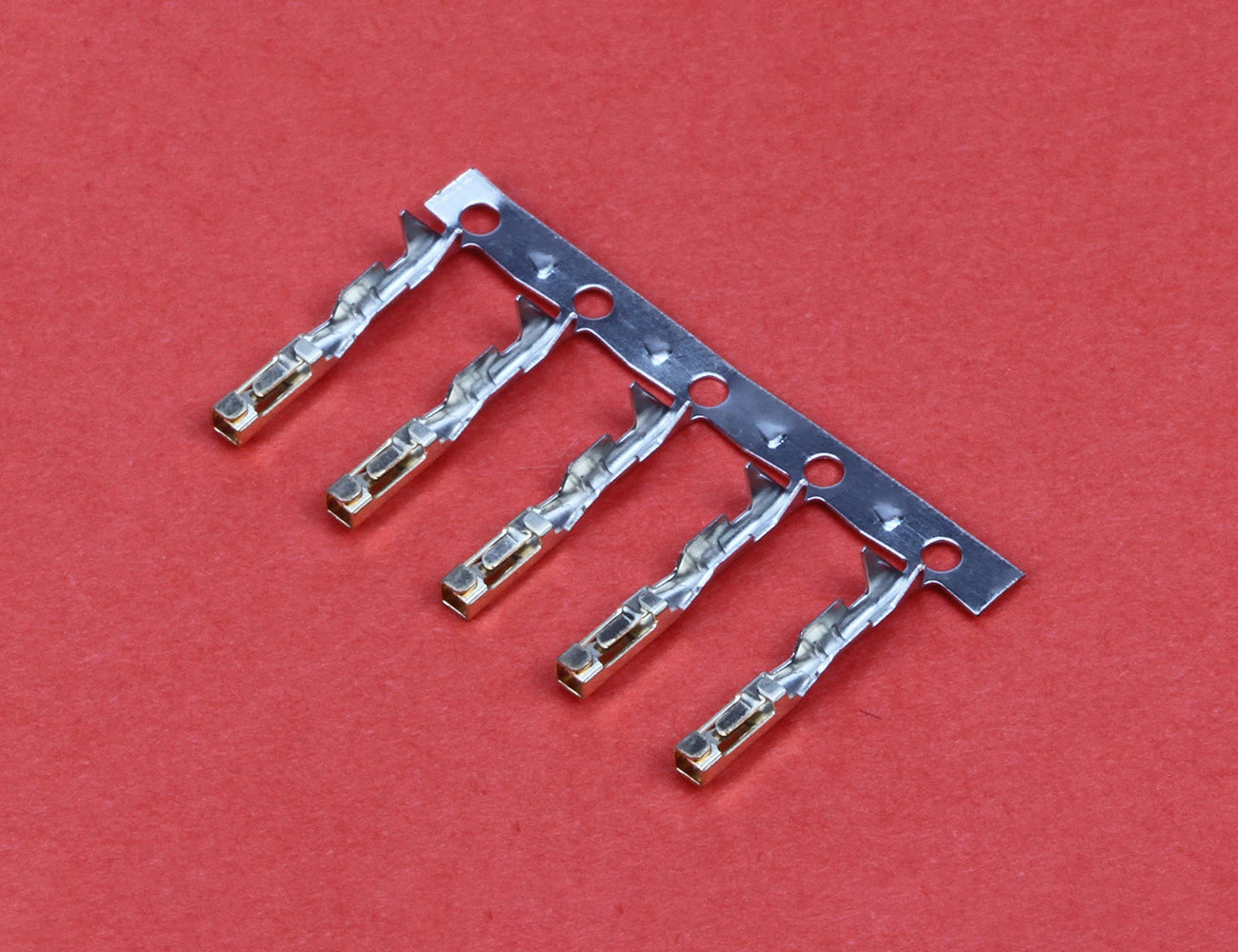

1312-T	Crimp Terminal Female	-	-	-	-	-
