Wire to Board Signal
Signal 1211 Series TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1211 Series

Part numbers
None1211-02P1211-03P1211-04P1211-05P1211-06P1211-07P1211-08P1211-09P1211-10P1211-11P1211-12P1211-13P1211-14P1211-15P1211-T
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

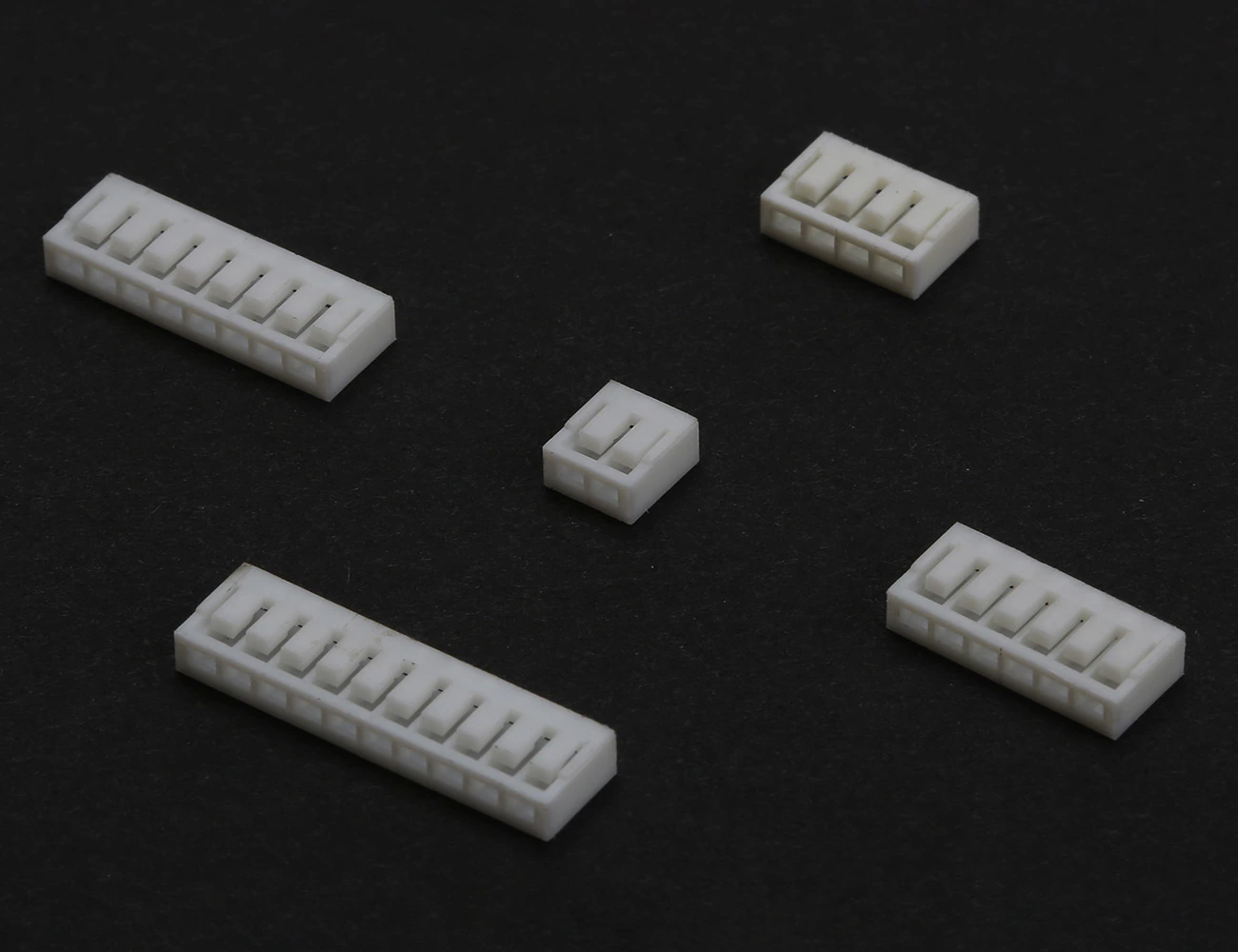

1211-02P2 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-03P3 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-04P4 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-05P5 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-06P6 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-07P7 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-08P8 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-09P9 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-10P10 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-11P11 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-12P12 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-13P13 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-14P14 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
1211-15P15 Pin 2mm Pcb Type Female Connector2A250V800VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

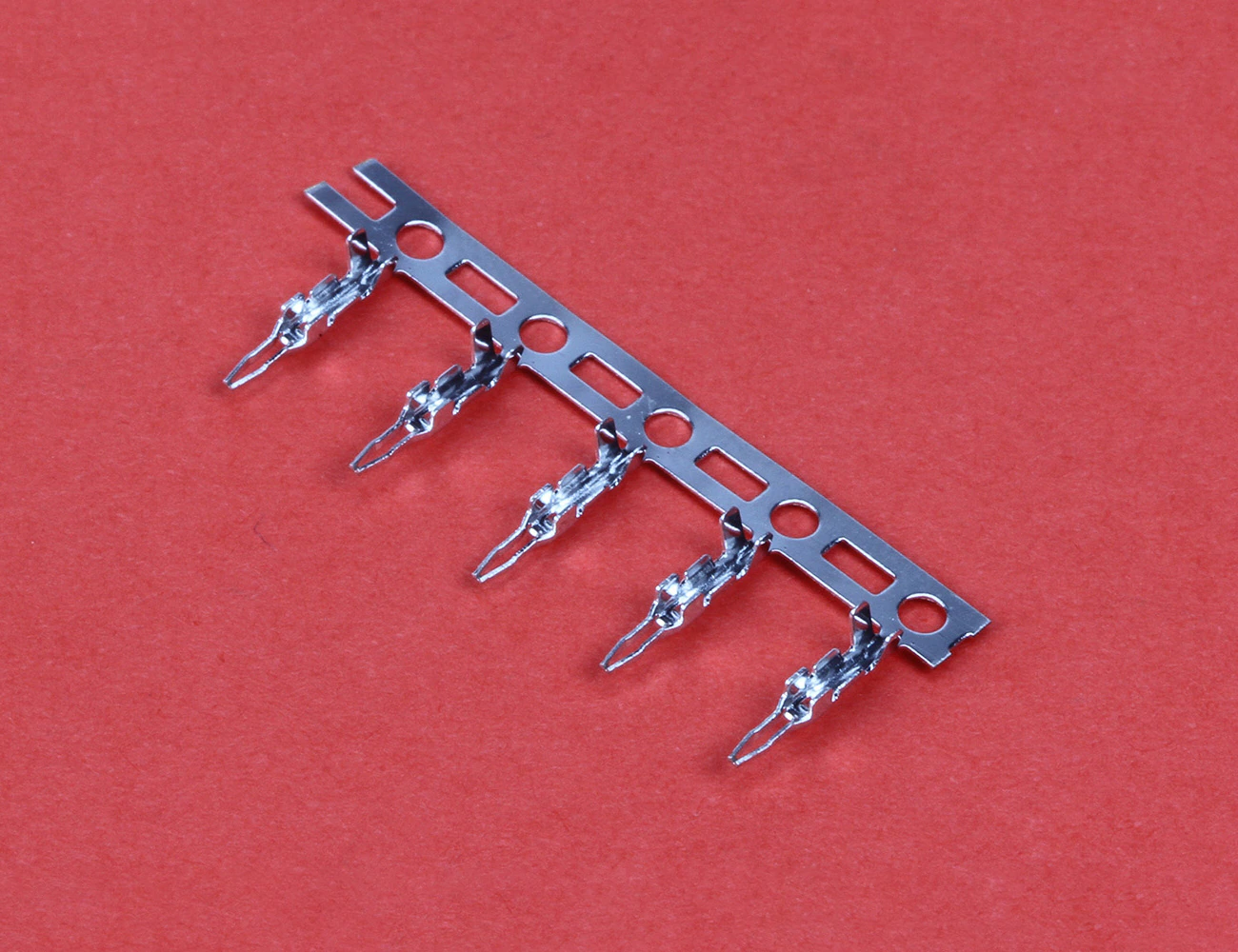

1211-TCrimp Terminal-----
