Wire to Board Signal

Signal 1000D Series

TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Signal

Signal 1000D Series

Part numbers

1000D Series1000D-10HB1000D-10SPR1000D-20HB1000D-20SPR1000D-30HB1000D-30SPR1000D-40HB1000D-40SPR1000D-TP

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

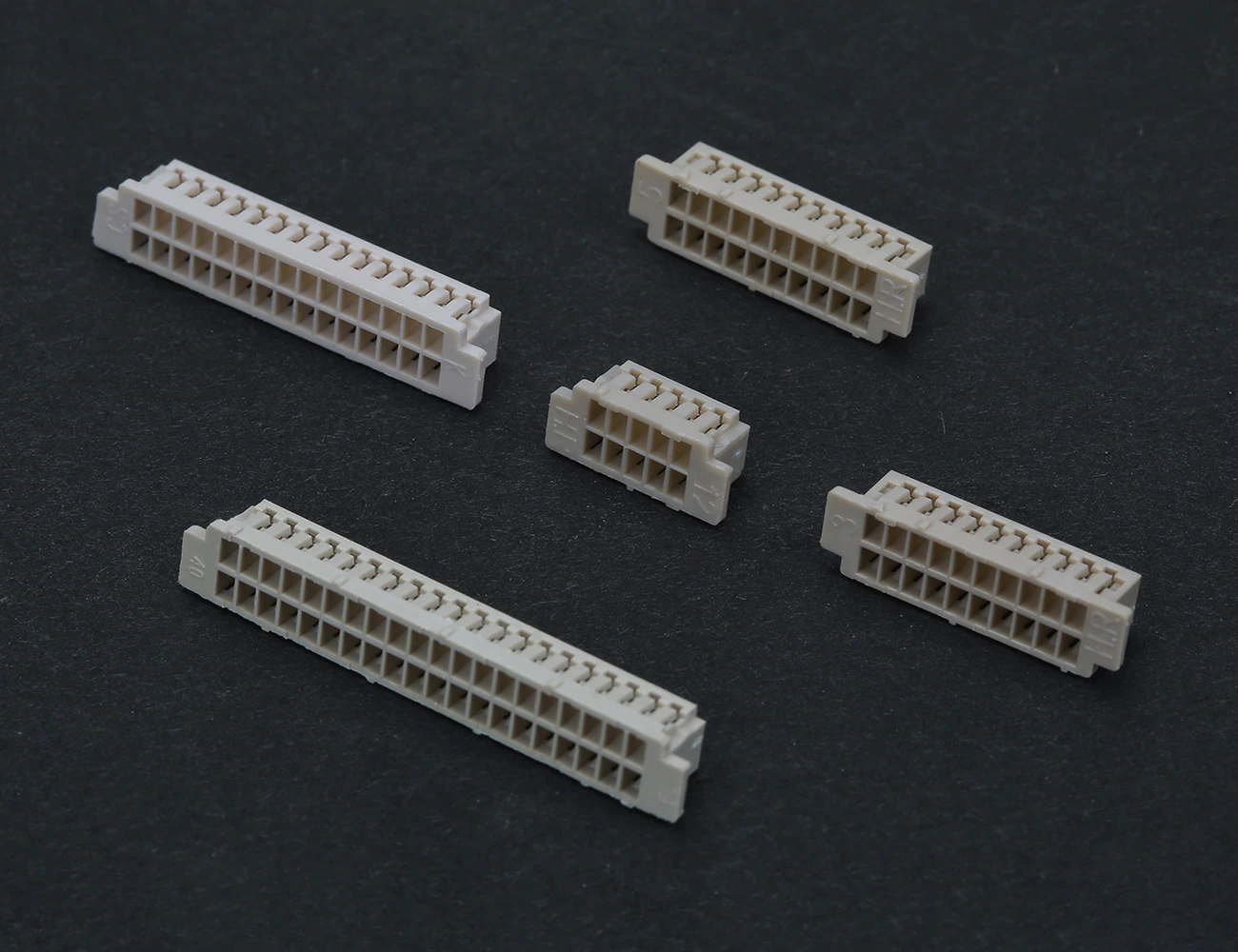

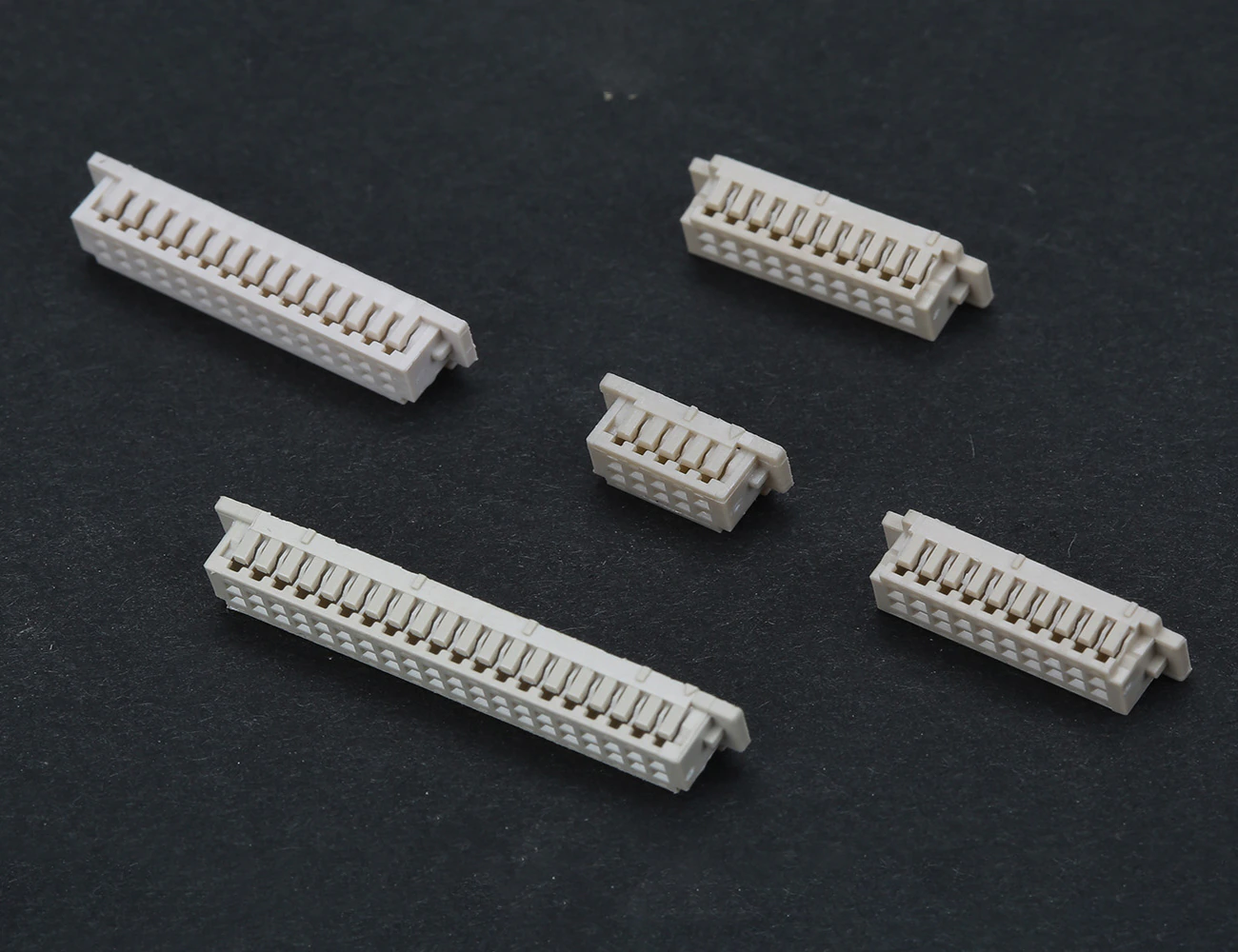

1000D-10HB	10 Pin 1.25mm Double Row Female	1A	150V / AC/ DC	500V / munite	Nylon 66 UL94V-0	-25°C ~ +85°C

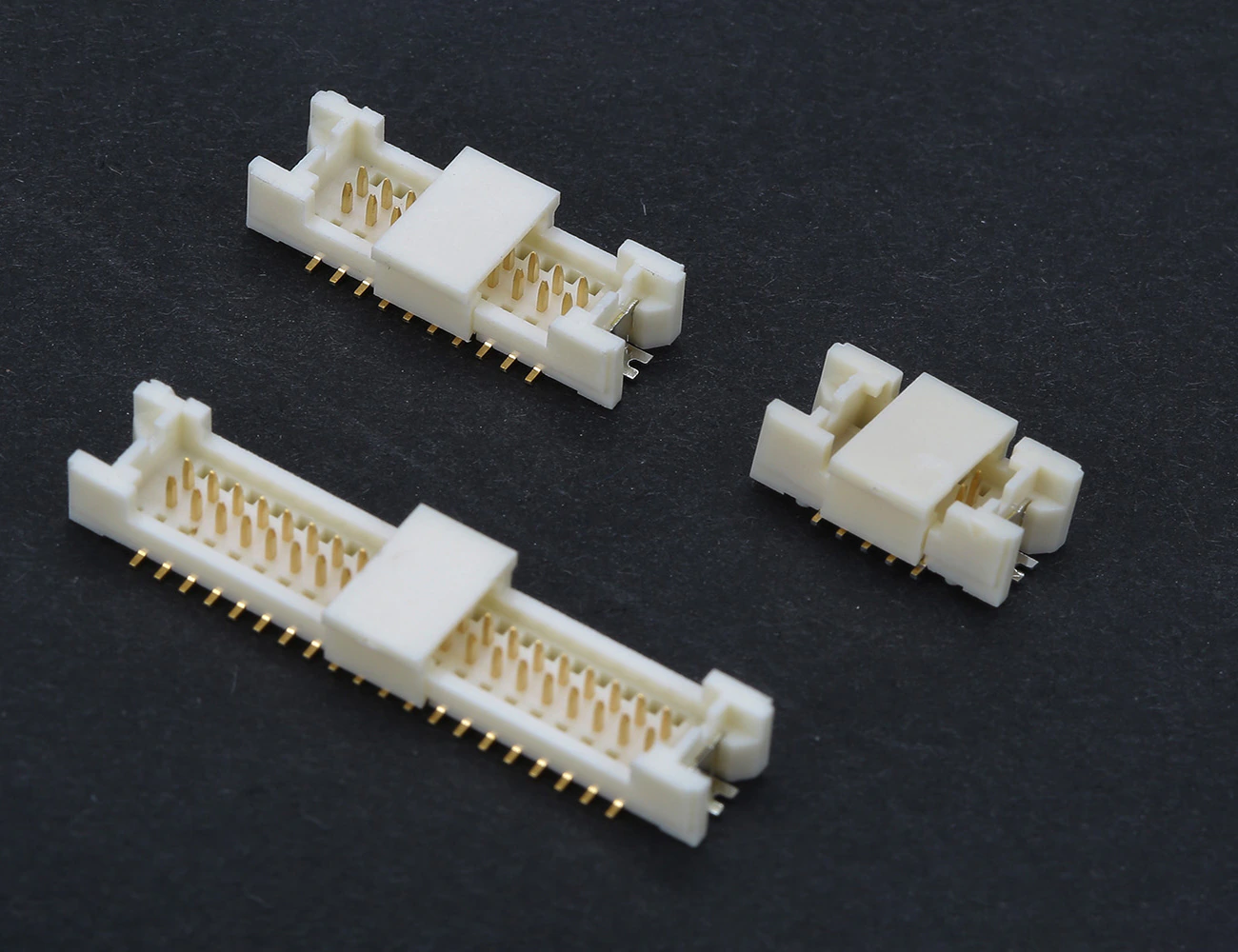

1000D-10SPR	10 Pin 1.25mm Double Row SMD Pcb Type Male Upright	1A	150V / AC/ DC	500V / AC / munite	Nylon 6T UL94V-0	-25°C ~ +85°C
1000D-20HB	20 Pin 1.25mm Double Row Female	1A	150V / AC/ DC	500V / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1000D-20SPR	20 Pin 1.25mm Double Row SMD Pcb Type Male Upright	1A	150V / AC/ DC	500V / AC / munite	Nylon 6T UL94V-0	-25°C ~ +85°C
1000D-30HB	30 Pin 1.25mm Double Row Female	1A	150V / AC/ DC	500V / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1000D-30SPR	30 Pin 1.25mm Double Row SMD Pcb Type Male Upright	1A	150V / AC/ DC	500V / AC / munite	Nylon 6T UL94V-0	-25°C ~ +85°C
1000D-40HB	40 Pin 1.25mm Double Row Female	1A	150V / AC/ DC	500V / munite	Nylon 66 UL94V-0	-25°C ~ +85°C
1000D-40SPR	40 Pin 1.25mm Double Row SMD Pcb Type Male Upright	1A	150V / AC/ DC	500V / AC / munite	Nylon 6T UL94V-0	-25°C ~ +85°C

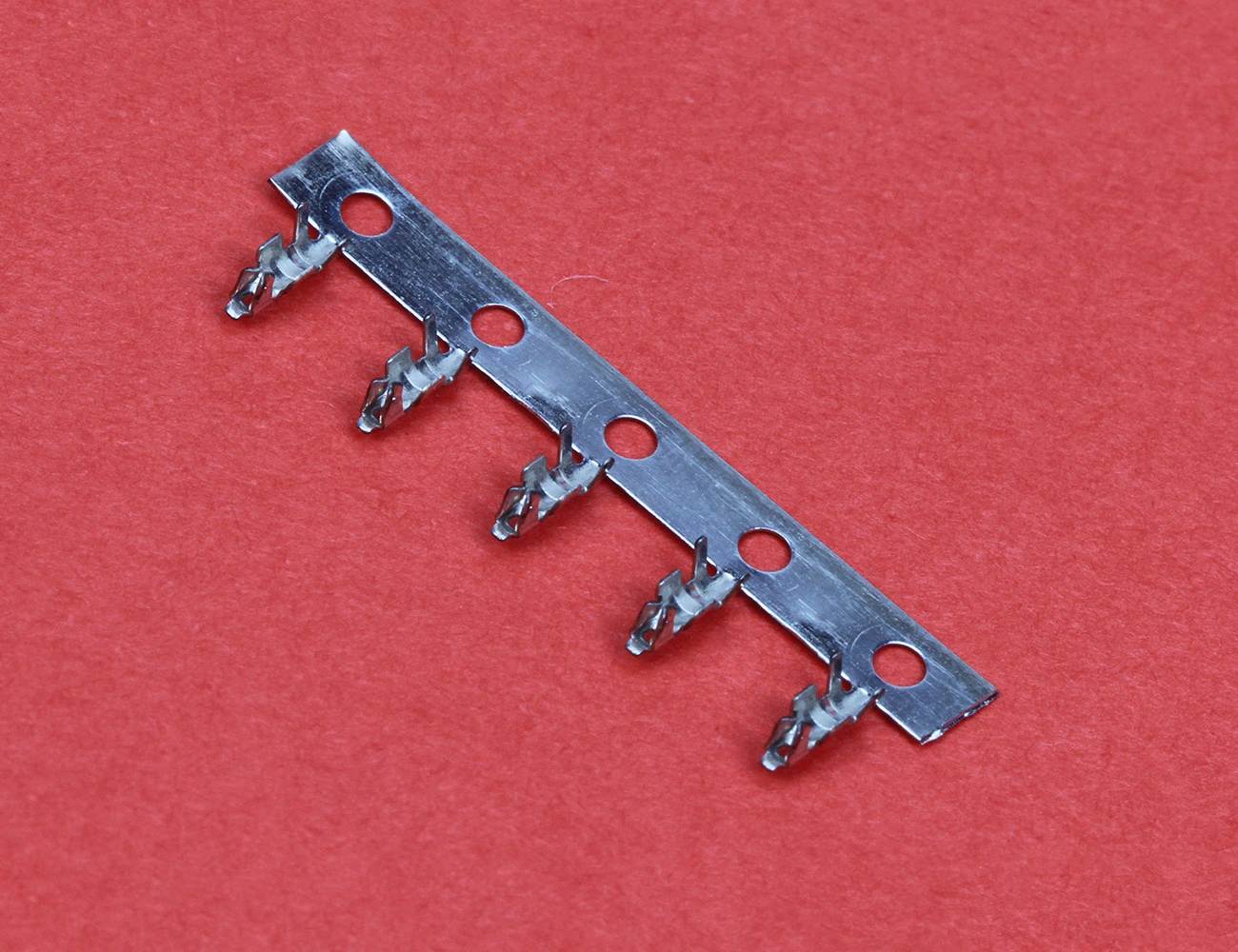

1000D-TP	Crimp Terminal Female	-	-	-	-	-
