Signal 1000 Series

Part numbers

1000 Series1000-02S1000-02R1000-02RP1000-02SP1000-02HB1000-03S1000-03R1000-03RP1000-03SP1000-03HB1000-04S1000-04R1000-04RP1000-04SP1000-04HB1000-05S1000-05R1000-05RP1000-05SP1000-05HB1000-06S1000-06R1000-06RP1000-06SP1000-06HB1000-07S1000-07R1000-07RP1000-07SP1000-07HB1000-08S1000-08R1000-08RP1000-08SP1000-08HB1000-09S1000-09R1000-09RP1000-09SP1000-09HB1000-10S1000-10R1000-10RP1000-10SP1000-10HB1000-11S1000-11R1000-11RP1000-11SP1000-11HB1000-12S1000-12R1000-12RP1000-12SP1000-12HB1000-13S1000-13R1000-13RP1000-13SP1000-13HB1000-14S1000-14R1000-14RP1000-14SP1000-14HB1000-15S1000-15R1000-15RP1000-15SP1000-15HB1000-TP

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

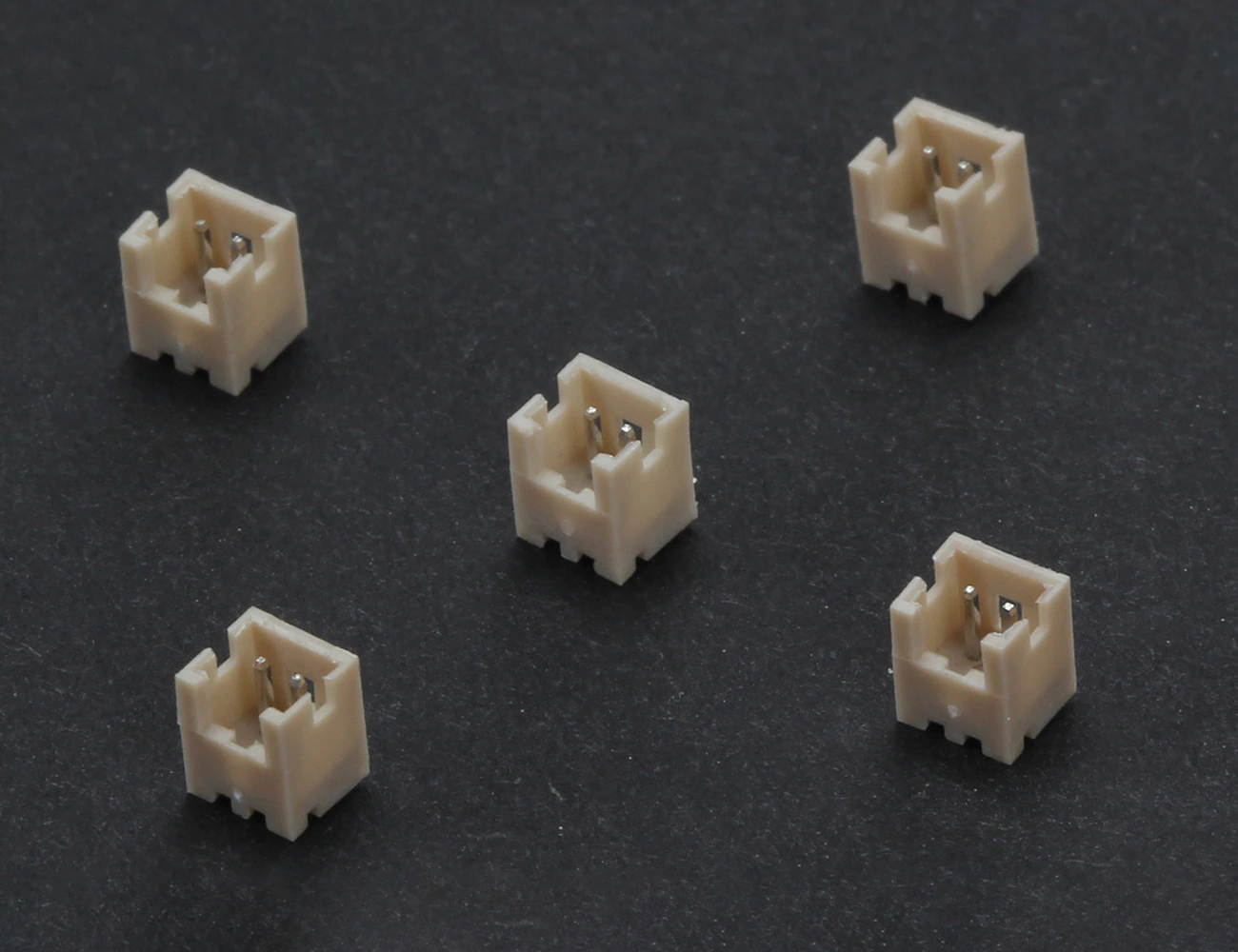

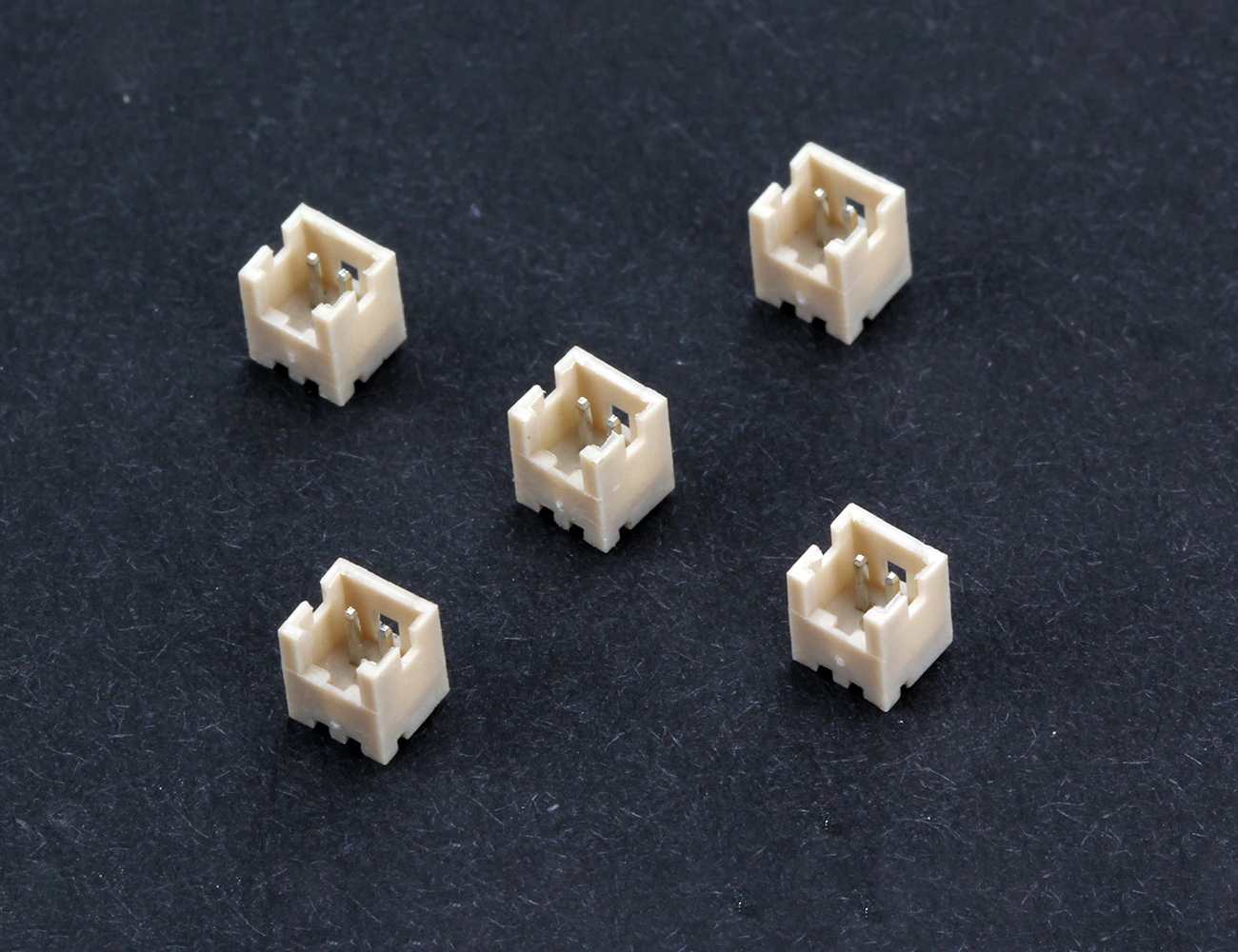

1000-02S	2 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C

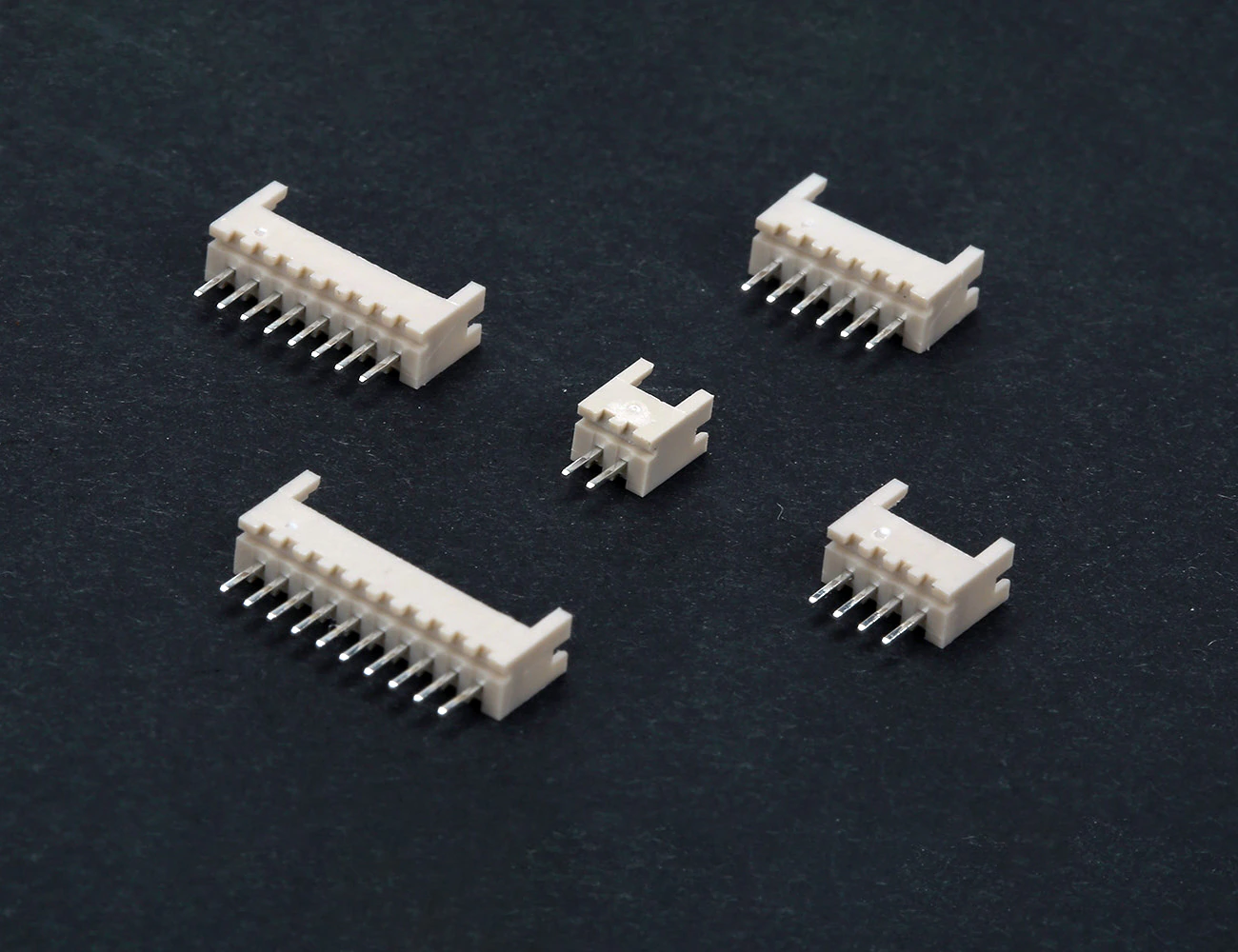

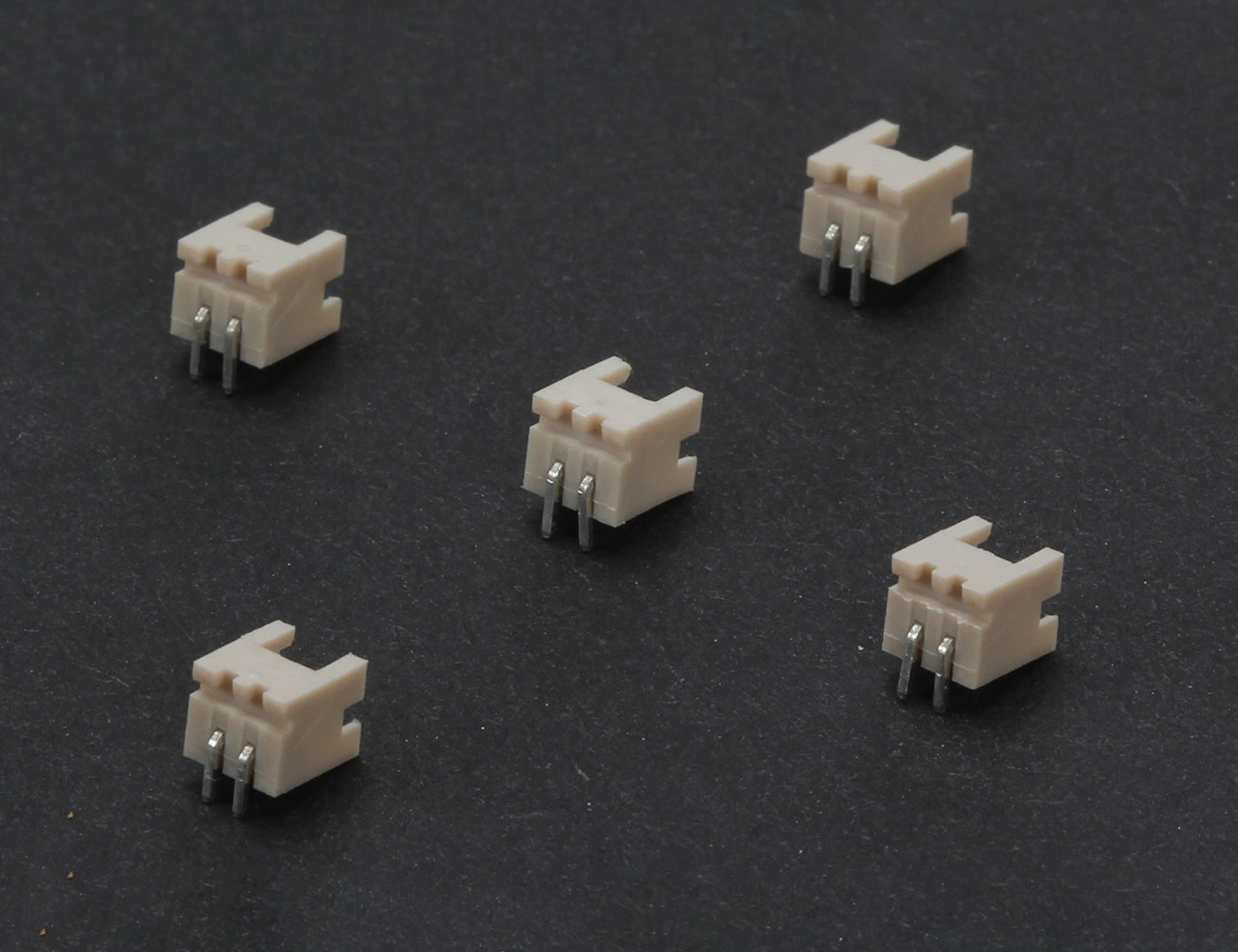

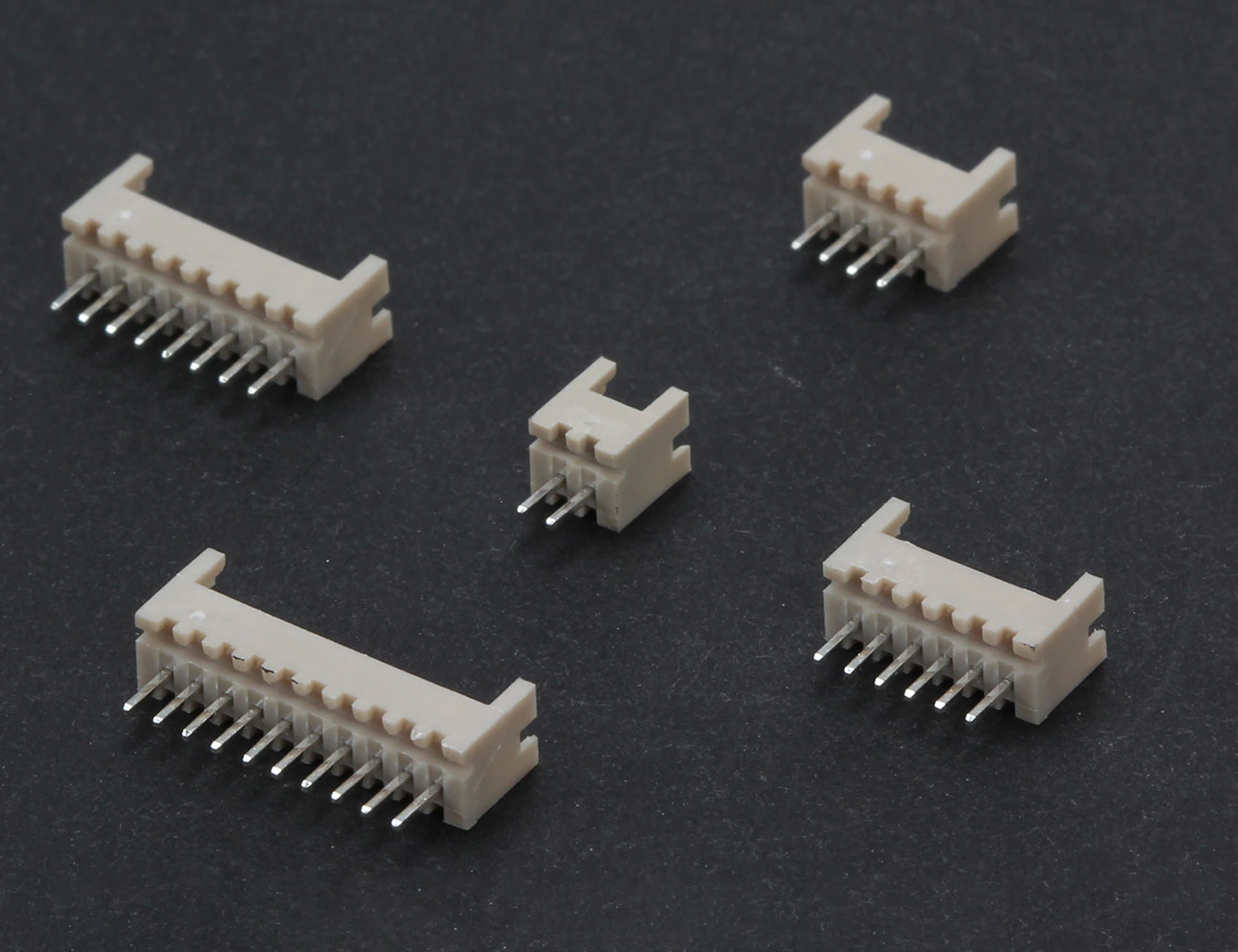

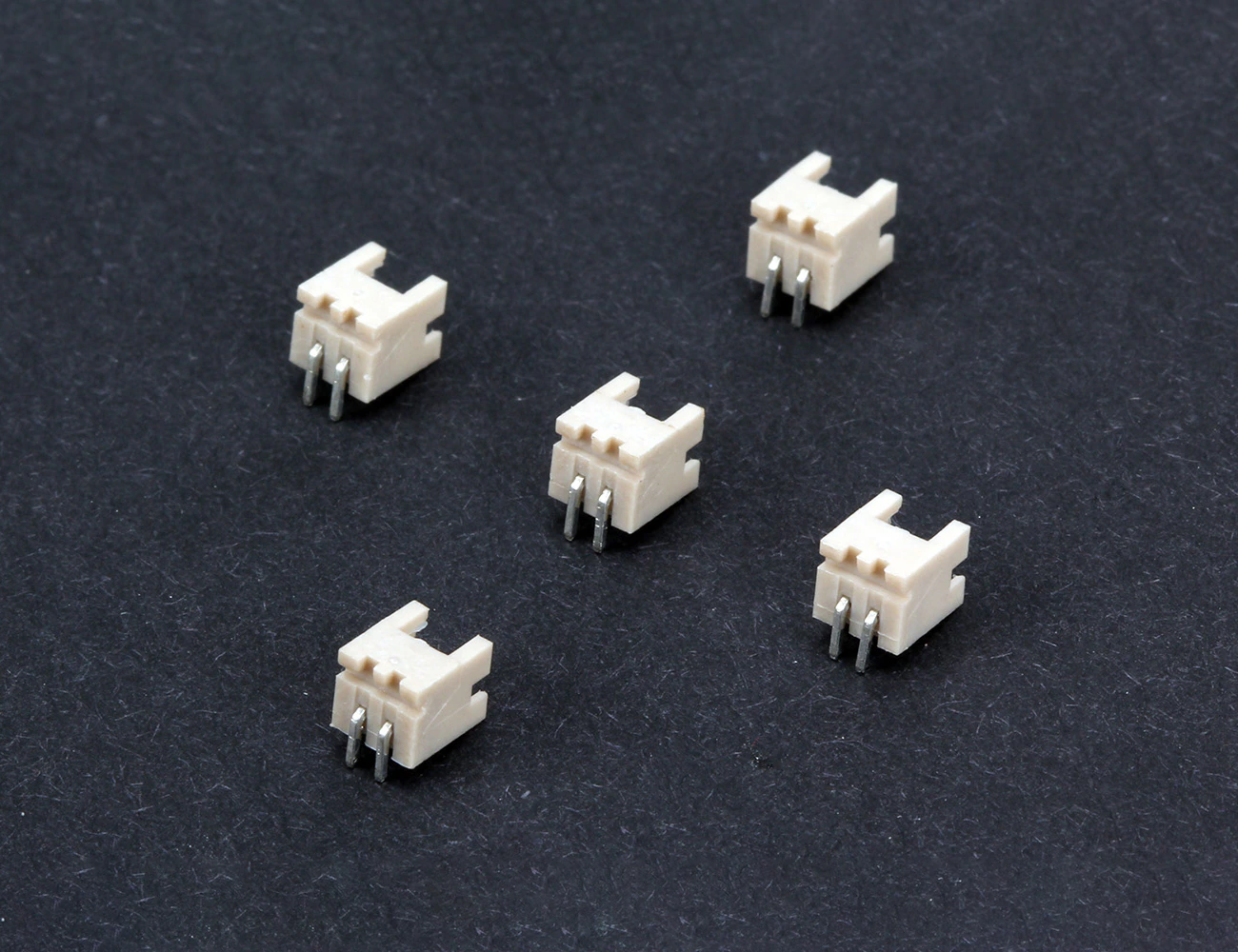

1000-02R	2 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-02RP	2 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C

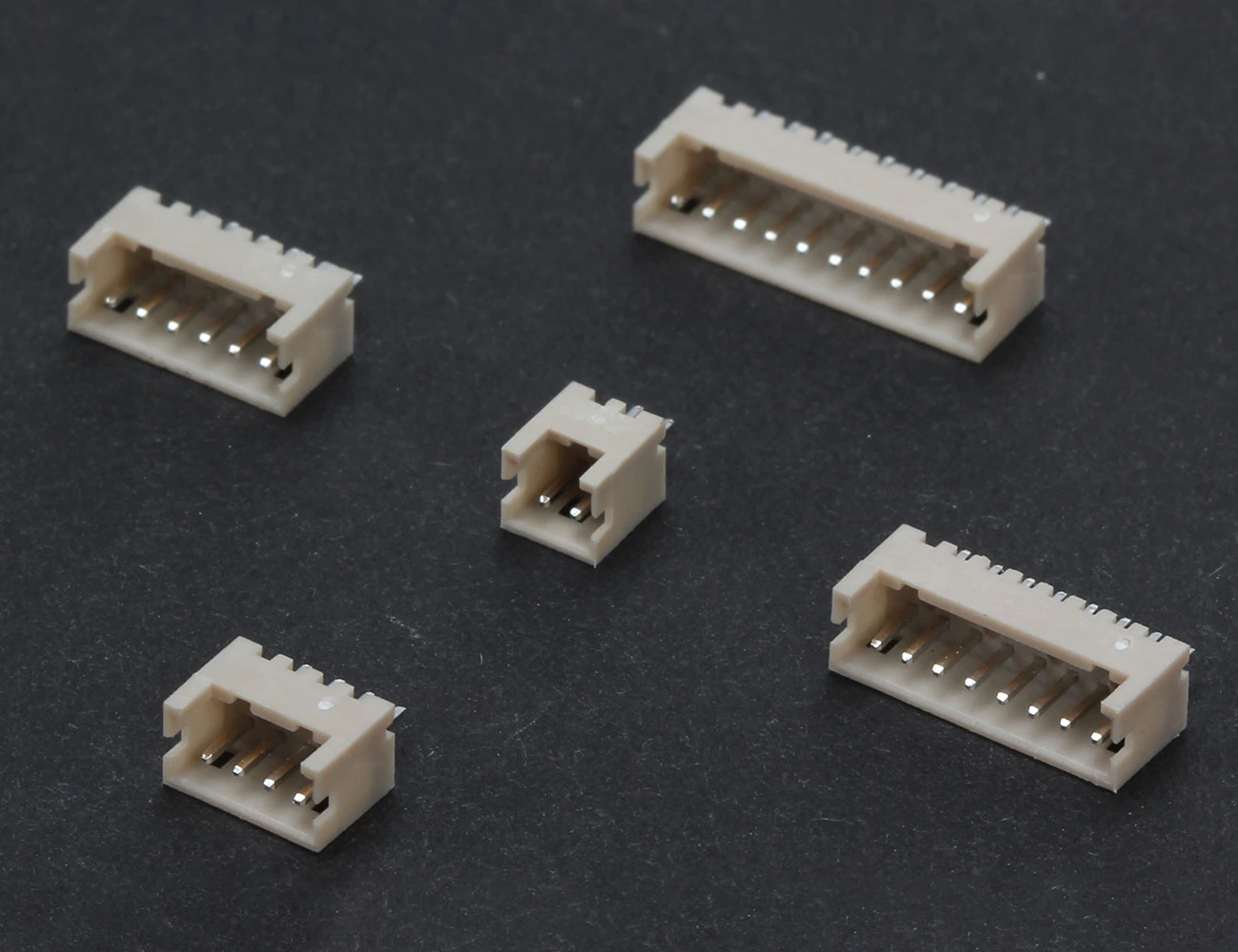

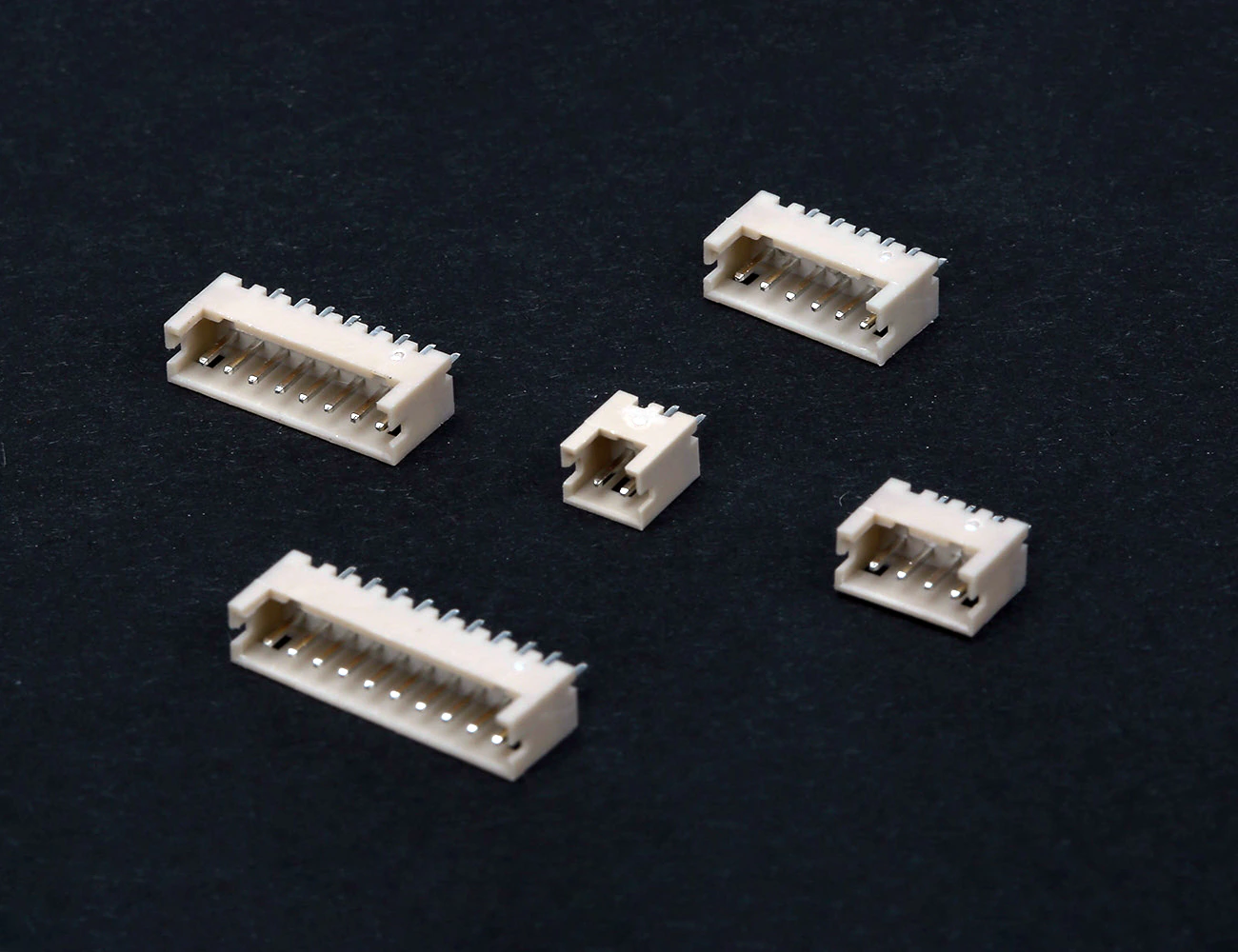

1000-02SP	2 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C

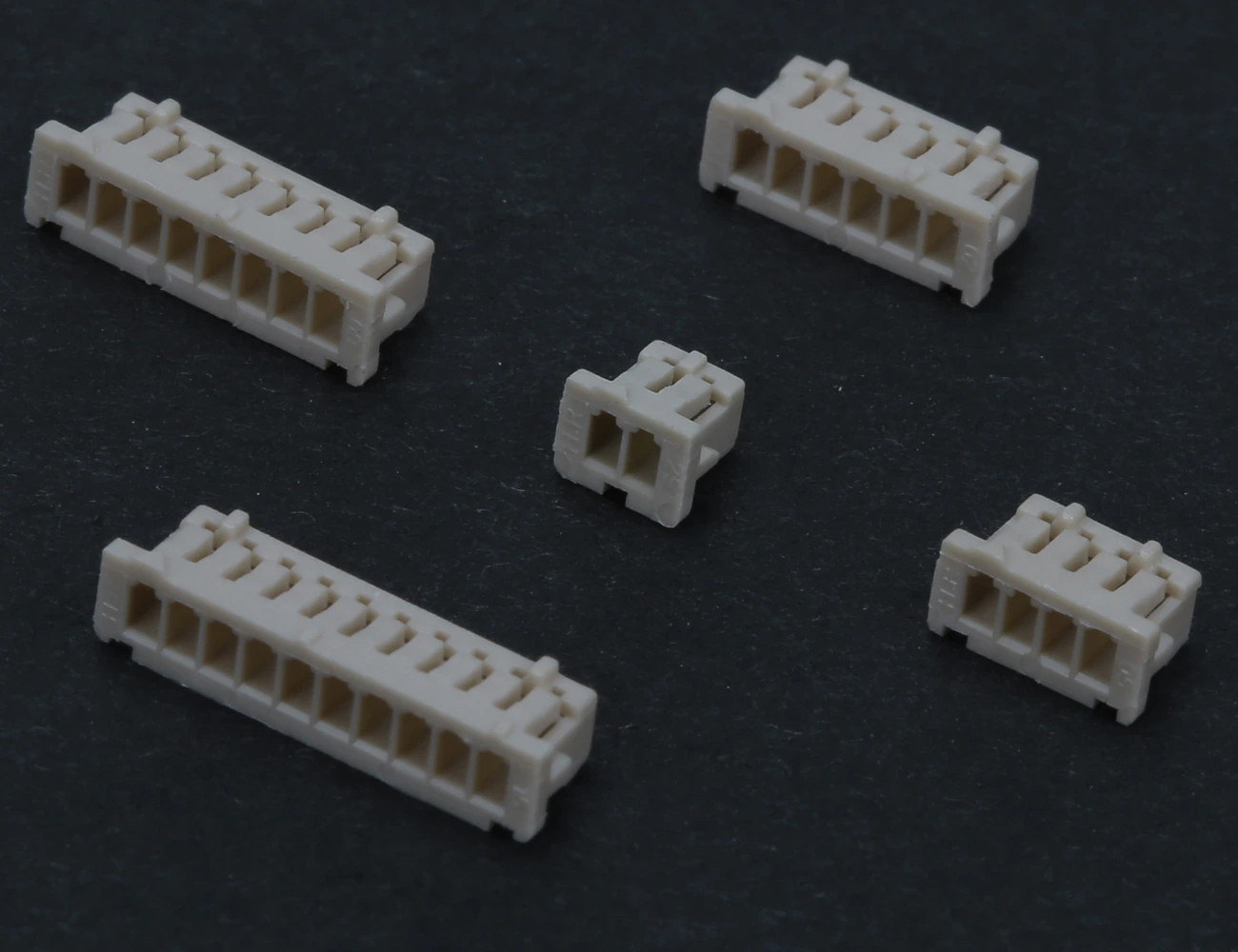

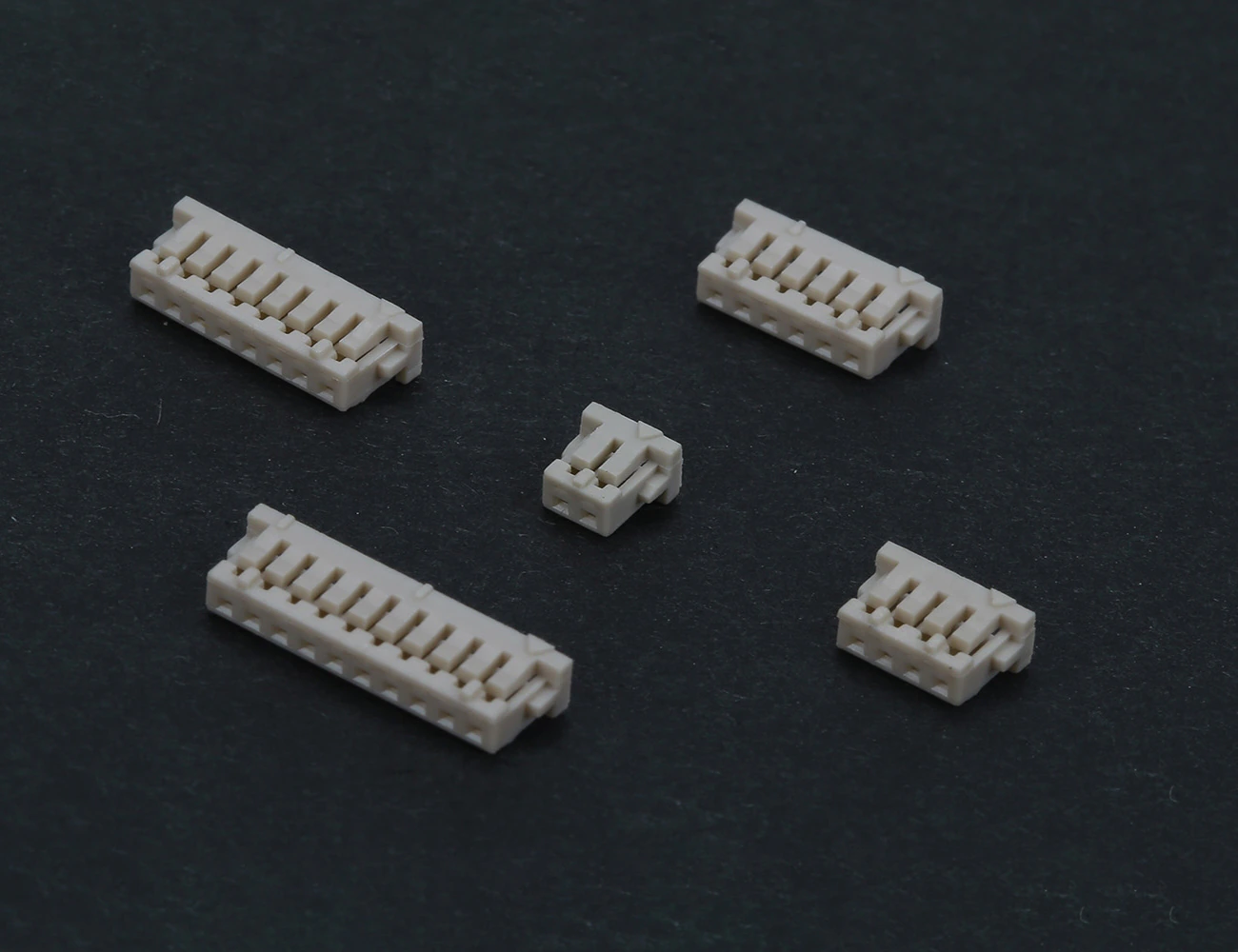

1000-02HB	2 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-03S	3 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-03R	3 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-03RP	3 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-03SP	3 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-03HB	3 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-04S	4 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-04R	4 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-04RP	4 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-04SP	4 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-04HB	4 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-05S	5 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-05R	5 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-05RP	5 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-05SP	5 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-05HB	5 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-06S	6 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-06R	6 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-06RP	6 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-06SP	6 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-06HB	6 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-07S	7 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-07R	7 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-07RP	7 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-07SP	7 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-07HB	7 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-08S	8 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-08R	8 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-08RP	8 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-08SP	8 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-08HB	8 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-09S	9 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-09R	9 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-09RP	9 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-09SP	9 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-09HB	9 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-10S	10 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-10R	10 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-10RP	10 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-10SP	10 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-10HB	10 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-11S	11 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-11R	11 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-11RP	11 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-11SP	11 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-11HB	11 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-12S	12 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-12R	12 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-12RP	12 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-12SP	12 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-12HB	12 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-13S	13 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-13R	13 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-13RP	13 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-13SP	13 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-13HB	13 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-14S	14 Pin 1.25mm DIP Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-14R	14 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-14RP	14 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-14SP	14 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-14HB	14 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-15S	1.25mm Male Connector 180°	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-15R	15 Pin 1.25mm DIP Pcb Type Male 90'	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-15RP	15 Pin 1.25mm SMD Pcb Type Male 90º	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-15SP	15 Pin 1.25mm SMD Pcb Type Male Upright	1A	100V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-15HB	15 Pin 1.25mm Female	1A	150V	500VAC @ 60 s.	Nylon 66 UL94V-0	-25°C ~ +85°C
1000-TP	Crimp Terminal Female	-	-	-	-	-

Signal 1000 Series

Ordering information

Request a quote or availability
