Images are for reference only See Product Specifications
Wire to Board Signal

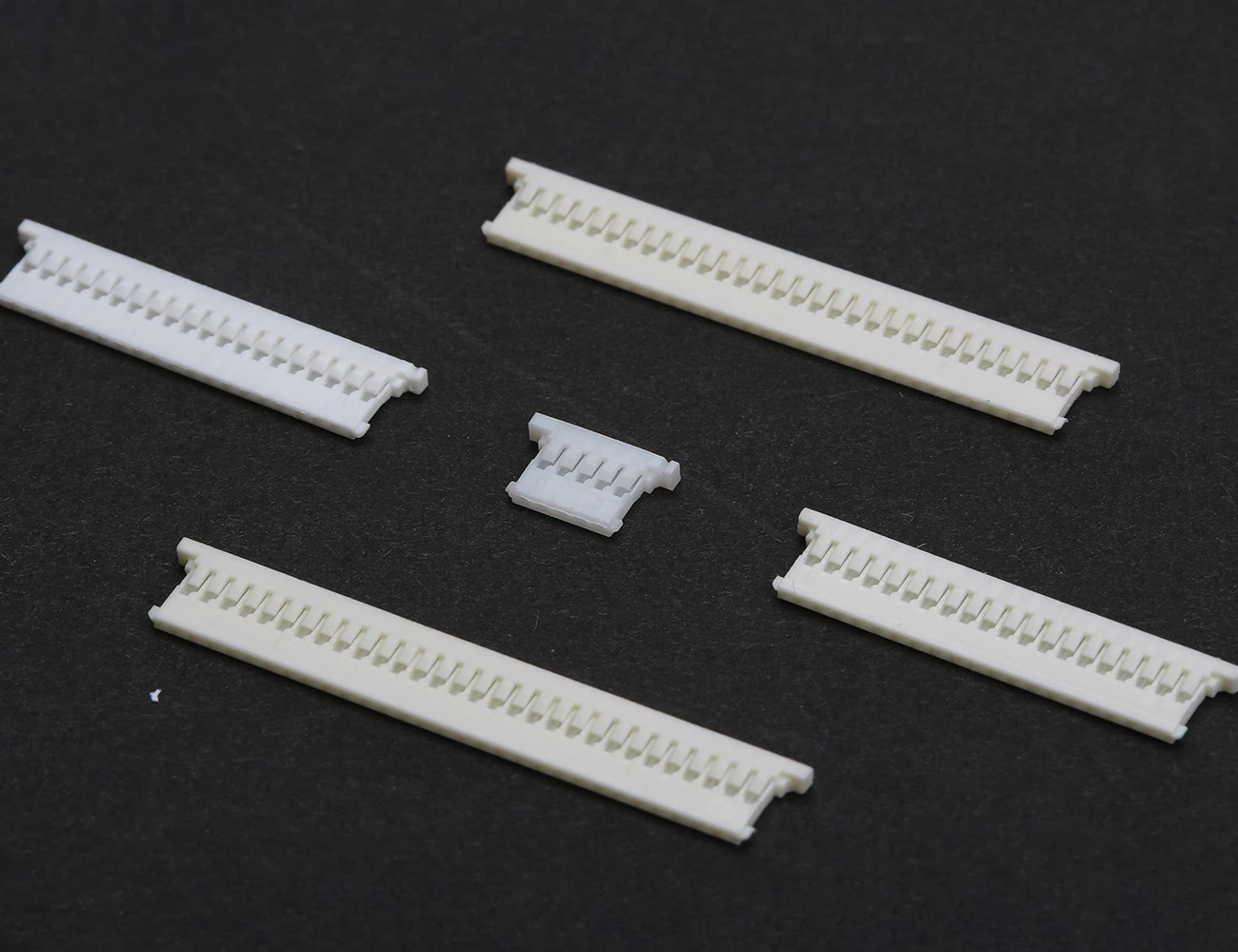

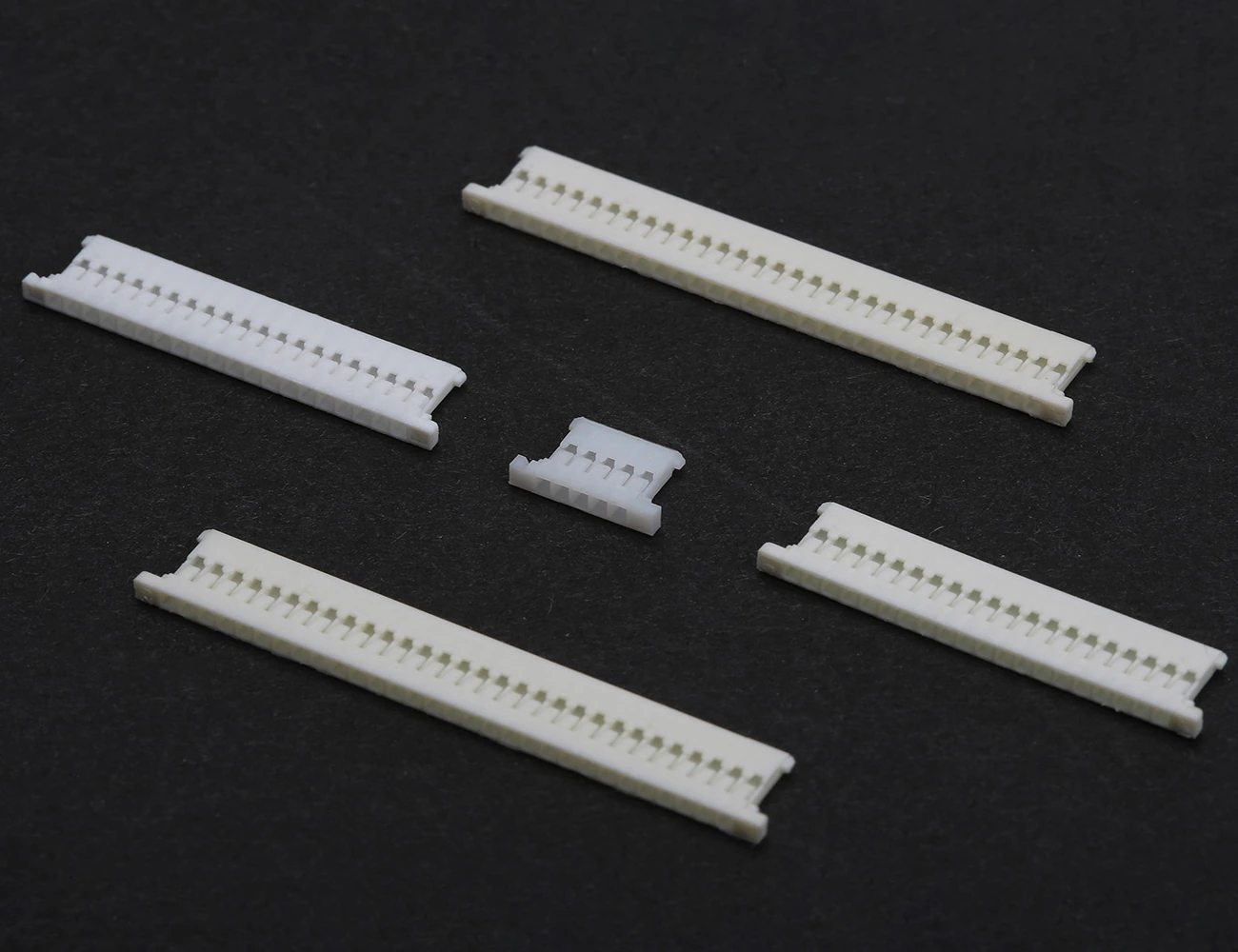

Signal 1200 Series
Part numbers
1200 Series1200-05HB1200-20HB1200-30HB1200-TP Manufacturer
TTAF Elektronik
Ordering information
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature |
|---|---|---|---|---|---|---|
| 1200-05HB | 5 Pin 1.25mm Female | 1A | 125V / AC / DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
| 1200-20HB | 20 Pin 1.25mm Female | 1A | 125V / AC / DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
| 1200-30HB | 30 Pin 1.25mm Female | 1A | 125V / AC / DC | 500V/ munite | Nylon 66 UL94V-0 | -25°C ~ +85°C |
| 1200-TP | Crimp Terminal Female | - | - | - | - | - |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
