Waterproof Connector Solutions

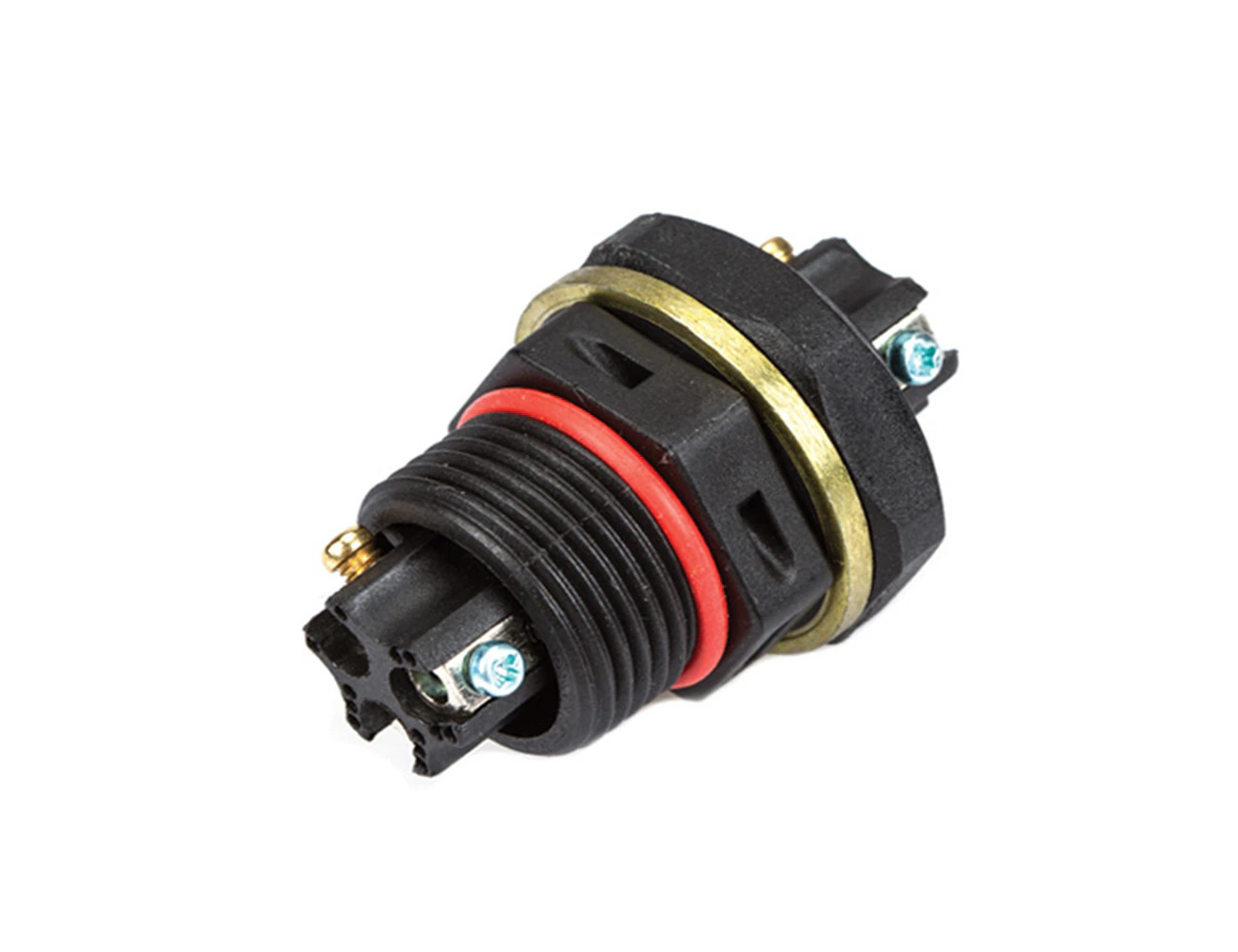

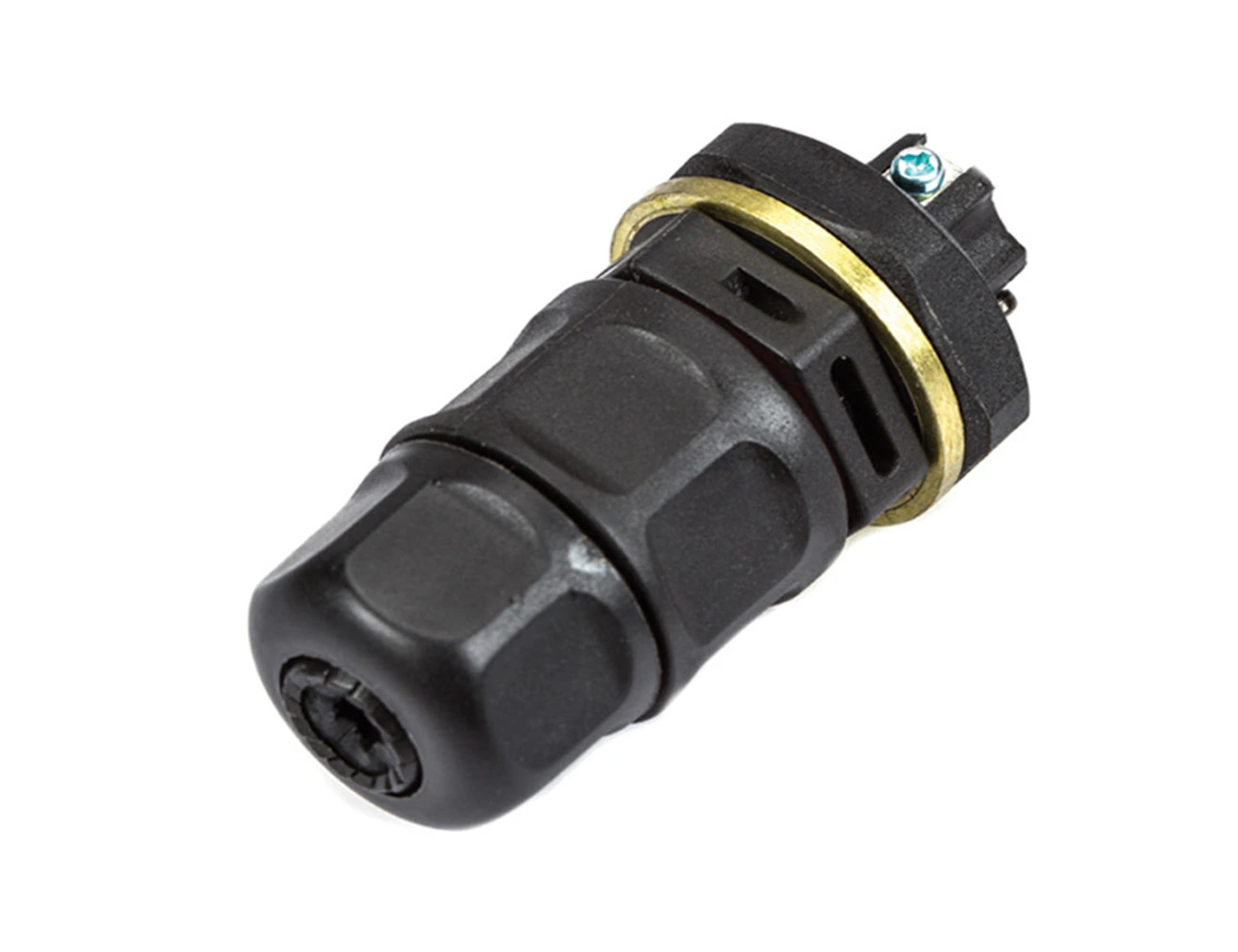

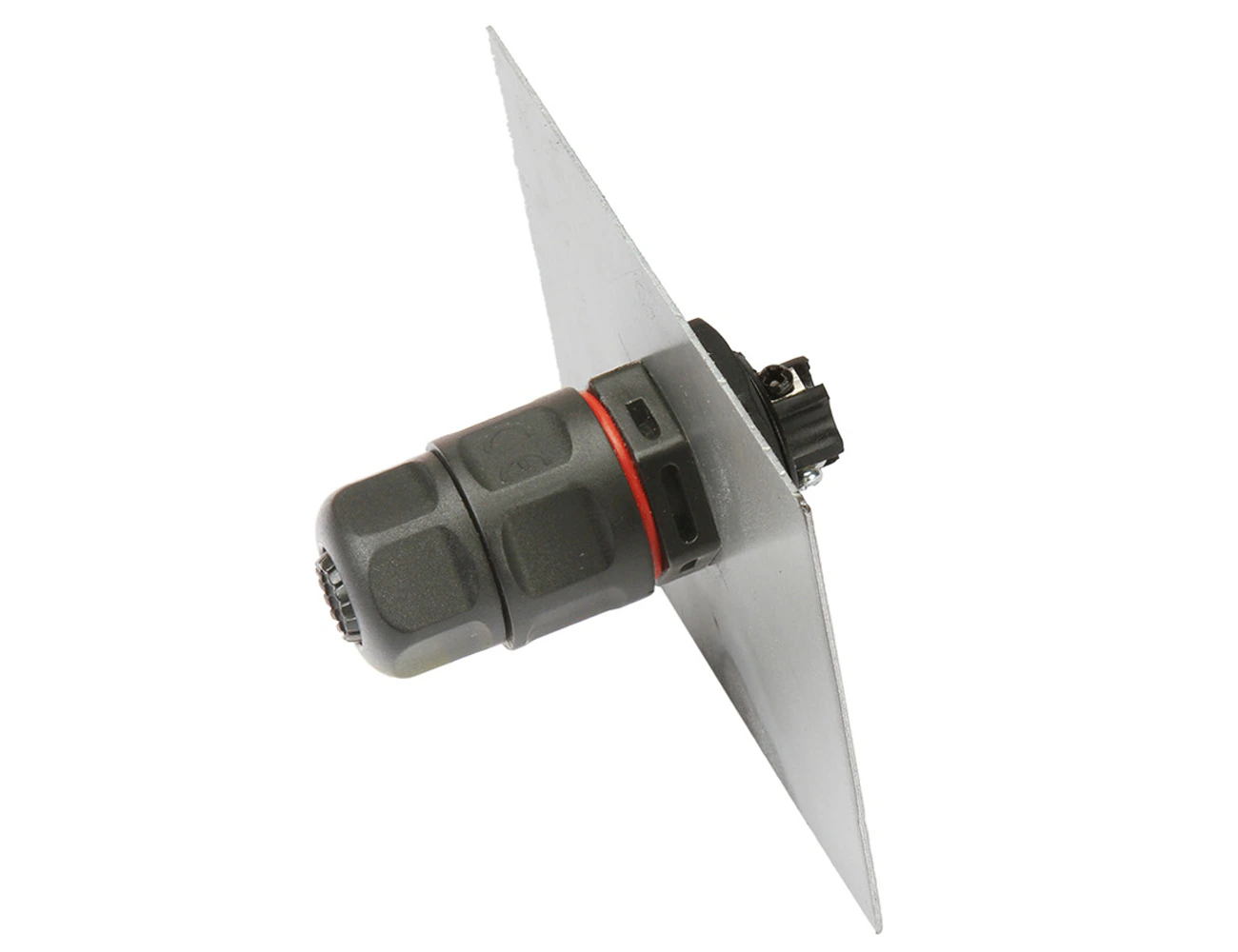

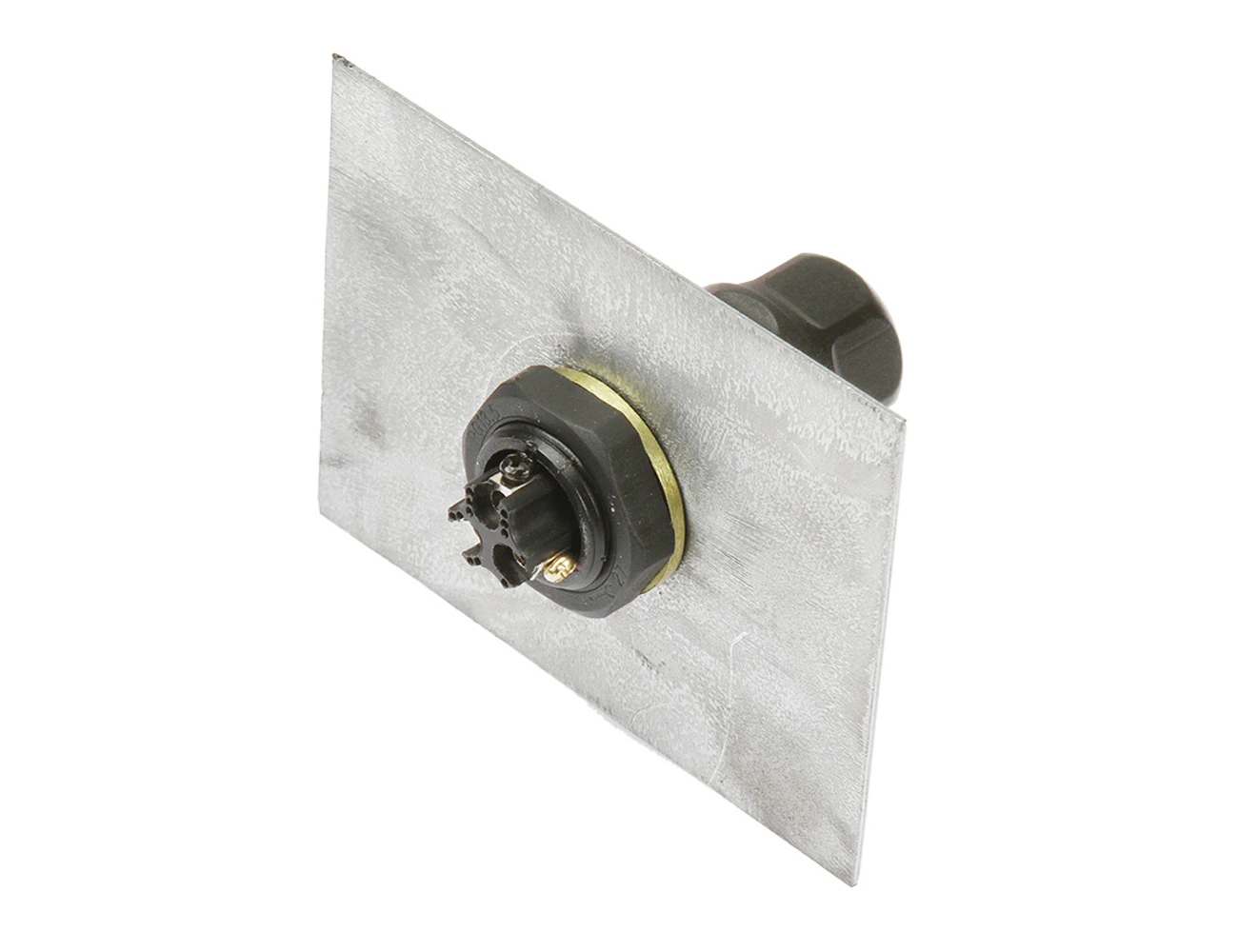

Waterproof Panel Type Connector With Screw Connection

Part number

WPP-0302M20

Manufacturer

TTAF Elektronik

Current Rating	20A Max.
Voltage Rating	250VAC Max.
Min Wire Size OD	6mm
Max Wire Size OD	10mm
IP Rating	IP68 (10m / 60min)
Temperature Range	-40°C ~ +85°C
Durabillty Valotage	1500VAC @ 60 s.
Insulation Structure	500 MΩ at 500VDC
Mold Material	PA6
Contact/Terminal Material	Brass-Nickel Plated
Seal Material	Silicone
