Wire to Board Power
Power 2001 Series TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Board Power

Power 2001 Series

Part numbers
20012001-01H2001-02S2001-02R2001-02H2001-03S2001-03R2001-03H2001-04S2001-04R2001-04H2001-05S2001-05R2001-05H2001-06S2001-06R2001-06H2001-07S2001-07R2001-07H2001-08S2001-08R2001-08H2001-09S2001-09R2001-09H2001-10S2001-10R2001-10H2001-11S2001-11R2001-11H2001-12S2001-12R2001-12H2001-13S2001-13R2001-13H2001-14S2001-14R2001-14H2001-15S2001-15R2001-15H2001-TP
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24 Datasheet 25 Datasheet 26 Datasheet 27 Datasheet 28 Datasheet 29 Datasheet 30 Datasheet 31 Datasheet 32 Datasheet 33 Datasheet 34 Datasheet 35 Datasheet 36 Datasheet 37 Datasheet 38 Datasheet 39 Datasheet 40 Datasheet 41 Datasheet 42 Datasheet 43 Datasheet 44

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

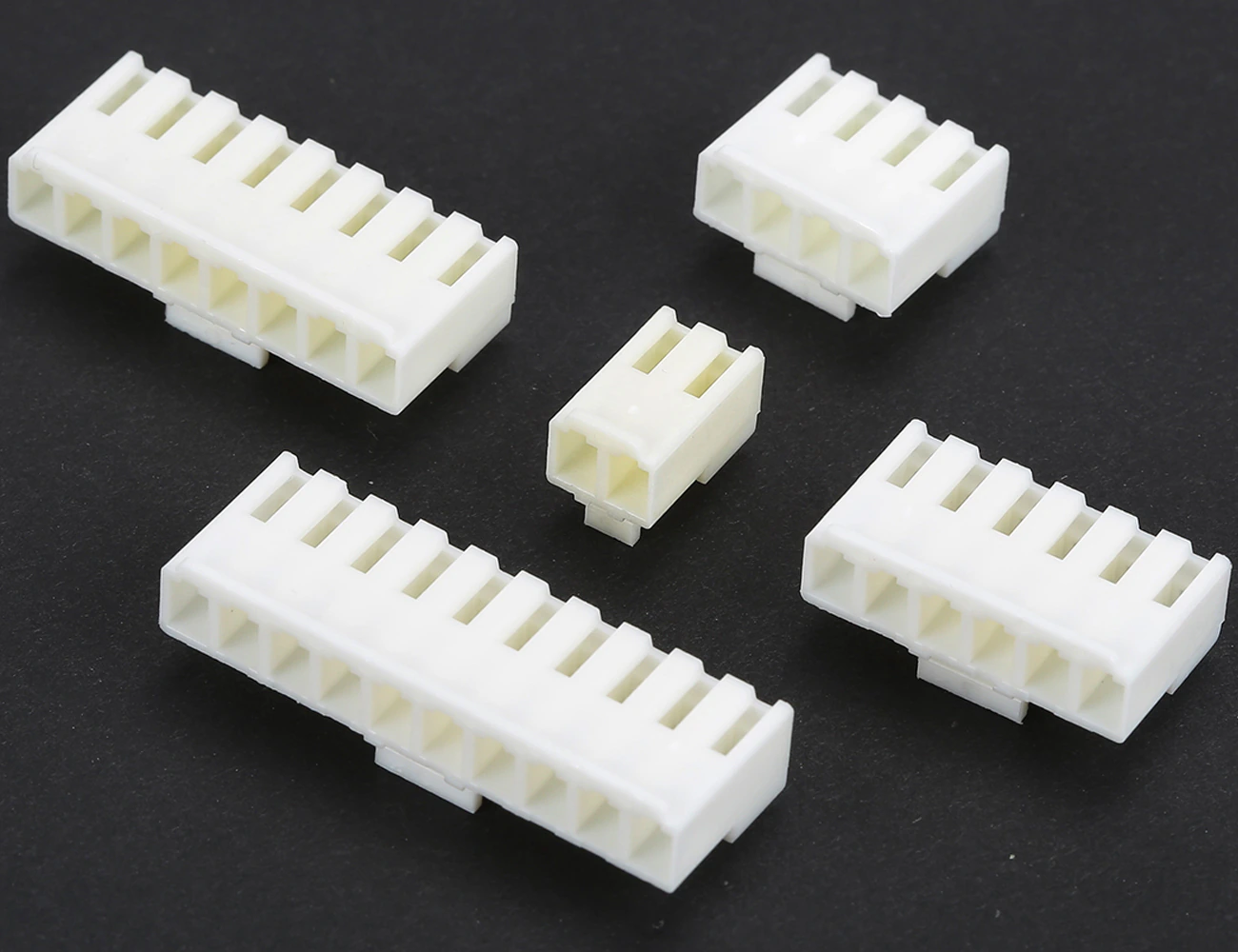

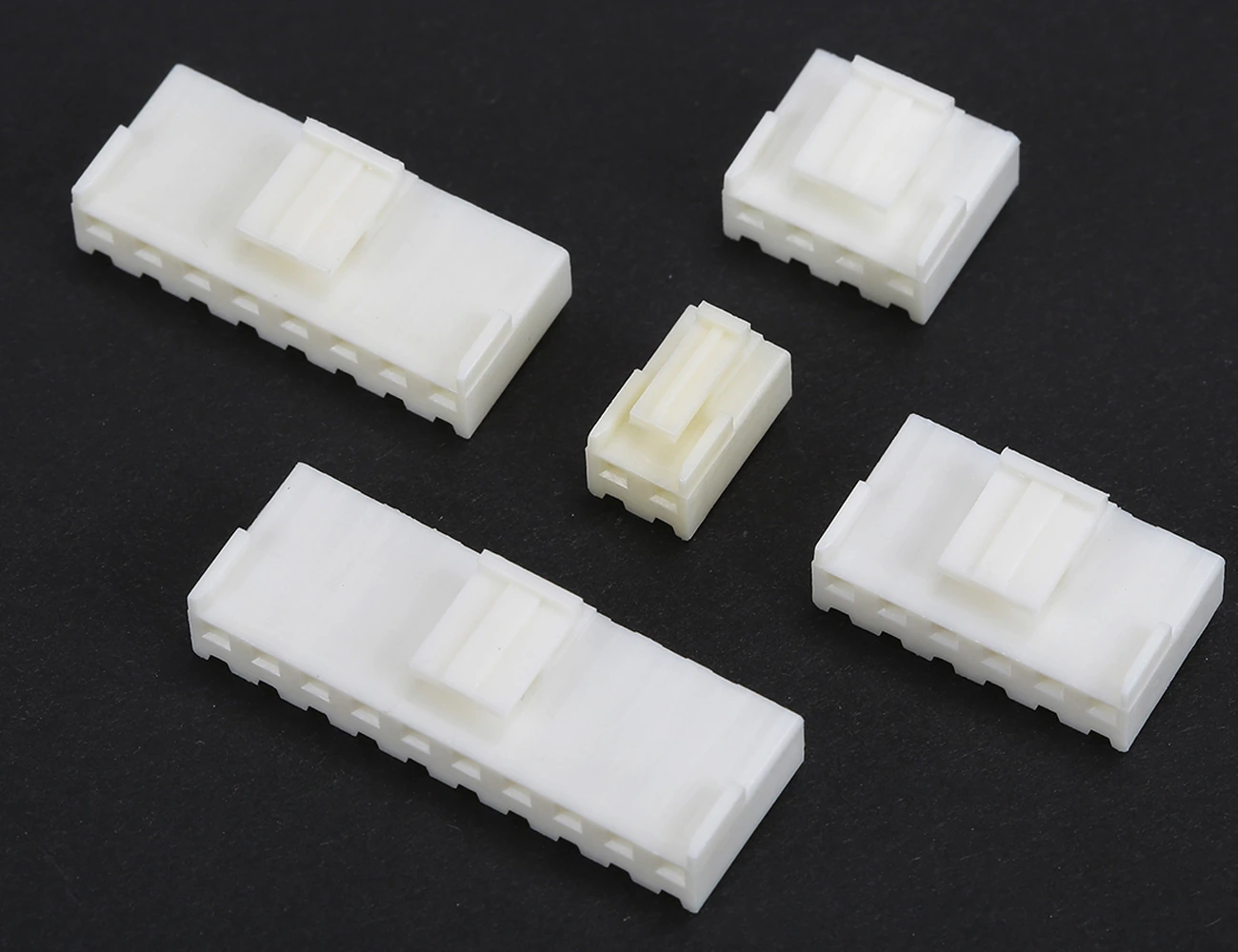

2001-01H1 Pin 3.96mm Female Connector Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

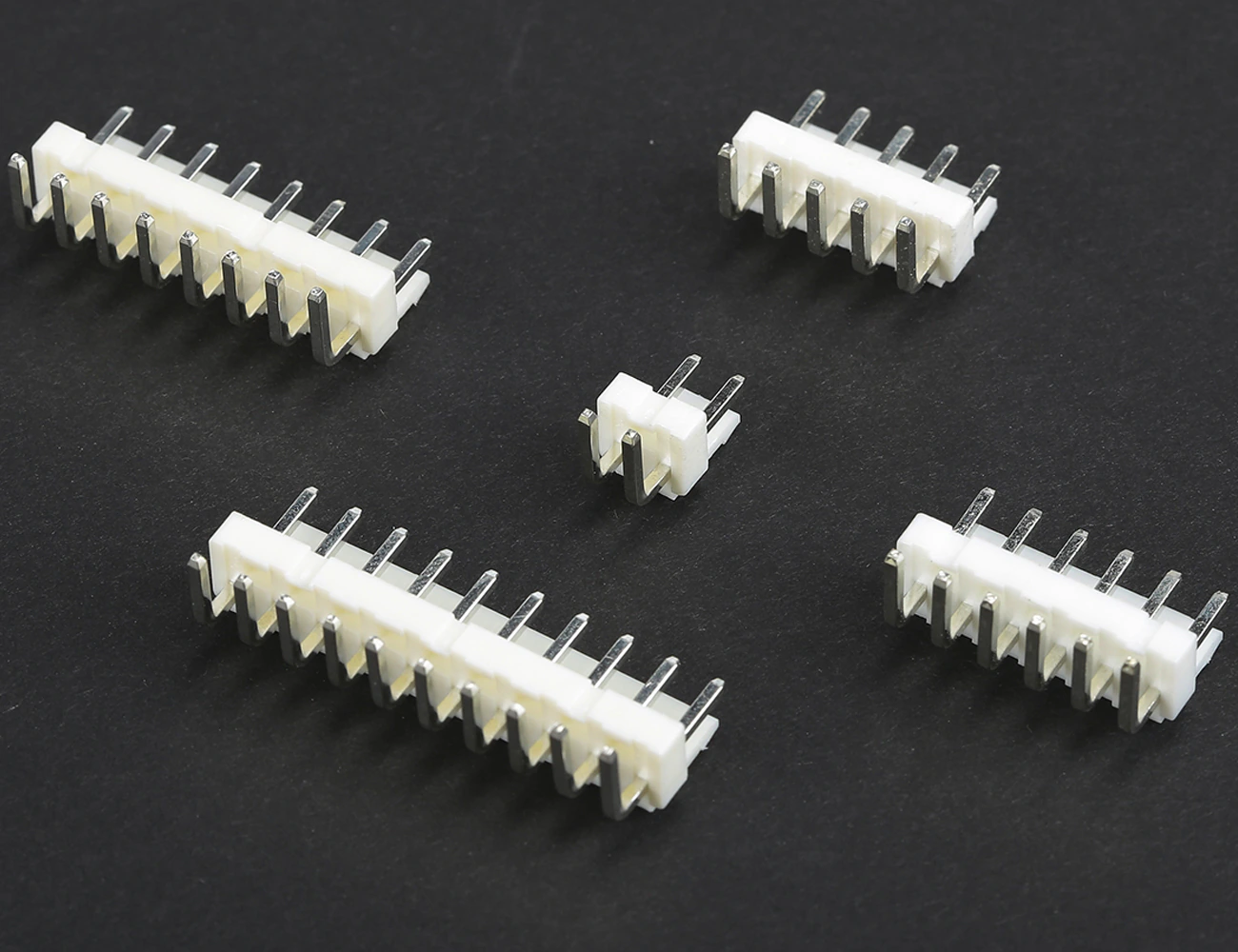

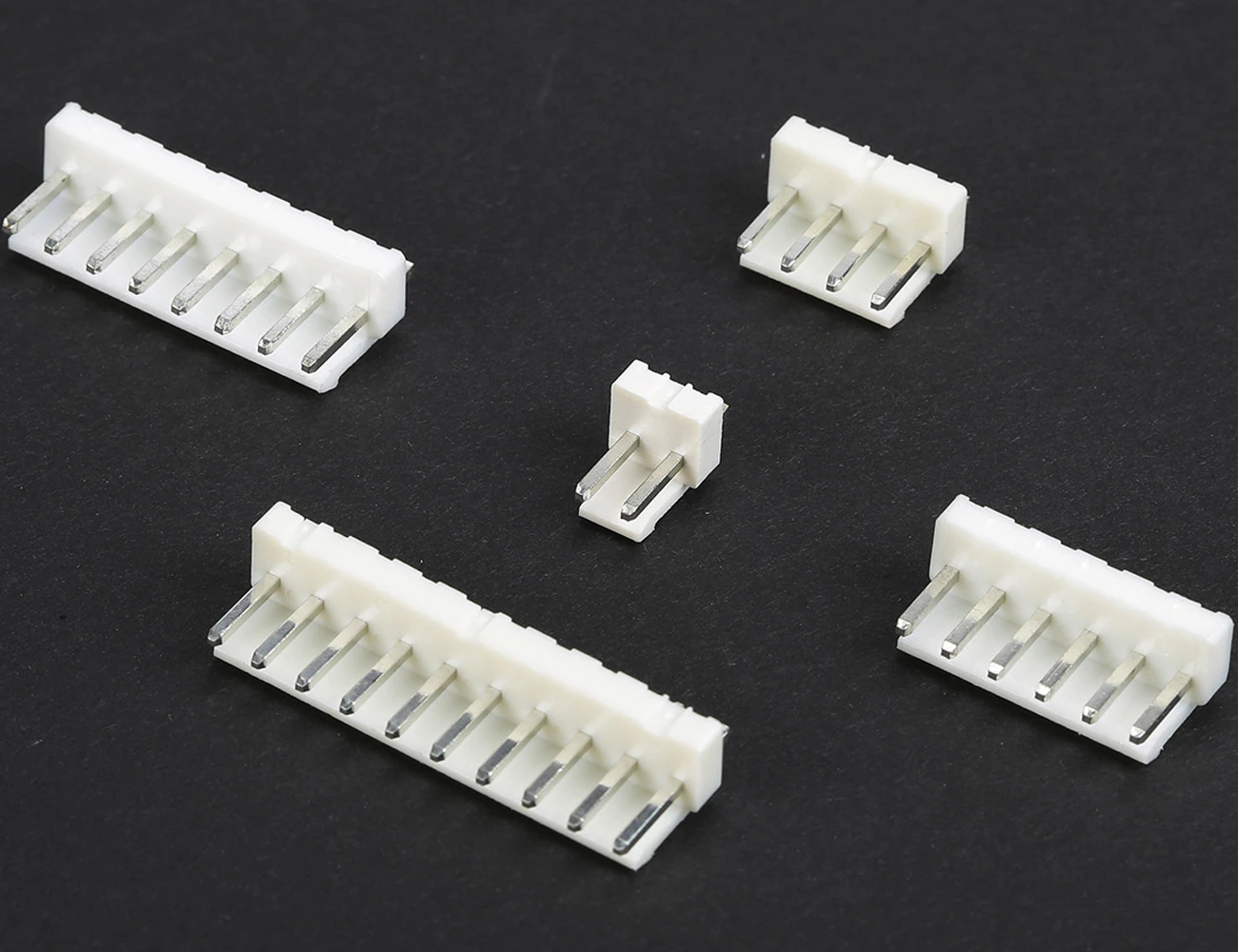

2001-02S2 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

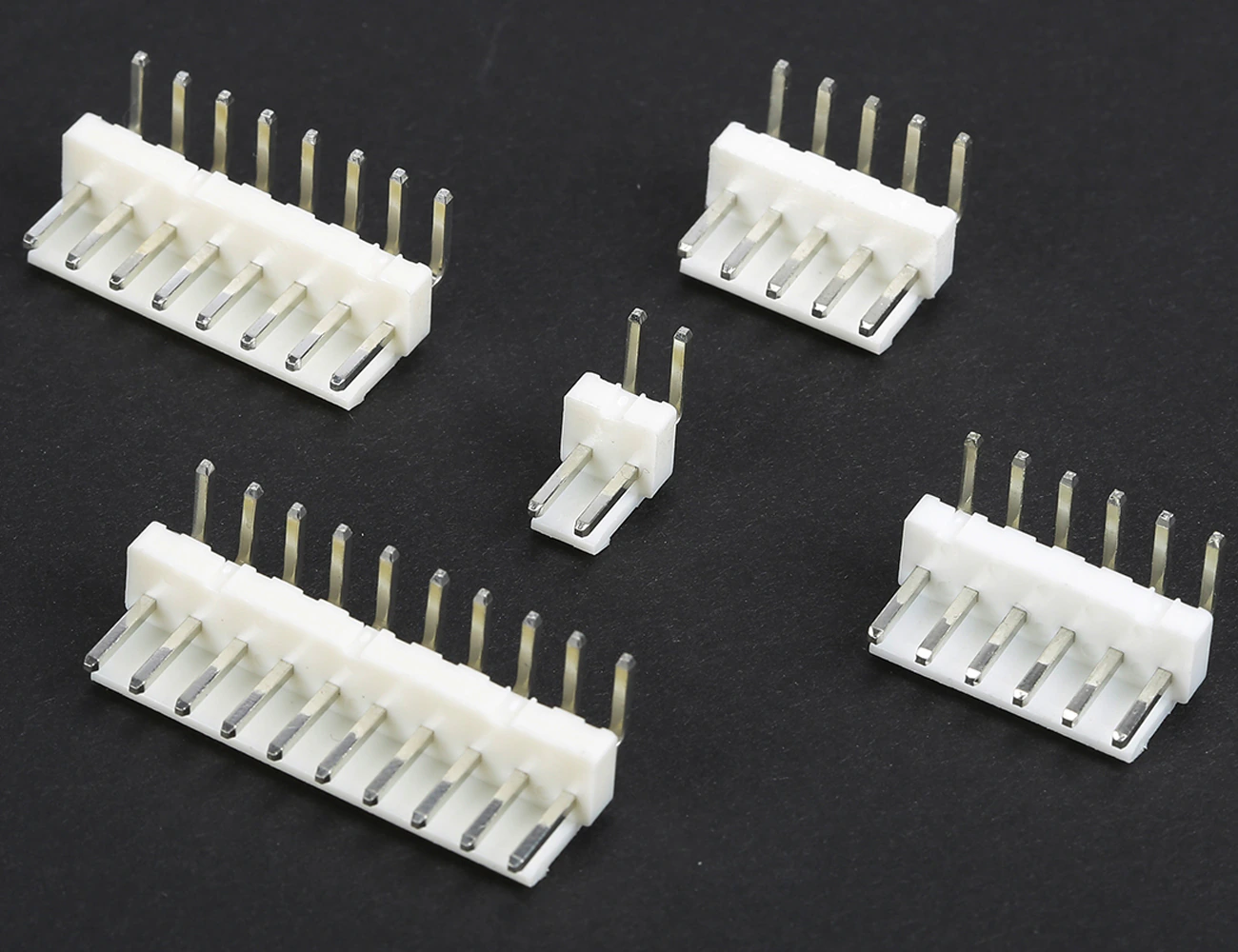

2001-02R2 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-02H2 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-03S3 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-03R3 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-03H3 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-04S4 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-04R4 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-04H4 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-05S5 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-05R5 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-05H5 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-06S6 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-06R6 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-06H6 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-07S7 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-07R7 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-07H7 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-08S8 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-08R8 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-08H8 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-09S9 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-09R9 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-09H9 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-10S10 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-10R10 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-10H10 Pin 3.96mm Female Connector Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-11S11 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-11R11 Pin Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-11H11 Pin 3.96mm Female Connector Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-12S12 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-12R12 Pin Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-12H12 Pin 3.96mm Female Connector Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-13S13 Pin Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-13R13 Pin Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-13H13 Pin 3.96mm Female Connector Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-14S14 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-14R14 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-14H14 Pin 3.96mm Female Connector Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-15S15 Pin 3.96mm DIP Pcb Type Male Vertical Lock7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-15R15 Pin 3.96mm DIP Pcb Type Male 90º Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
2001-15H15 Pin 3.96mm Female Locked7A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

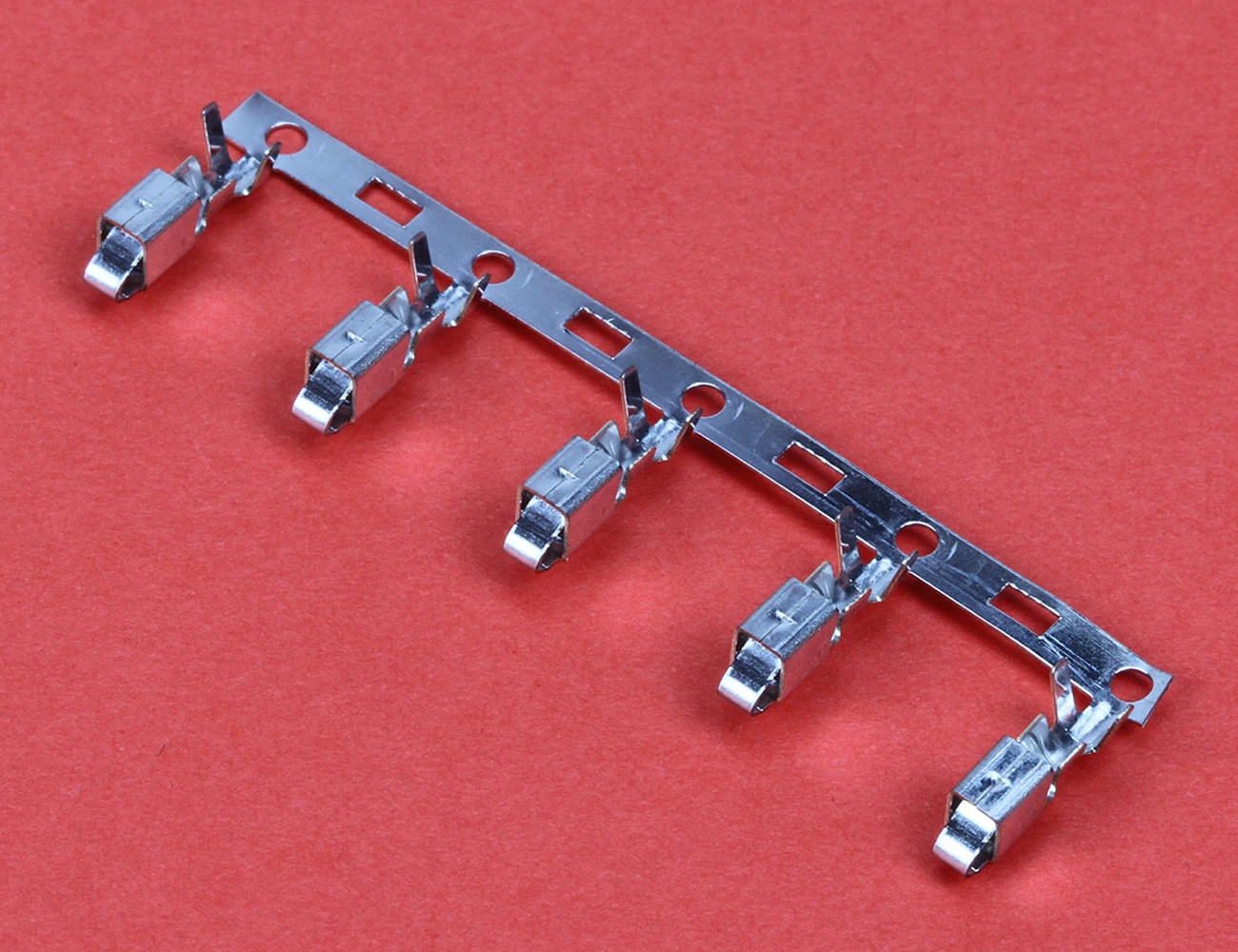

2001-TPCrimp Terminal Female-----
