Round Connector

PLT Series

TTAF Elektronik

Images are for reference only See Product Specifications

Round Connector

PLT Series

Part numbers

PLT-10/10APLT-16/5APLT-26/5APLT-3/7APLT-4/30APLT-4/7APLT-7/15APLT-8/25A

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6

8 Pin 25A Cable Type Female & Şse Detailed about Male Power Connector Metal You can access technical information from the list below

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

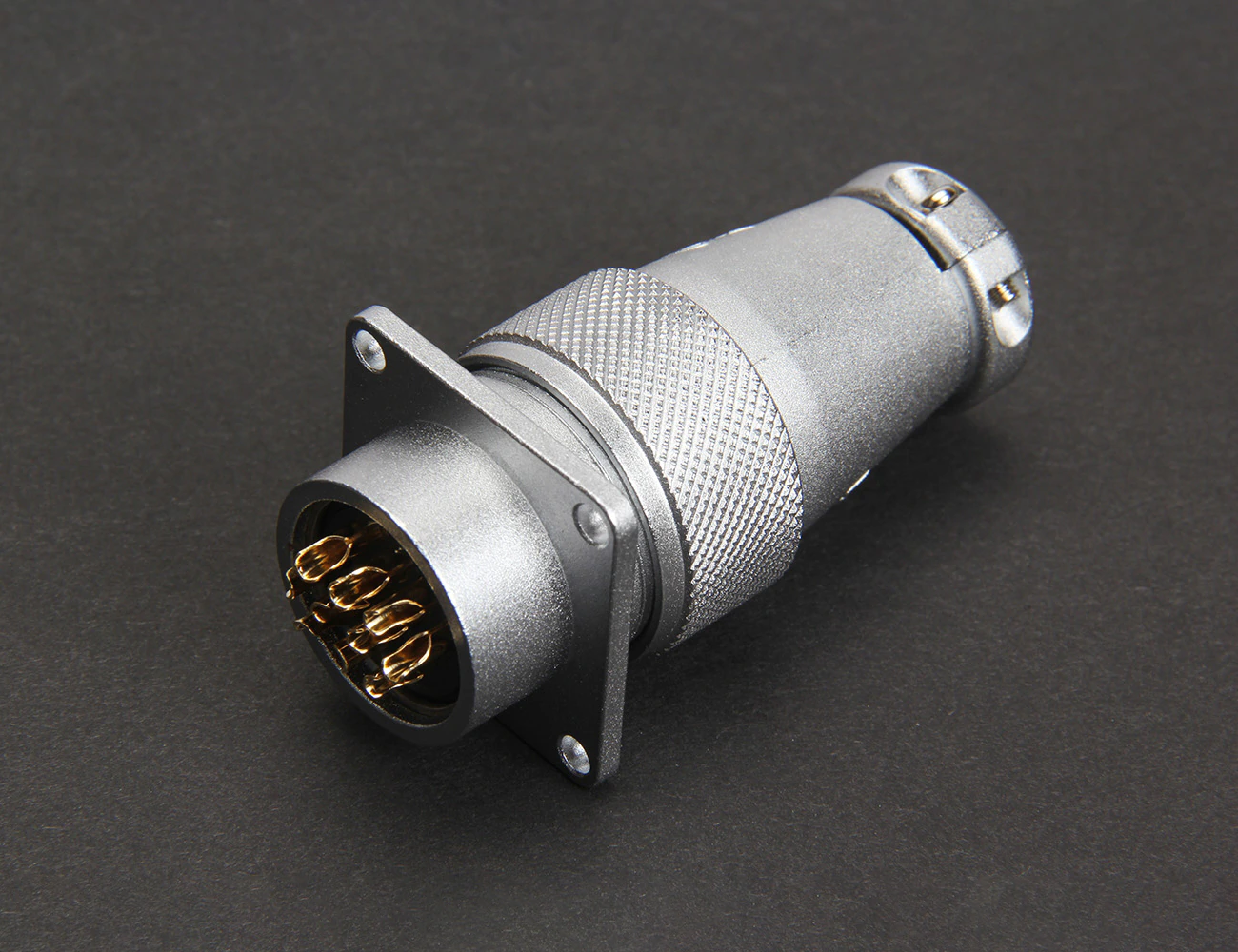

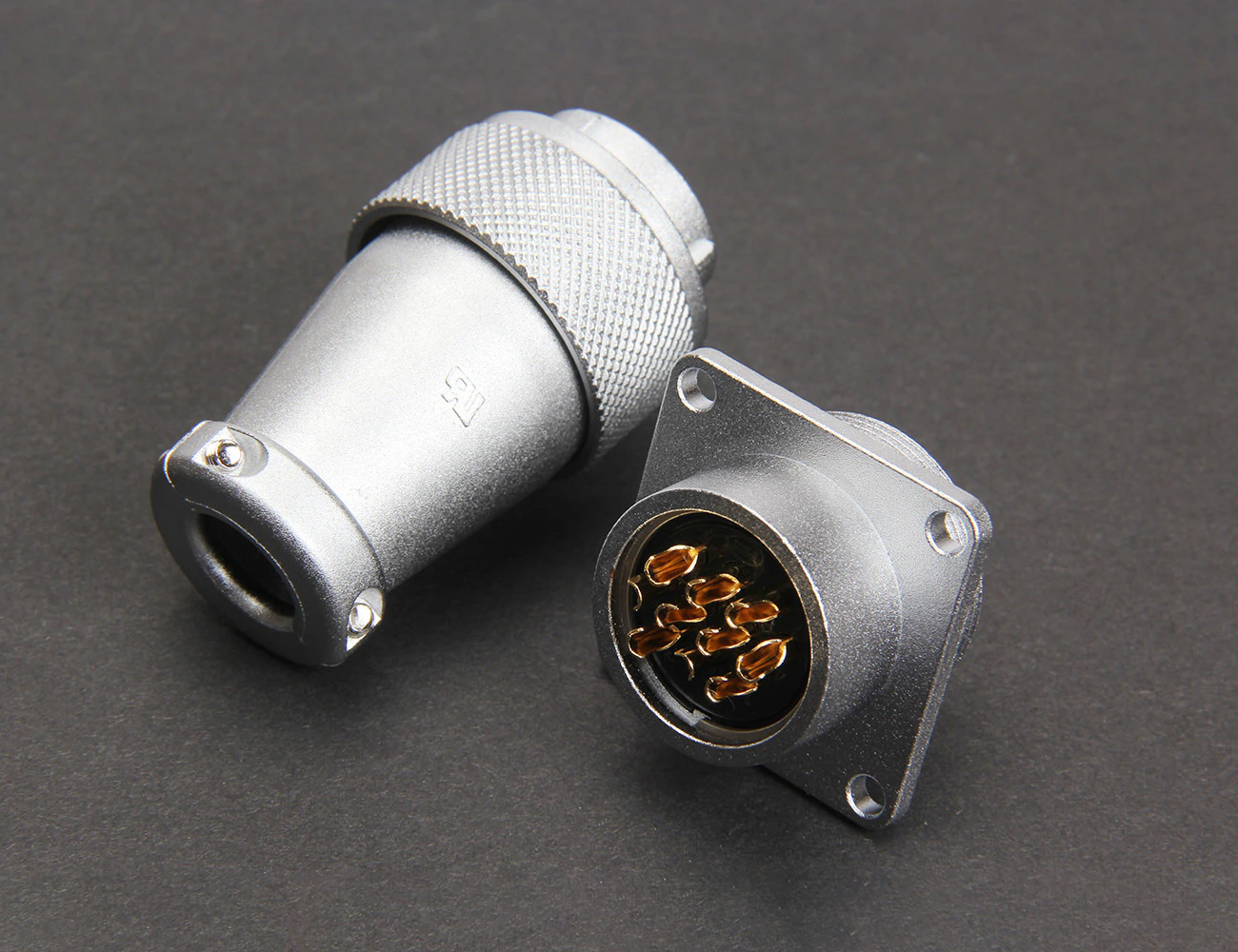

PLT-10/10A	10 Pin 10A Cable Type Male & Şase Type Female Power Connector Metal	10A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

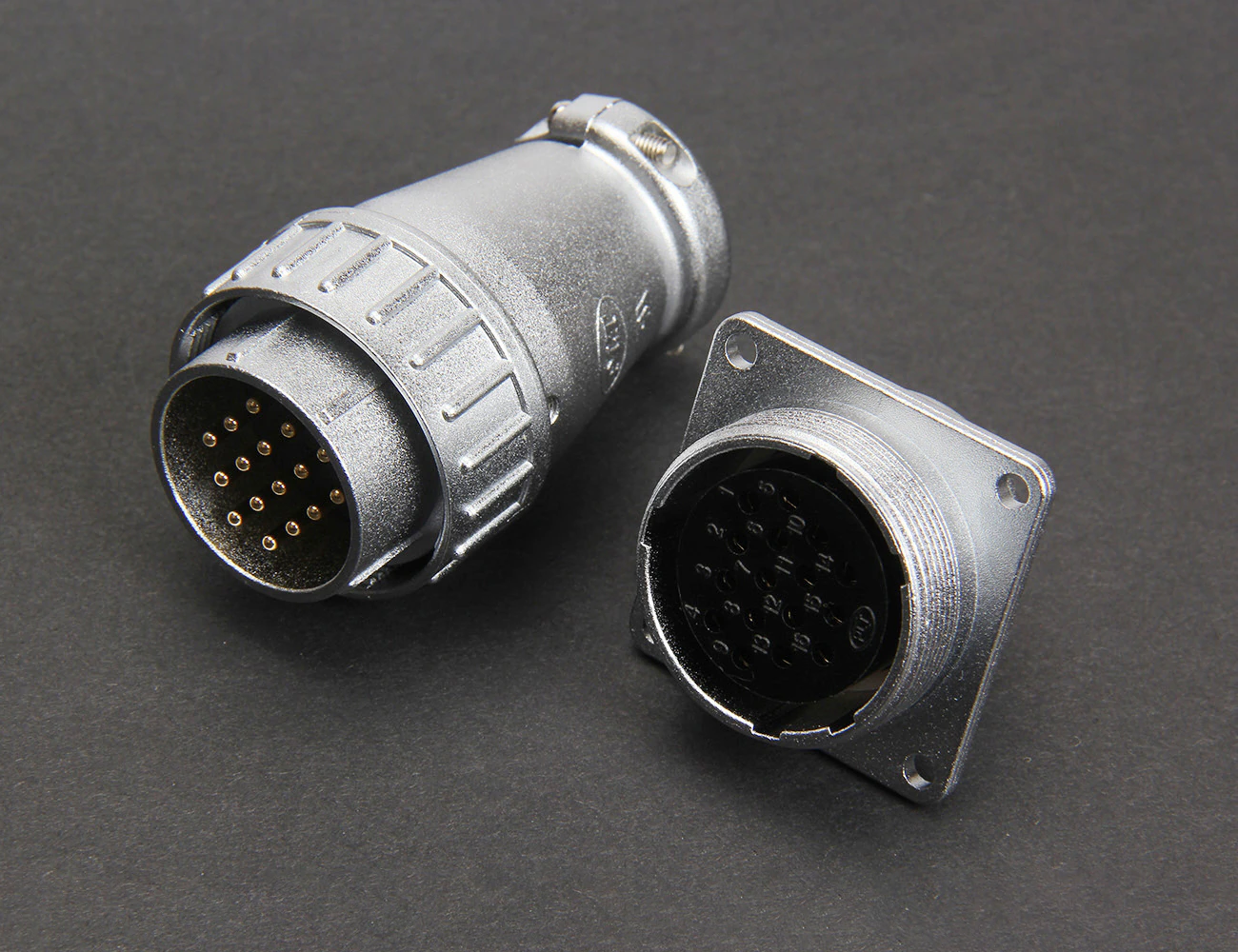

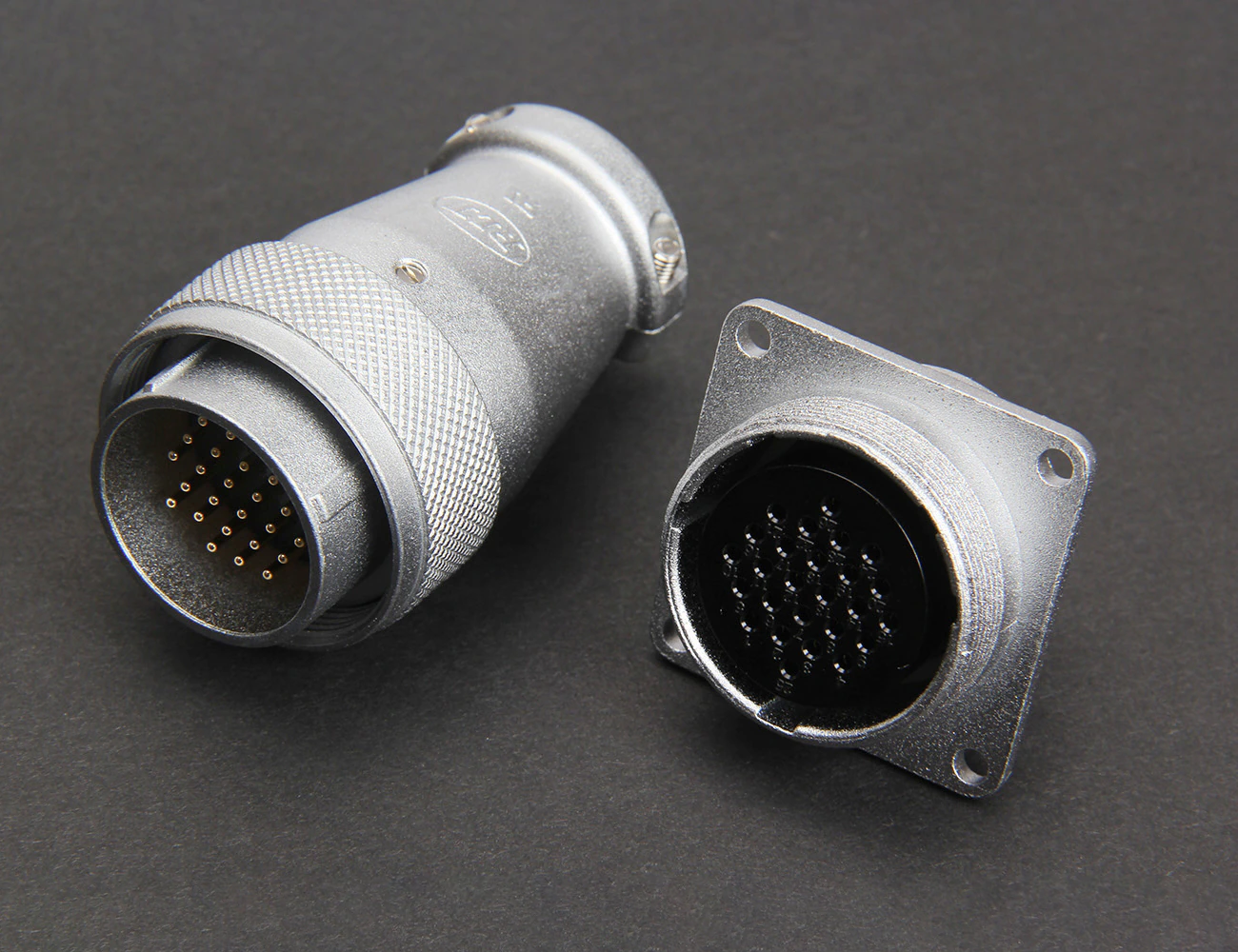

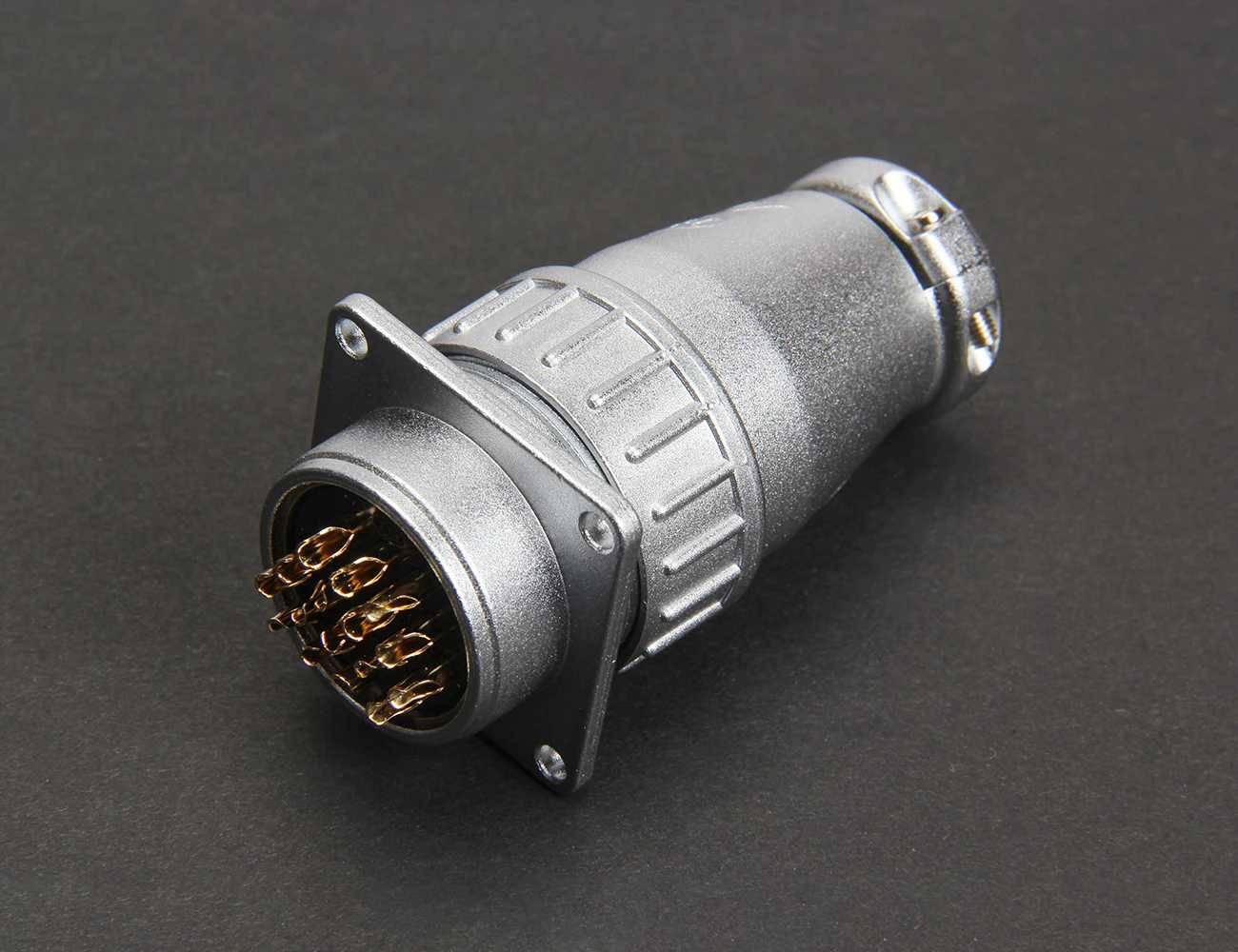

PLT-16/5A	16 Pin 5A Cable Type Male & Şase Type Female Power Connector Metal	5A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

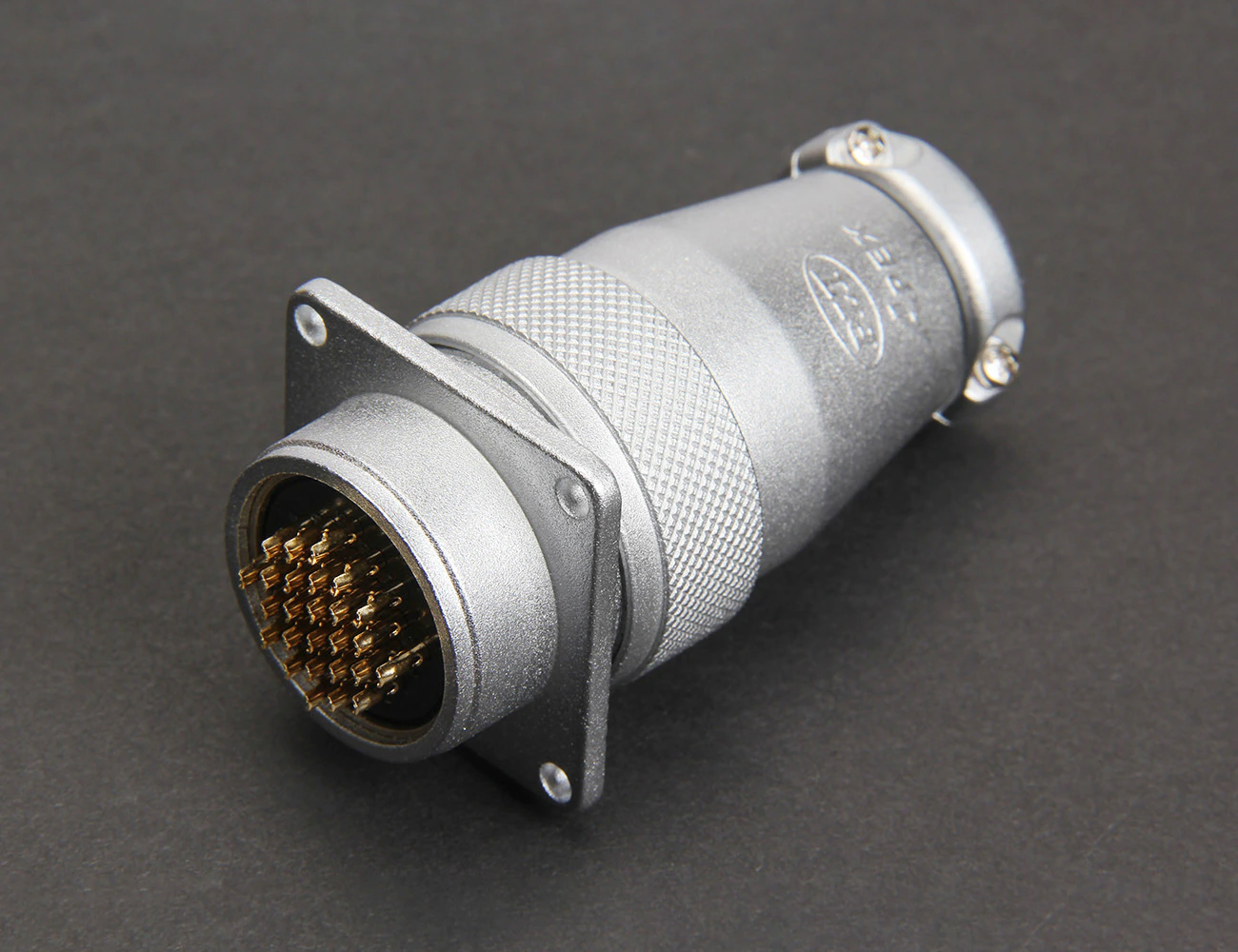

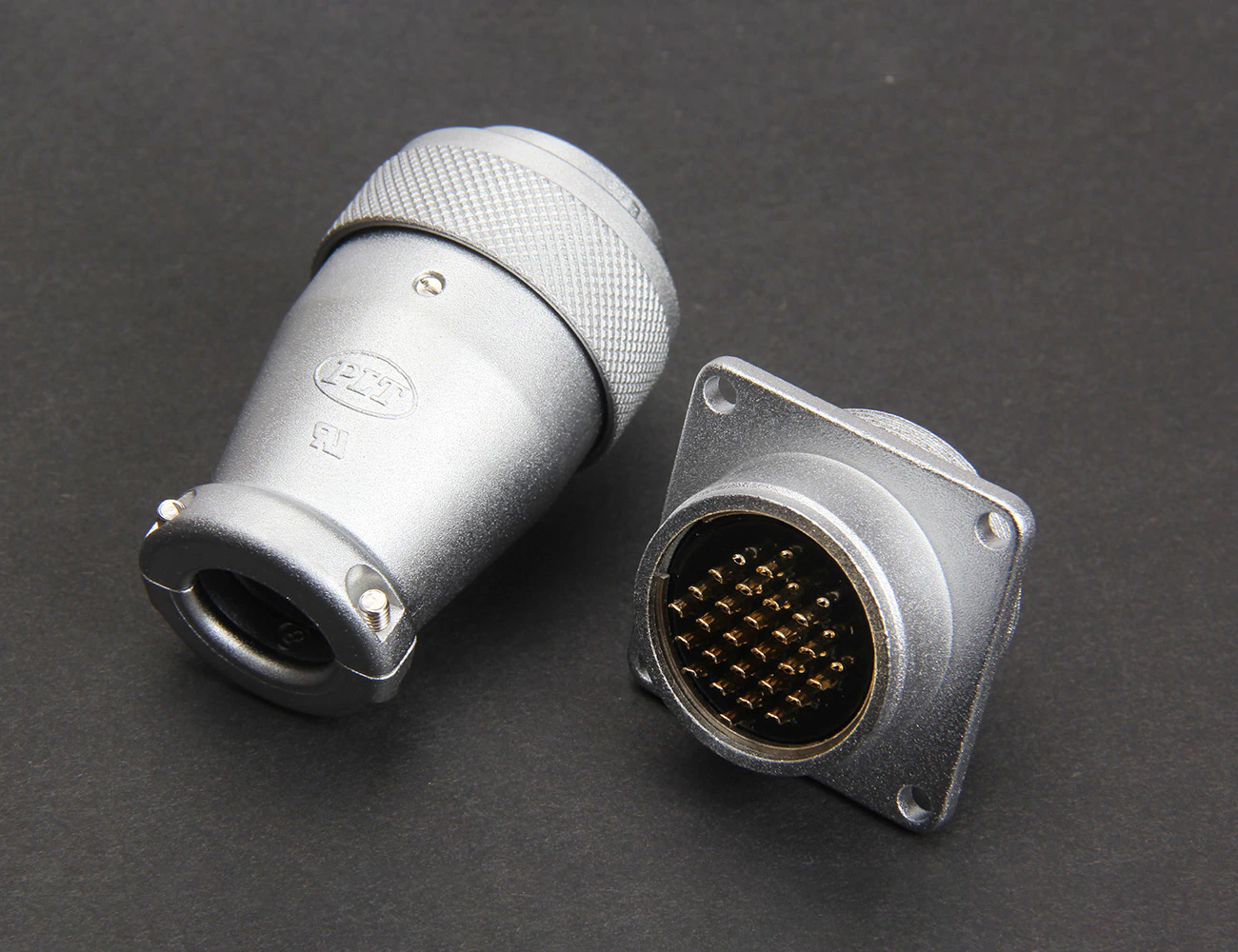

PLT-26/5A	26 Pin 5A Cable Type Male & Şase Type Female Power Connector Metal	5A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

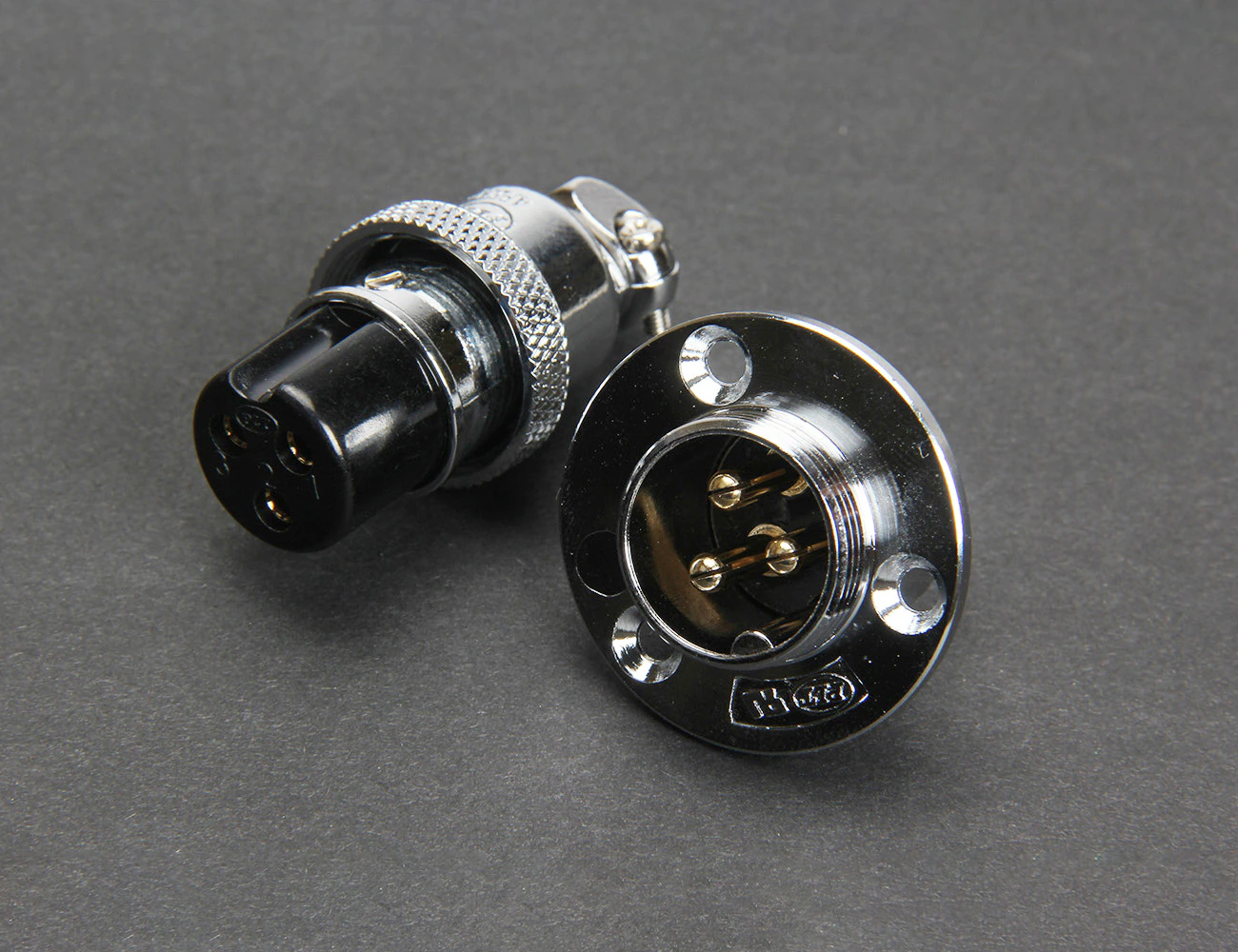

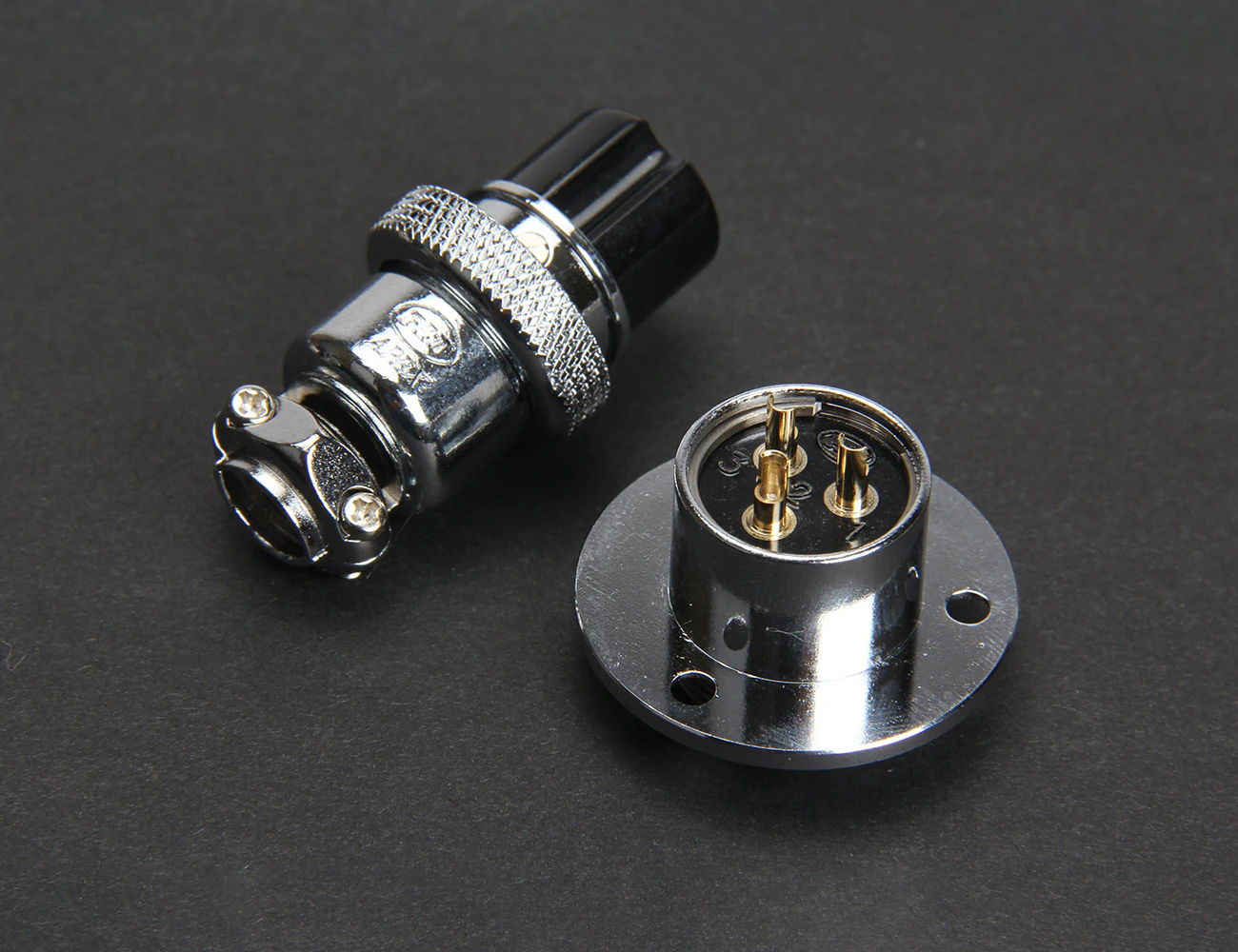

PLT-3/7A	3 Pin 7A Cable Type Female & Şase Type Male Power Connector Metal	7A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

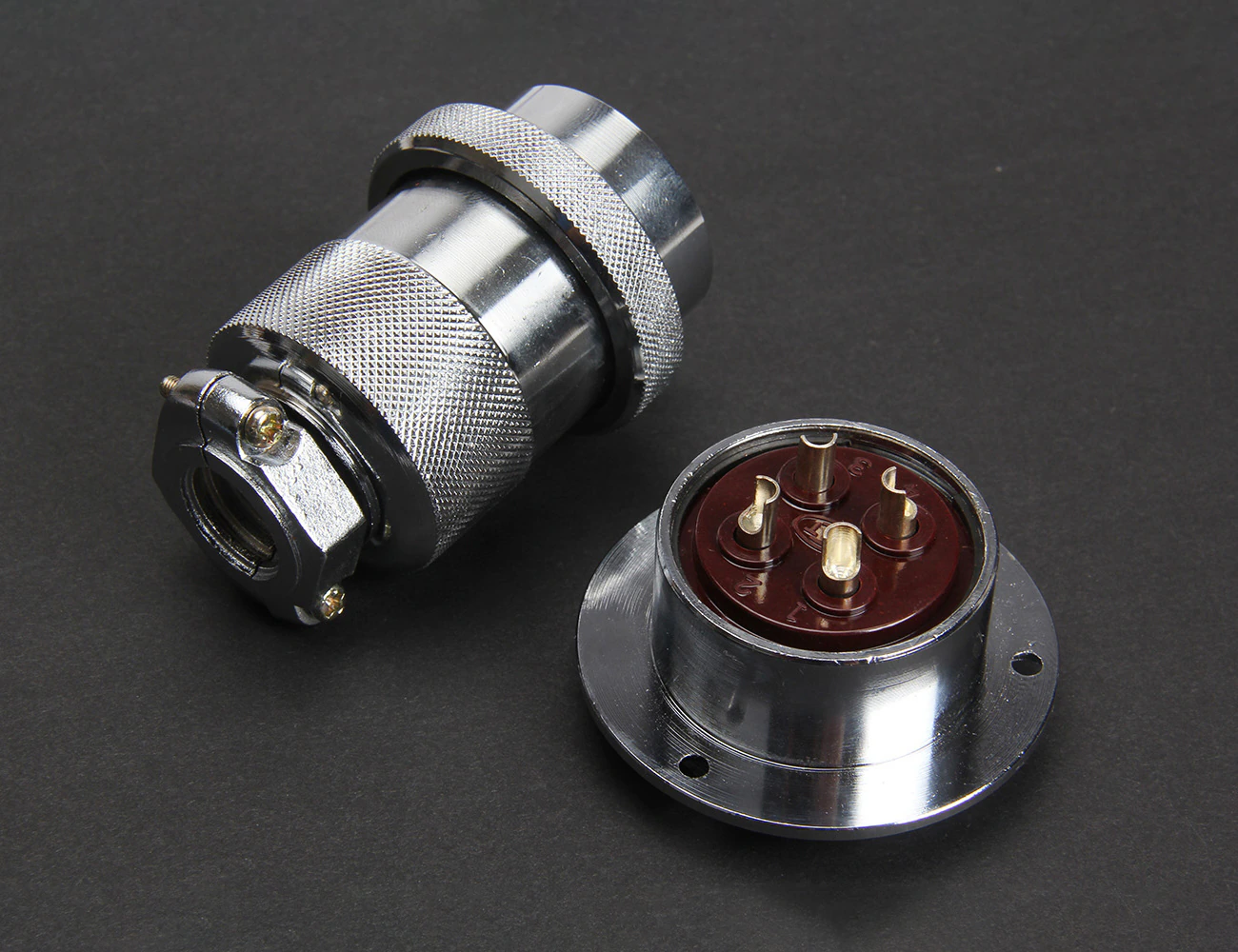

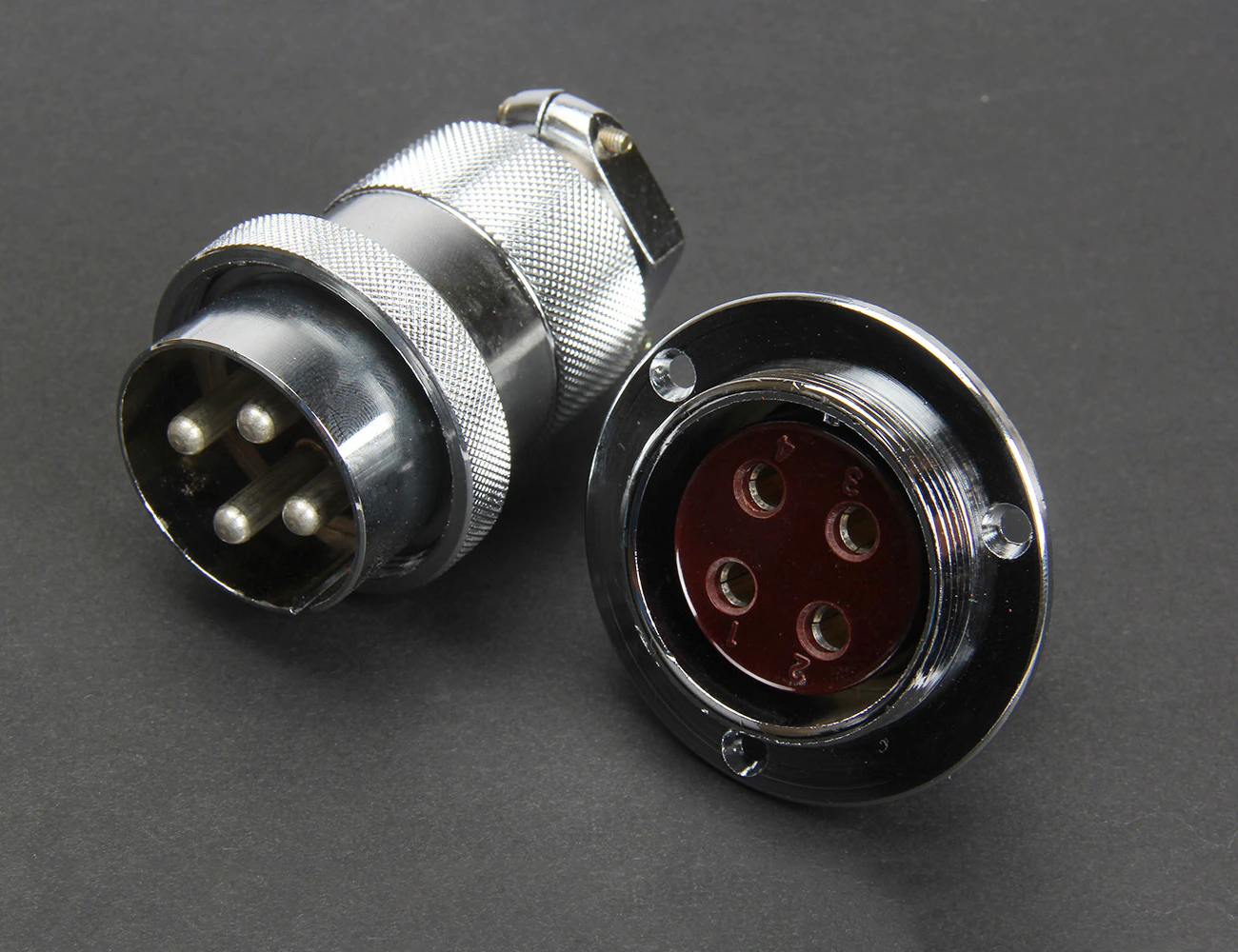

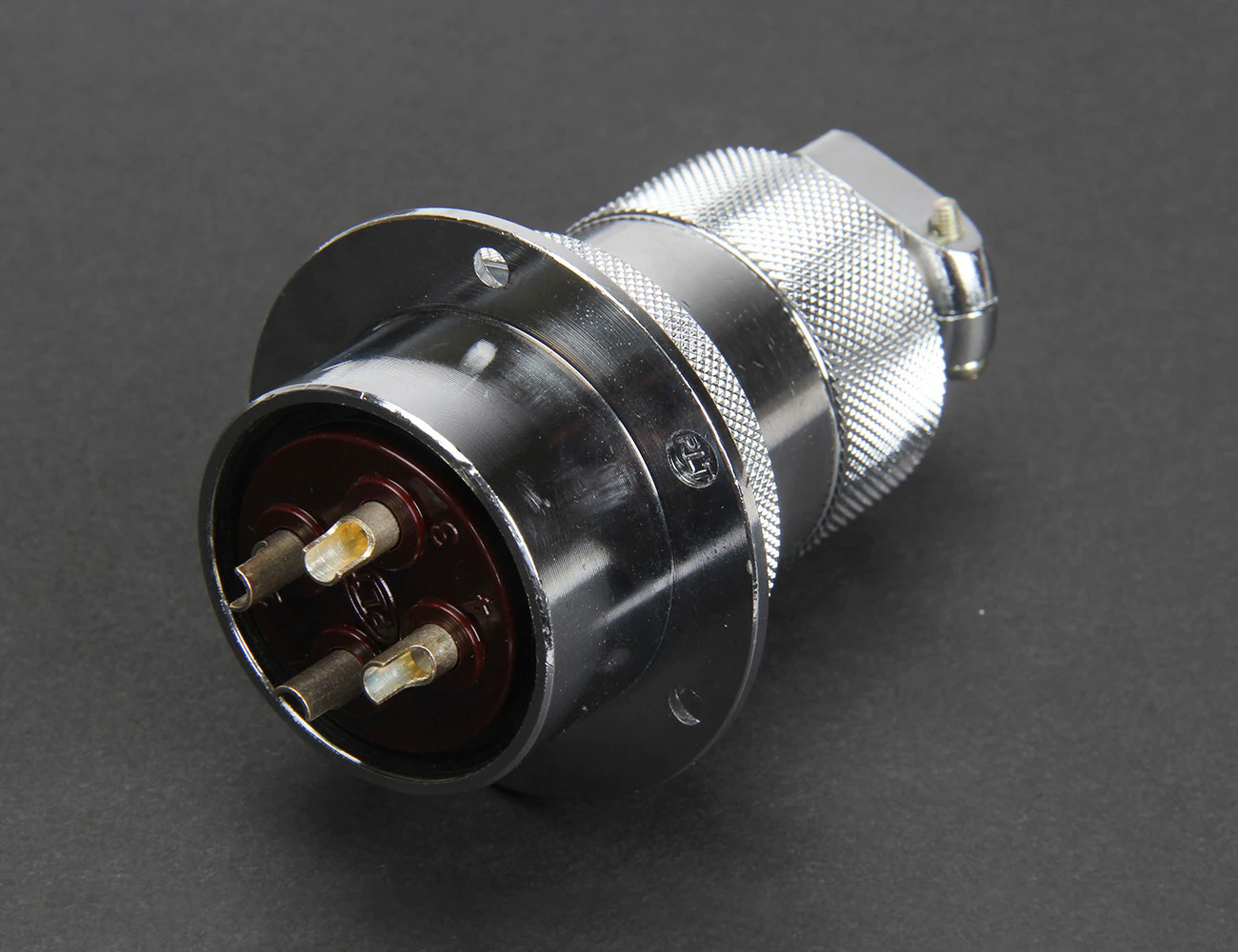

PLT-4/30A	4 Pin 30A Cable Type Male & Şase Type Female Power Connector Metal	30A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

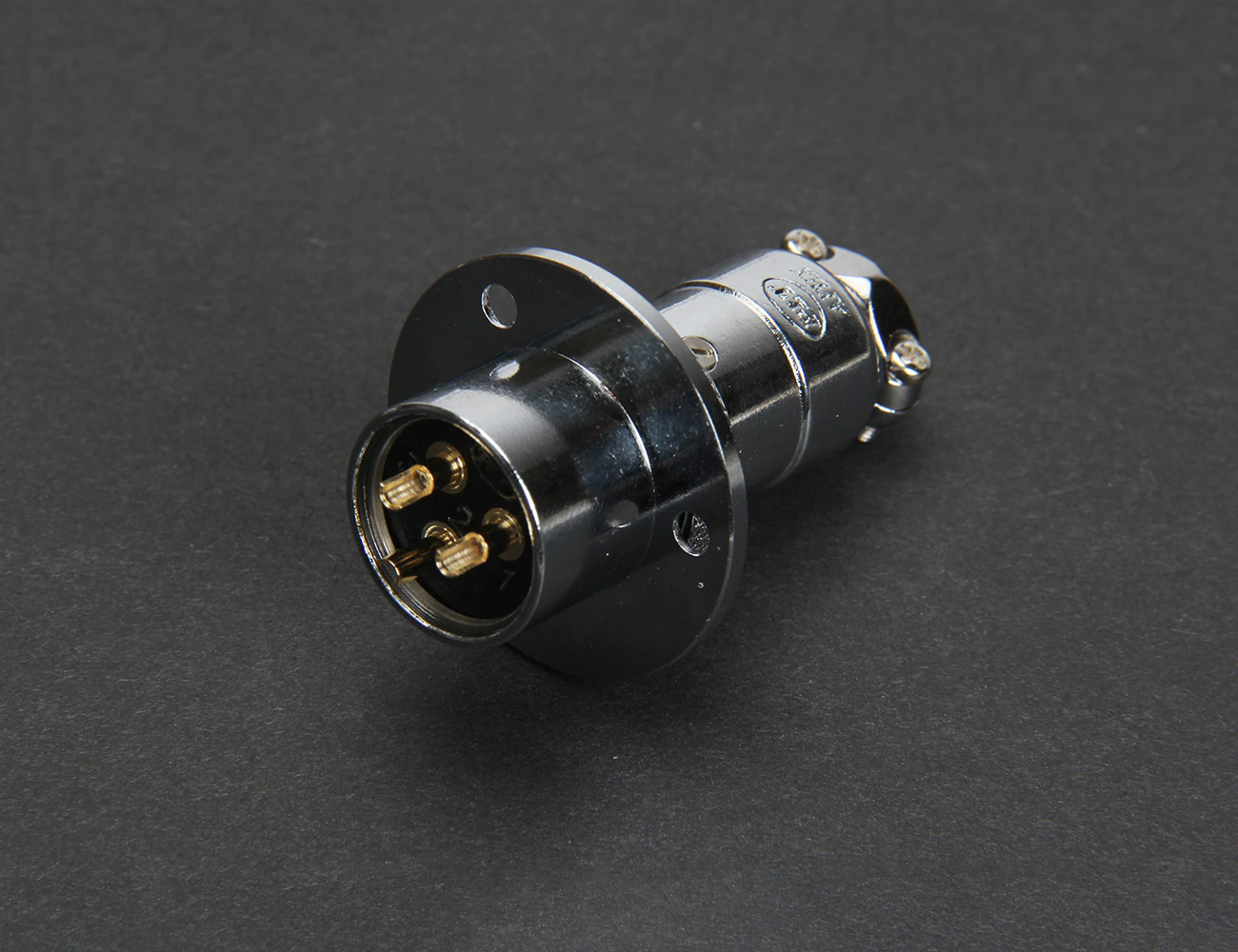

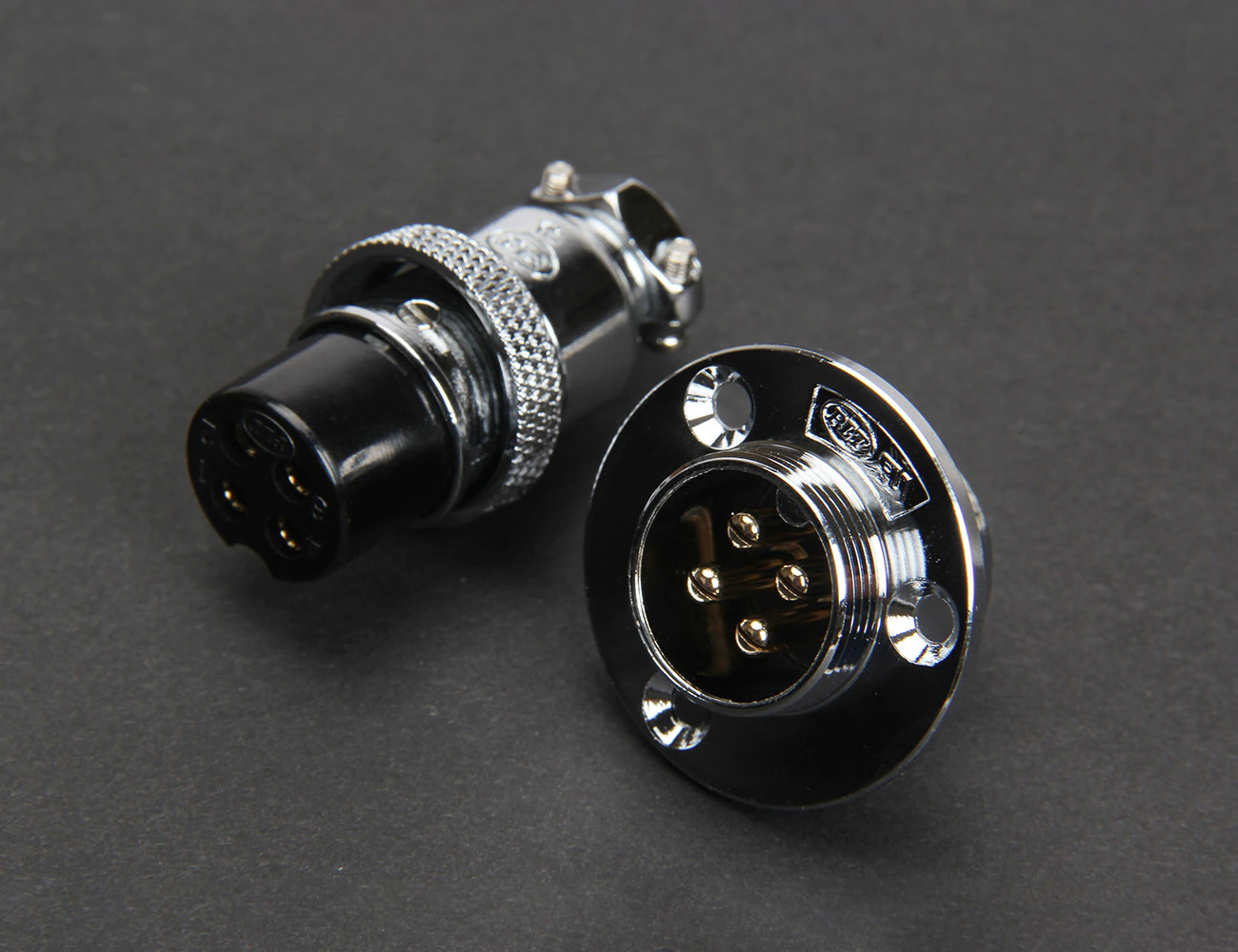

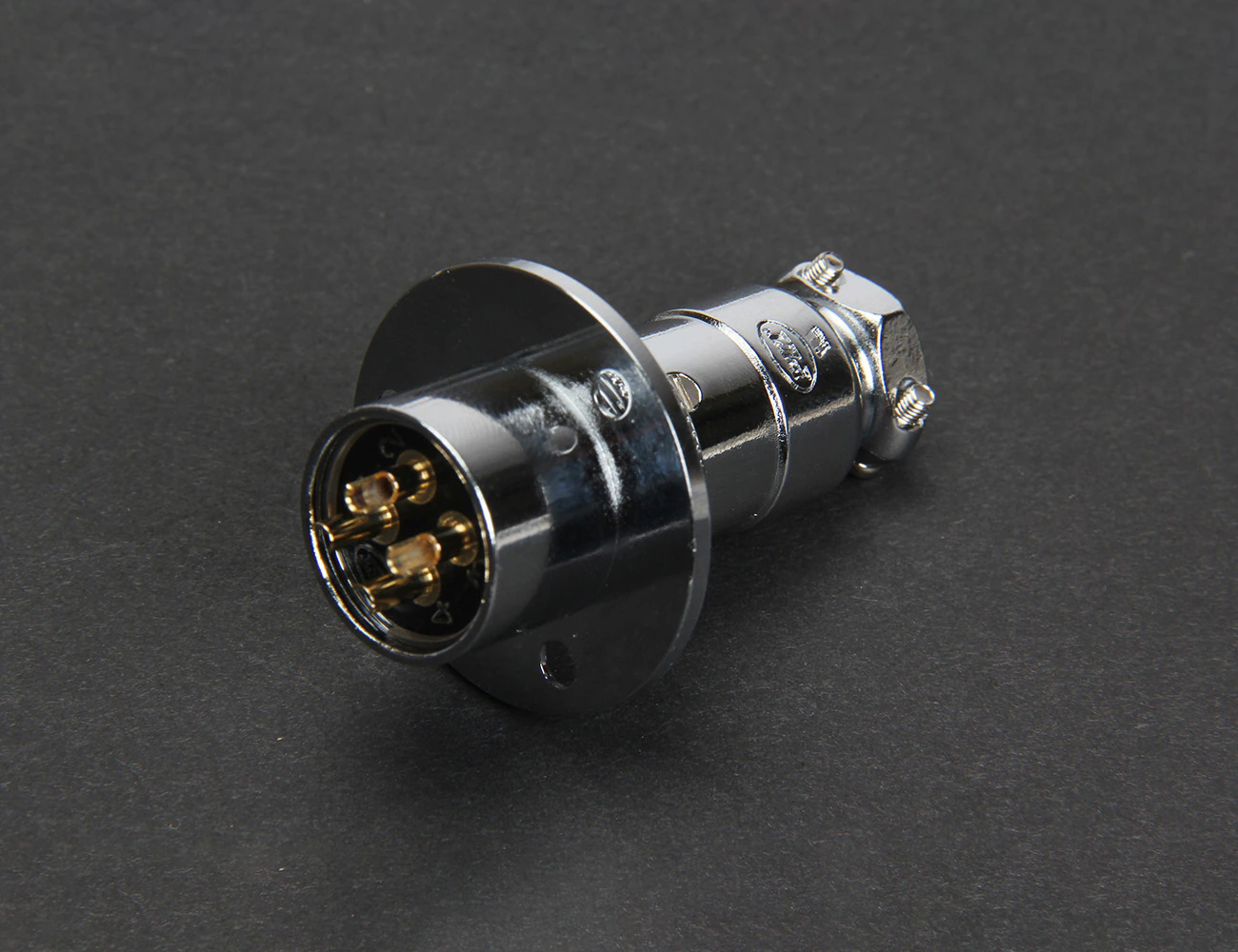

PLT-4/7A	4 Pin 7A Cable Type Female & Şse Type Male Power Connector Metal	7A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

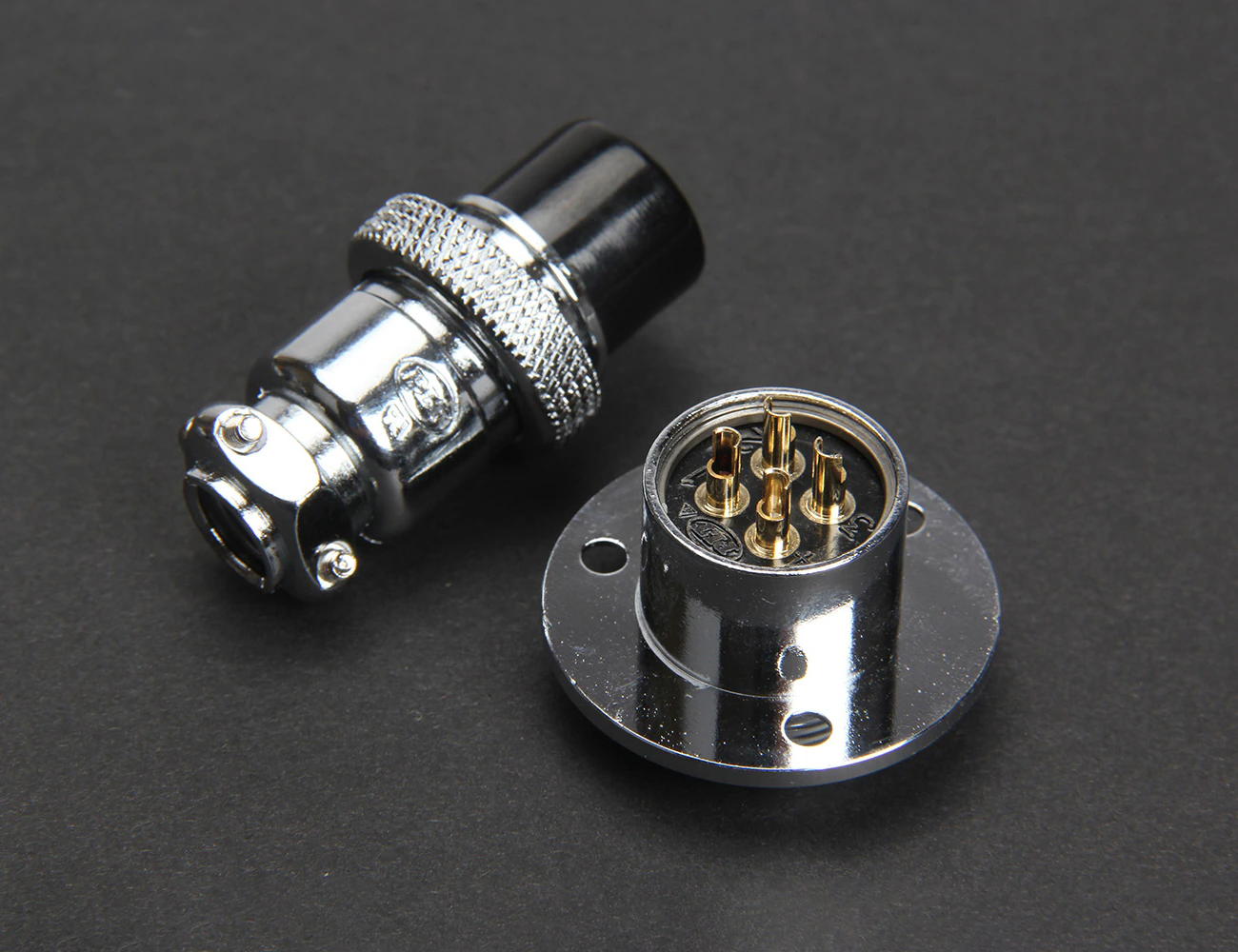

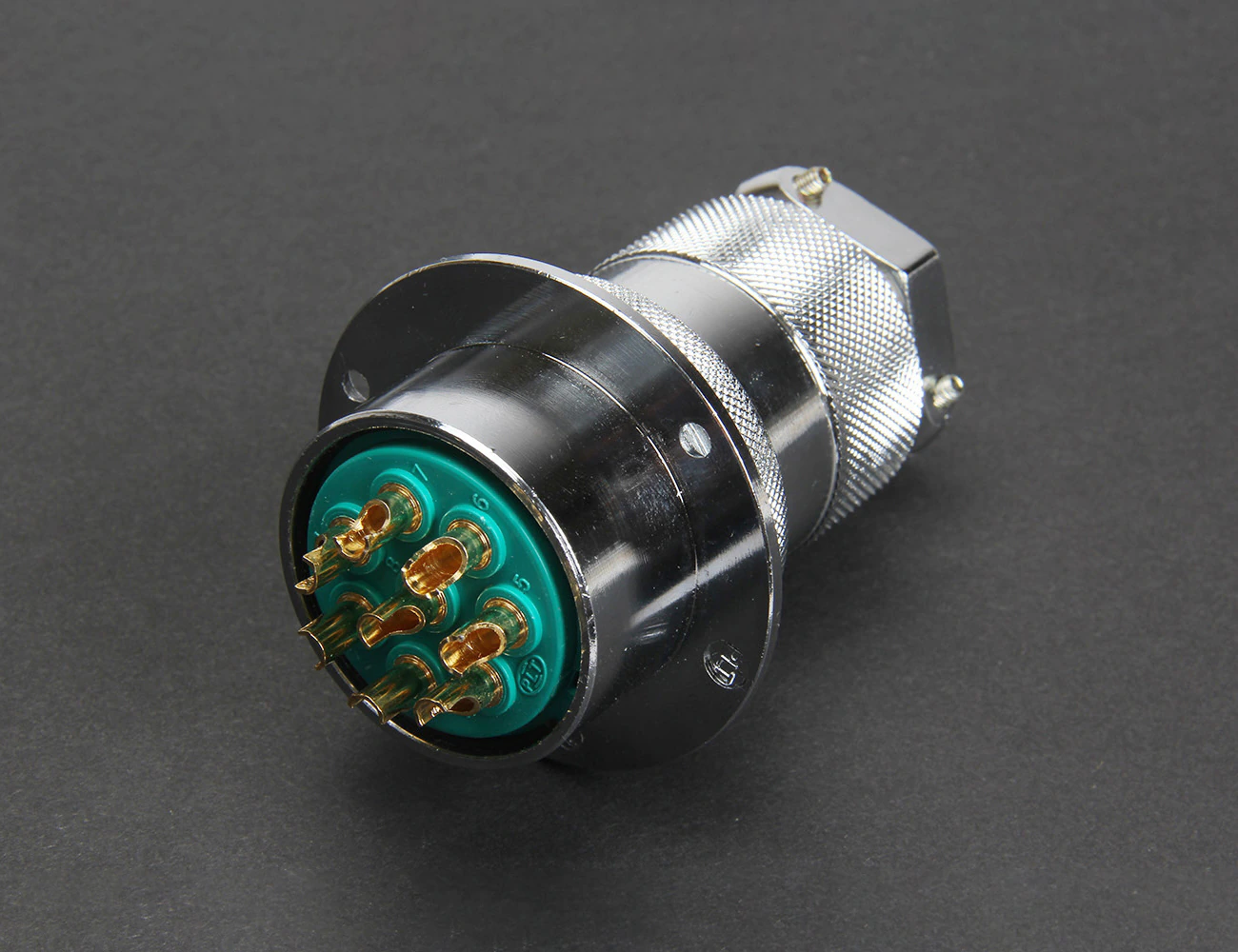

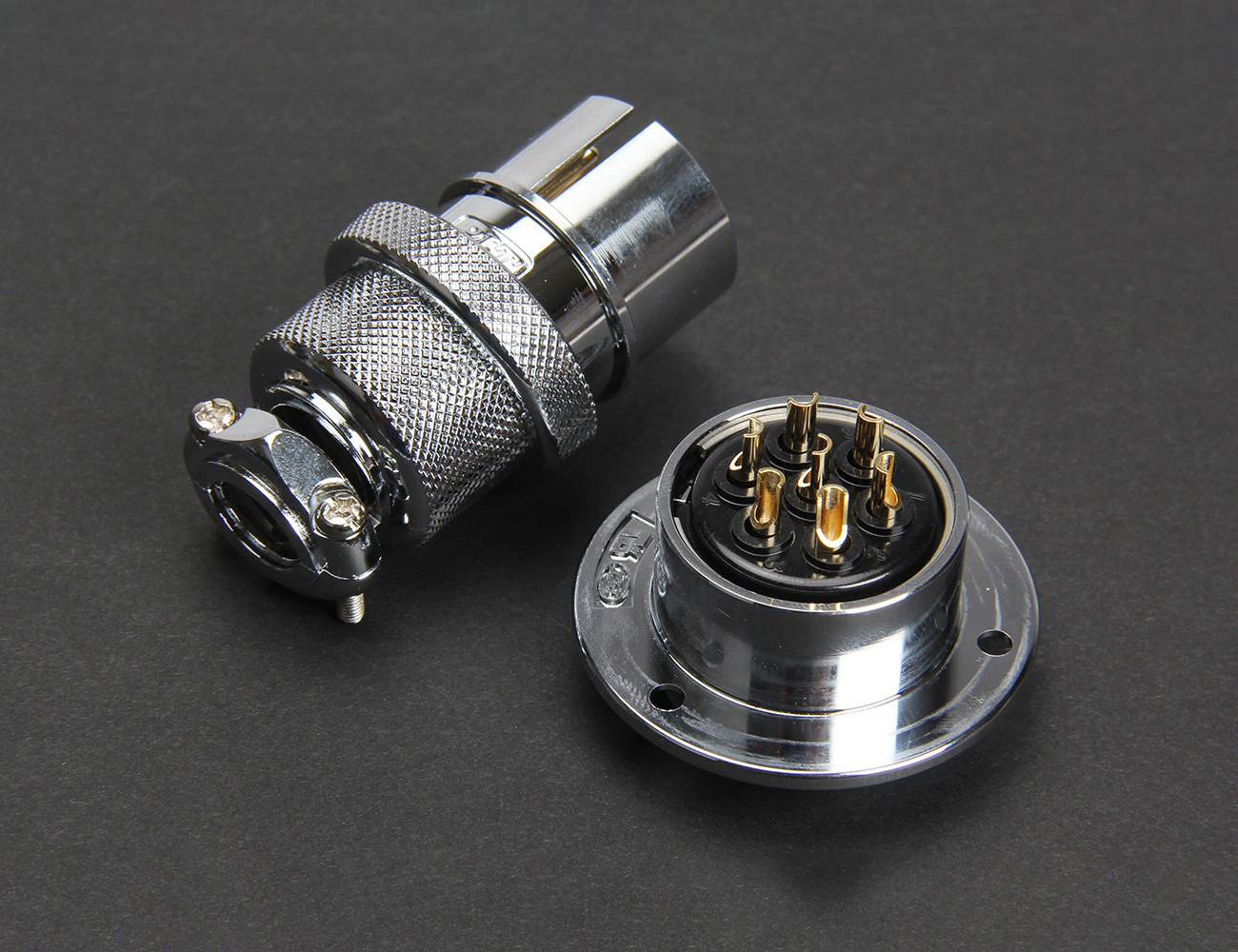

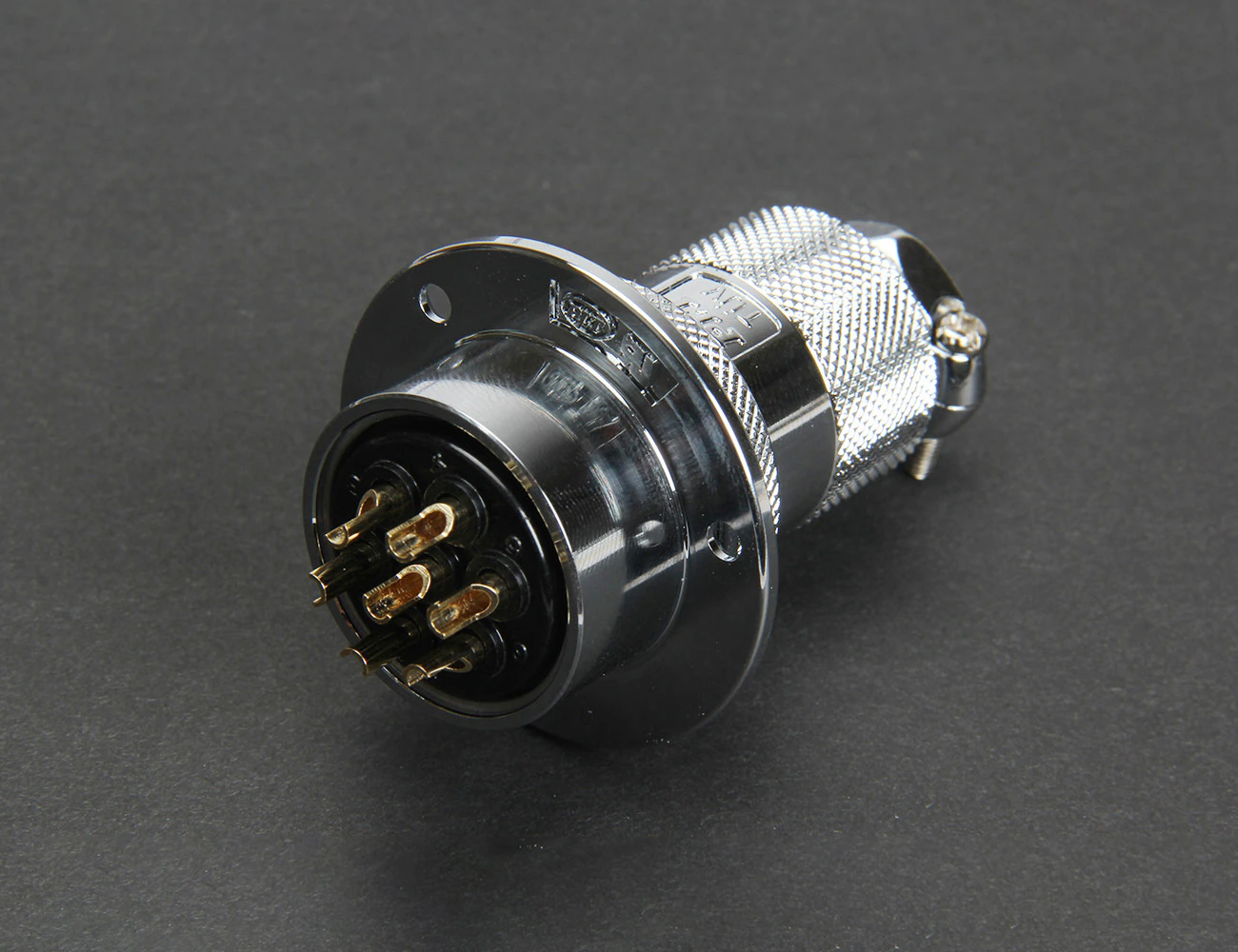

PLT-7/15A	7 Pin 15A Cable Type Male & Şase Type Female Power Connector Metal	15A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-

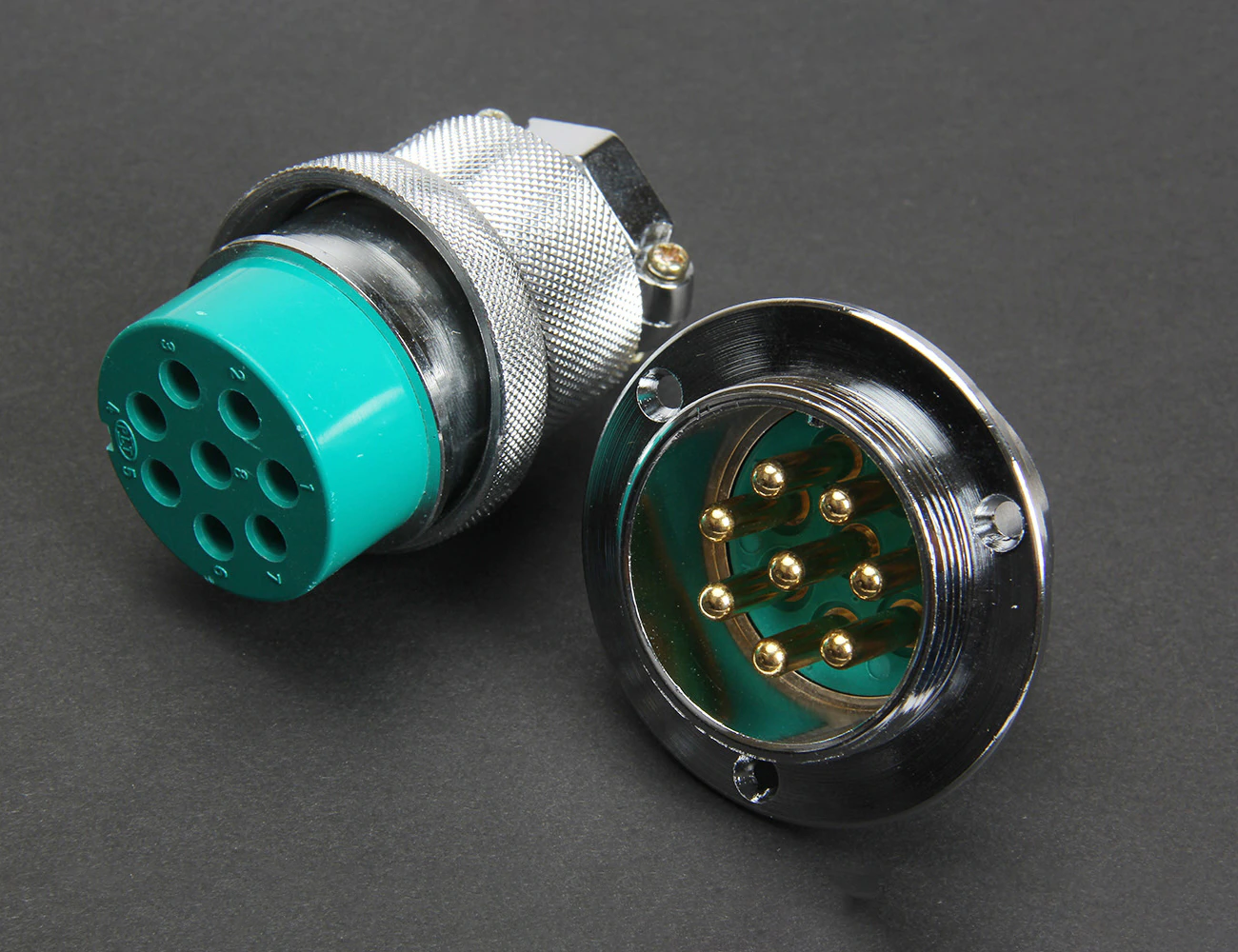

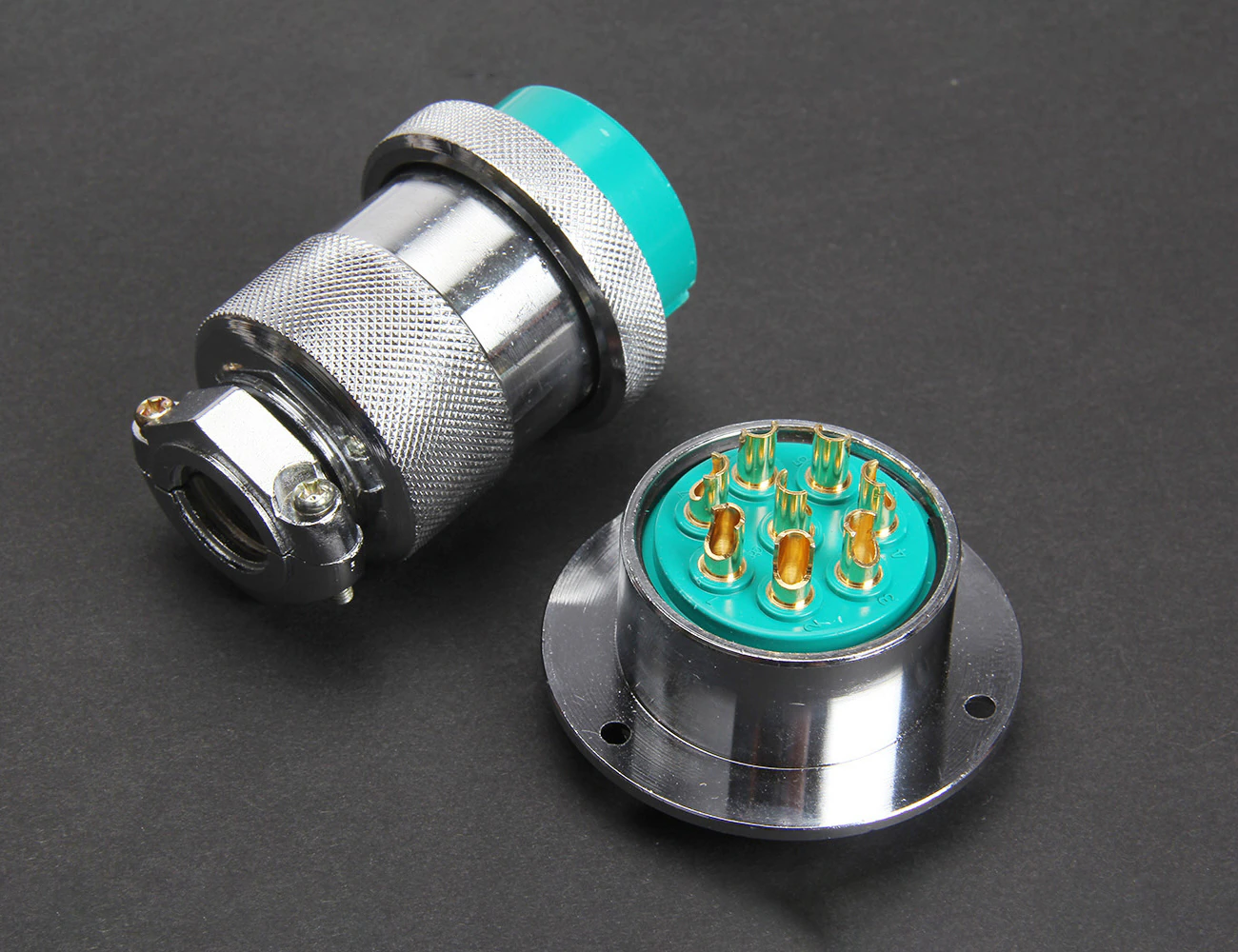

PLT-8/25A	8 Pin 25A Cable Type Female & Şse Type Male Power Connector Metal	20A	-	1000V / AC /munite	Iron / Copper Alloy / Bakelite	-
