Splice Connectors
One-Way Series 2-Pin Short Link 2.5-4mm2 TTAF Elektronik

Images are for reference only See Product Specifications

Splice Connectors

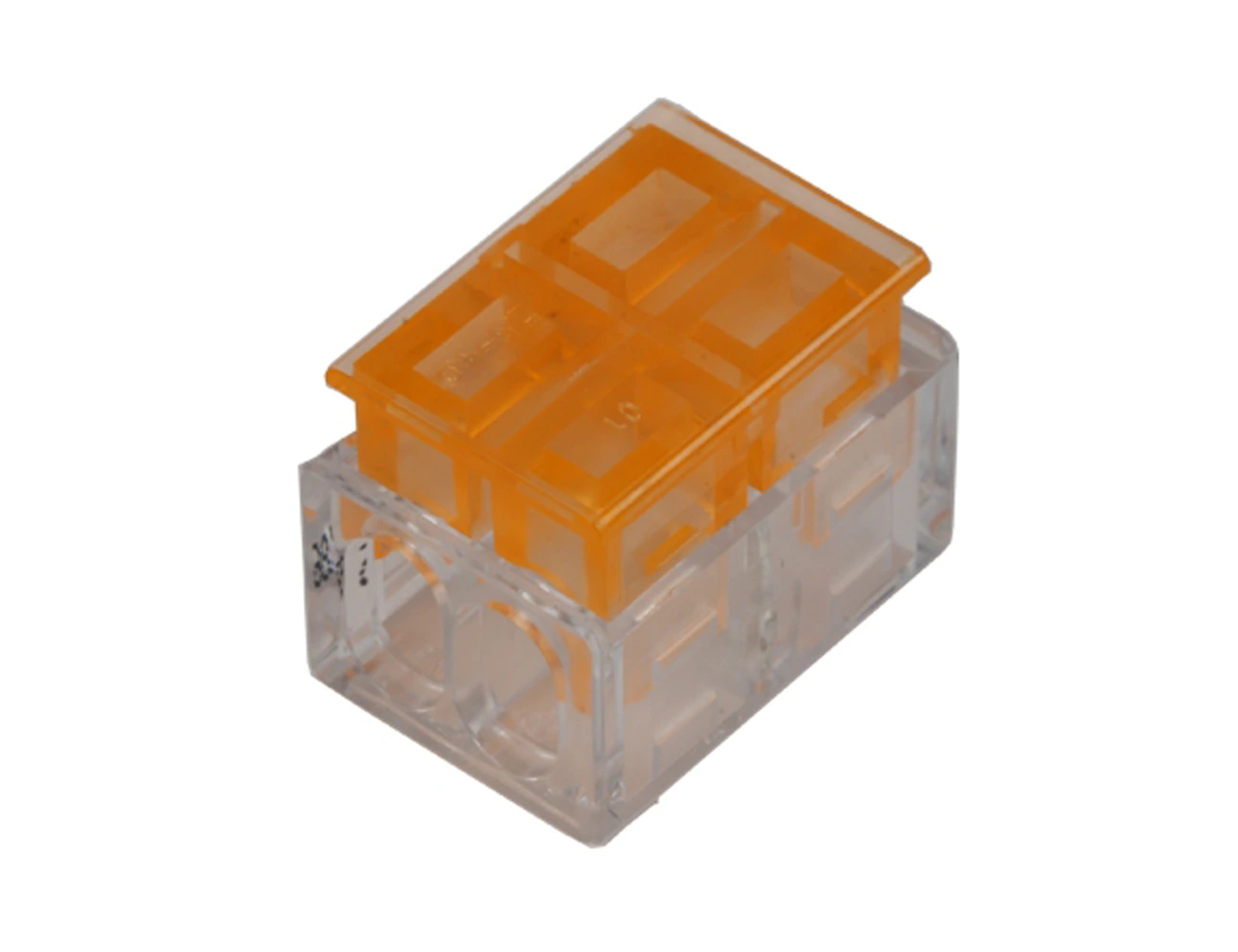

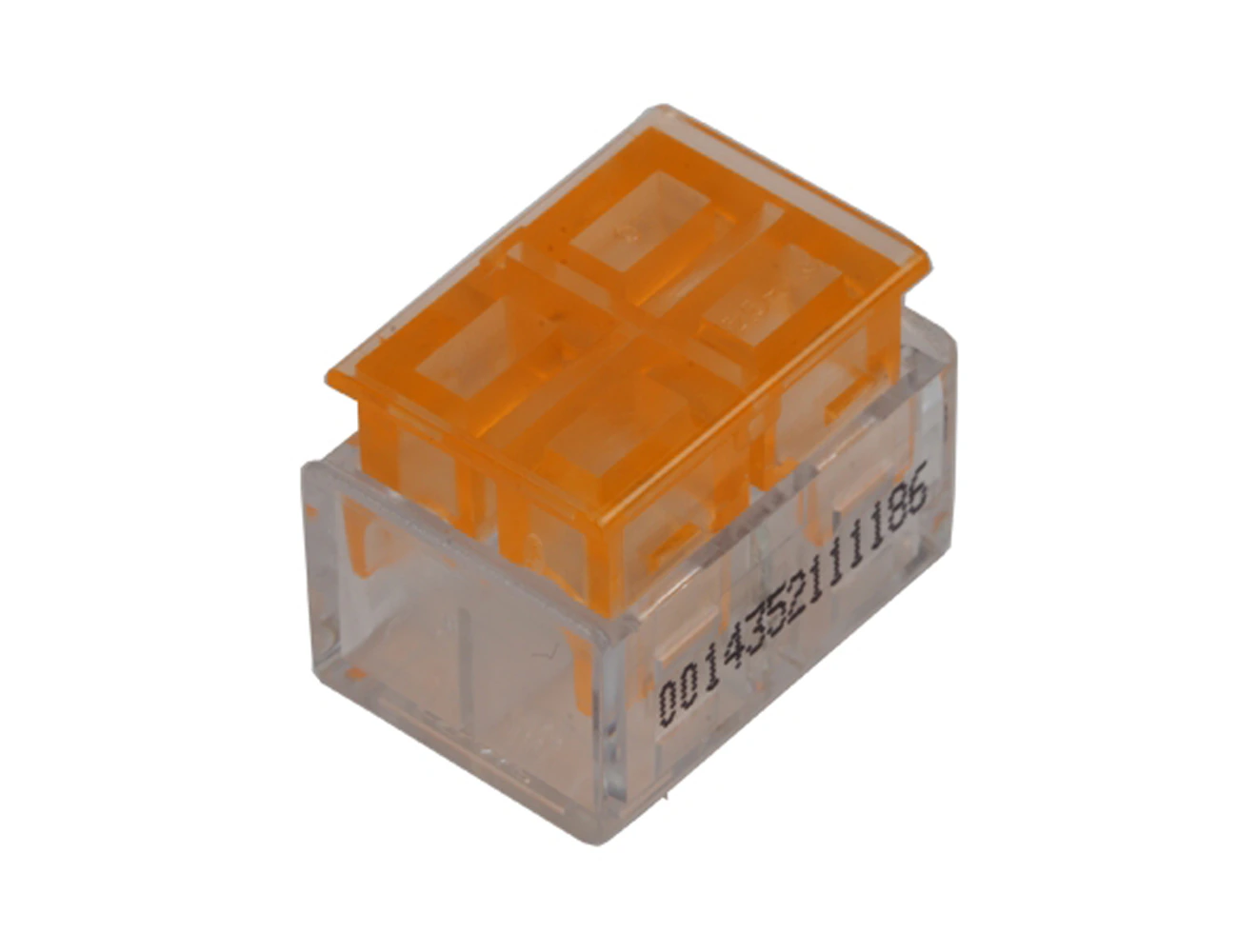

One-Way Series 2-Pin Short Link 2.5-4mm2

Part number
LD-1001-9
Manufacturer
TTAF Elektronik

The pioneer of fast connection solutions 2.5-4mm2 (13-11AWG) make your life easier!

Size20x27.4x11.3 mm
Wire Retention Force10kg Min. (Cable)
Application GuideJunction Box
Rated Voltage250V
Rated Current2.5 mm² - 24A Max. 4.0 mm² - 32A Max.
Applicable Wire TypeAll Type
