Splice Connectors
One Way Series 2x2 Pin Short Connection 1.5-2.5mm² TTAF Elektronik

Images are for reference only See Product Specifications

Splice Connectors

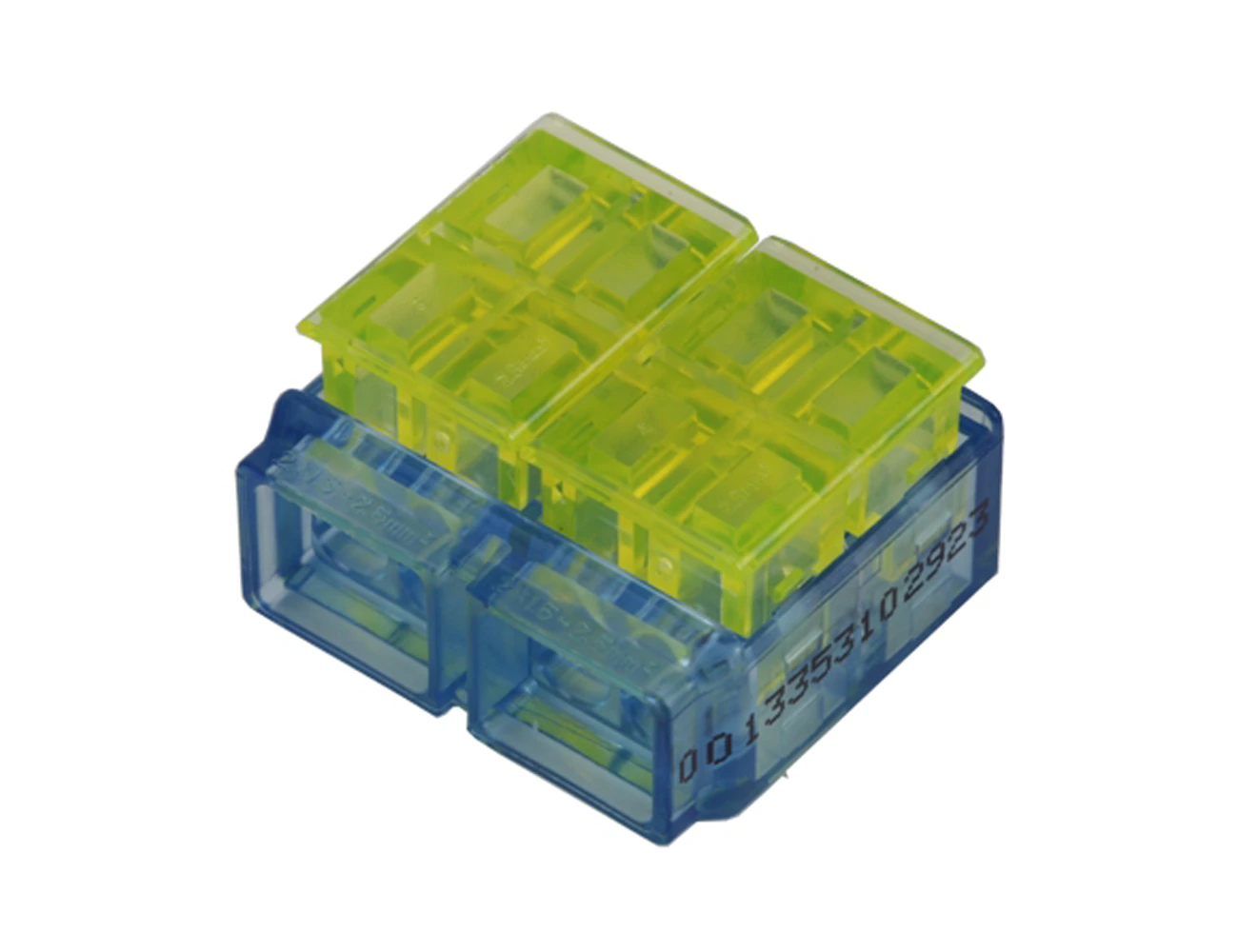

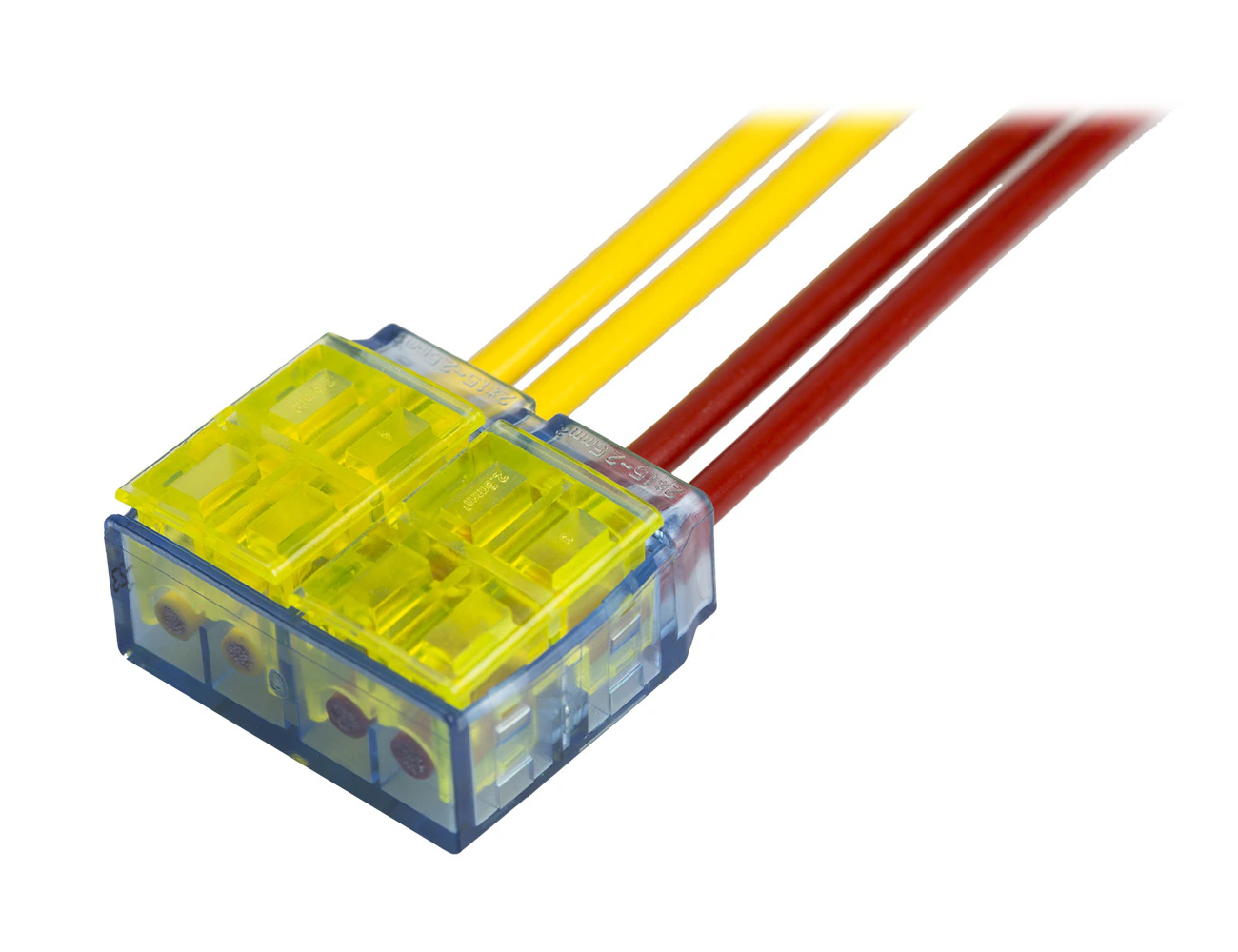

One Way Series 2x2 Pin Short Connection 1.5-2.5mm²

Part number
LD-1001-8
Manufacturer
TTAF Elektronik

Make your life easier with 1.5-2.5mm² (15-13AWG), the pioneer of fast connection solutions!

Size24x27.2x11.3 mm
Wire Retention Force8kg Min. (Kablo)
Application GuideJunction Box
Rated Voltage250V
Rated Current1.5 mm² - 17.5A Max. 2.5 mm² - 24A Max.
Applicable Wire TypeAll Cables
