Round Connector

Mini XLR Series

TTAF Elektronik

Images are for reference only See Product Specifications

Round Connector

Mini XLR Series

Part numbers

XLR-3CXLR-3BXLR-3AXLR-4CXLR-4BXLR-4AXLR-5CXLR-5BXLR-5A

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

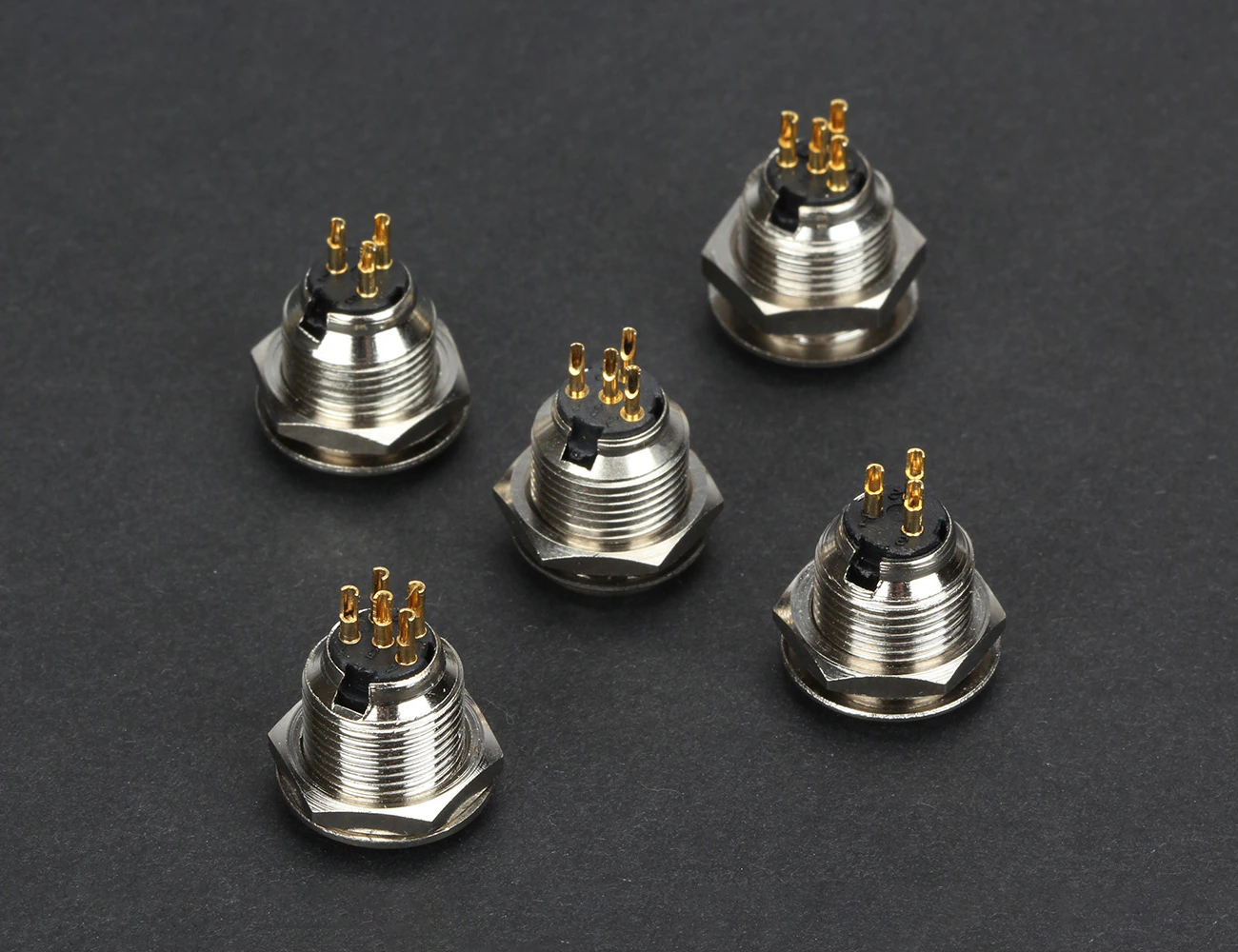

XLR-3C	3 Pin Chassis Mount Type Male Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C

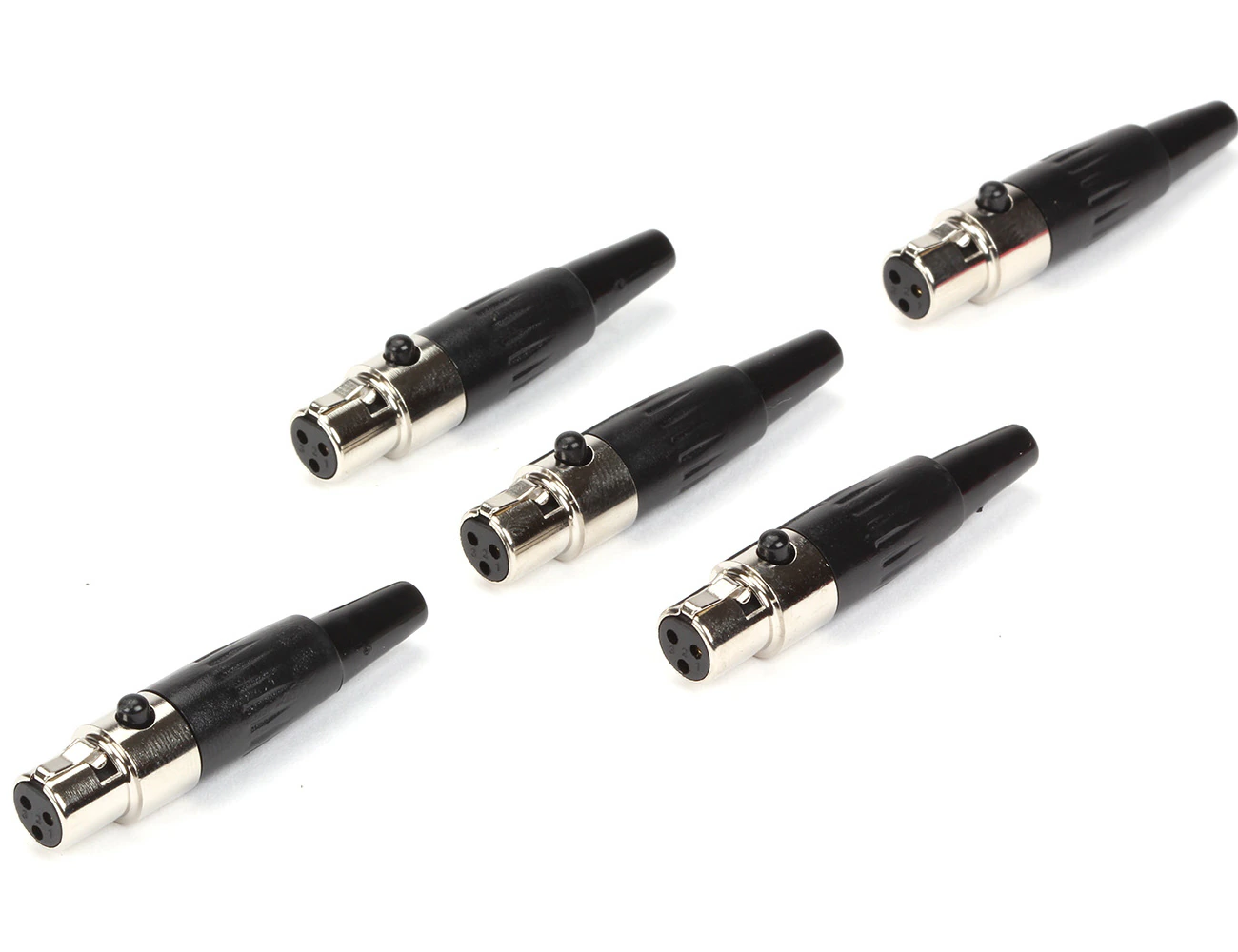

XLR-3B	3 Pin Cable Type Female Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C

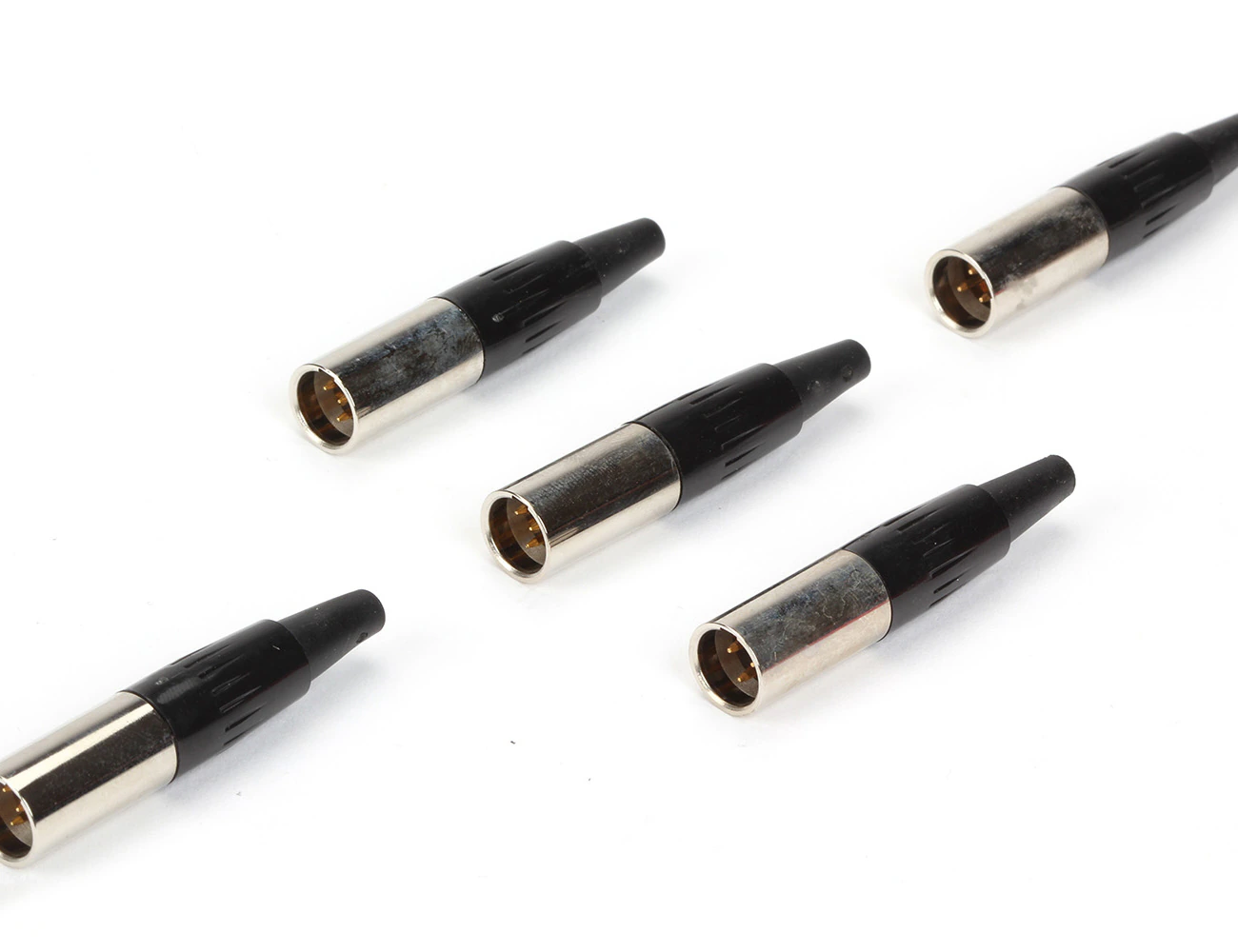

XLR-3A	3 Pin Cable Type Male Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
XLR-4C	4 Pin Chassis Mount Type Male Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
XLR-4B	4 Pin Cable Type Female Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
XLR-4A	4 Pin Cable Type Male Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
XLR-5C	5 Pin Chassis Mount Type Male Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
XLR-5B	5 Pin Cable Type Female Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
XLR-5A	5 Pin Cable Type Male Mini XLR Connector	5A	250V / AC / DC	-	ABS + PVC / Nickel-PA6	-30°C to +80°C
