Images are for reference only See Product Specifications
Industrial Waterproof Connectors

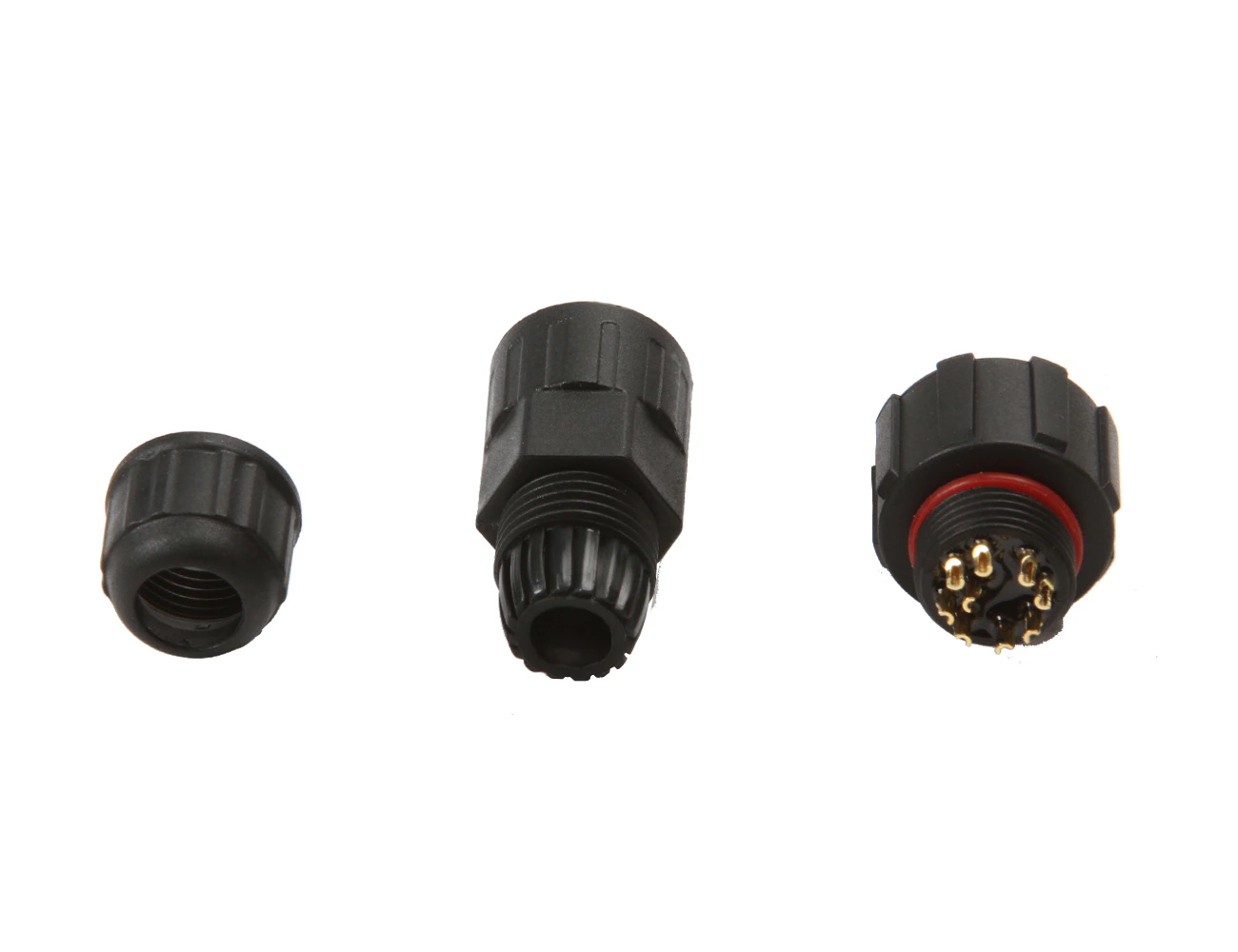

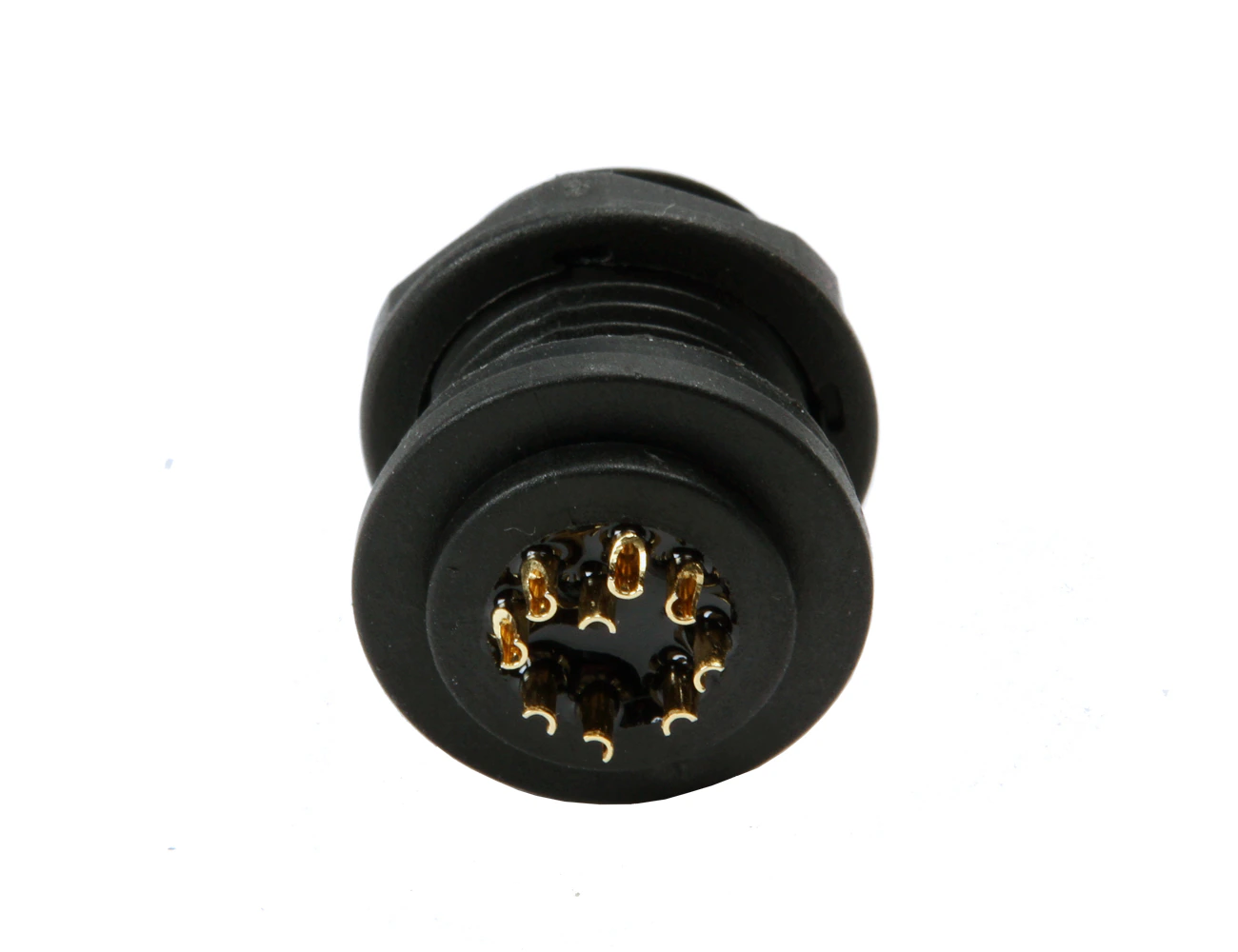

M16 PANEL TYPE 9 PIN MALE
Part number
TT-L-M16-9MPE Manufacturer
TTAF Elektronik
| Durability (Plug/Unplug) | 2000 Times |
|---|---|
| Waterproof Rating | IP68 |
| Temperature Rating | -40°C to +105°C |
| Breakdown Voltage | 300V AC/1 Munite 2mA |
| Insulation Resistance | 100 Mhom at 300V/DC |
| Contact Resistance | <10 Mohm |
| Voltage Rating | 110 V/AC |
| Current Rating | 5A (8mm) |
| Contact | Brass With Gold Plated |
| Connector | Nylon+GF |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
