Images are for reference only See Product Specifications
Industrial Waterproof Connectors

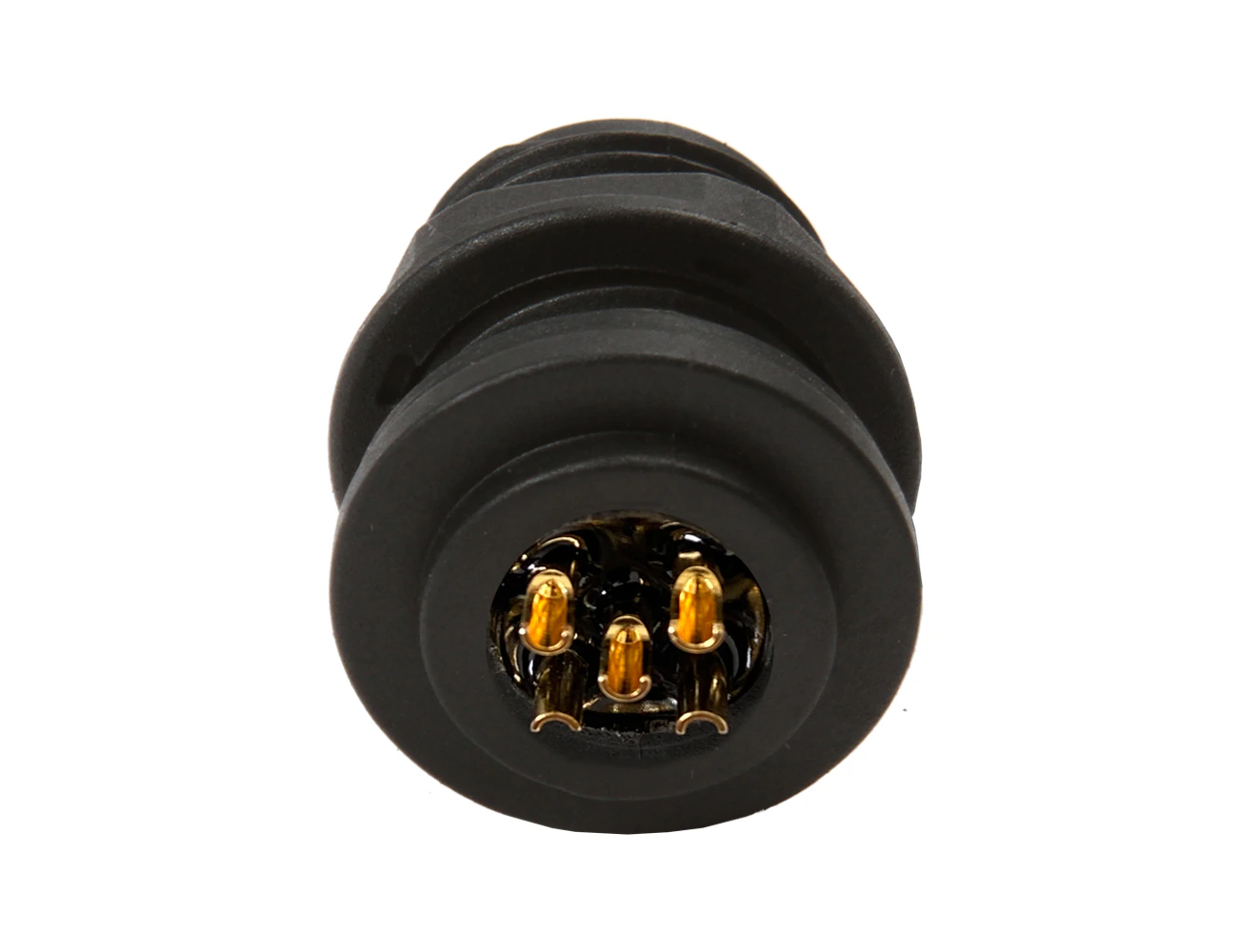

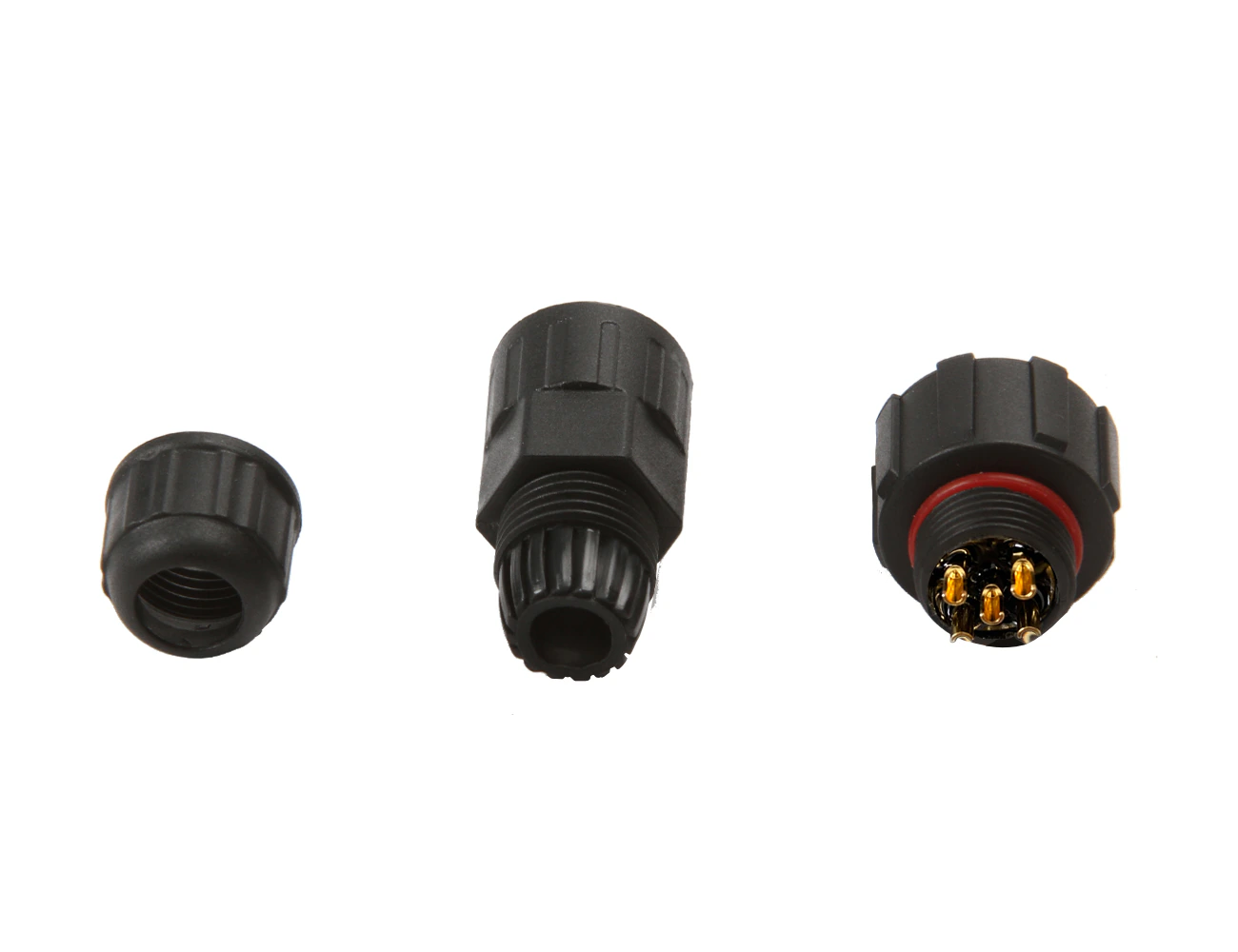

M16 CABLE TYPE 5 PIN FEMALE
Part number
TT-L-M16 5FSX Manufacturer
TTAF Elektronik
| Durability (Plug/Unplug) | 2000 Times |
|---|---|
| Waterproof Rating | IP68 |
| Temperature Rating | -40°C to +105°C |
| Breakdown Voltage | 100 Mhom at 500V/DC |
| Insulation Resistance | 100 Mhom at 500V/DC |
| Contact Resistance | <10 Mohm |
| Voltage Rating | 300 V/AC |
| Current Rating | 10A (1.5mm) |
| Contact | Brass With Gold Plated |
| Connector | Nylon+GF |
