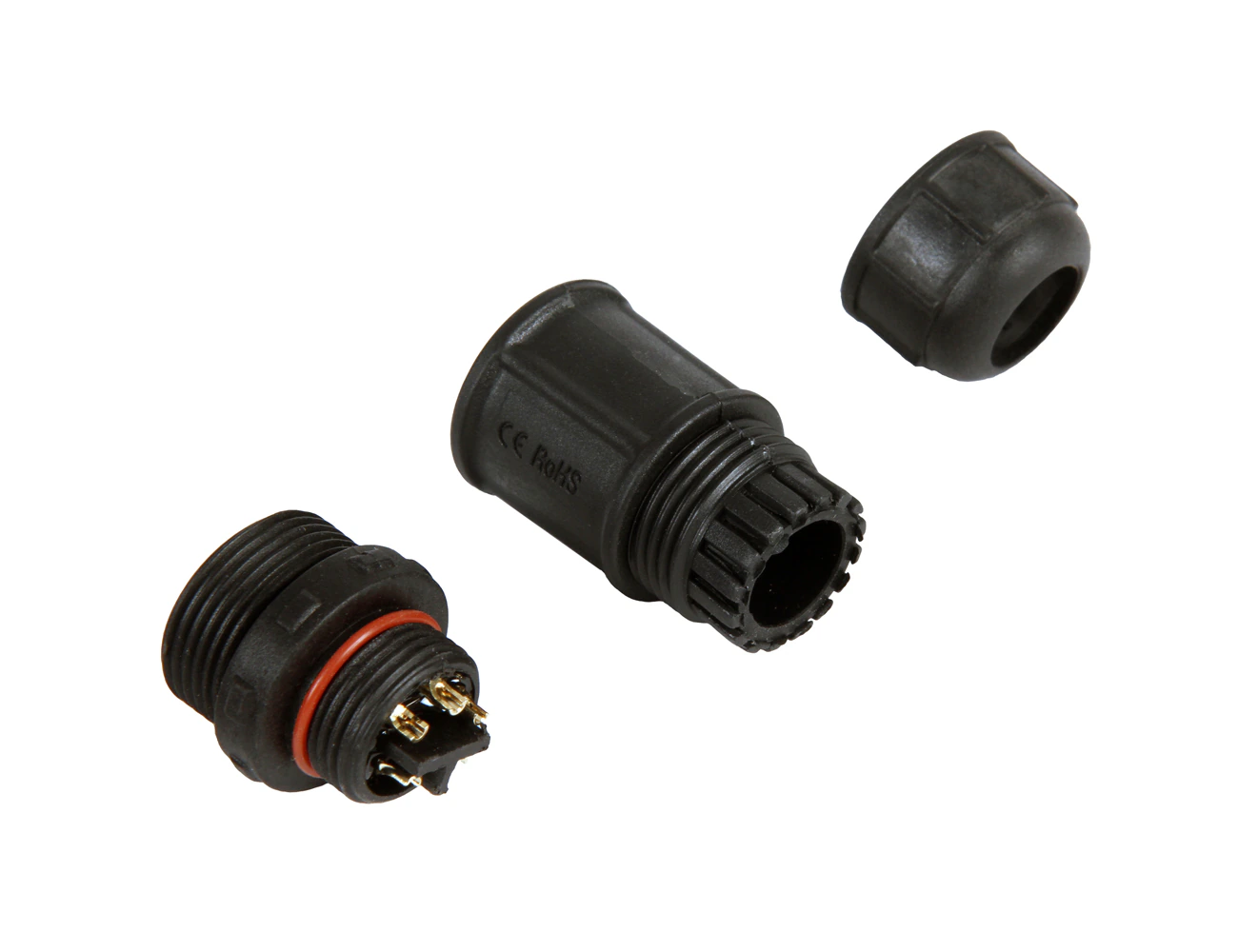

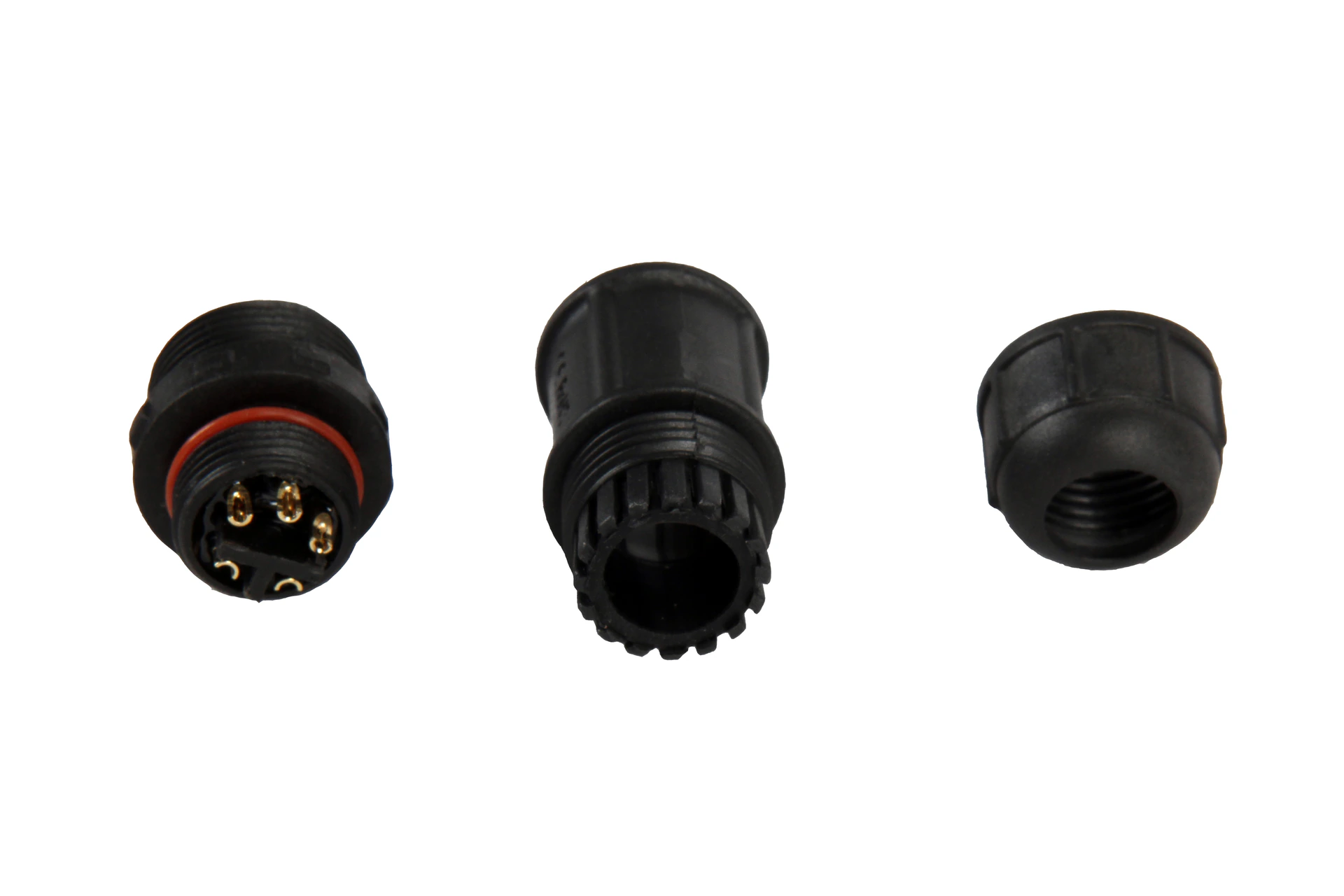

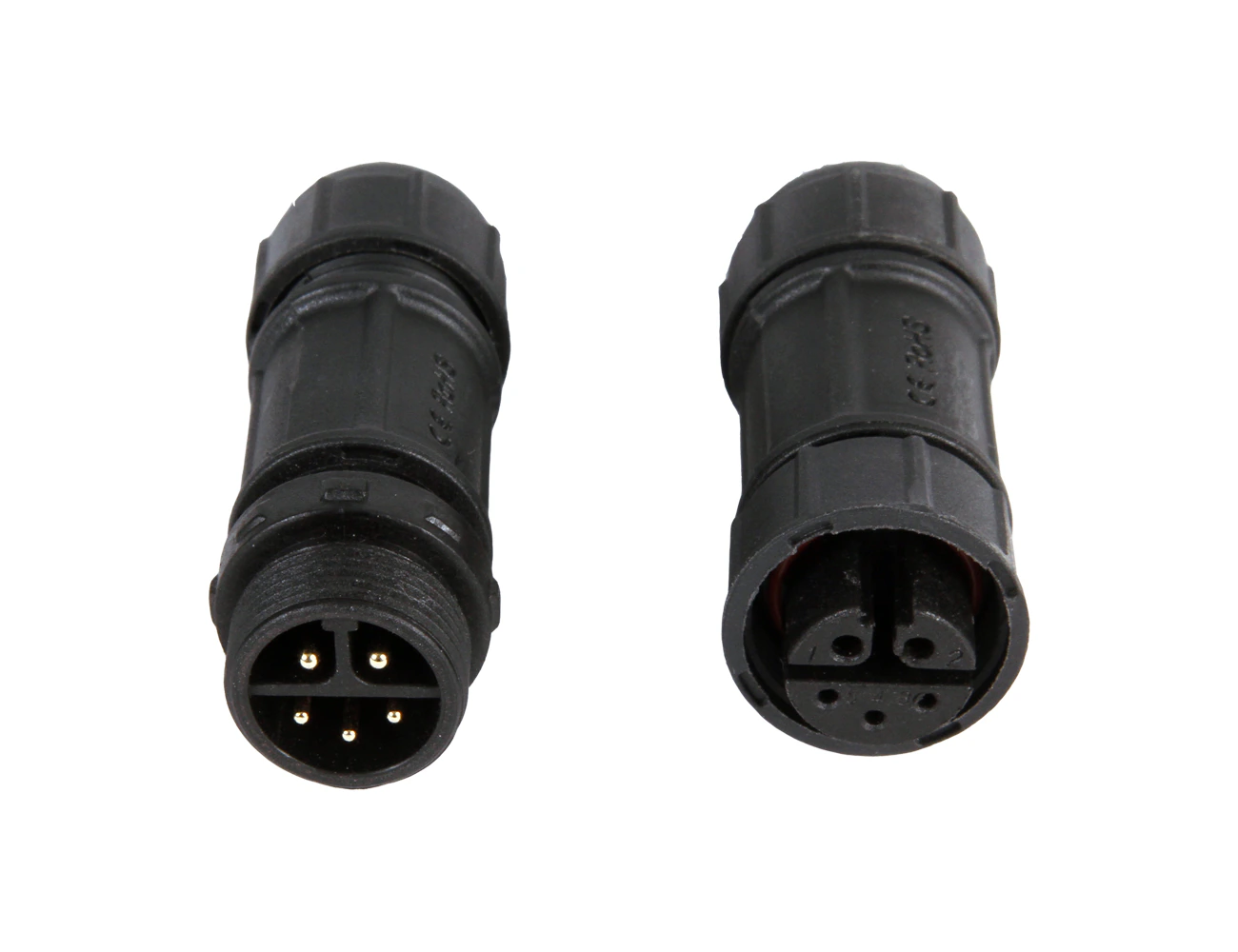

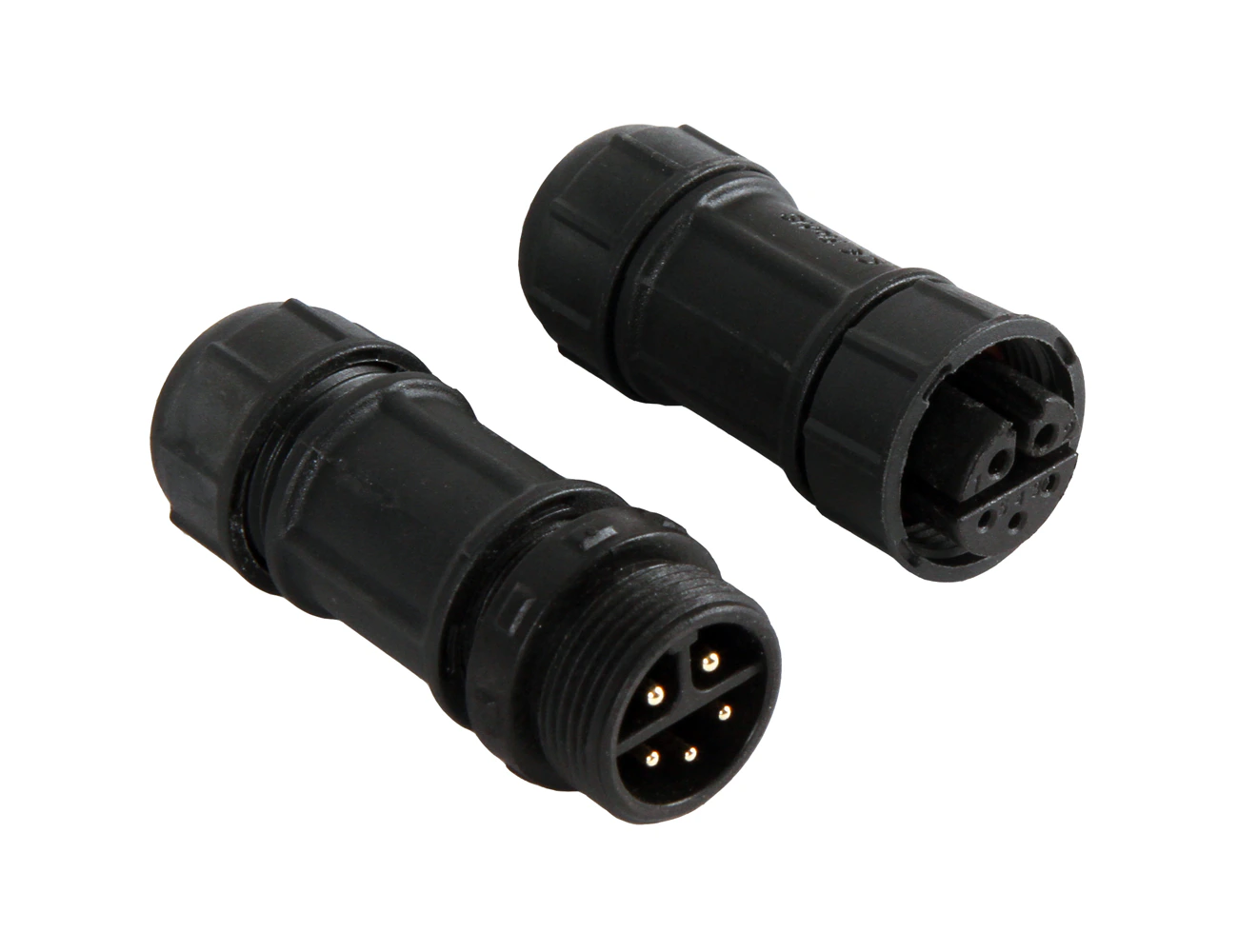

M16 5 PIN MOLD MALE CONNECTOR

Part number

TT-16M5P-KM

Manufacturer

TTAF Elektronik

Termination and Connection	Solder Termination
Values for Cable Clamp	4.5-9.2mm
Operating Cycles	2000(Connector without breaking capacity)
RoHS, UL94V-0	Anti-UV (UV-function)
Protection Degree (IP-Code)	IP67
Operating Temperature	-40°C to +105°C
Insulation Resistance	20MQ 500V
Insulation Voltage	lKV/DC 2mA lmin
Rated Current	3A
Rated Voltage	500V AC/DC

Request a quote or availability
