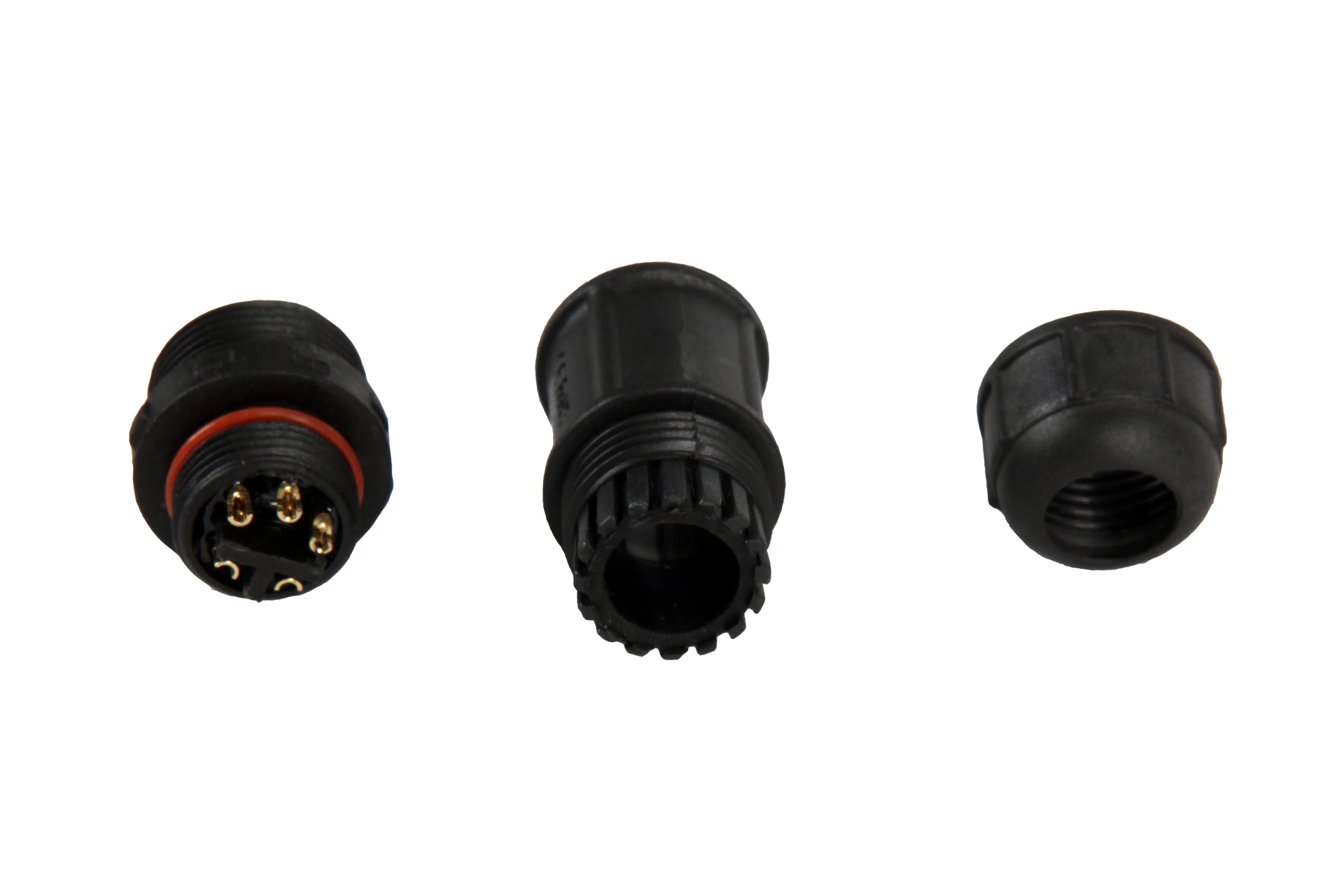

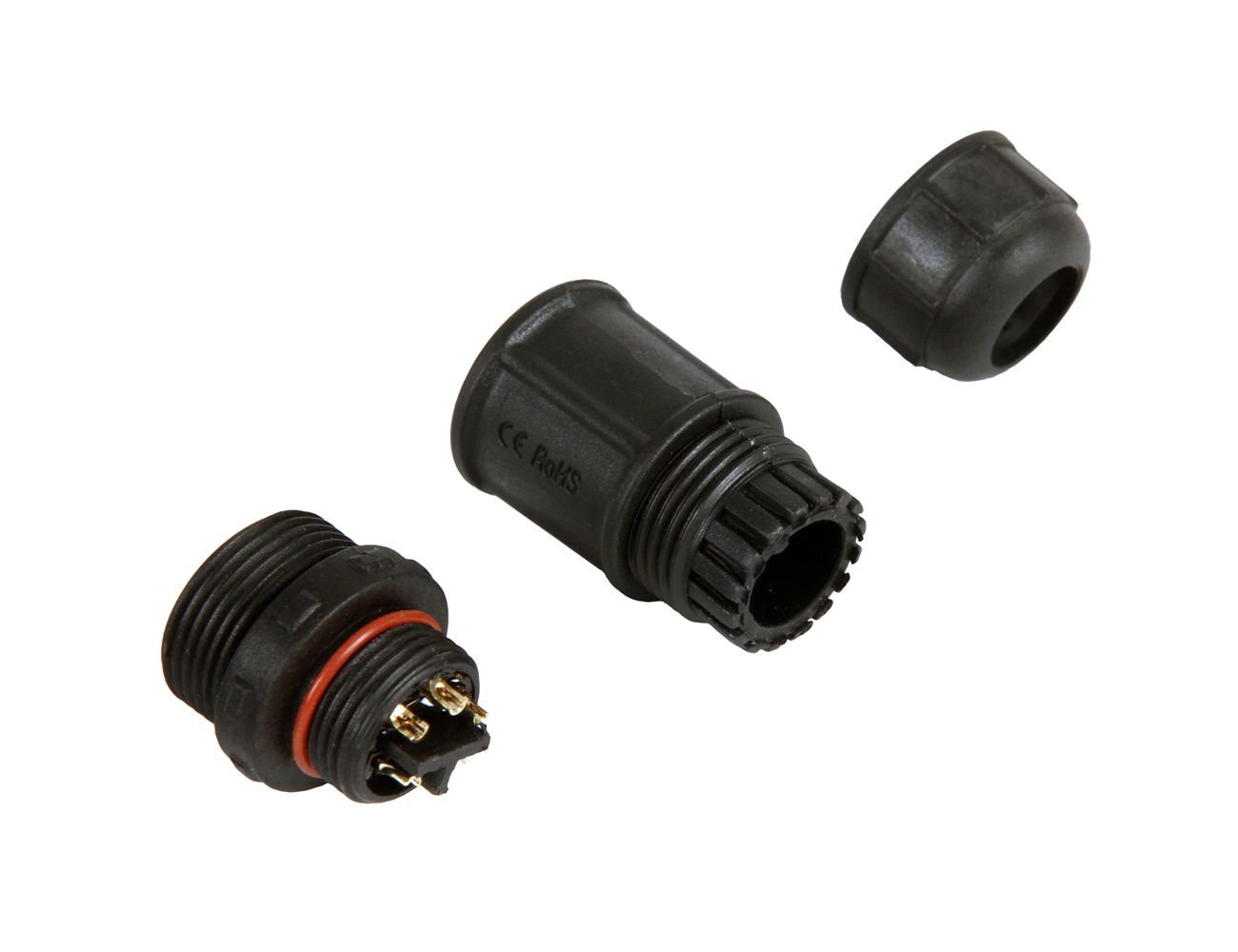

M16 5 PIN MOLD FEMALE CONNECTOR

Part number

TT-16F5P-KM

Manufacturer

TTAF Elektronik

Termination and Connection	Solder Termination
Values for Cable Clamp	4.5-9.2mm
Operating Cycles	2000(Connector without breaking capacity)
RoHS, UL94V-0,	Anti-UV (UV-function)
Protection Degree (IP-Code)	IP67
Operating Temperature	-40°C to +105°C
Insulation Resistance	500MQ 500V
Insulation Voltage	3KV/DC 2mA lmin
Rated Current	15 A 3 A
Rated Voltage	500V AC/DC

Request a quote or availability
