Images are for reference only See Product Specifications
Sensor Connectors

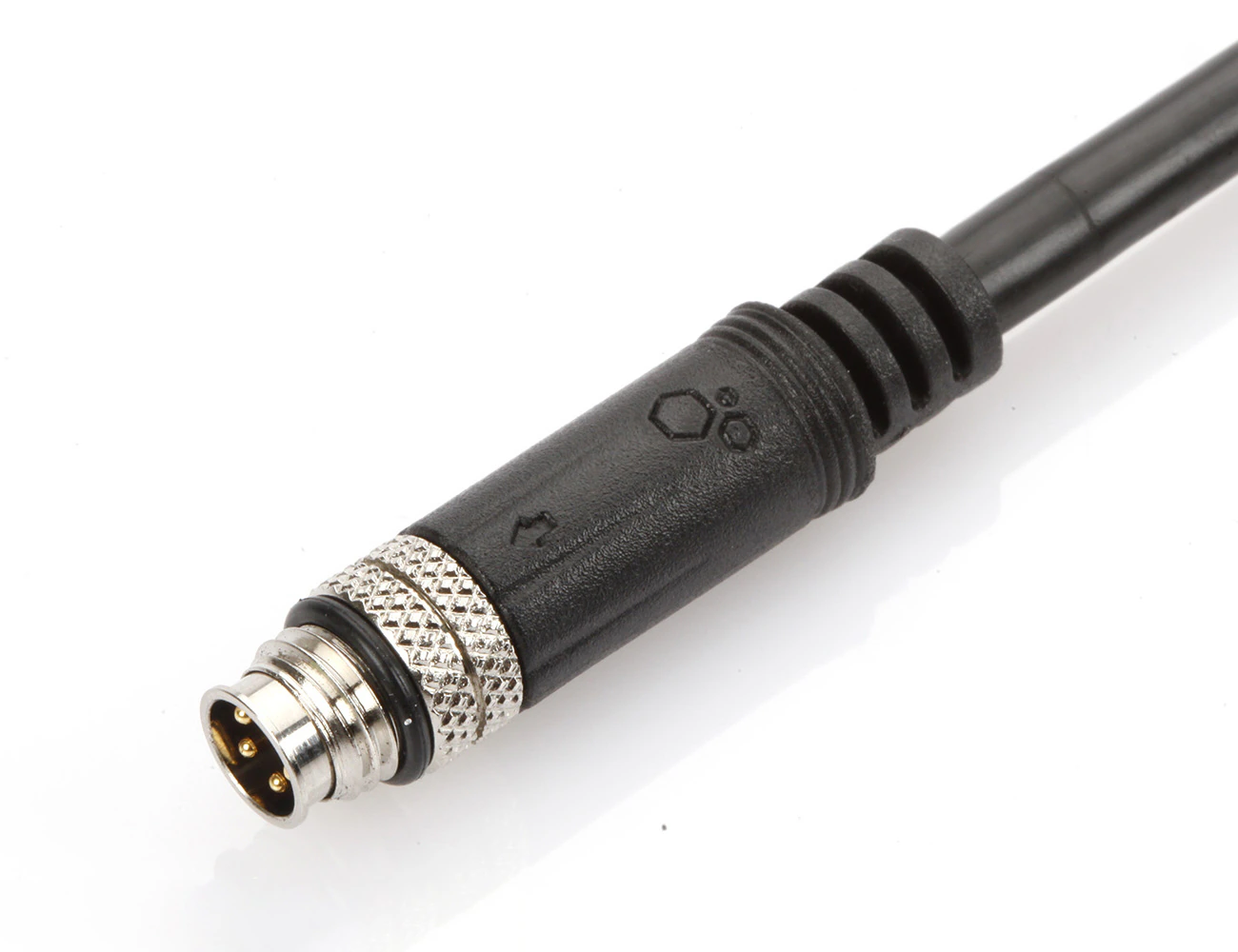

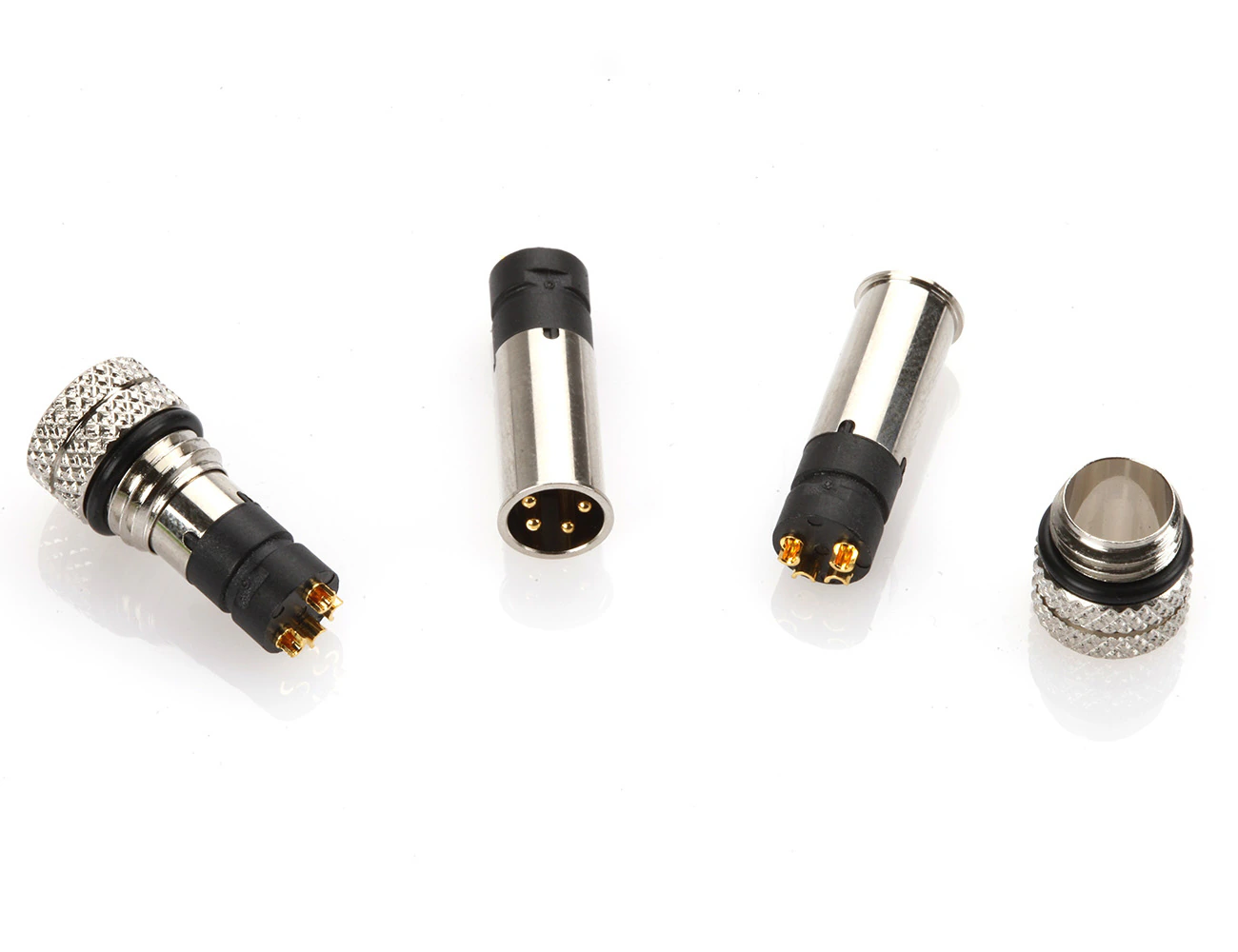

M8 3 Pin Circular Male Connector
Part number
TT-8M3P-W-E-9.5-M-1G10 Manufacturer
TTAF Elektronik
Material Housing PBT UL94V-0; Color:Black. Contact Phosphor Bronze Nut Brass. O-Ring NBR ; Color:Black Finish Contact 10 Micro Inches Min. Gold Plating. Solder Area Gold Flash. Under Plate Nickel Nut Nickel Plated 60u''~100u'' Over All.
| Circuits | 3 Pin |
|---|---|
| Current Rating | 5A |
| Voltage Rating | 125V |
| Type | Male |
| IP Rating | IP67 |
| Temperature Range | -25°C to +85°C |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
