Images are for reference only See Product Specifications
Sensor Connectors

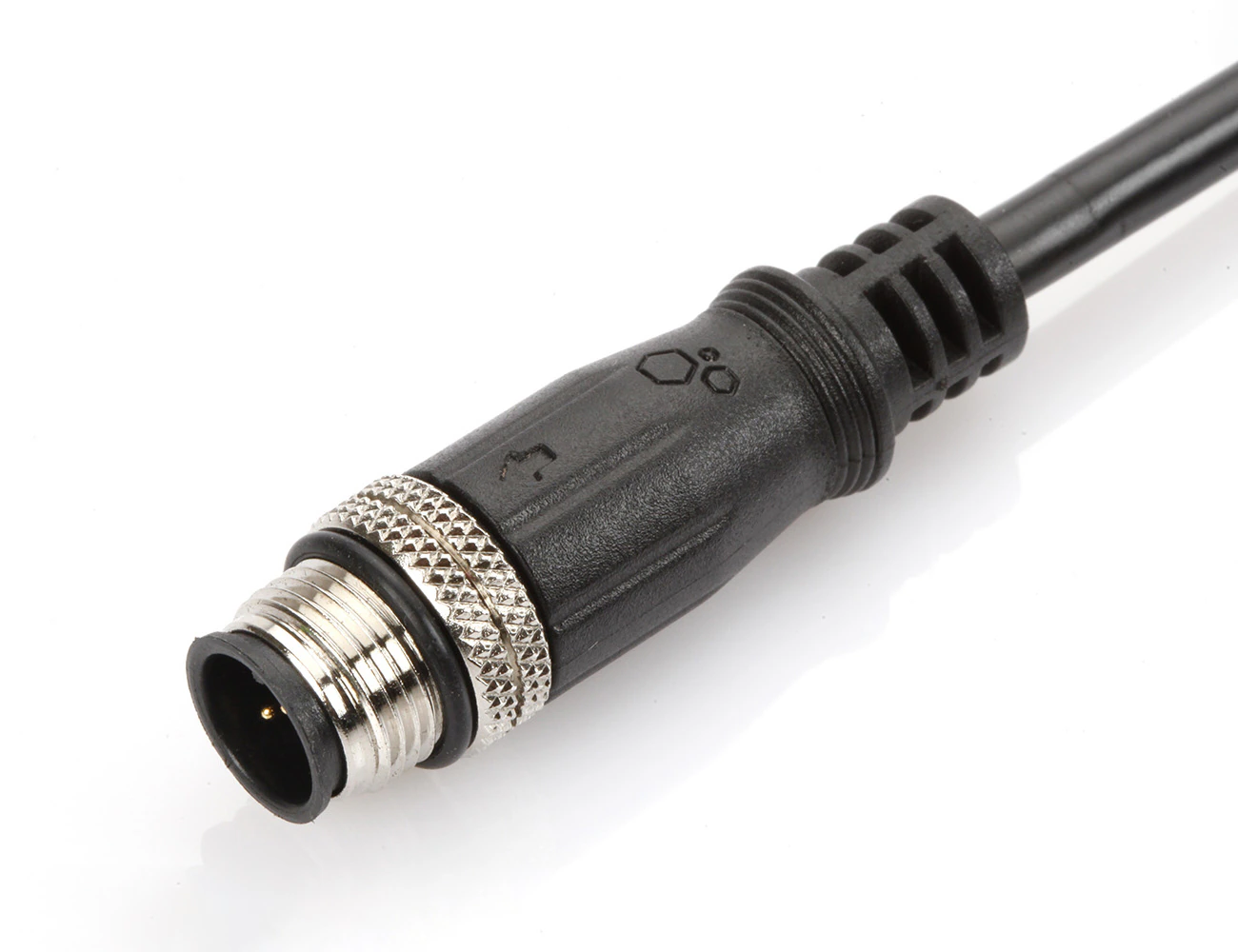

M12 3 Pin Cırcular Male Connector
Part number
TT-12M3P-W-A-P-2-G10 Manufacturer
TTAF Elektronik
Material Housing PBT UL94V-0; Color:Black Contact Brass Nut Brass O-Ring Epdm;Color:Black Finish Under Plate Nickel Contact 1u'' Gold Plating Nut Nickel Plated 60u''~100u'' Over All.
| Circuits | 3 Pin |
|---|---|
| Current Rating | 5A |
| Voltage Rating | 125V |
| Type | Male |
| IP Rating | IP67 |
| Temperature Range | -25°C to +85°C |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
