Images are for reference only See Product Specifications

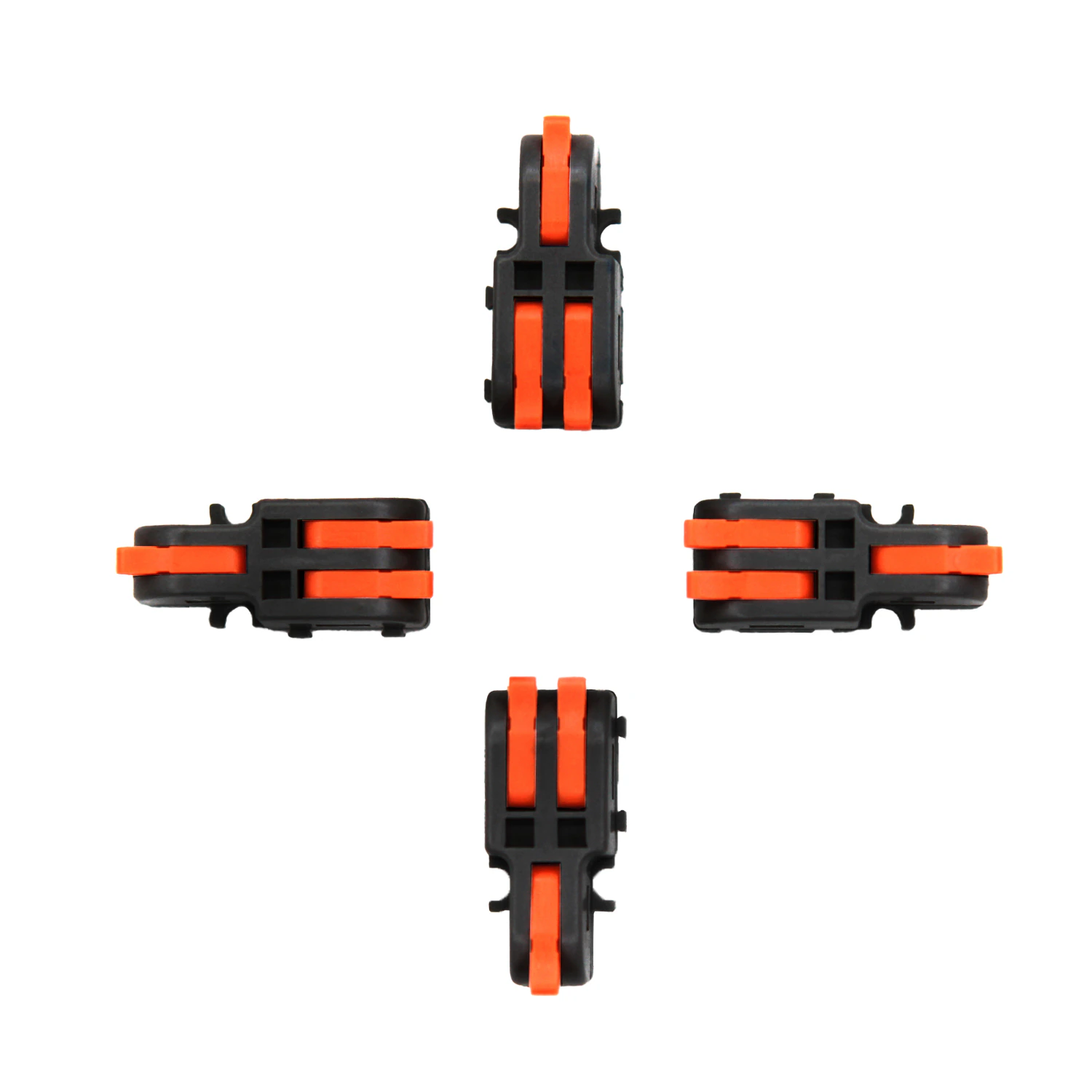

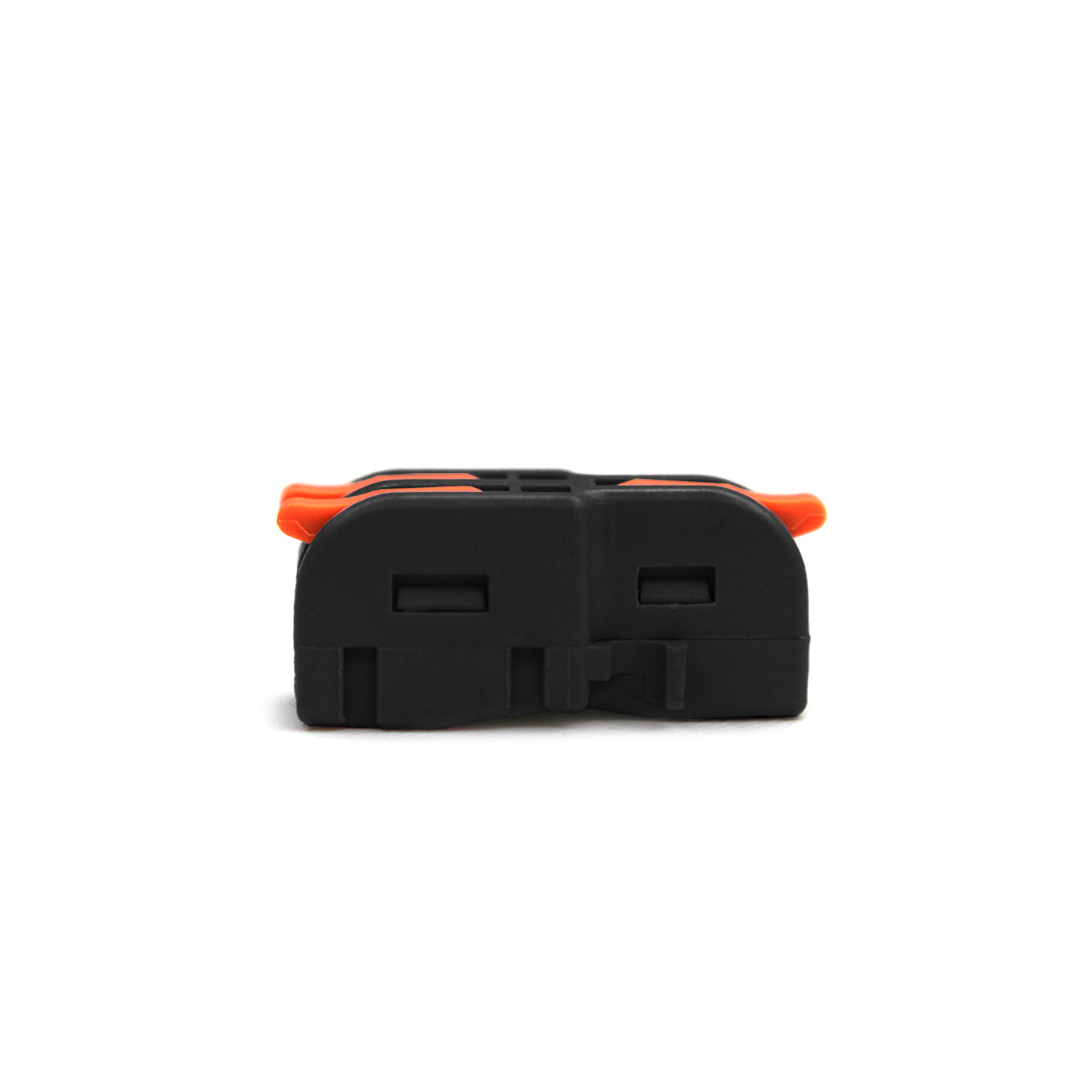

Terminal Block
1 In 2 Out Screwless Terminal Block
Manufacturer
TTAF Elektronik
| Reference Value | IEC |
|---|---|
| Voltage Rating | 250V |
| Number of Pins | 1 In 2 Out |
| Insulation Structure | ≥1000MΩ |
| Current Rating | 32A max. |
| Contact Resistance | ≤0. 015 Ω |
| Cable Diameter (Solid) | 0.5-4mm² |
| Cable Diameter (Fine) | 0.5-2.5mm² |
| Temperature Rating | -40°C ~ +105°C |
| Contact/Terminal Material | Copper |
| Housing Material | PA6 V2 |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
