Images are for reference only See Product Specifications

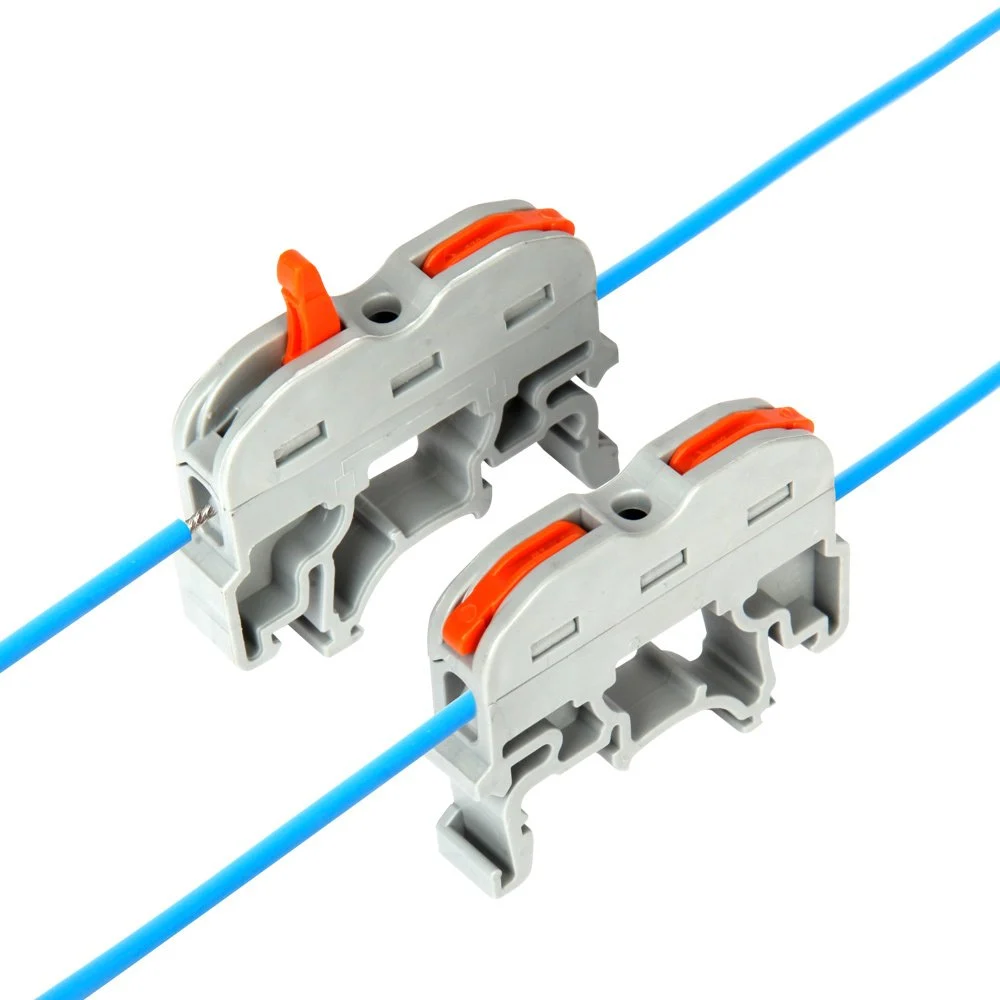

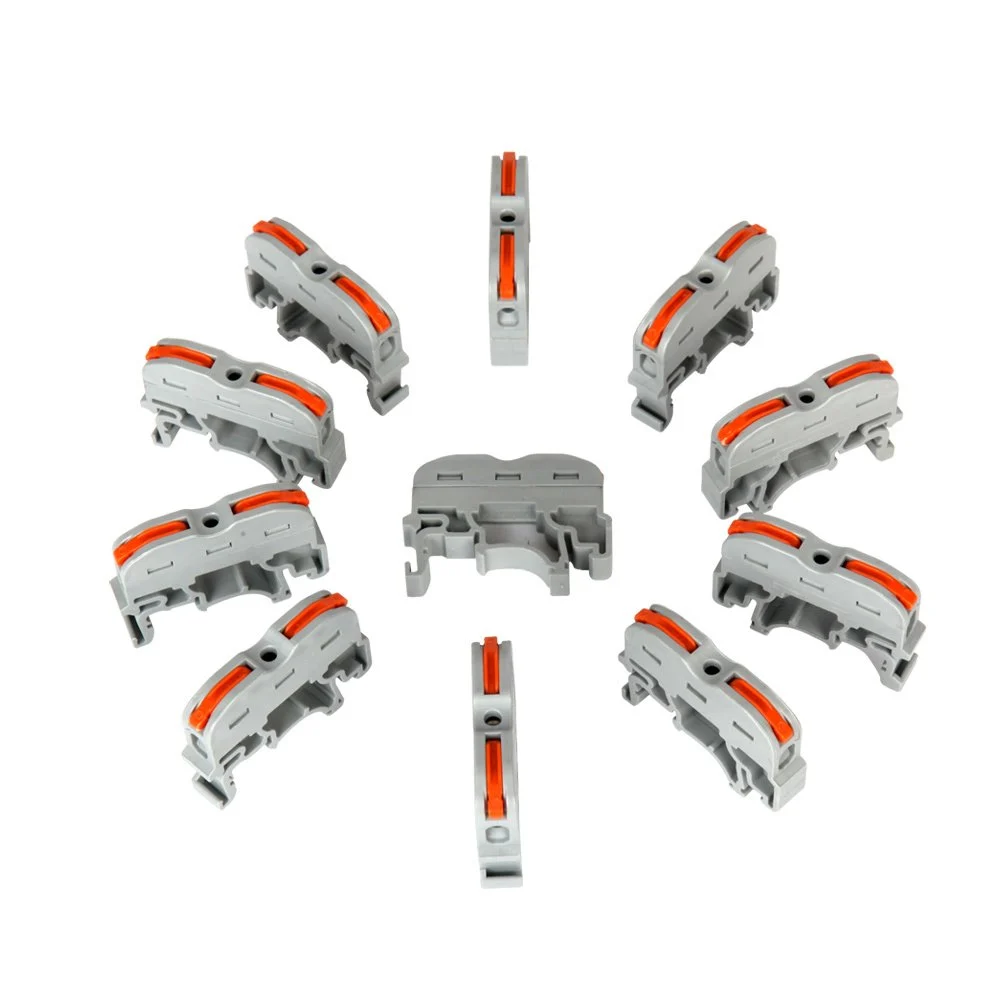

Terminal Block

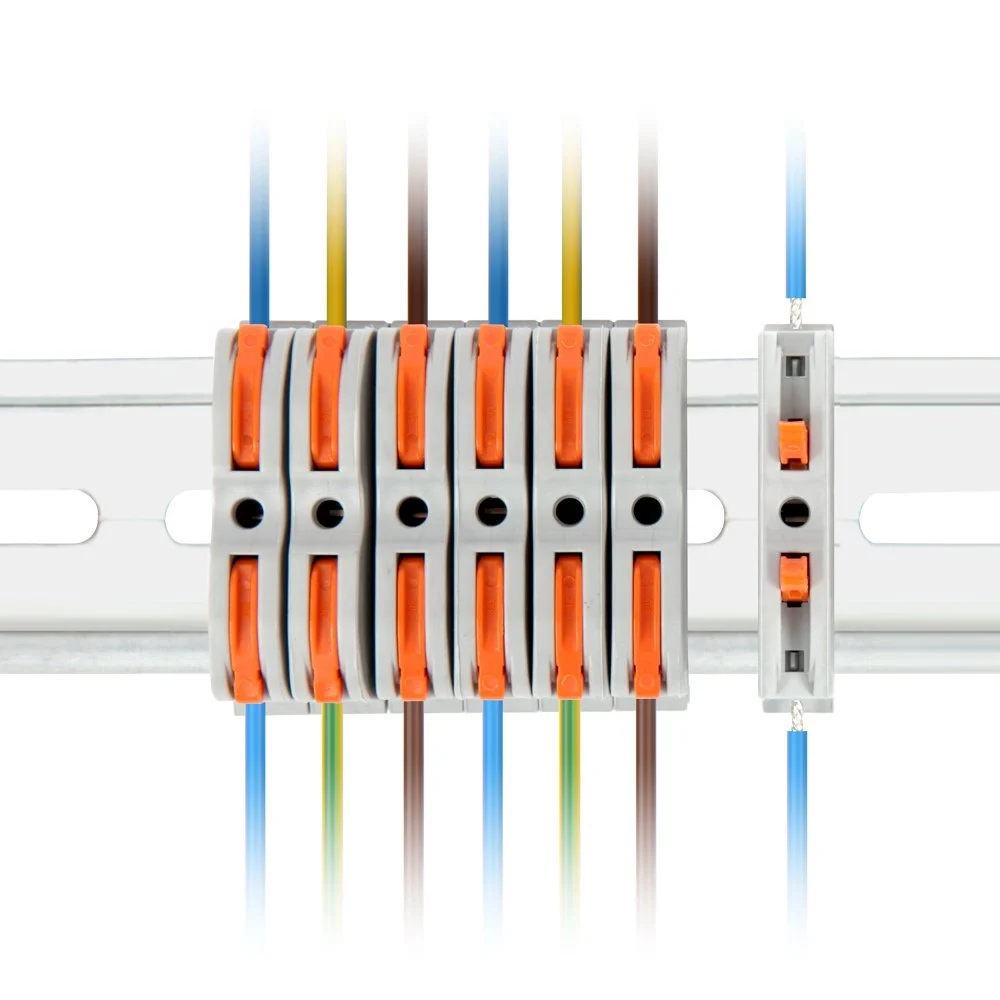

Rail Type Grey Screwless
Manufacturer
TTAF Elektronik
| Number of Poles | 1 |
|---|---|
| Voltage Rating | 250V /600V. |
| Current Rating | 32A max |
| Cable Diameter | 28-12 AWG |
| Temperature Resistance | 25 |

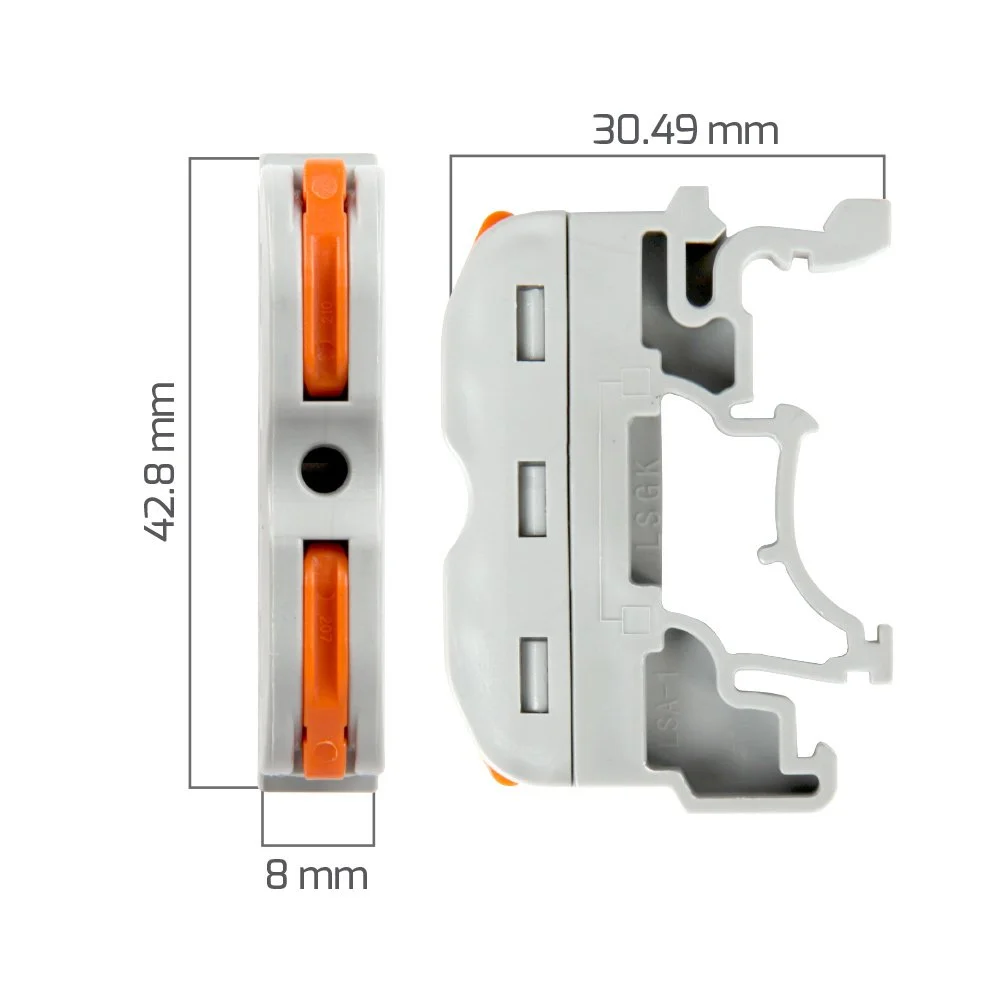

| L/W/H | 42.8X8X30.49 |
| Contact Resistance | 0.015 mΩ |
| Insulation Resistance | 1000 MΩ |
| Contact/Terminal Material | Nickel-Plated Brass |
| Mold Material | Nylon UL 94V 2 (0) PA66 |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
