Splice Connectors

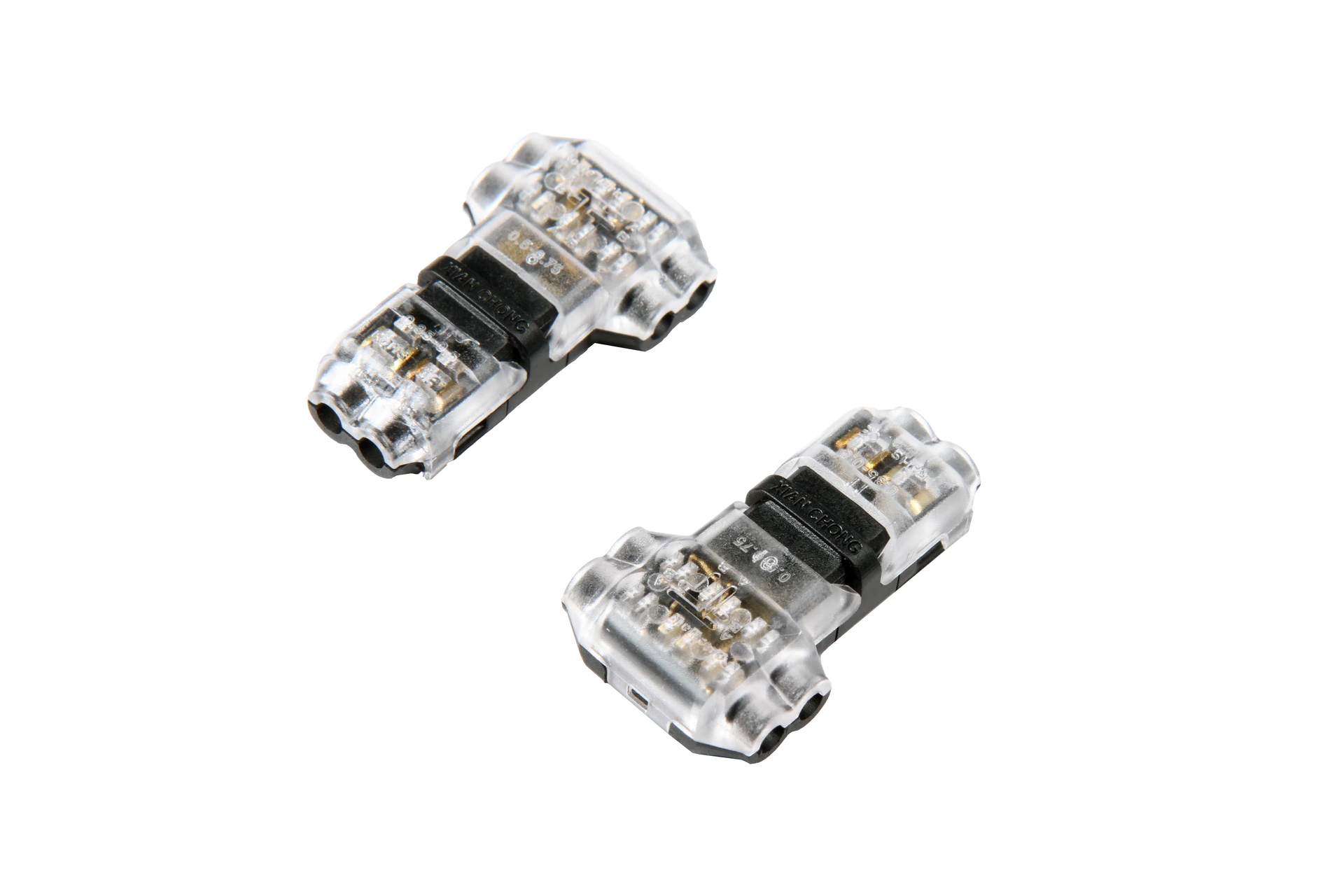

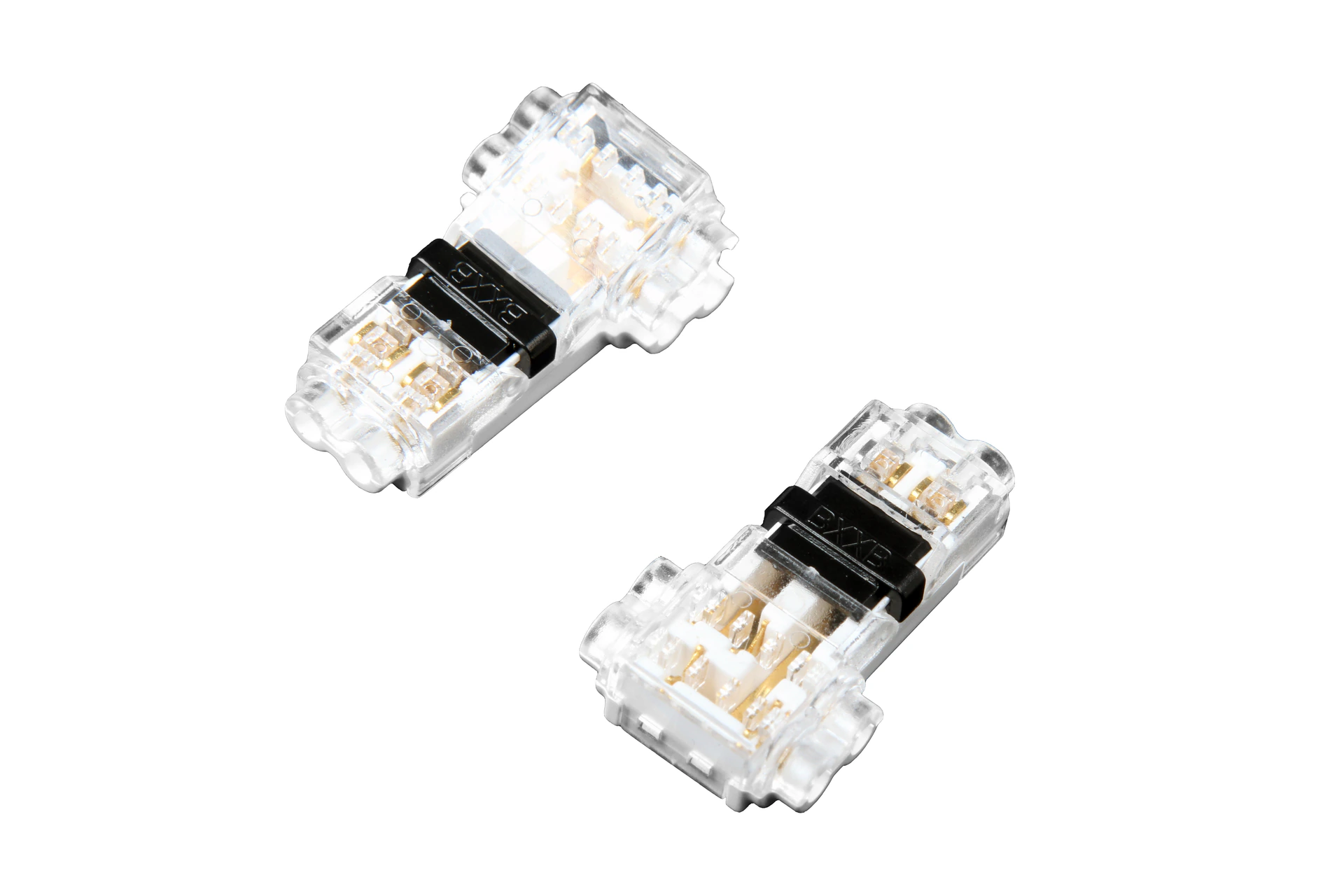

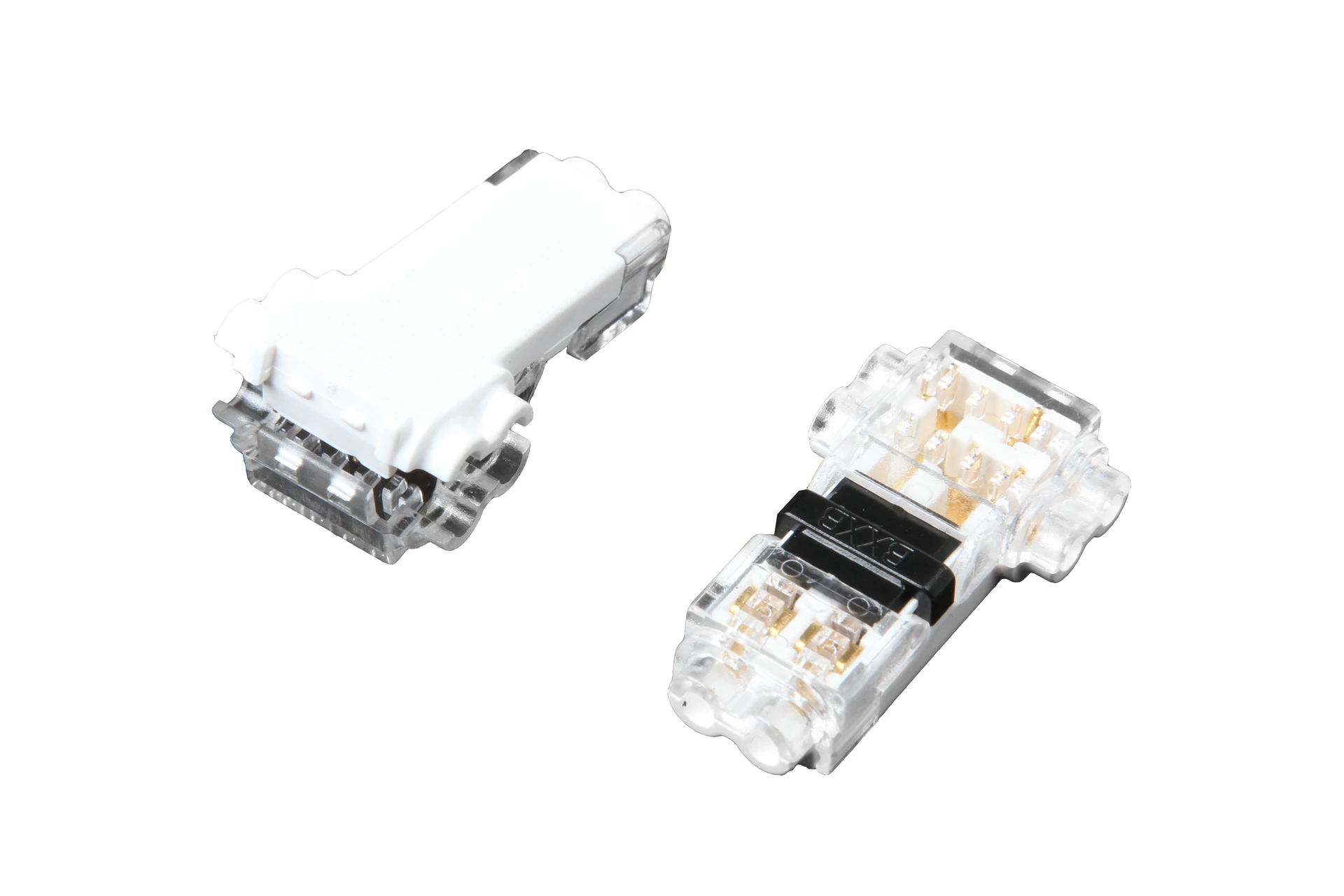

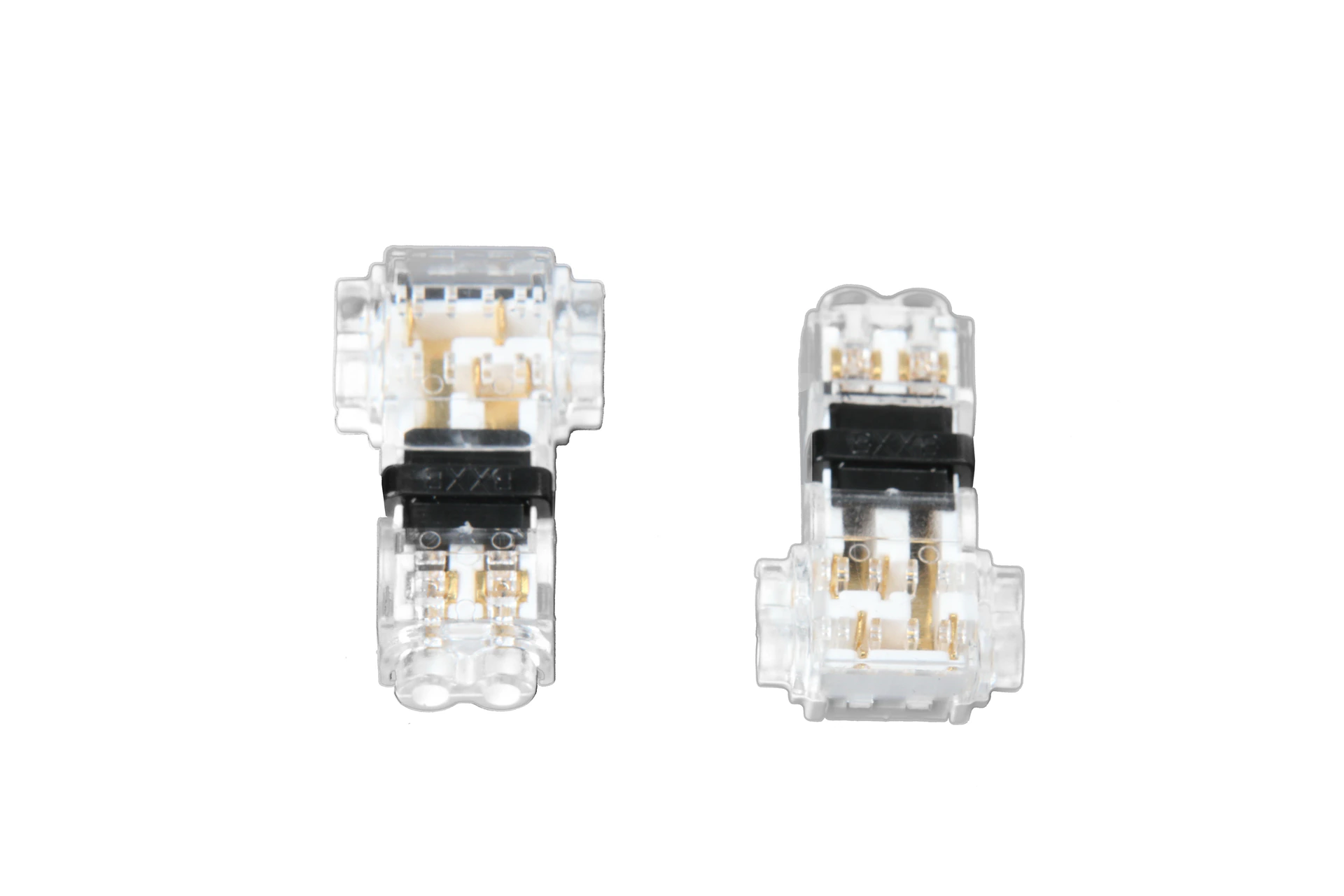

IP40 2 PIN T SPLICE CONNECTOR
Part number
LD-1002-2 Manufacturer
TTAF Elektronik
| Ingress Protection | IP40 |
|---|---|
| Environment Temperature | -35~+60℃ |
| Normal Working TEMP. | -35~+80℃ |
| Workable Sectional Area | 0.75mm2 ～0.32mm2 |
| Workable Wire Gauge | 22-18 AWG |
| Wire Type Supportable | Solid / Strand |
| Workable Conductor Diameter | 0,6 - 1,2 mm |
| Rated Current | ≦9A |
| Max Current | 10A |
| Rated Voltage | 300 V |
Request a quote or availability
Send us this part and we will come back with pricing, lead time, and availability.
