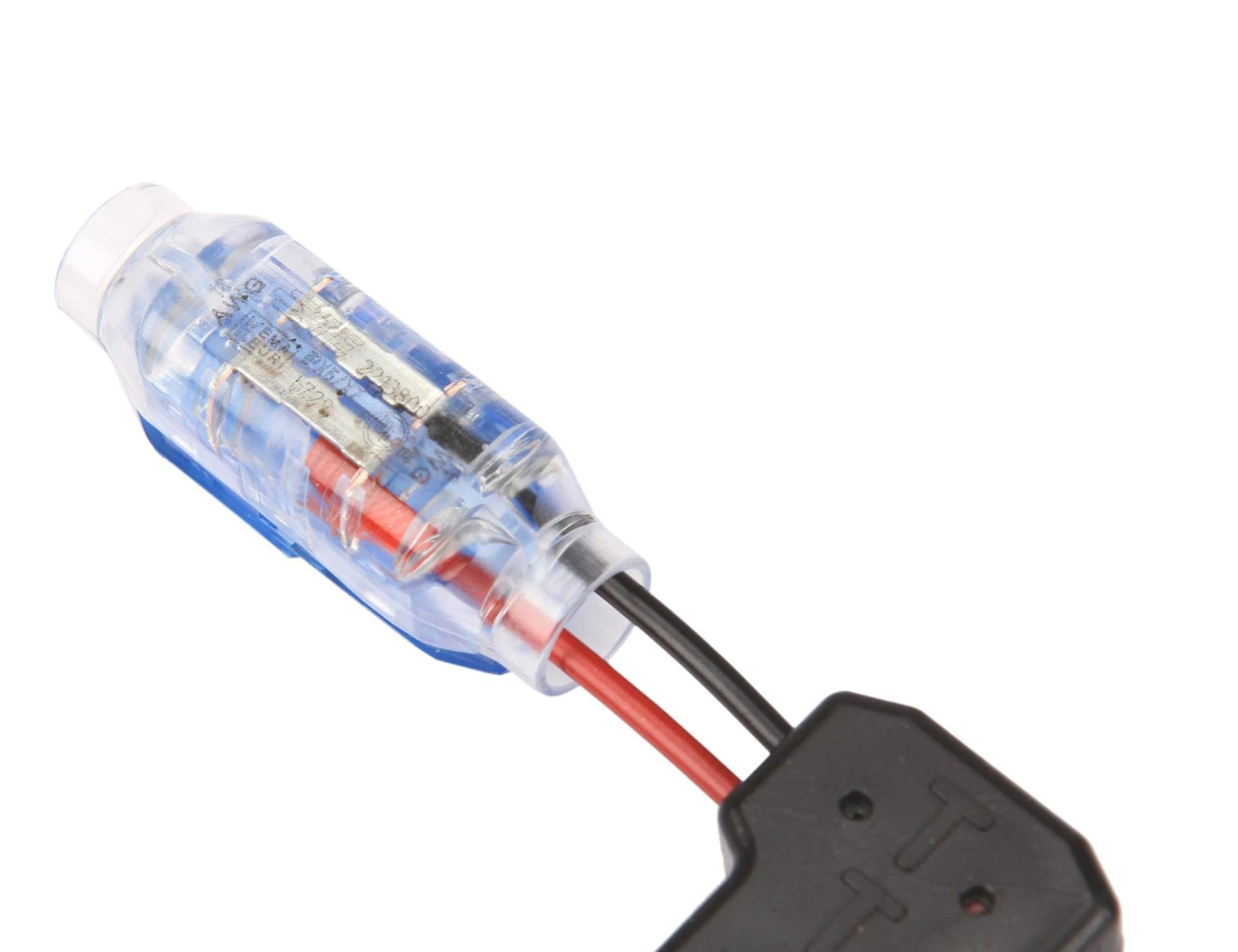

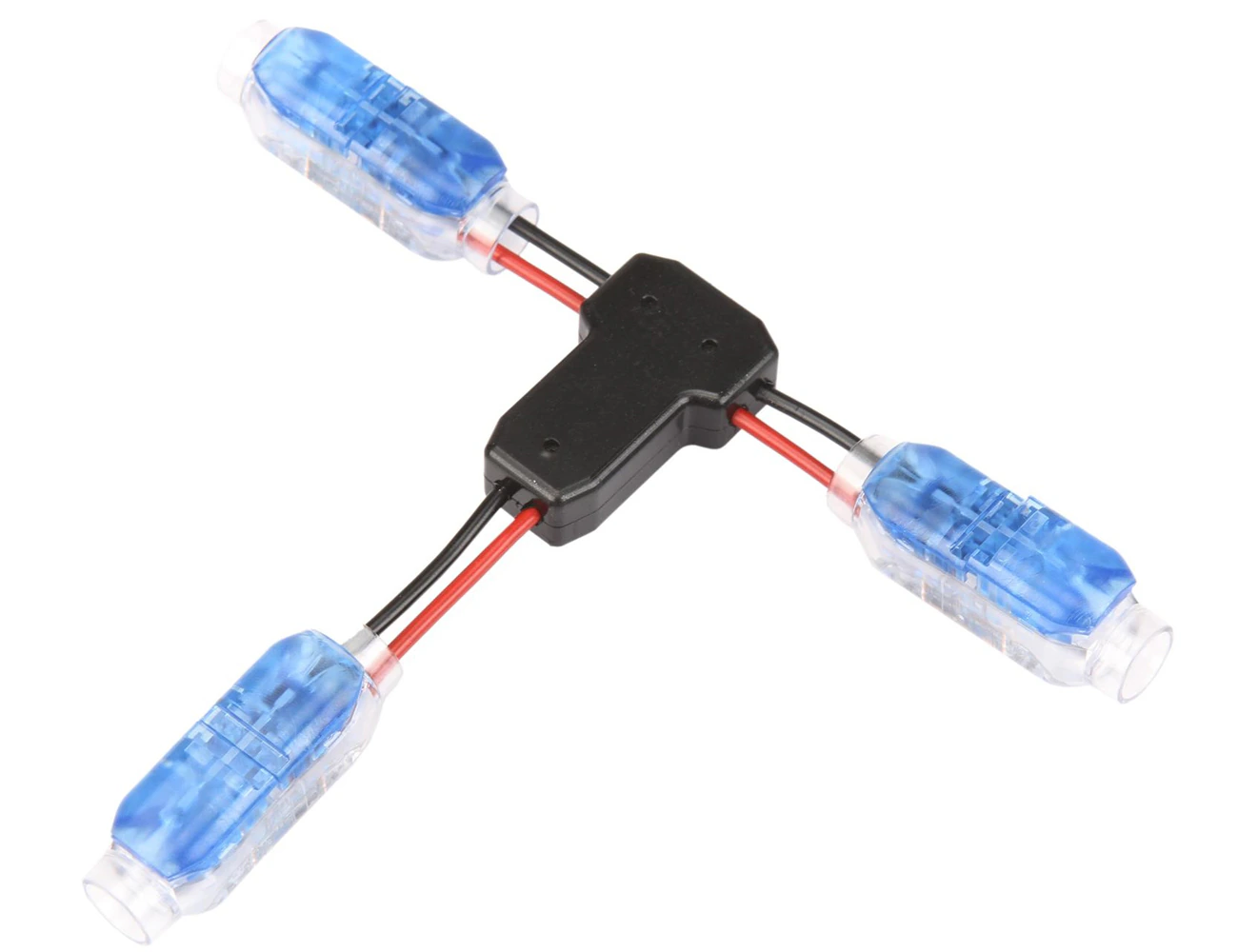

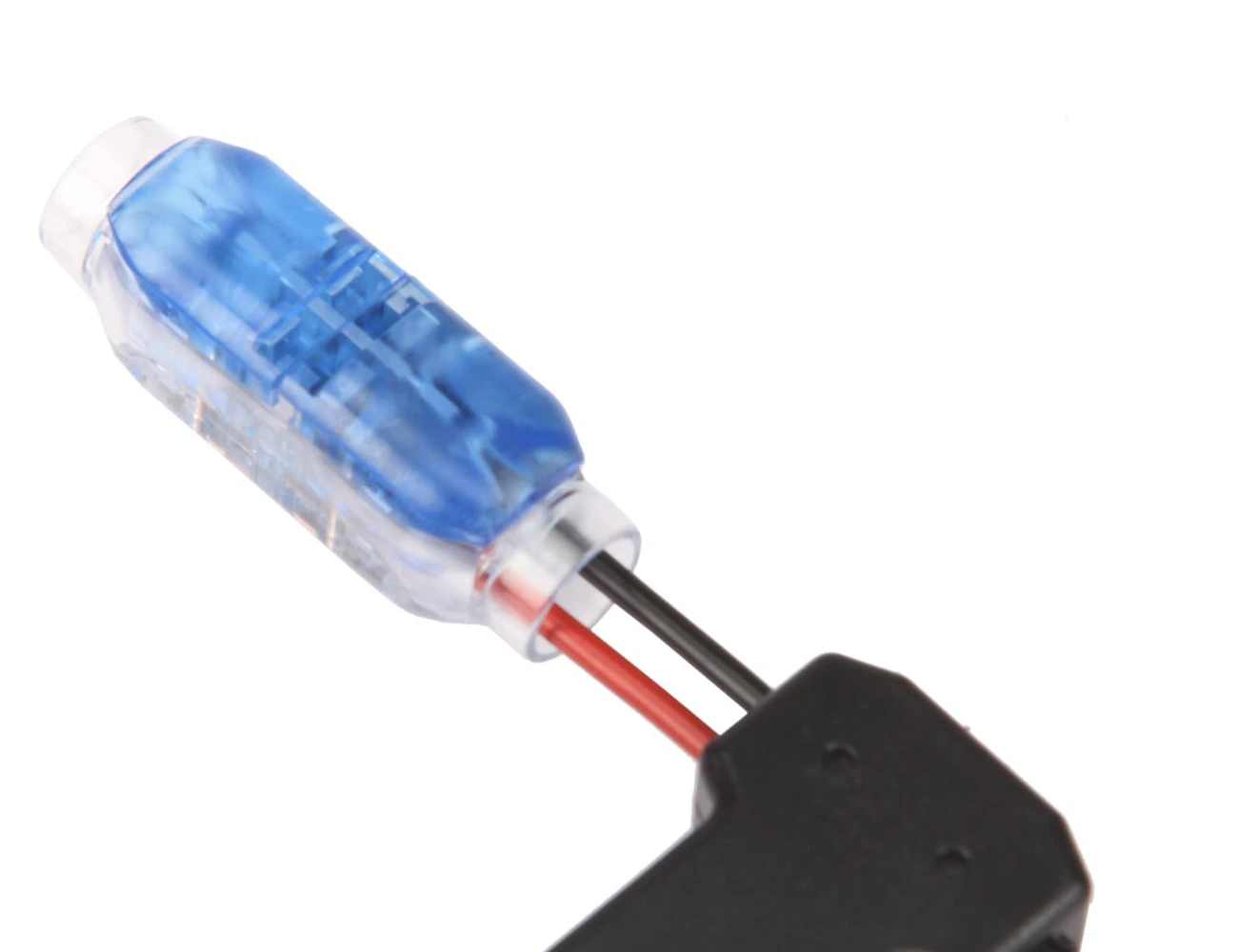

IDC Type 'T' Connector

Part number

WPI-I-0302M5

Manufacturer

TTAF Elektronik

Body and Button Material	Polycarbonate
IDC Contact Material	PhBR
Current / Voltage Rating	22 AWG 3.5A Max. 450V AC/DC
Ambient Temperature Between	-40°C ~ +75°C
CollSplice Operating Temperature Between	-40°C ~ 105°C
IP Class	IP20, IPX5, IPX7 ve IPX8

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
WPI-I-0302M5	IDC Type 'T' Connector	5A	450V	1500V	POLİKARBON	-40°C ∼ +75°C
