IDC Header & Sockets

Flat Cable Type IDC Transation Series

TTAF Elektronik

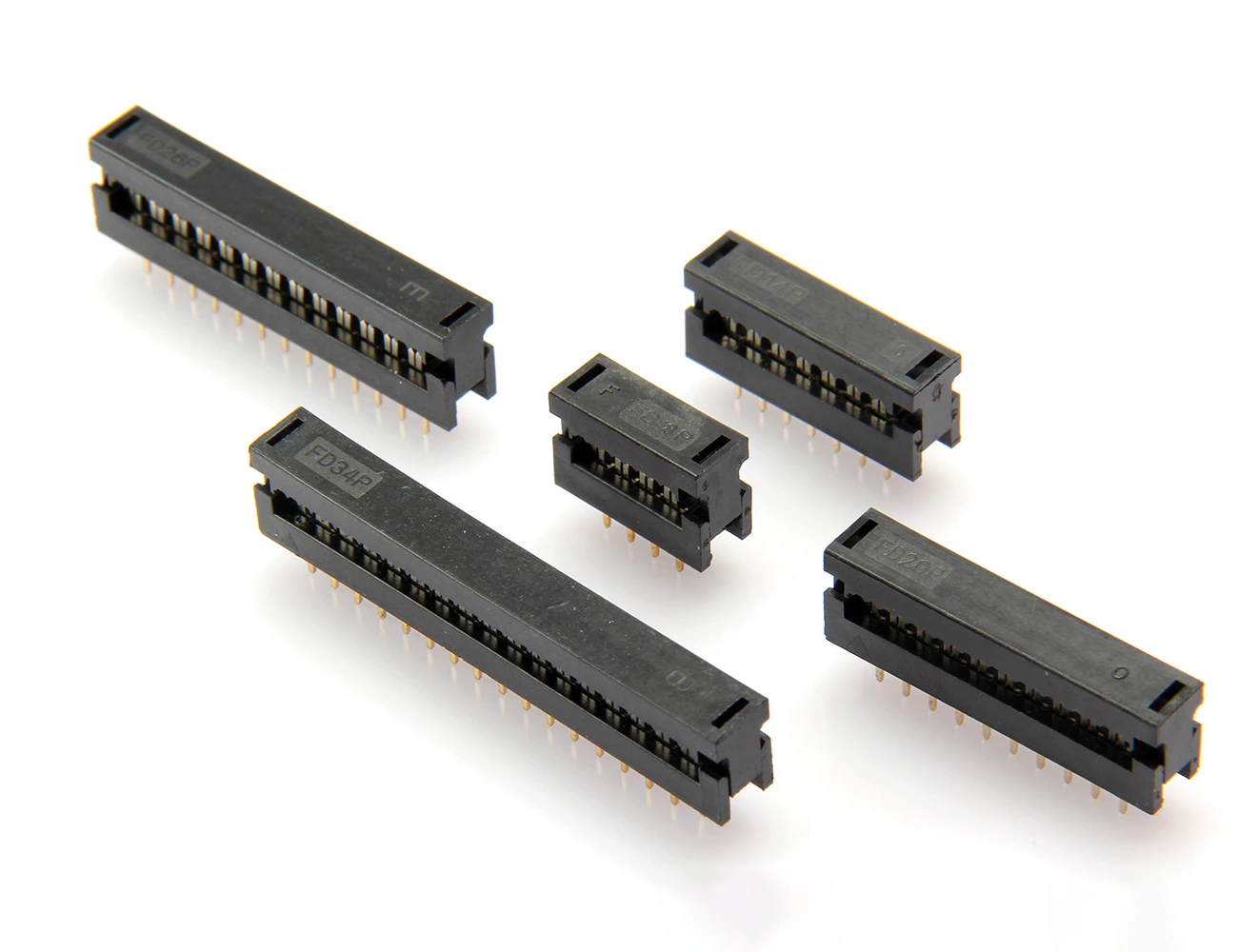

Images are for reference only See Product Specifications

IDC Header & Sockets

Flat Cable Type IDC Transation Series

Part numbers

1305-08P1305-10P1305-14P1305-16P1305-20P1305-26P1305-30P1305-34P1305-40P1305-50P

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1305-08P	8 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-10P	10 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-14P	14 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-16P	16 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-20P	20 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-26P	26 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-30P	30 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-34P	34 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-40P	40 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1305-50P	50 Pin 2.54mm Double Row Flat Cable Type IDC Transation Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
