IDC Header & Sockets

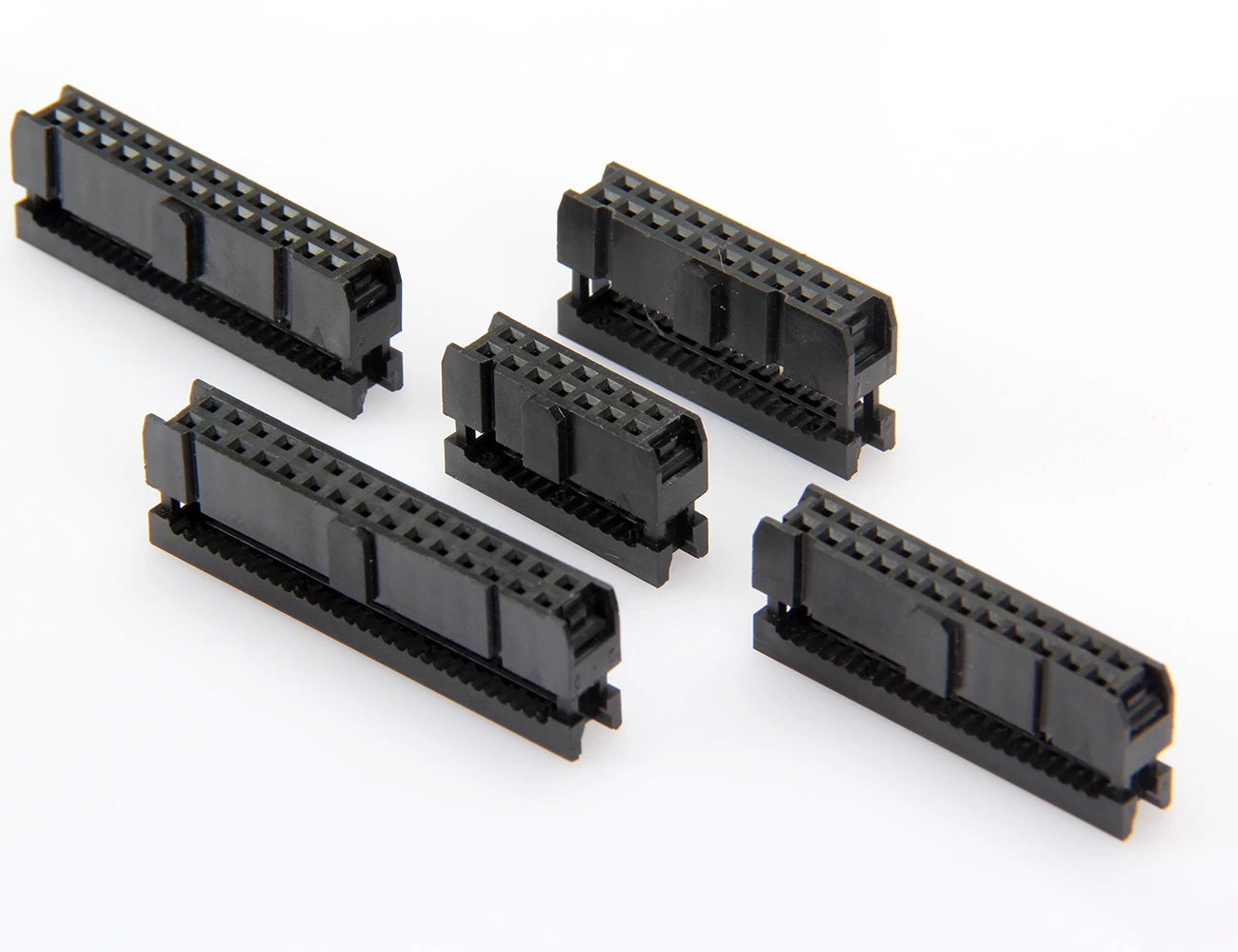

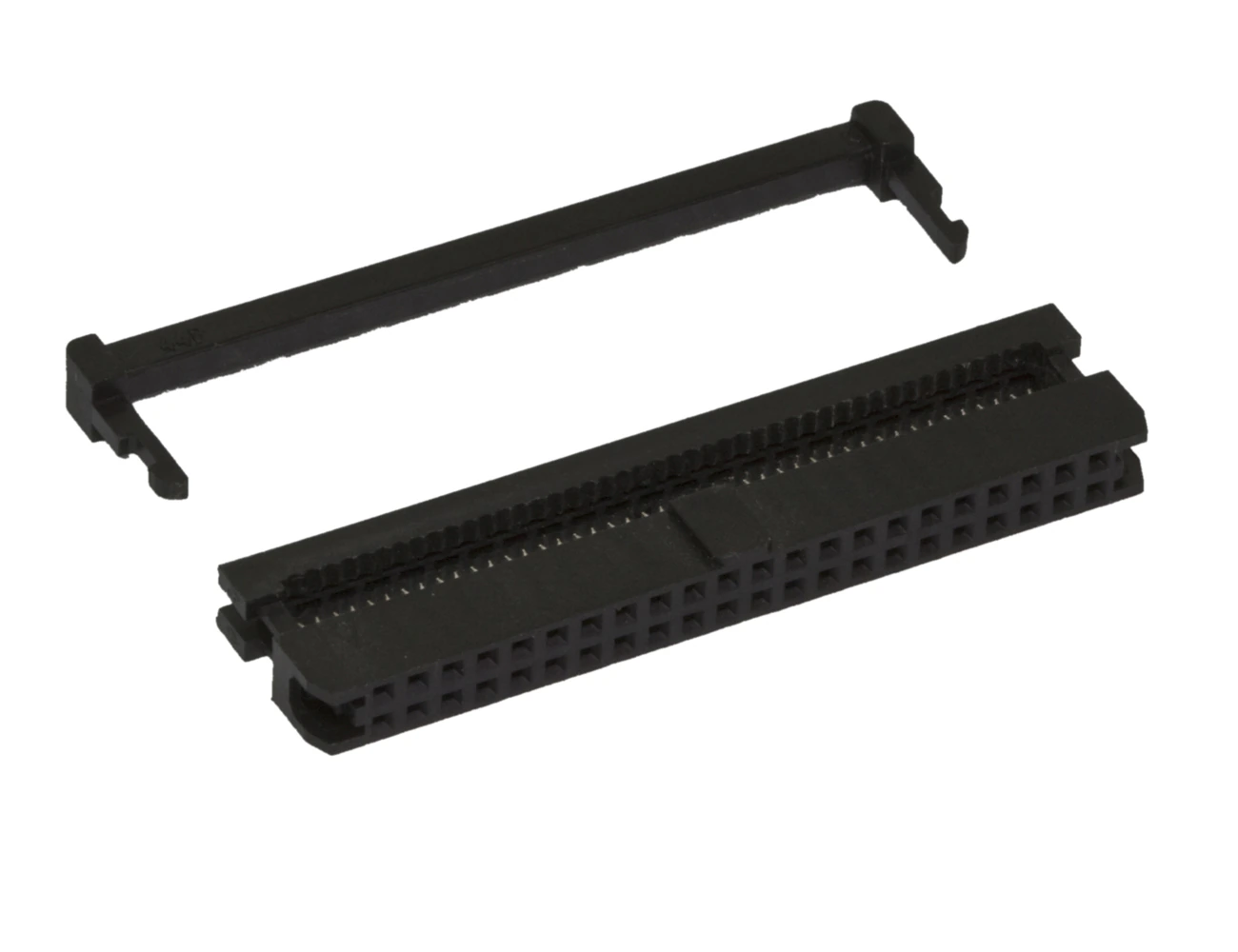

Flat Cable Type IDC Female Series

TTAF Elektronik

Images are for reference only See Product Specifications

IDC Header & Sockets

Flat Cable Type IDC Female Series

Part numbers

1304-10P1304-14P1304-16P1304-20P1304-26P1304-30P1304-34P1304-40P1324-16P1304-50P1324-26P1304-64P1324-44P

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1304-10P	10 Pin 2.54mm Çift Sıra Yassı Kablo Tipi Dişi IDC Konnektör	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-14P	14 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-16P	16 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-20P	20 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-26P	26 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-30P	30 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-34P	34 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-40P	40 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1324-16P	16 Pin 2mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-50P	50 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1324-26P	26 Pin 2 mm Çift Sıra Yassı Kablo Tipi Dişi IDC KOnnektör	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1304-64P	64 Pin 2.54mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
1324-44P	44 Pin 2 mm Double Row Flat Cable Type Female IDC Connector	1A	500V / AC / DC	500V/minute	P.B.T 66 UL94V-0	-55°C to +105°C
