Card Edge
DIP Pcb Type Series TTAF Elektronik

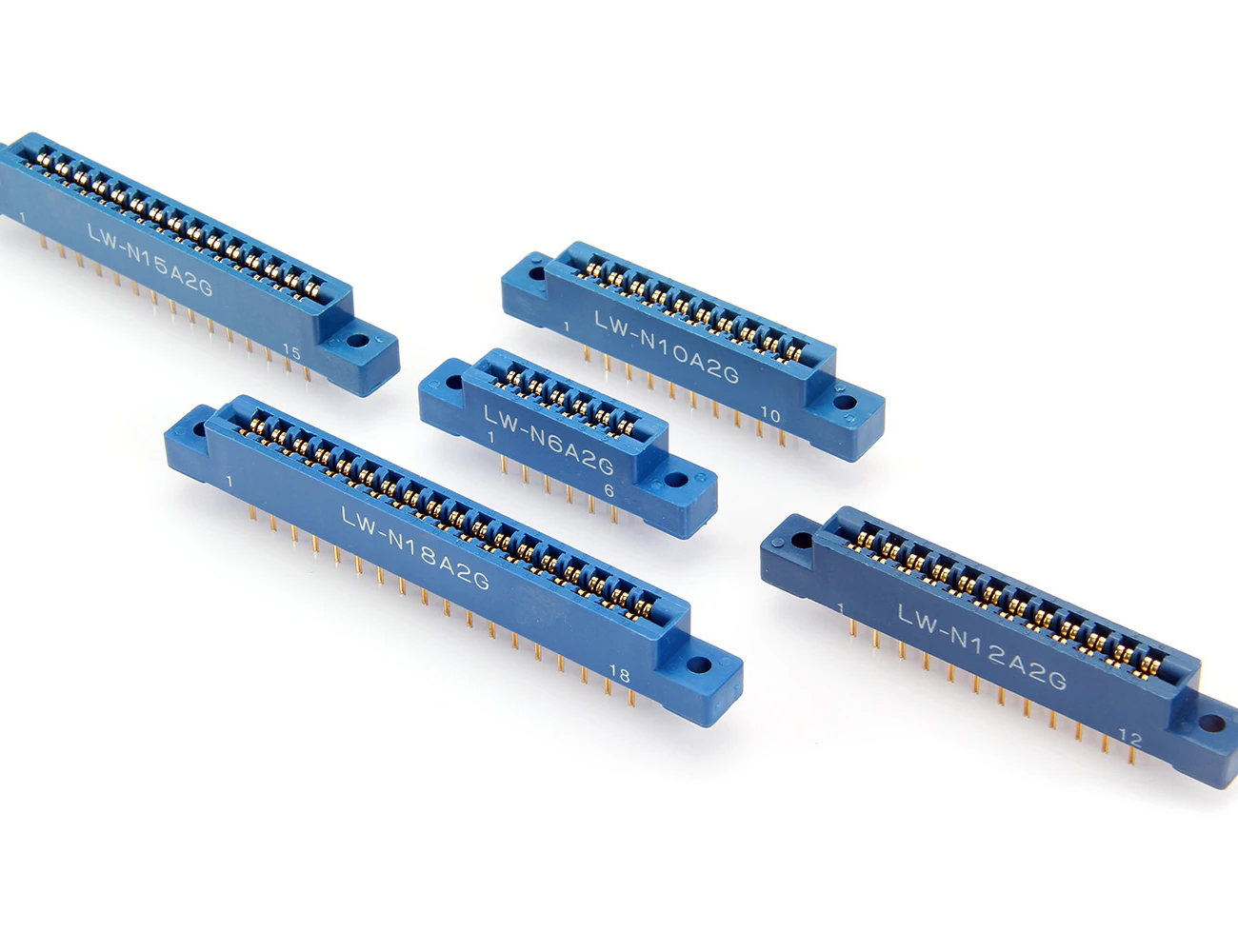

Images are for reference only See Product Specifications

Card Edge

DIP Pcb Type Series

Part numbers
LW-2x06NLW-2x10NLW-2x12NLW-2x15NLW-2x18NLW-2x22NLW-2x28NLW-2x30NLW-2x36N
Manufacturer
TTAF Elektronik

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody Material
LW-2x06N2 x 6 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x10N2 x 10 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x12N2 x 12 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x15N2 x 15 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x18N2 x 18 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x22N2 x 22 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x28N2 x 28 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x30N2 x 30 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
LW-2x36N2 x 36 Pin 3.96 mm Double Row DIP PCB Type CARD EDGE Connector2A500V / AC / DC1600V/minutePolikarbonat UL94V-0
