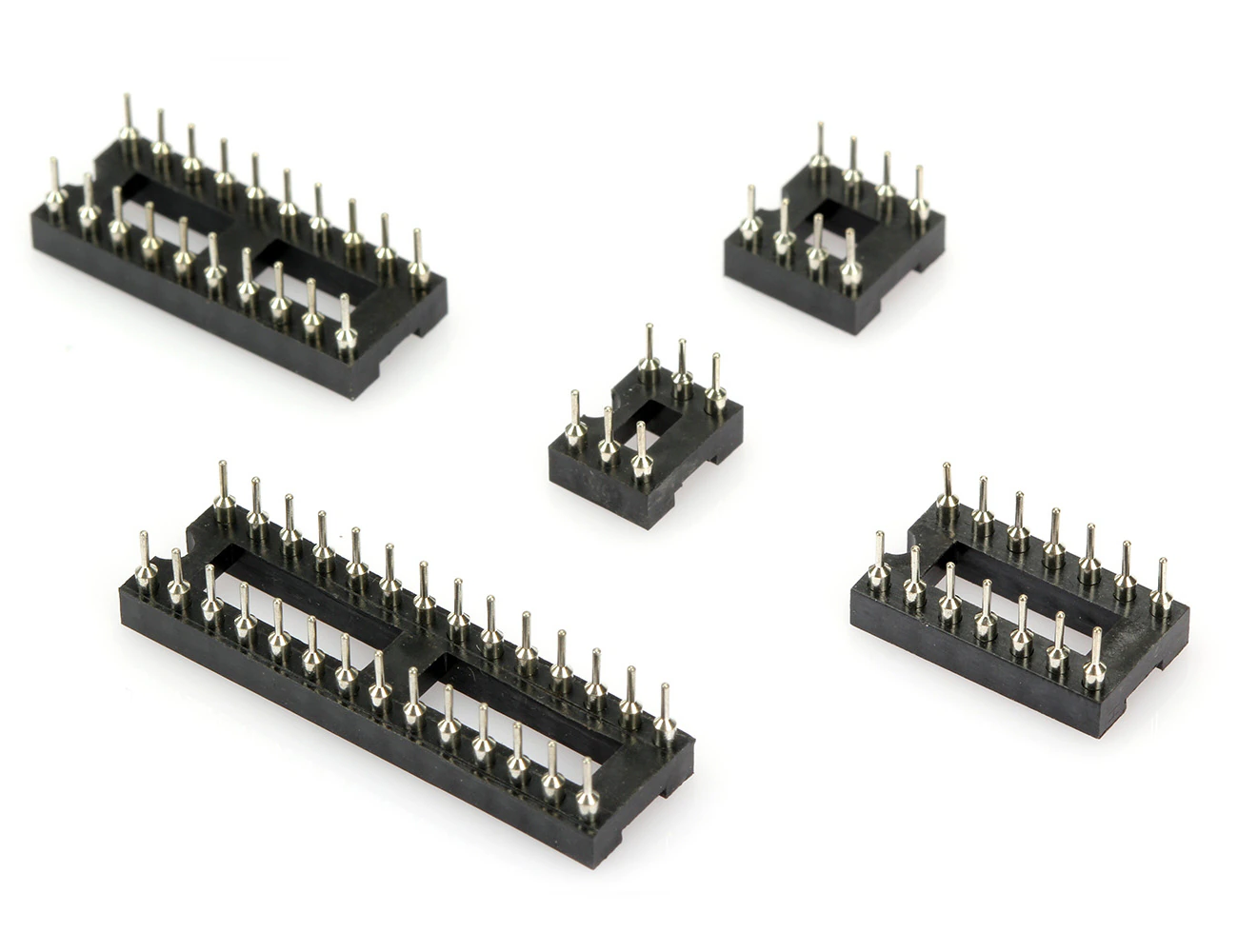

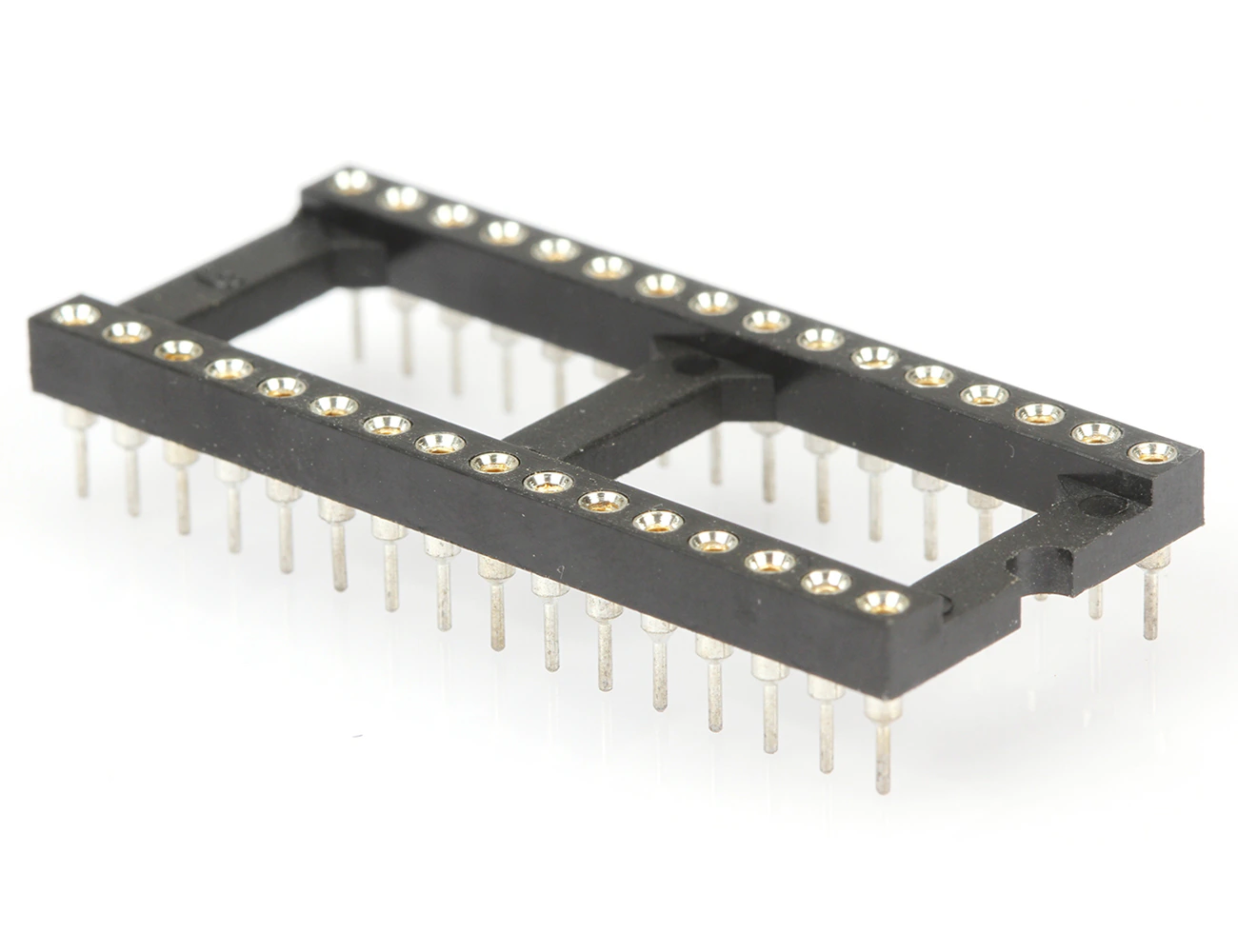

Integrated Sockets

DIP Pcb Type Precision Series

TTAF Elektronik

Images are for reference only See Product Specifications

Integrated Sockets

DIP Pcb Type Precision Series

Part numbers

1400-06P1400-08P1400-14P1400-16P1400-18P1400-20P1400-24P1400-28P1400-40P

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1400-06P	8 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-08P	8 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-14P	14 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-16P	16 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-18P	18 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-20P	20 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-24P	24 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-28P	28 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-40P	32 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
1400-40P	40 Pin 2.54mm DIP Pcb Tip Precision Integrated Socketi	1A	500V / AC / DC	500V / AC / munite	P.B.T UL94V-0	-55°C to +105°C
