Integrated Sockets

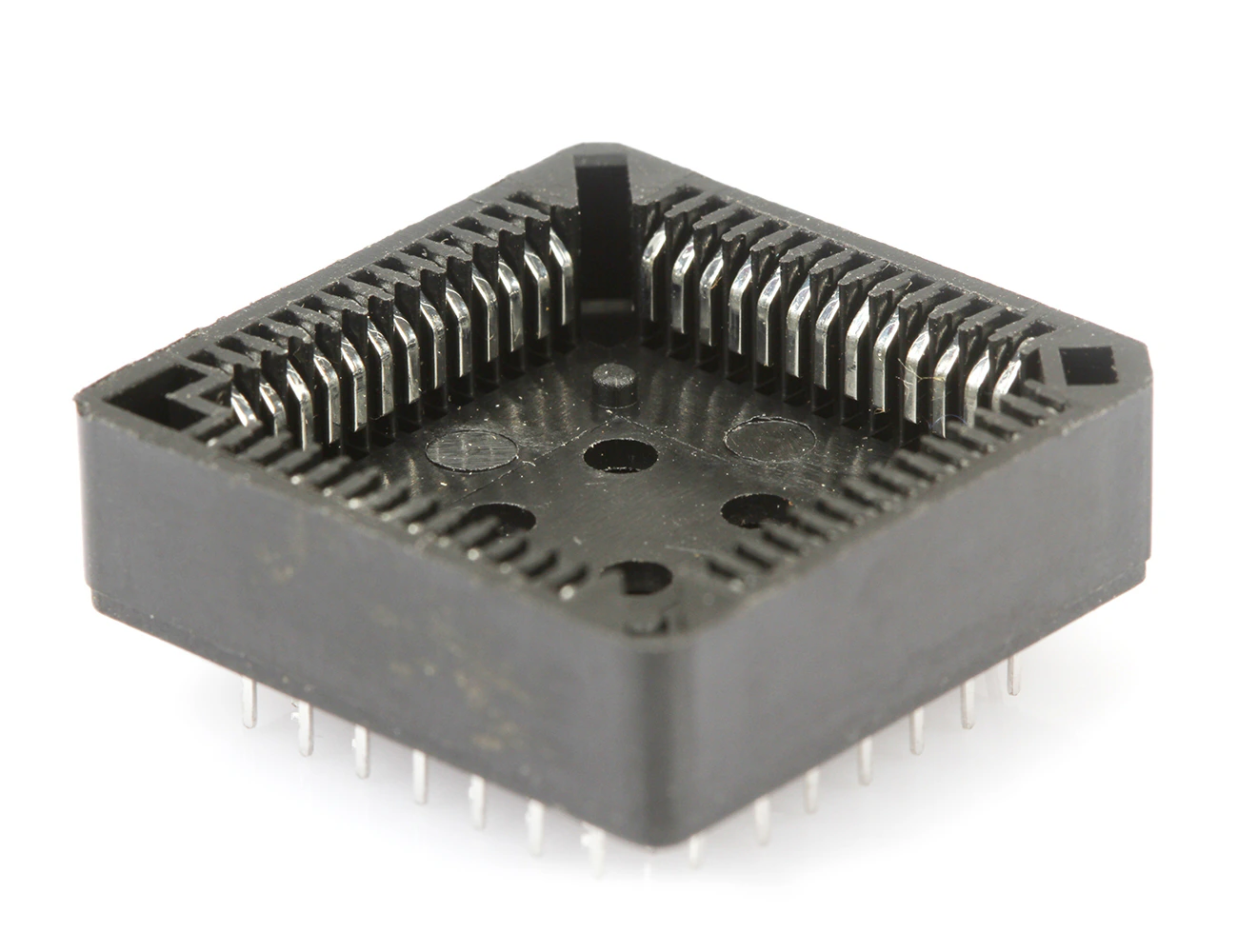

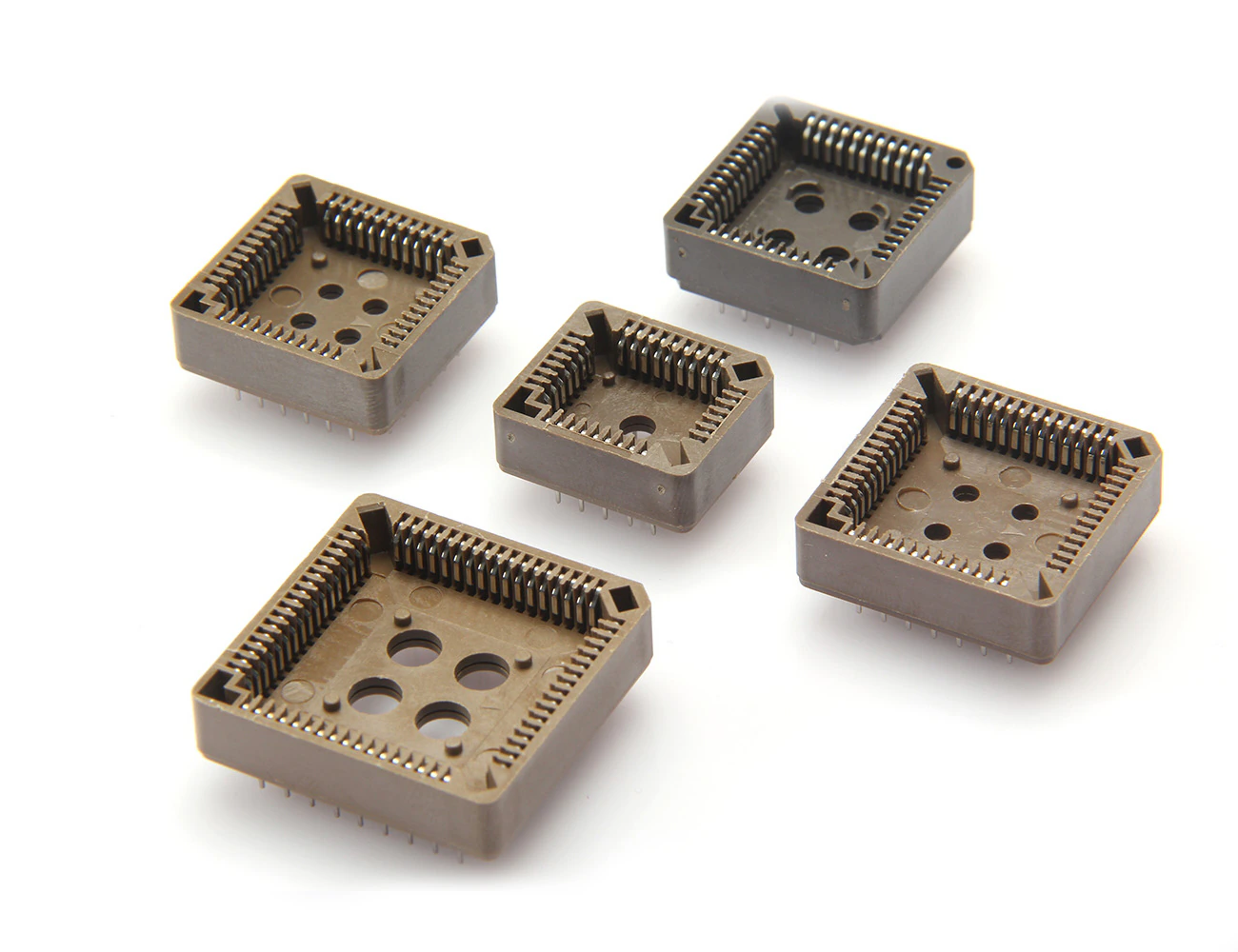

DIP Pcb Type PLCC Series

TTAF Elektronik

Images are for reference only See Product Specifications

Integrated Sockets

DIP Pcb Type PLCC Series

Part numbers

PLCC Series1402-20P1402-28P1402-32P1402-44P1402-52P1402-68P1402-84P

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1402-20P	20 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T 66 UL94V-0	-40°C to +85°C
1402-28P	28 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T 66 UL94V-0	-40°C to +85°C
1402-32P	32 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T UL94V-0	-40°C to +85°C
1402-44P	44 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T UL94V-0	-40°C to +85°C
1402-52P	52 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T UL94V-0	-40°C to +85°C
1402-68P	68 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T UL94V-0	40°C to +85°C
1402-84P	84 Pin 2.54mm DIP Pcb PLCC Tip Integrated Socketi	1A	500V / AC / DC	600V / AC /minute	P.B.T UL94V-0	-40°C to +85°C
