D-Sub Solder Type Series

TTAF Elektronik

Images are for reference only See Product Specifications

D-Sub

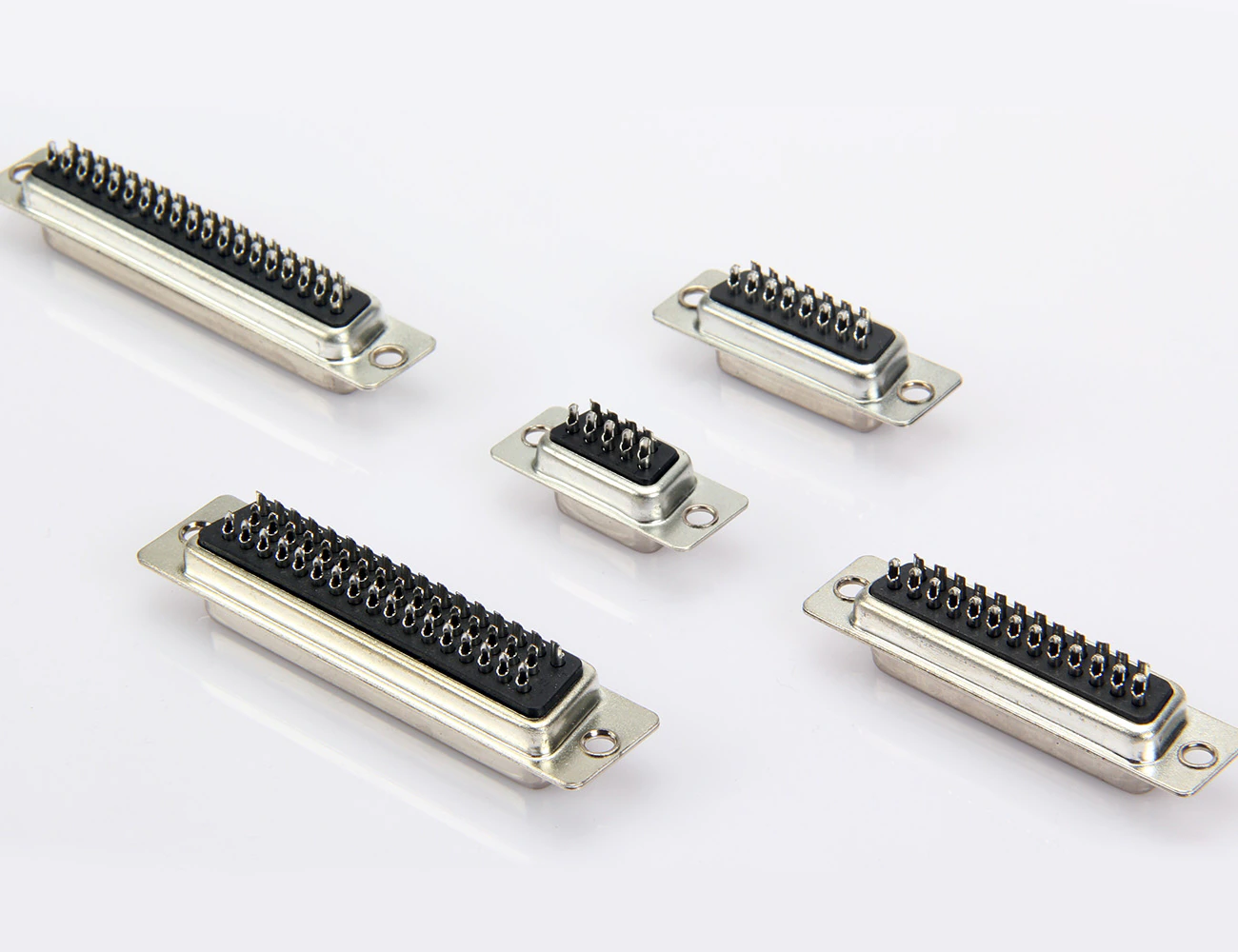

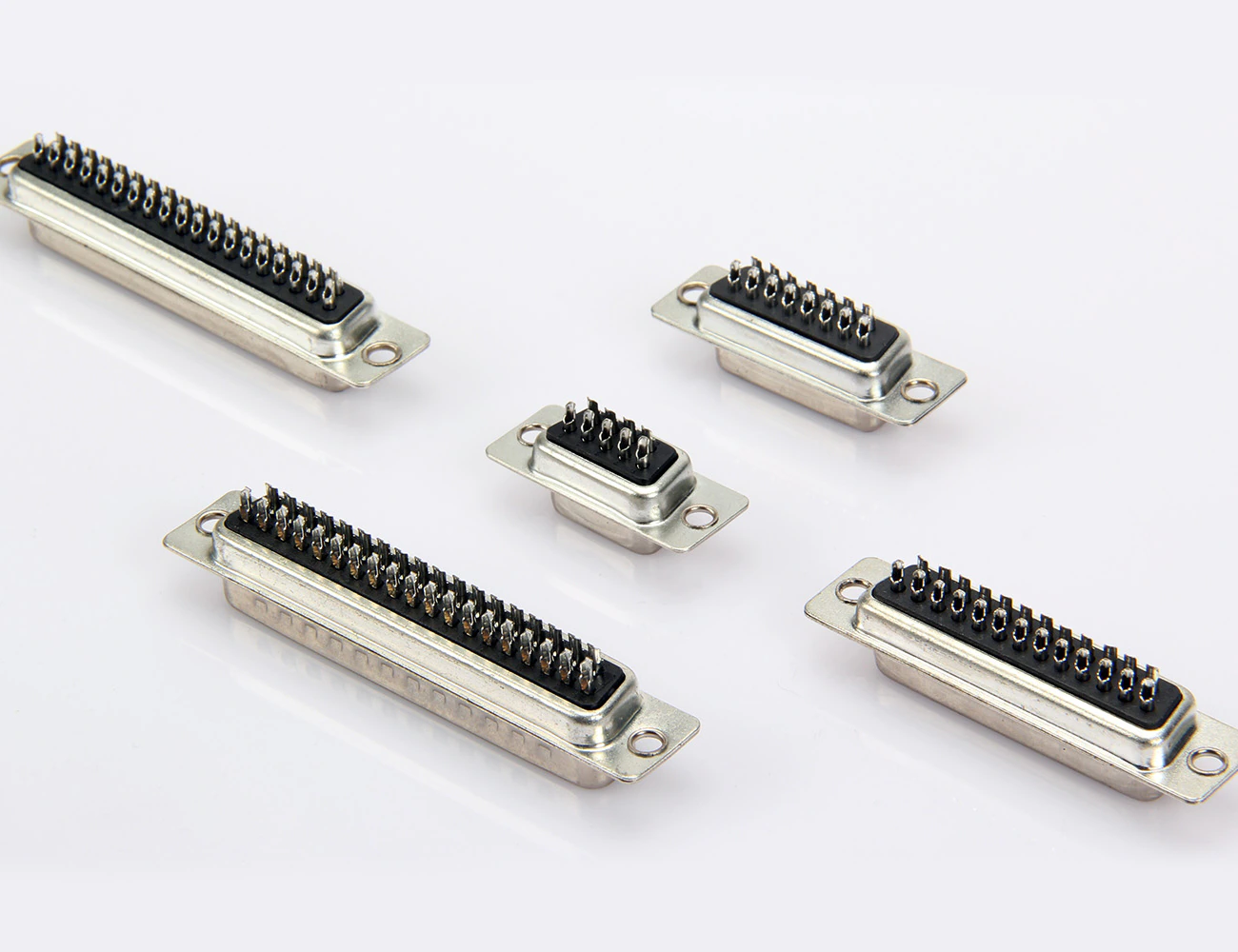

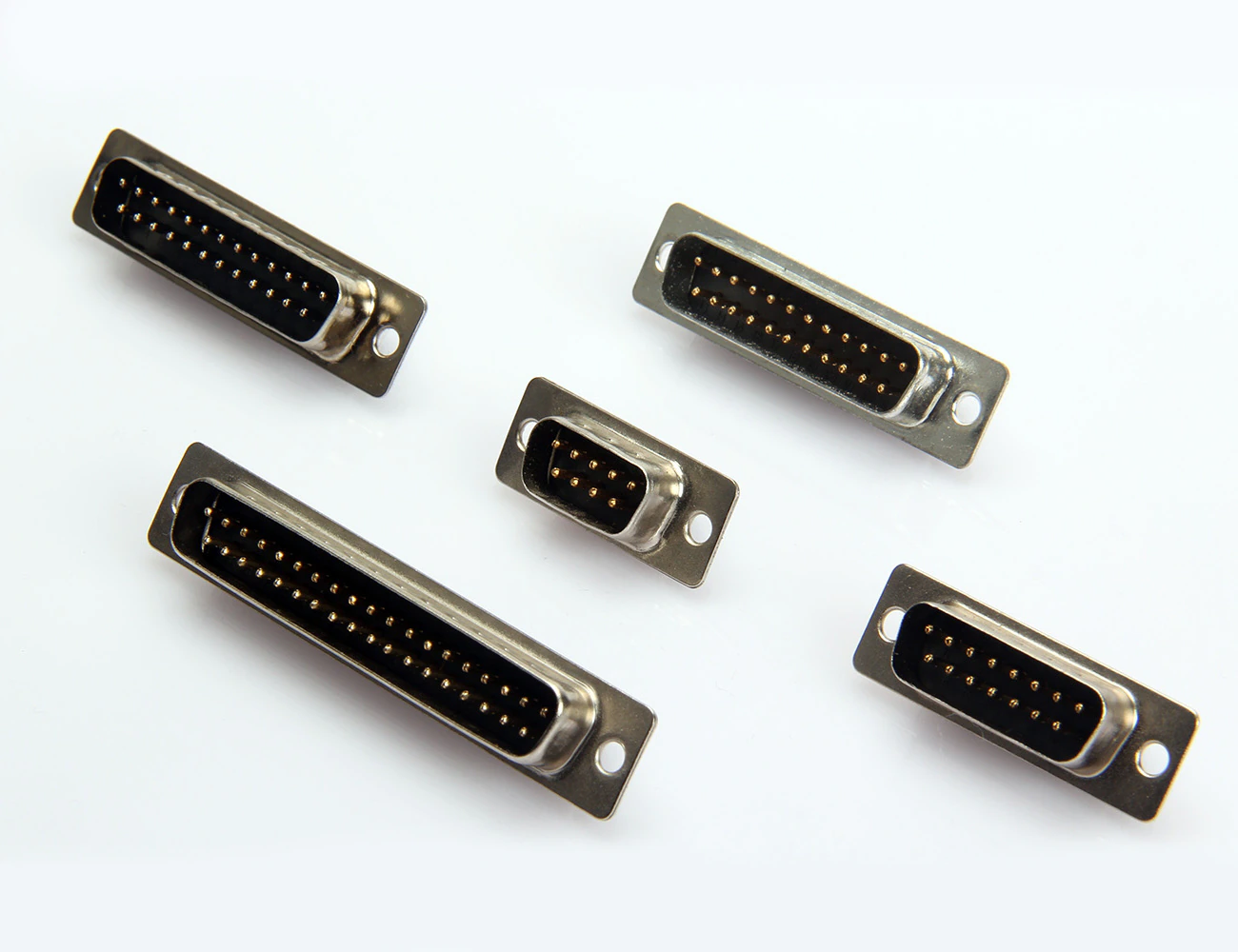

D-Sub Solder Type Series

Part numbers

1201-09F1201-09M1201-15F1201-15M1201-25F1201-25M1201-37F1201-37M1201-50F1201-50M

Manufacturer

TTAF Elektronik

Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1201-09F	9 Pin Solder Type D-Sub Connector Female	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-09M	9 Pin Solder Type D-Sub Connector Male	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-15F	15 Pin Solder Type D-Sub Connector Female	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-15M	15 Pin Solder Type D-Sub Connector Male	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-25F	25 Pin Solder Type D-Sub Connector Female	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-25M	25 Pin Solder Type D-Sub Connector Male	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-37F	37 Pin Solder Type D-Sub Connector Female	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-37M	37 Pin Solder Type D-Sub Connector Male	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-50F	50 Pin Solder Type D-Sub Connector Female	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1201-50M	50 Pin Solder Type D-Sub Connector Male	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
