D-Sub Flat Cable Type Series

TTAF Elektronik

Images are for reference only See Product Specifications

D-Sub

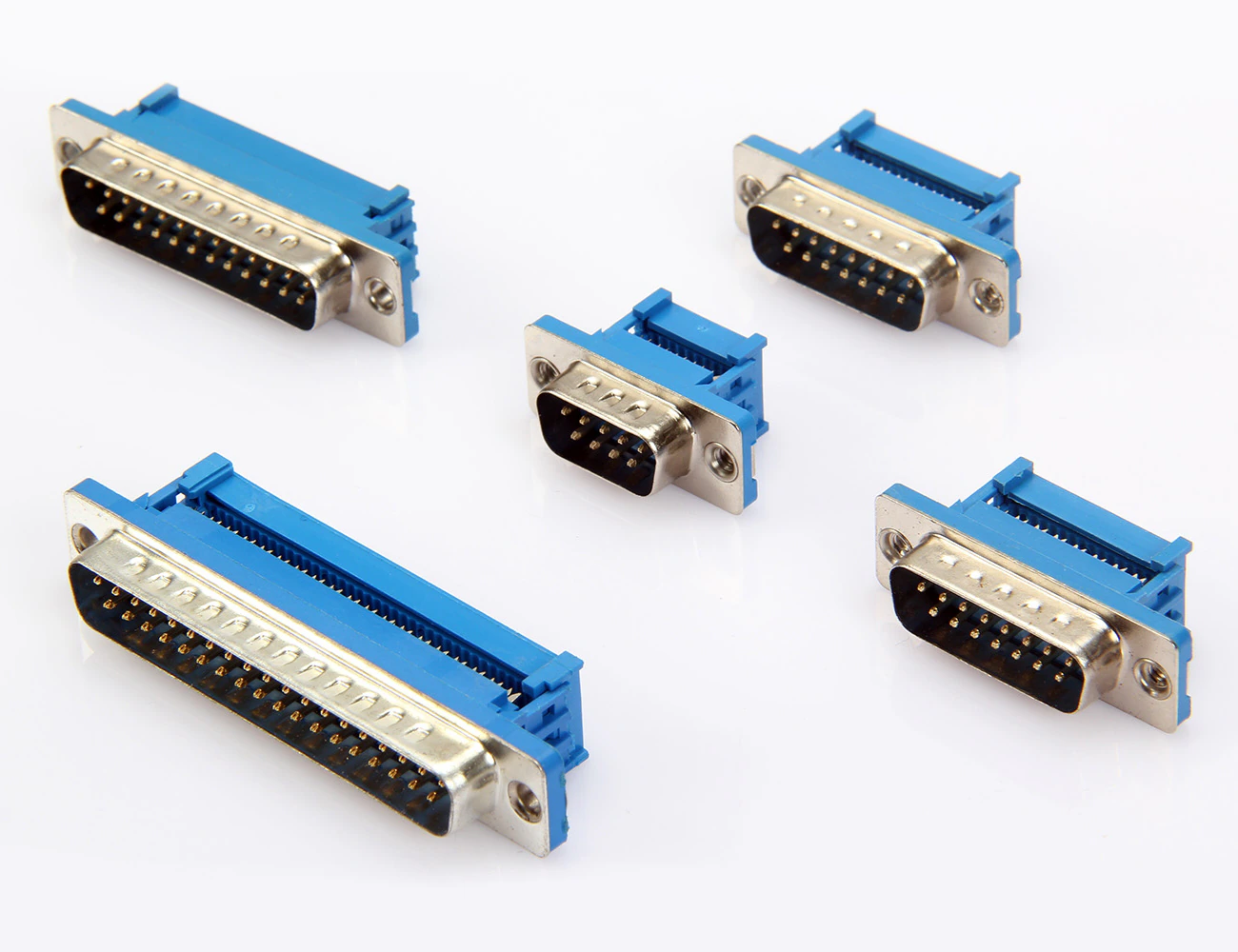

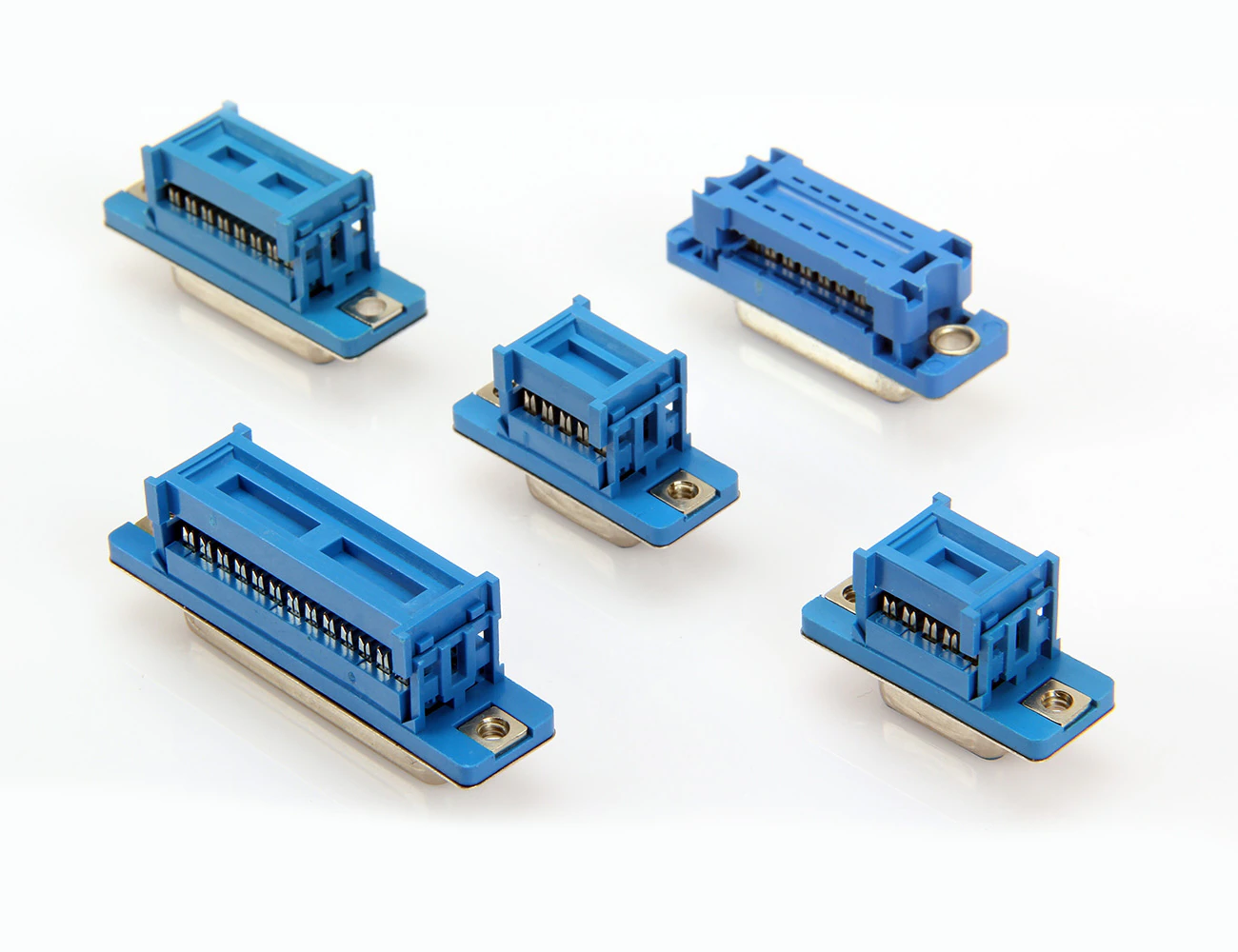

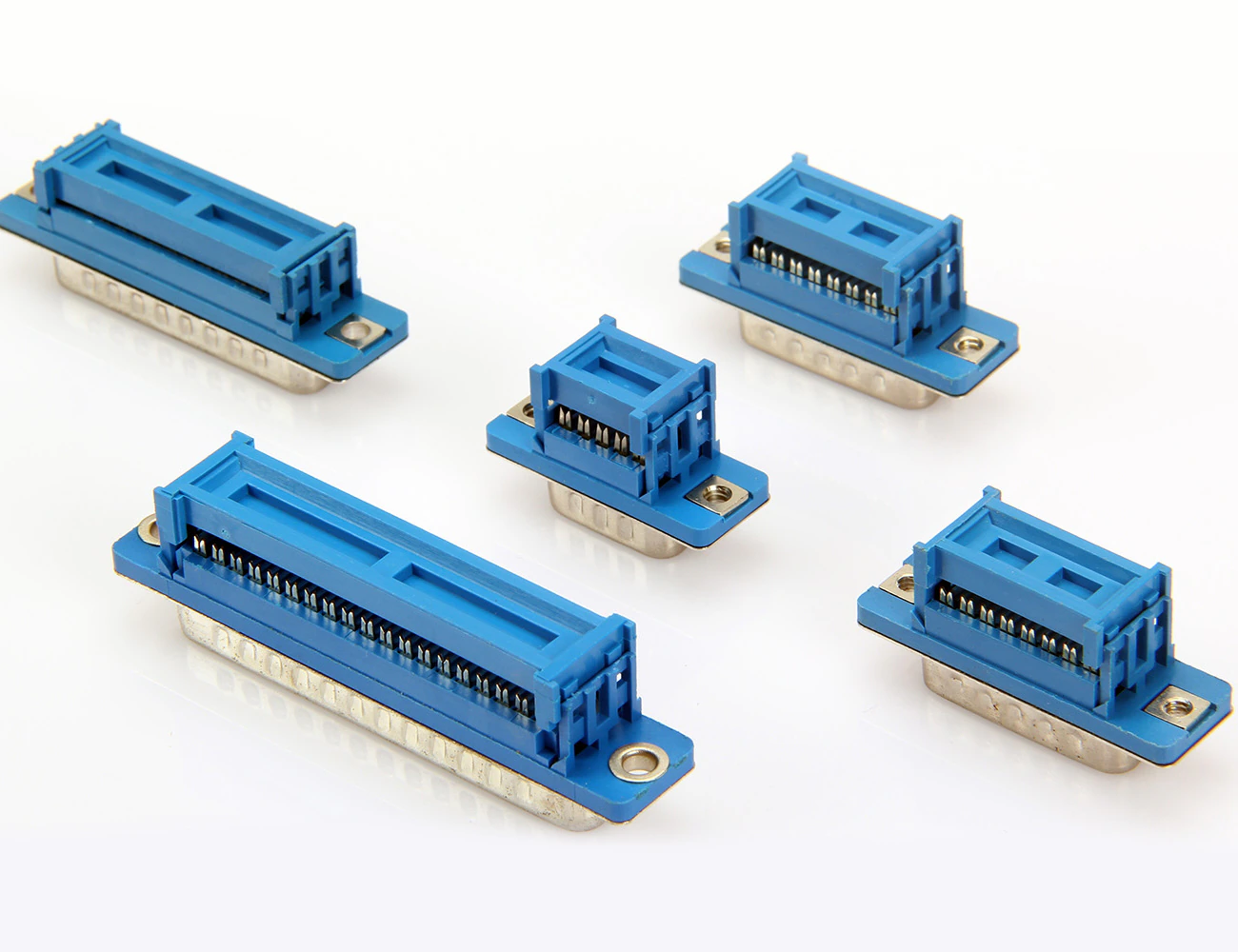

D-Sub Flat Cable Type Series

Part numbers

1212-09F1212-09M1212-15F1212-15M1212-25F1212-25M1212-37F1212-37M

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1212-09F	9 Pin Flat Cable Type D-Sub Connector Female	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-09M	9 Pin Flat Cable Type D-Sub Connector Male	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-15F	15 Pin Flat Cable Type D-Sub Connector Female	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-15M	15 Pin Flat Cable Type D-Sub Connector Male	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-25F	25 Pin Flat Cable Type D-Sub Connector Female	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-25M	25 Pin Flat Cable Type D-Sub Connector Male	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-37F	37 Pin Flat Cable Type D-Sub Connector Female	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1212-37M	37 Pin Flat Cable Type D-Sub Connector Male	1A	500V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
