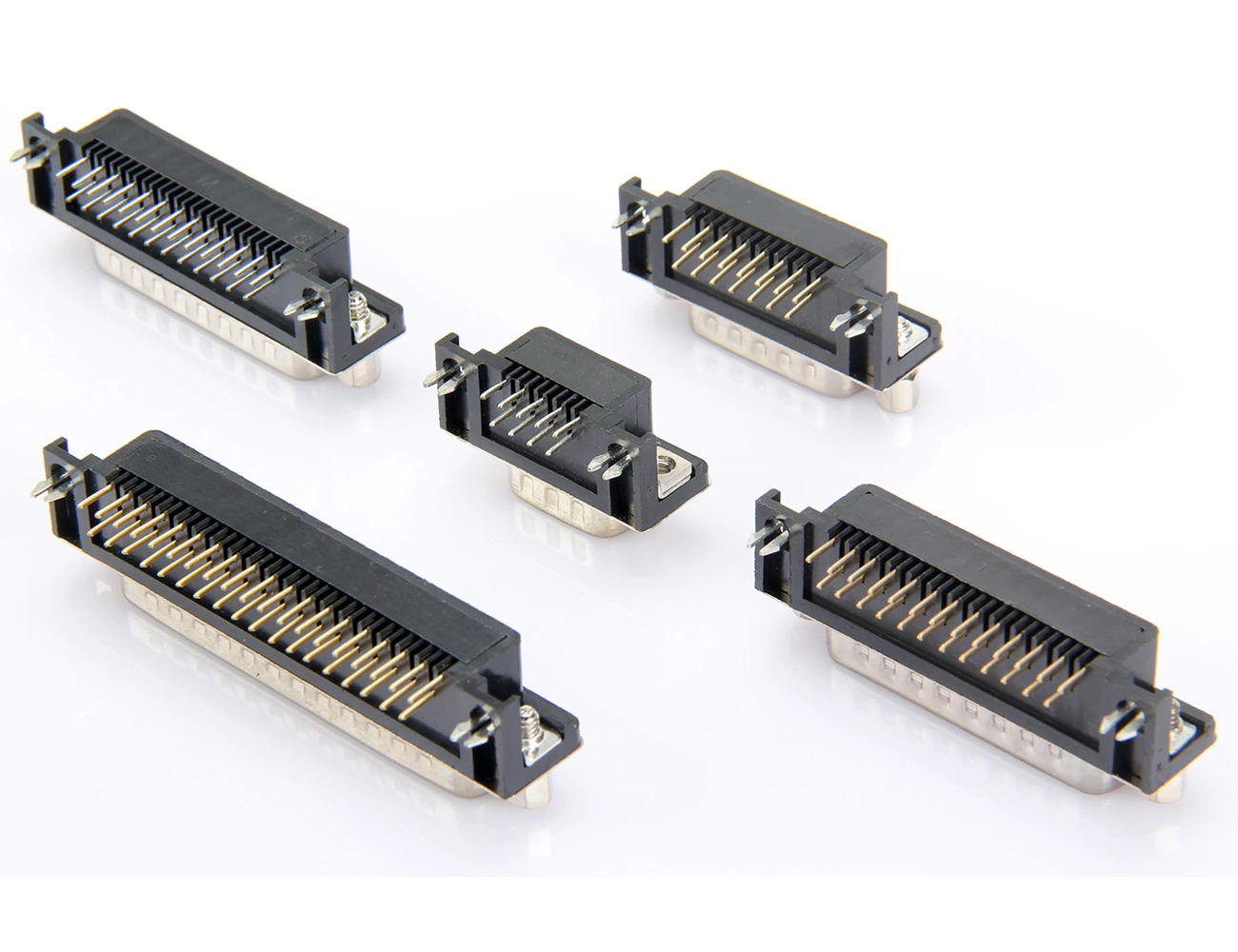

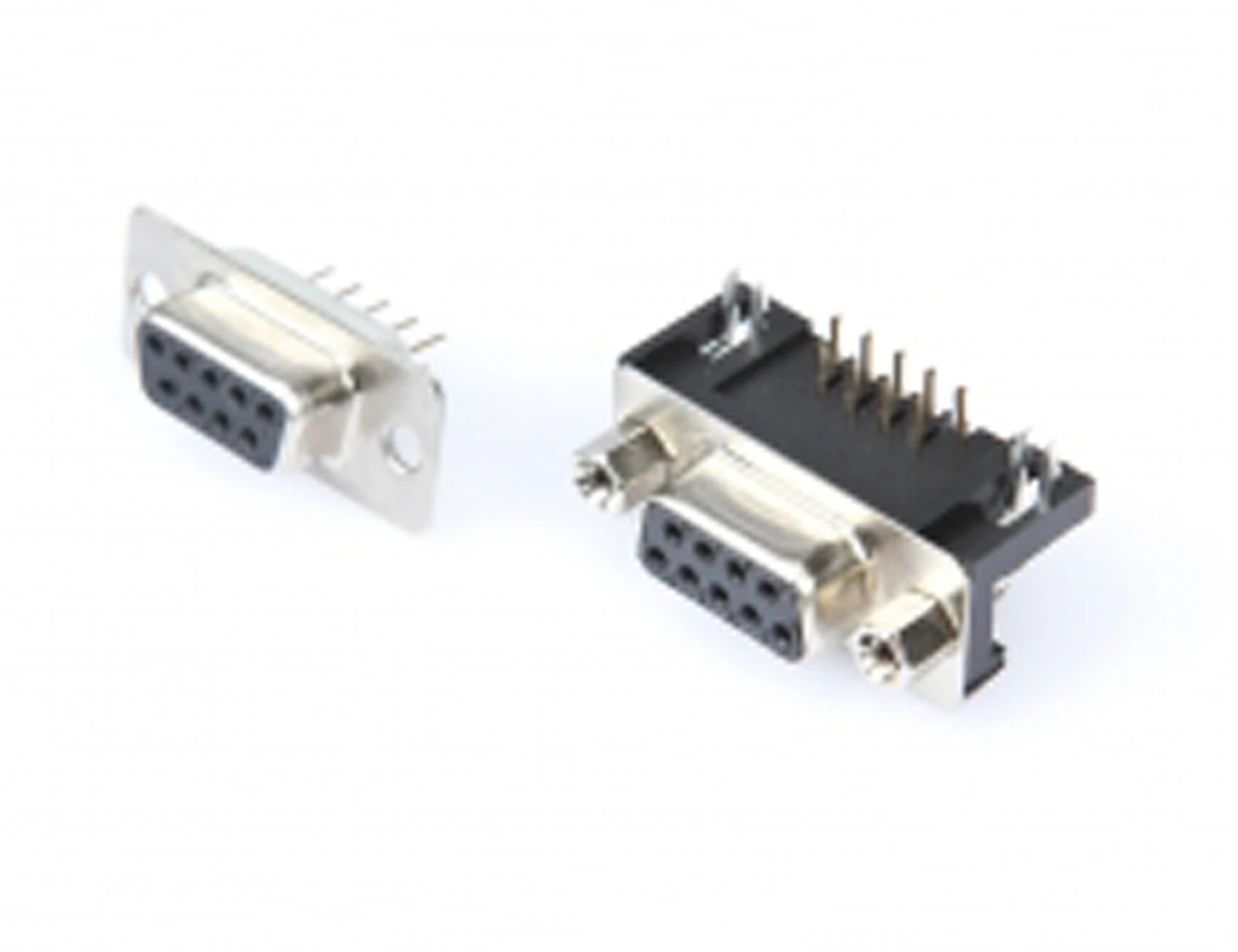

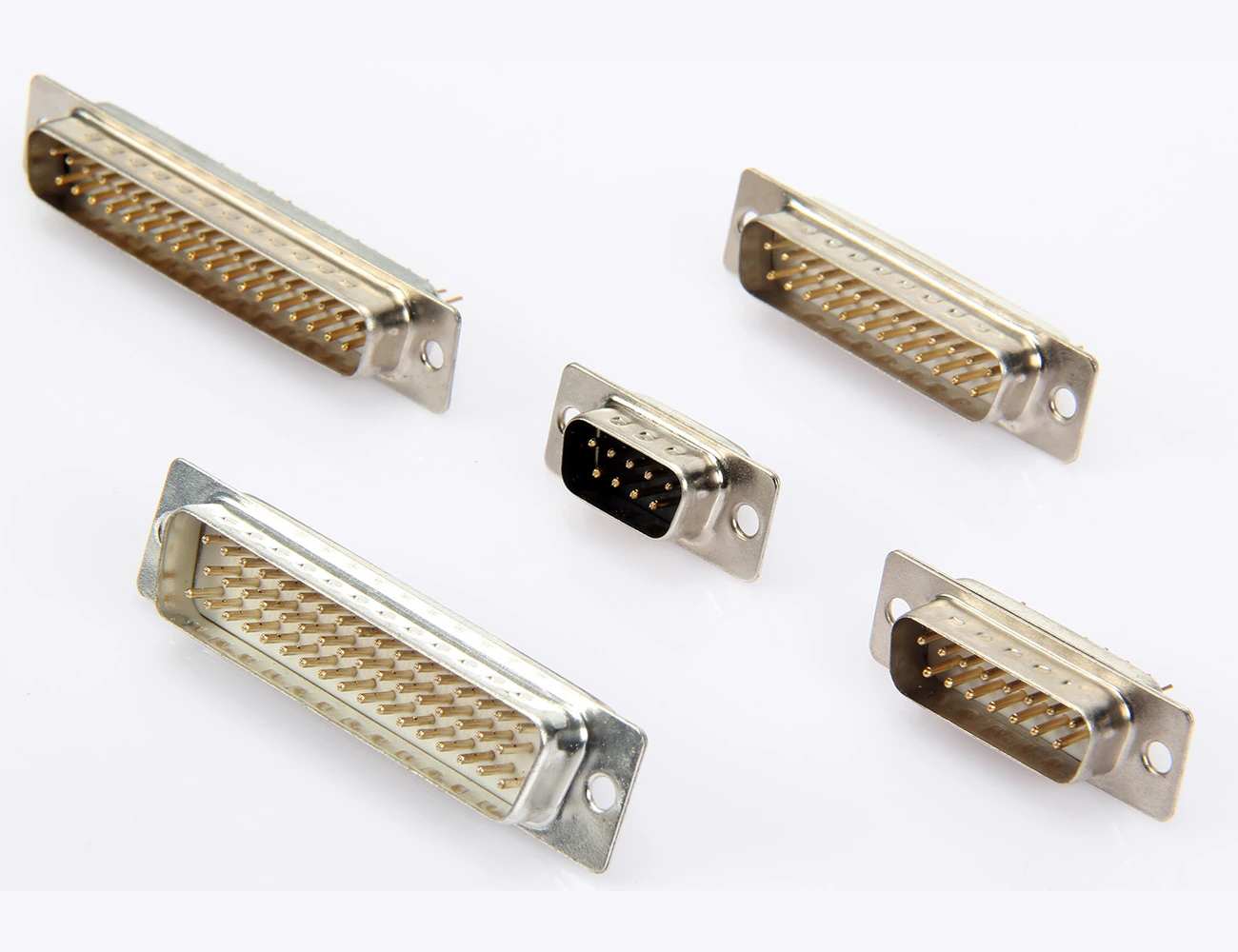

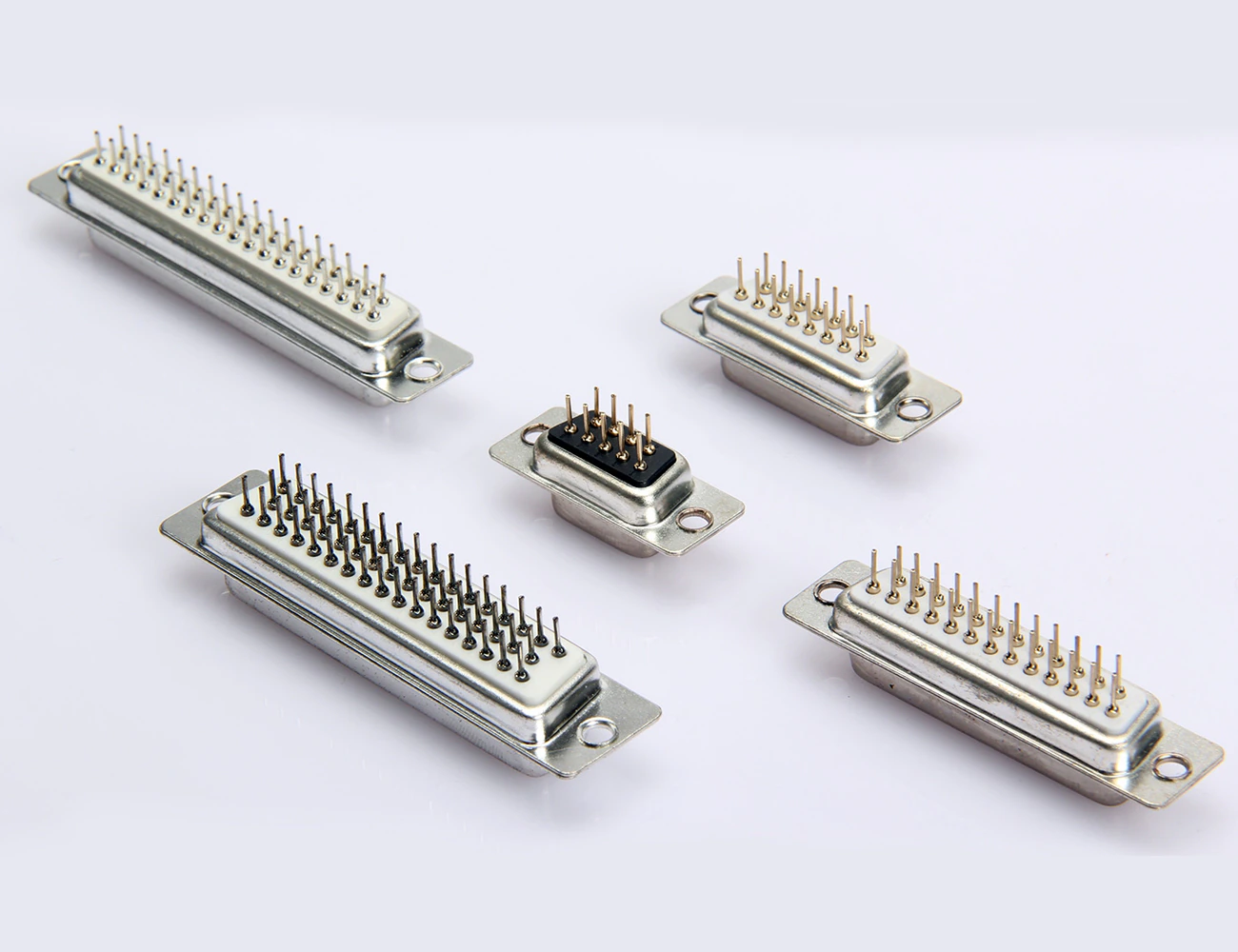

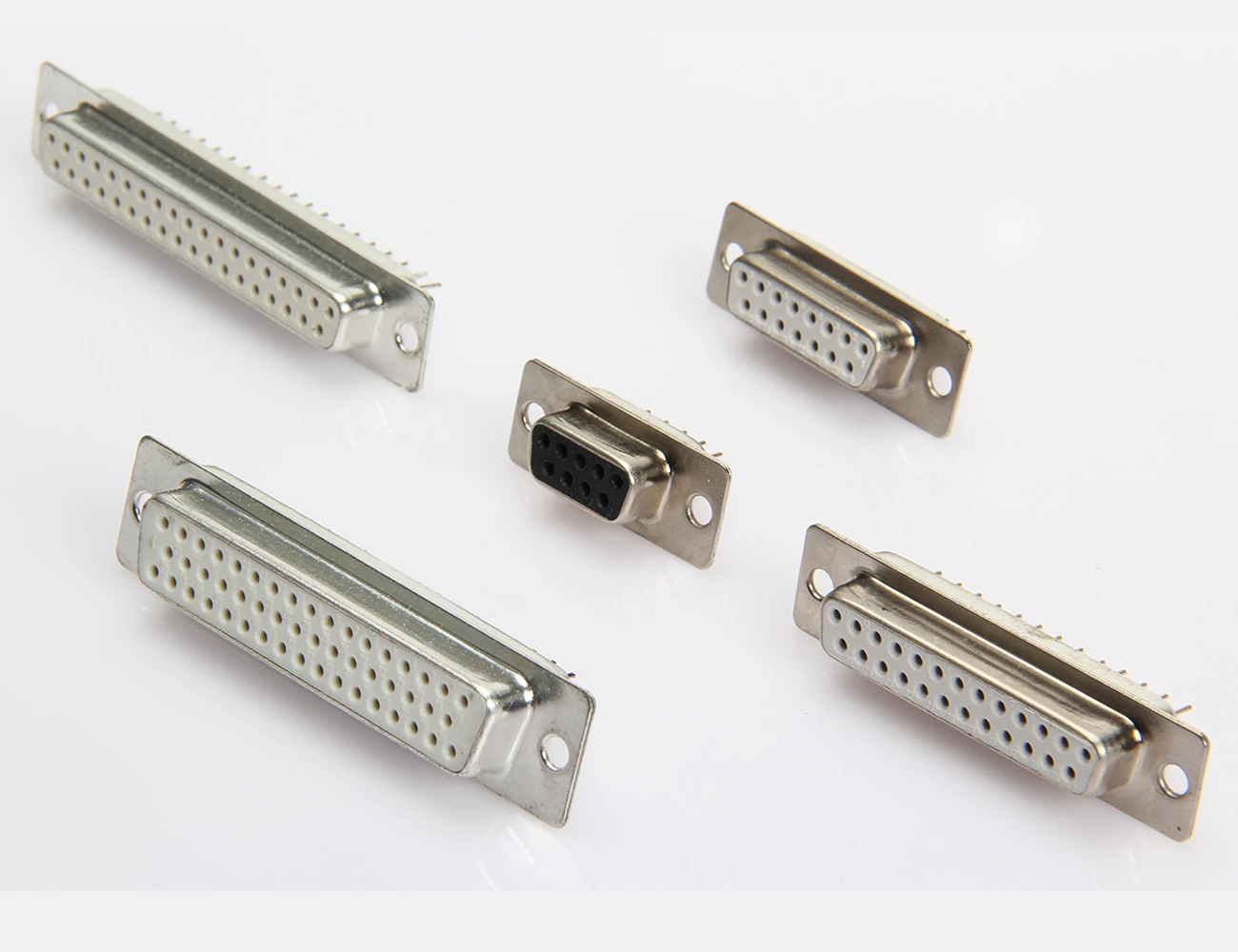

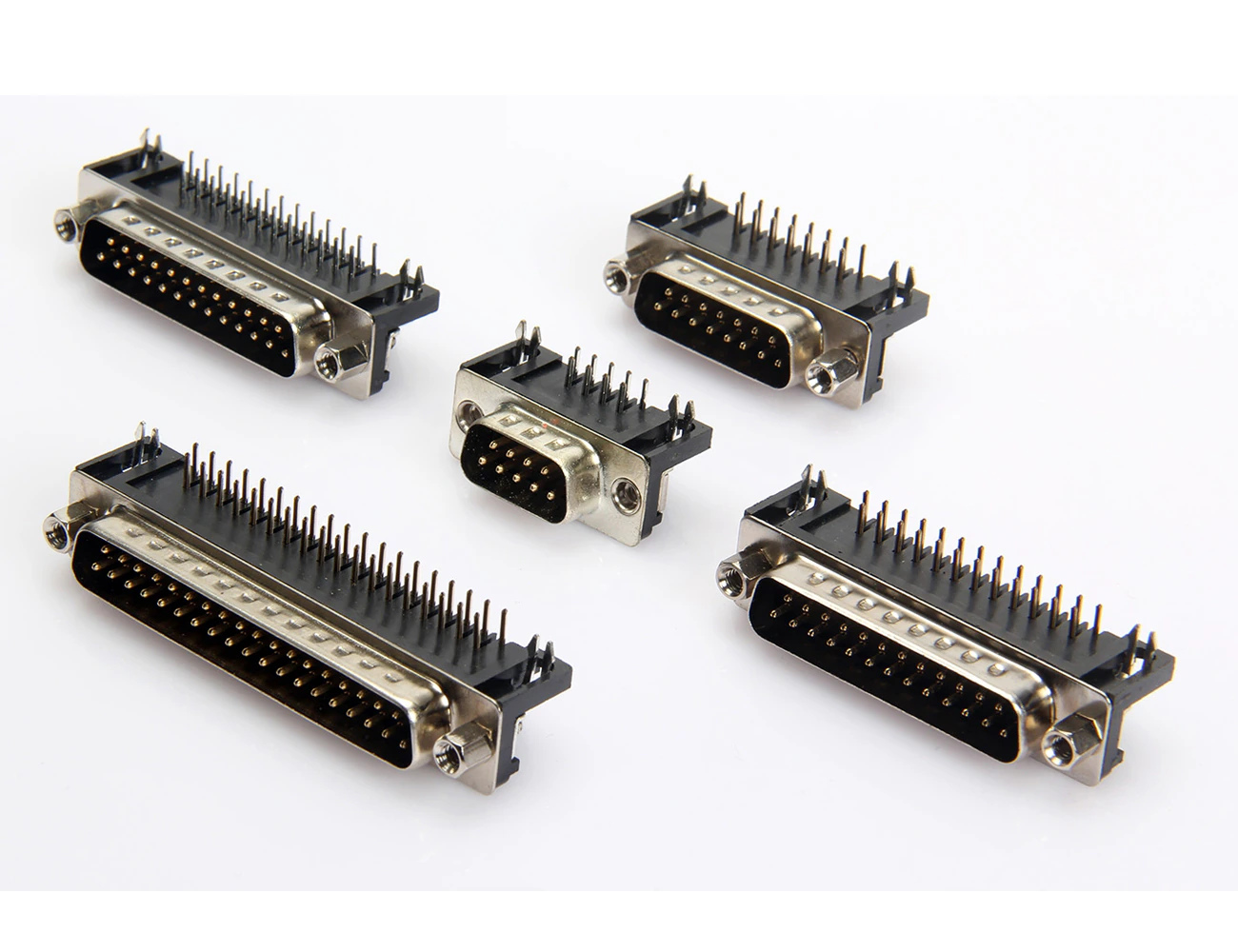

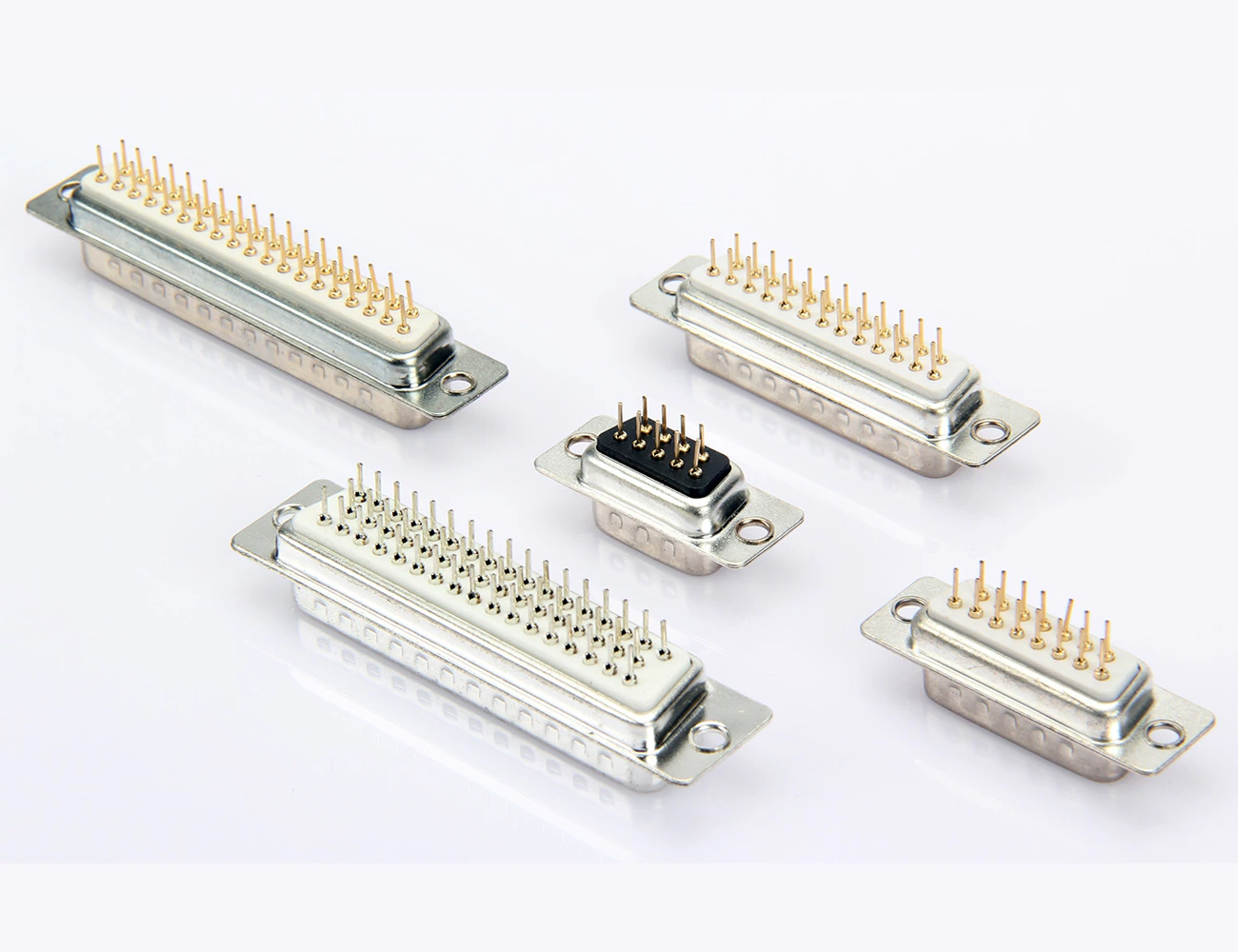

D-Sub DIP PCB Type Series

Part numbers

1202-09F1202-09M1204-09F1204-09M1205-09F1205-09M1202-15F1202-15M1204-15F1204-15M1205-15F1205-15M1202-25F1202-25M1204-25F1204-25M1205-25F1205-25M1202-37F1202-37M1204-37F1204-37M1205-37F1205-37M1202-50F1202-50M1204-50F1204-50M1205-50F1205-50M

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature
1202-09F	9 Pin Female DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-09M	9 Pin Male DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-09F	9 Pin Female DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-09M	9 Pin Male DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-09F	9 Pin Female DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-09M	9 Pin Male DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-15F	15 Pin Female DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-15M	15 Pin Male DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-15F	15 Pin Female DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-15M	15 Pin Male DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-15F	15 Pin Female DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-15M	15 Pin Male DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-25F	25 Pin Dişi DIP Pcb Tipi Dik D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-25M	25 Pin Male DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-25F	25 Pin Female DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-25M	25 Pin Male DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-25F	25 Pin Female DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-25M	25 Pin Male DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-37F	37 Pin Female DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-37M	37 Pin Male DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-37F	37 Pin Female DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-37M	37 Pin Male DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-37F	37 Pin Female DIP PCB Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-37M	37 Pin Male DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-50F	50 Pin Female DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1202-50M	50 Pin Male DIP Pcb Type Vertical D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-50F	50 Pin Female DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1204-50M	50 Pin Male DIP Pcb Type Vertical D-Sub Self Nut	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-50F	50 Pin Female DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
1205-50M	50 Pin Male DIP Pcb Type 90' D-Sub	5A	250V / AC / DC	1000V/munite	P.B.T 66 UL94V-0	-55°C to +105°C
