D-Sub Crimp Type Series

TTAF Elektronik

Images are for reference only See Product Specifications

D-Sub

D-Sub Crimp Type Series

Part numbers

1203-09F1203-09M1203-15F1203-15M1203-25F1203-25M1203-37F1203-37M1203-50F1203-50M1203-FT1203-MT

Manufacturer

TTAF Elektronik

Ordering information

Product Code	Product Description	Current Value	Voltage Value	Withstand Voltage	Body Material	Operating Temperature

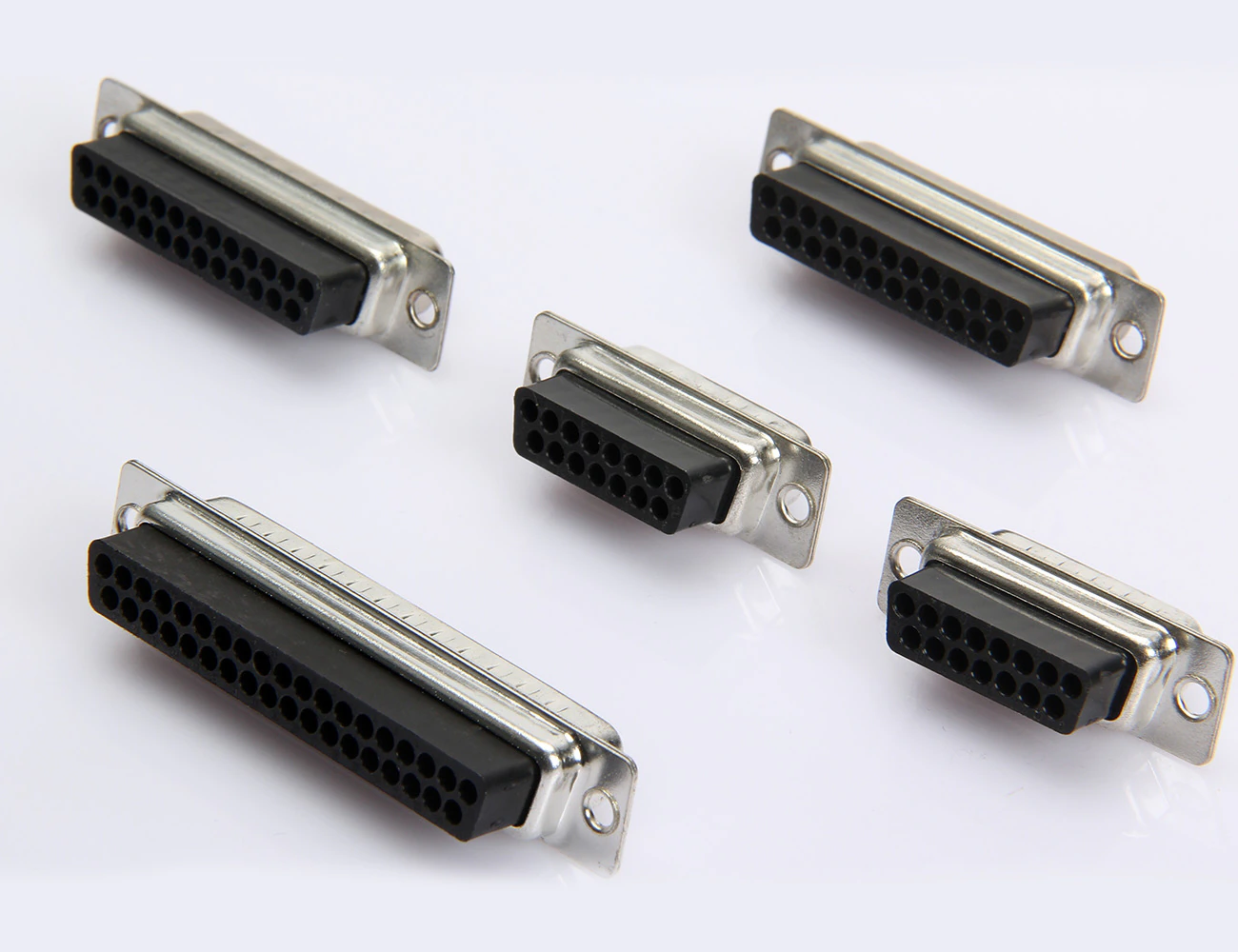

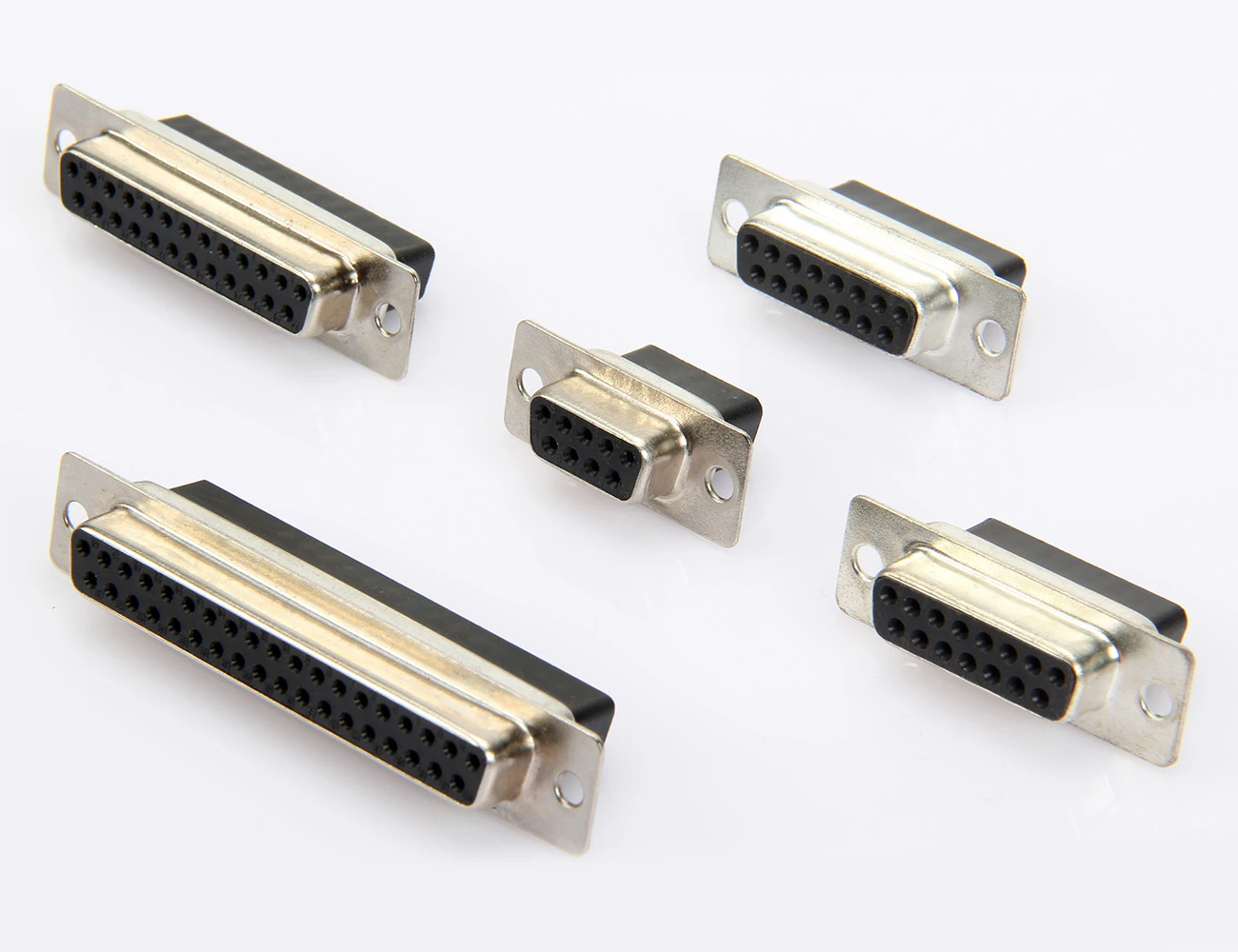

1203-09F	9 Pin Crimp Type D-Sub Connector Female	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C

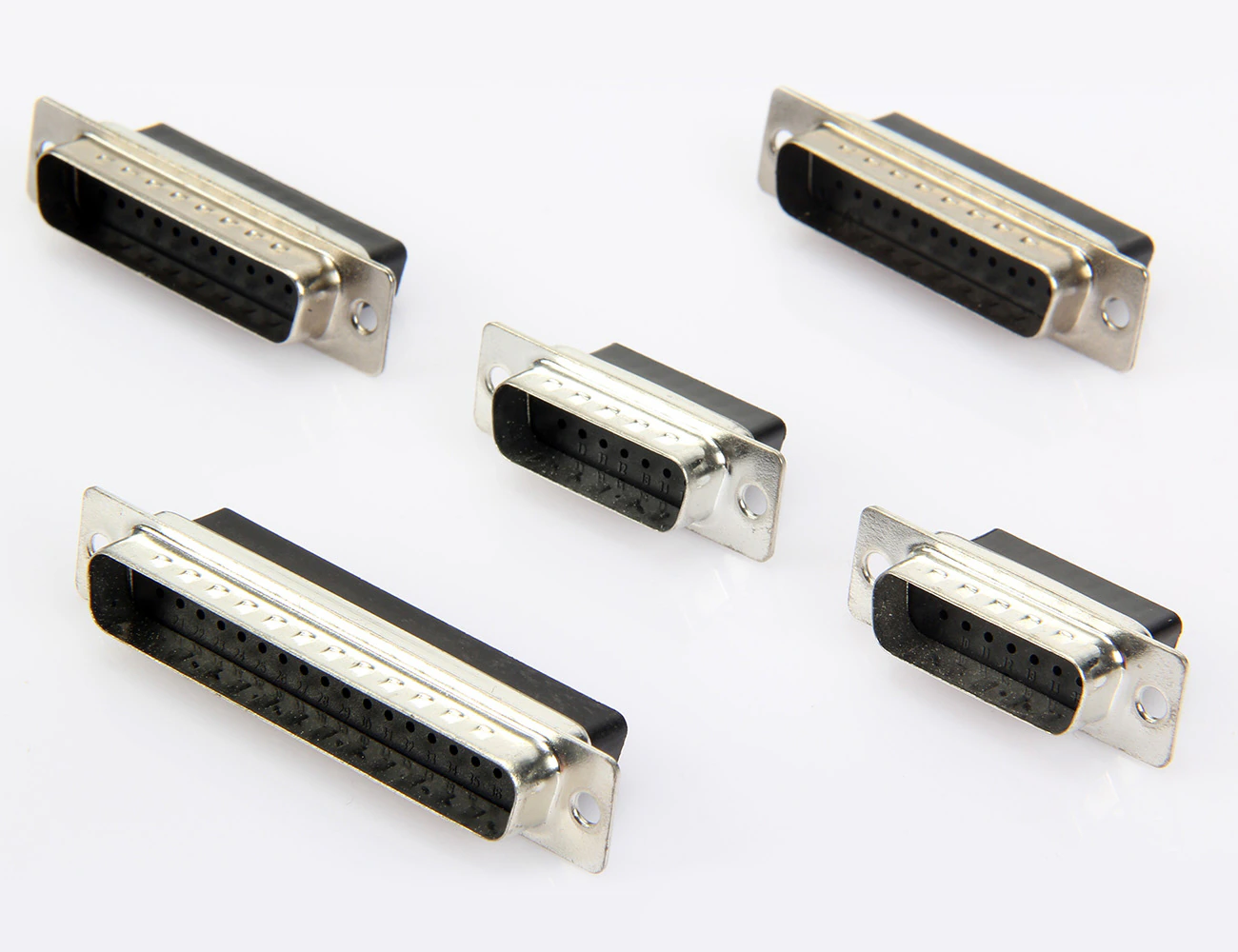

1203-09M	9 Pin Crimp Type D-Sub Connector Male	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-15F	15 Pin Crimp Type D-Sub Connector Female	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-15M	15 Pin Crimp Type D-Sub Connector Male	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-25F	25 Pin Crimp Type D-Sub Connector Female	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-25M	25 Pin Crimp Type D-Sub Connector Male	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-37F	37 Pin Crimp Type D-Sub Connector Female	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-37M	37 Pin Crimp Type D-Sub Connector Male	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-50F	50 Pin Crimp Type D-Sub Connector Female	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C
1203-50M	50 Pin Crimp Type D-Sub Connector Male	5A	250V / AC / DC	1000V/ munite	P.B.T 66 UL94V-0	-55°C to +105°C

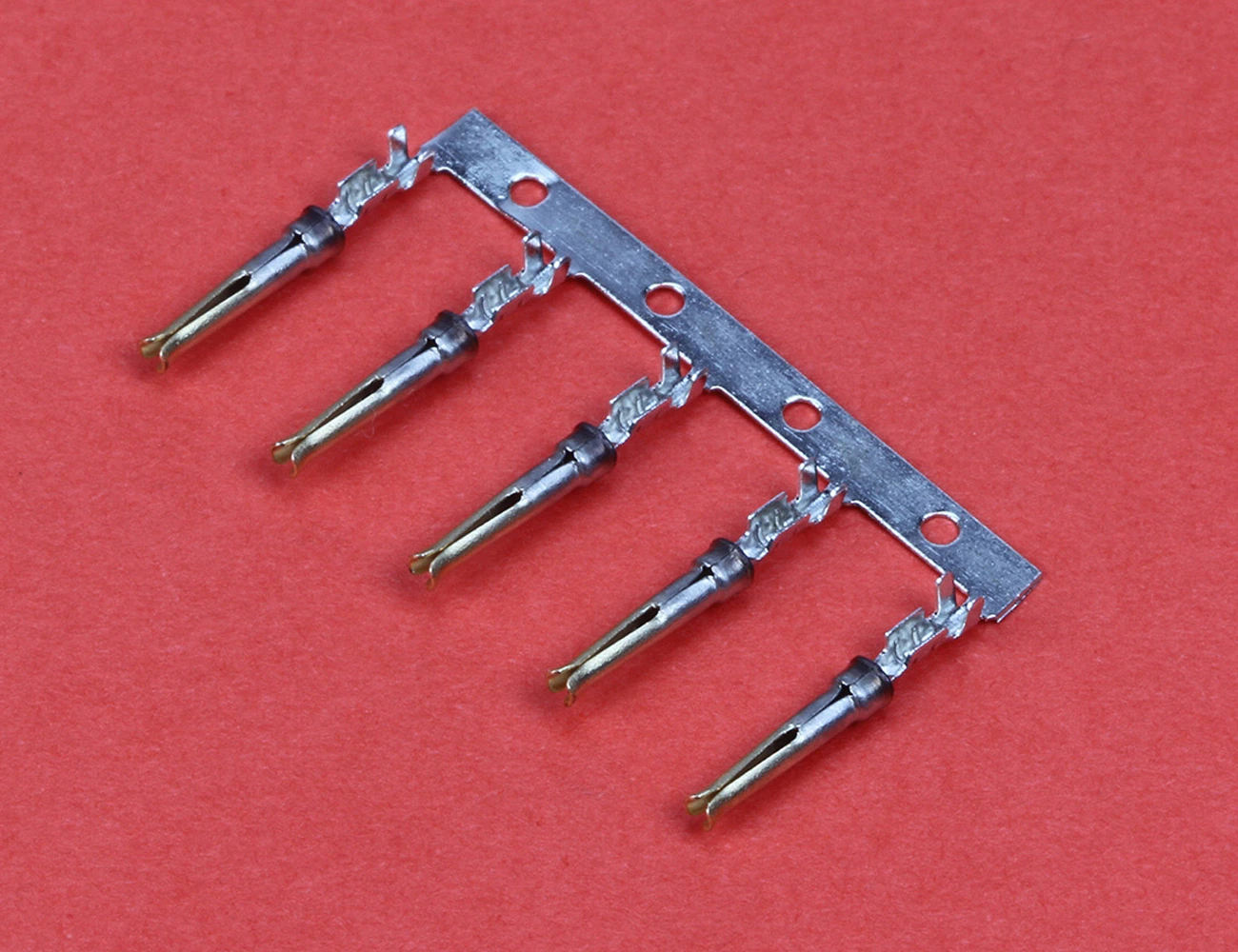

1203-FT	D-Sub Connector Terminal Female	-	-	-	-	-

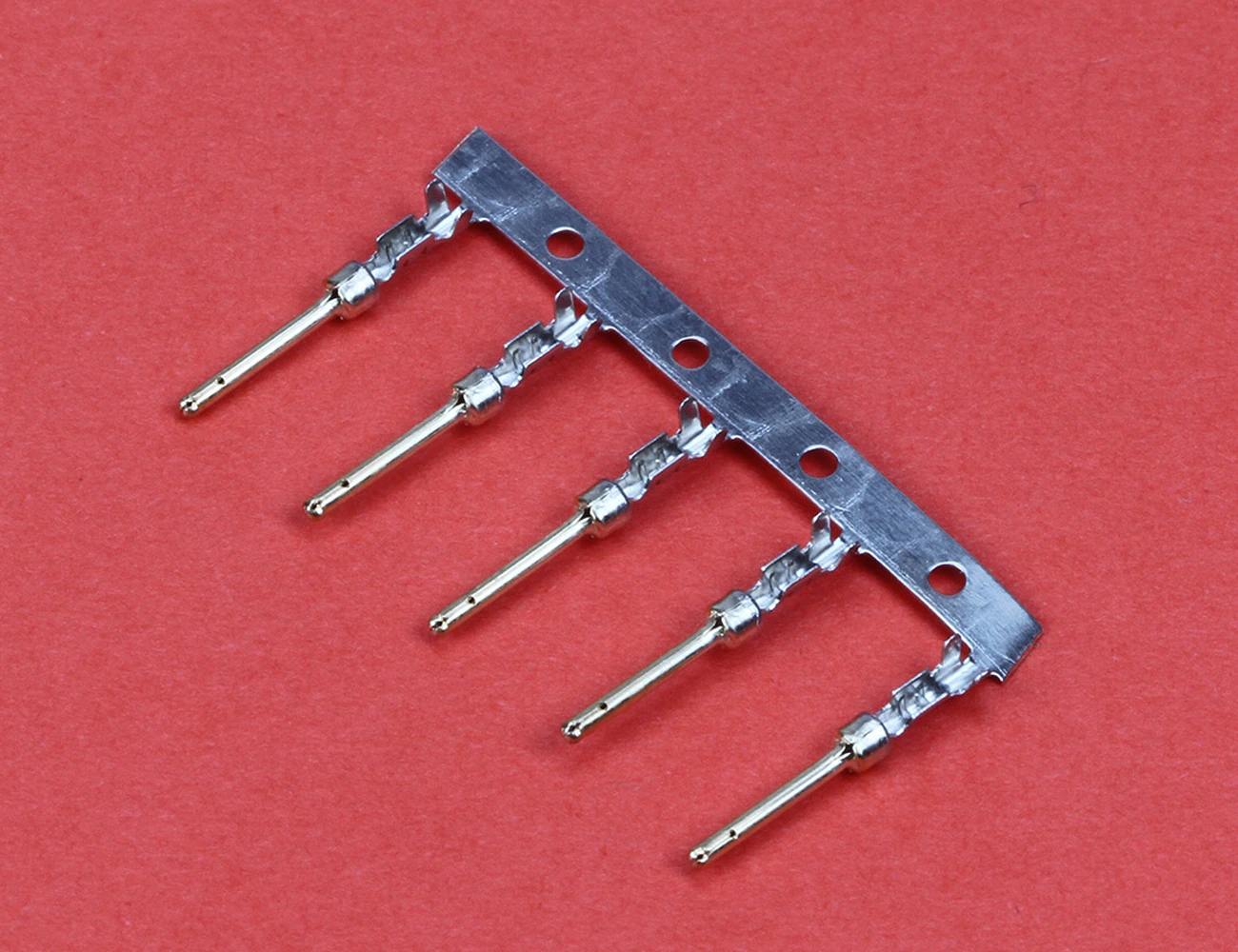

1203-MT	D-Sub Connector Terminal Male	-	-	-	-	-
