Wire to Wire Signal
5558 TTAF Elektronik

Images are for reference only See Product Specifications

Wire to Wire Signal

5558

Part numbers
5558-02H5558-02W5558-04H5558-04W5558-06H5558-06W5558-08H5558-08W5558-10H5558-10W5558-12H5558-12W5558-14H5558-14W5558-16H5558-16W5558-18H5558-18W5558-20H5558-20W5558-22H5558-22W5558-24H5558-24W5558-FT5558-MT
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24 Datasheet 25 Datasheet 26

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature

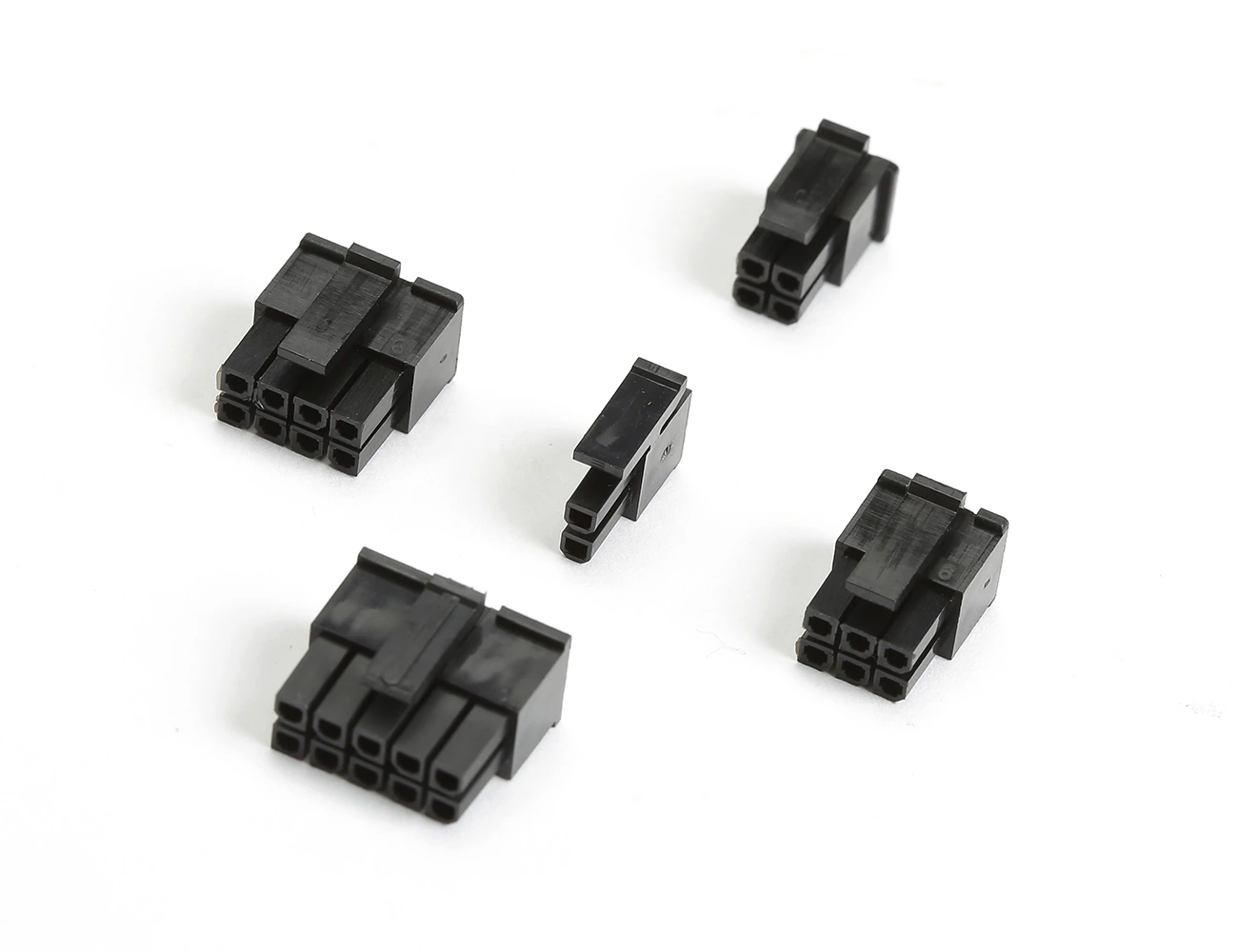

5558-02H2 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

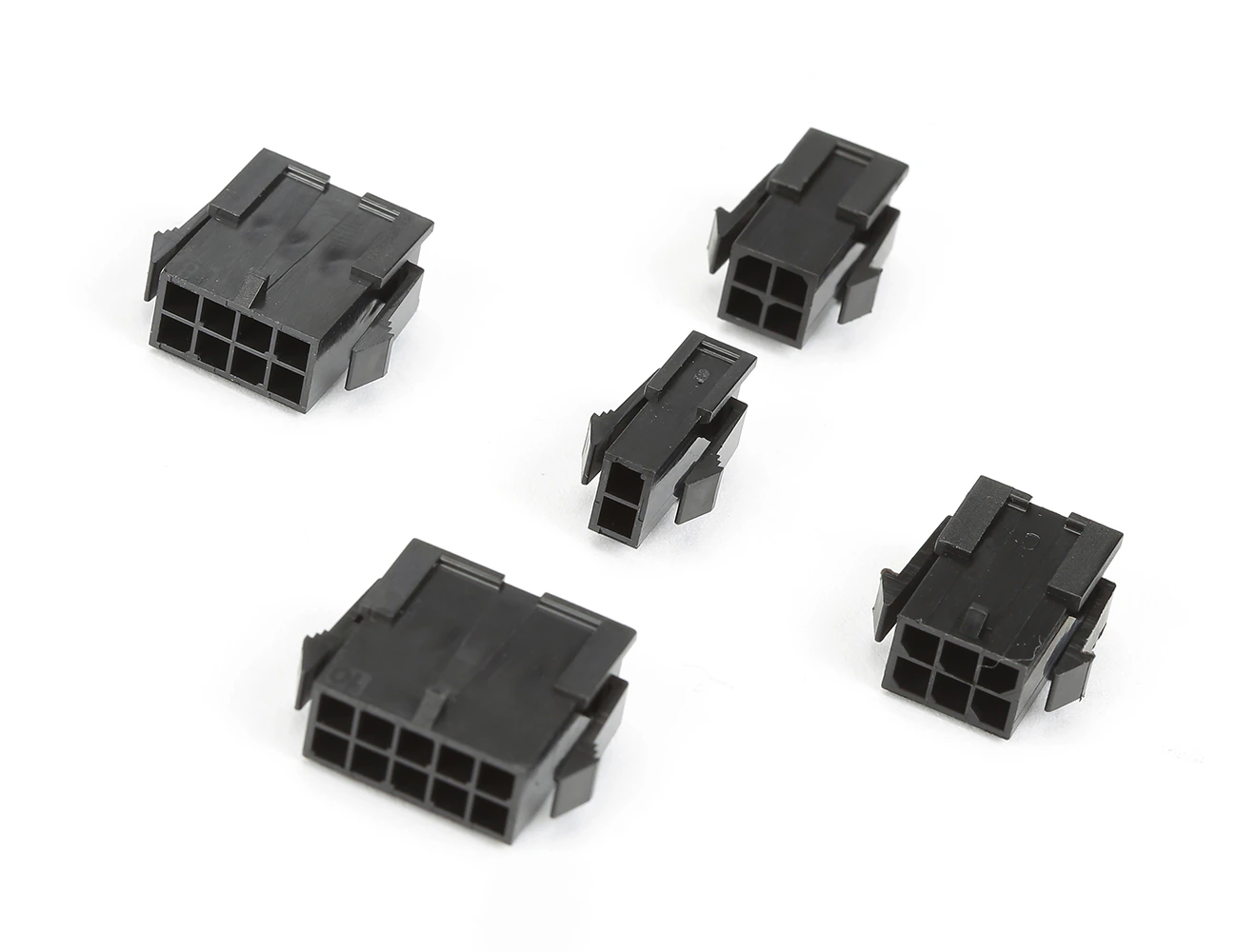

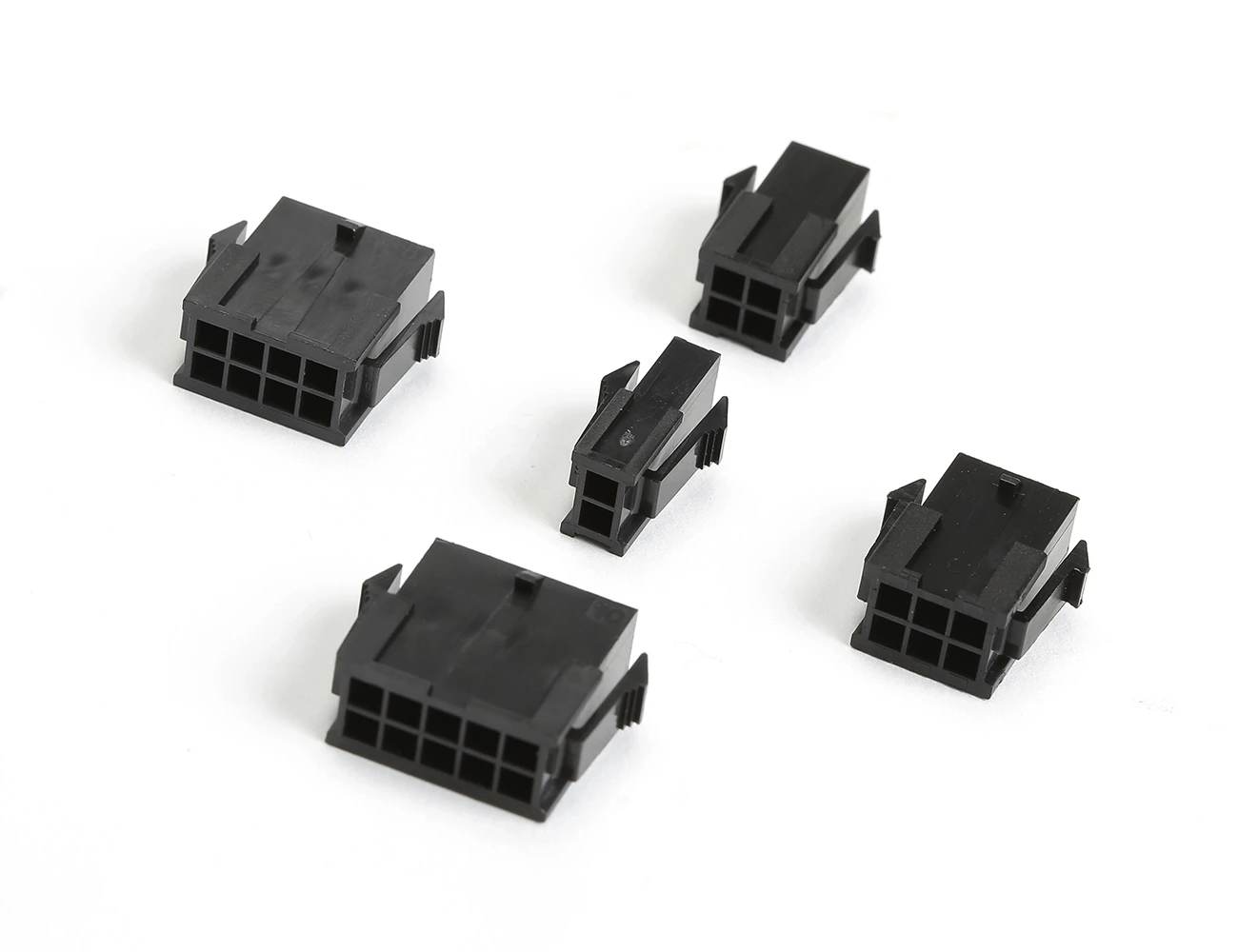

5558-02W2 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-04H4 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-04W4 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-06H6 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-06W6 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-08H8 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-08W8 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-10H10 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-10W10 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-12H12 Pin 3.00mm Çift Sıra Dişi Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-12W12 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-14H14 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-14W14 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-16H16 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-16W16 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-18H18 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-18W18 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-20H20 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-20W20 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-22H22 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-22W22 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-24H24 Pin 3.00mm Double Row Female Micro Fit5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5558-24W24 Pin 3.00mm Double Row Male Housing5A250V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

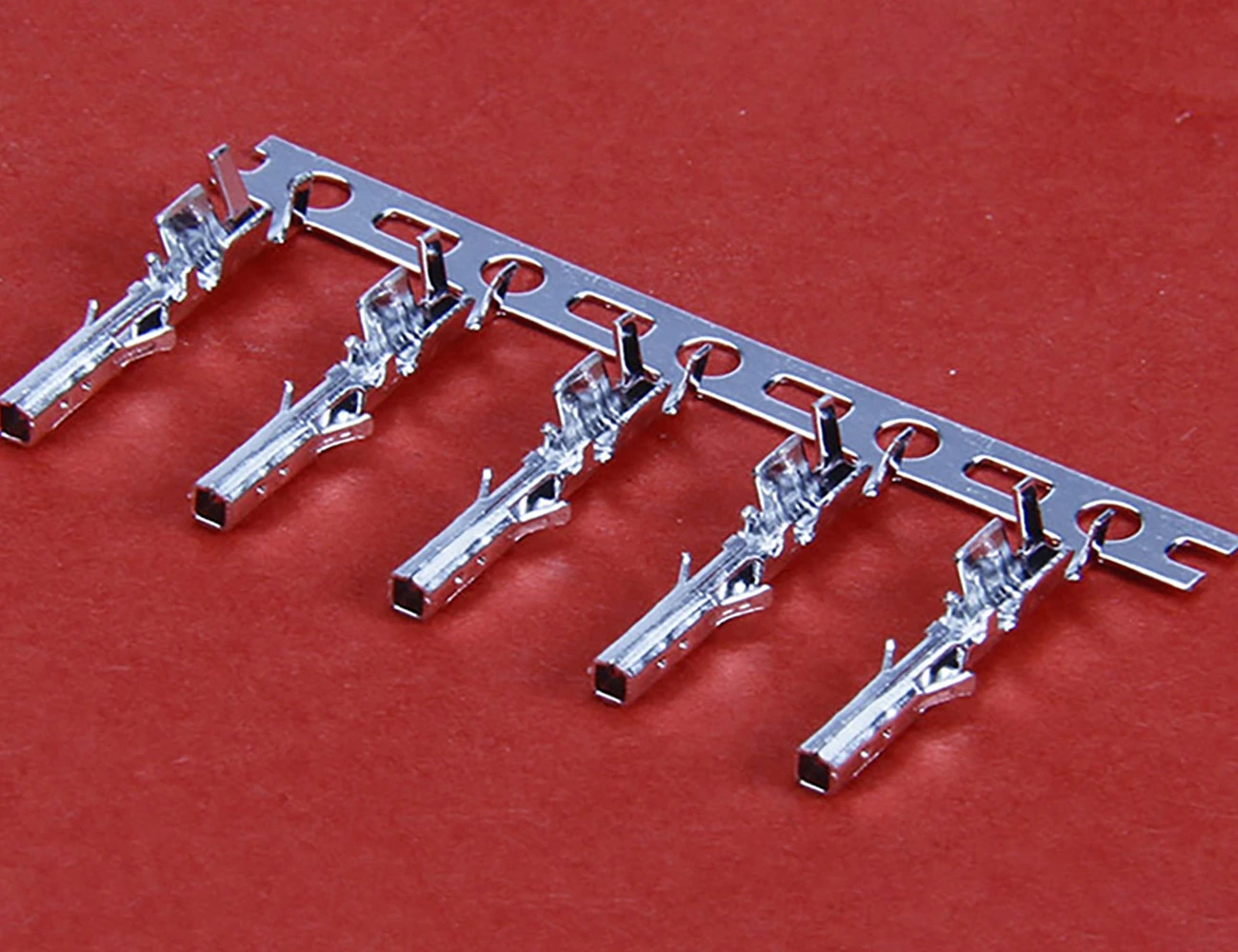

5558-FTCrimp Terminal Female 5558 Series Connector---Brass (Tin Plated)-

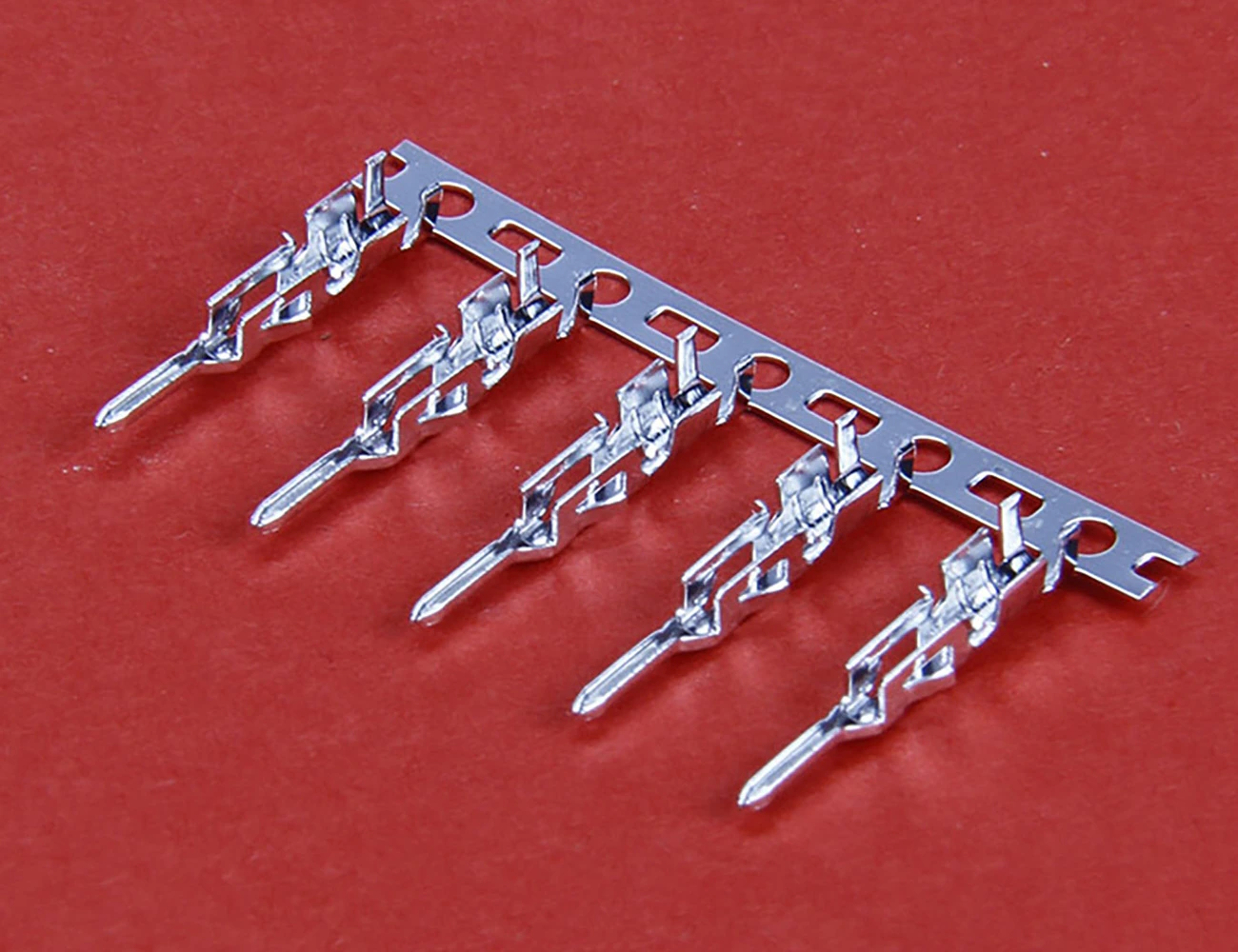

5558-MTCrimp Terminal Male 5558 Series Connector---Brass (Tin Plated)-
