Wire to Wire Power
5557 TTAF Elektronik

Images are for reference only See Product Specifications

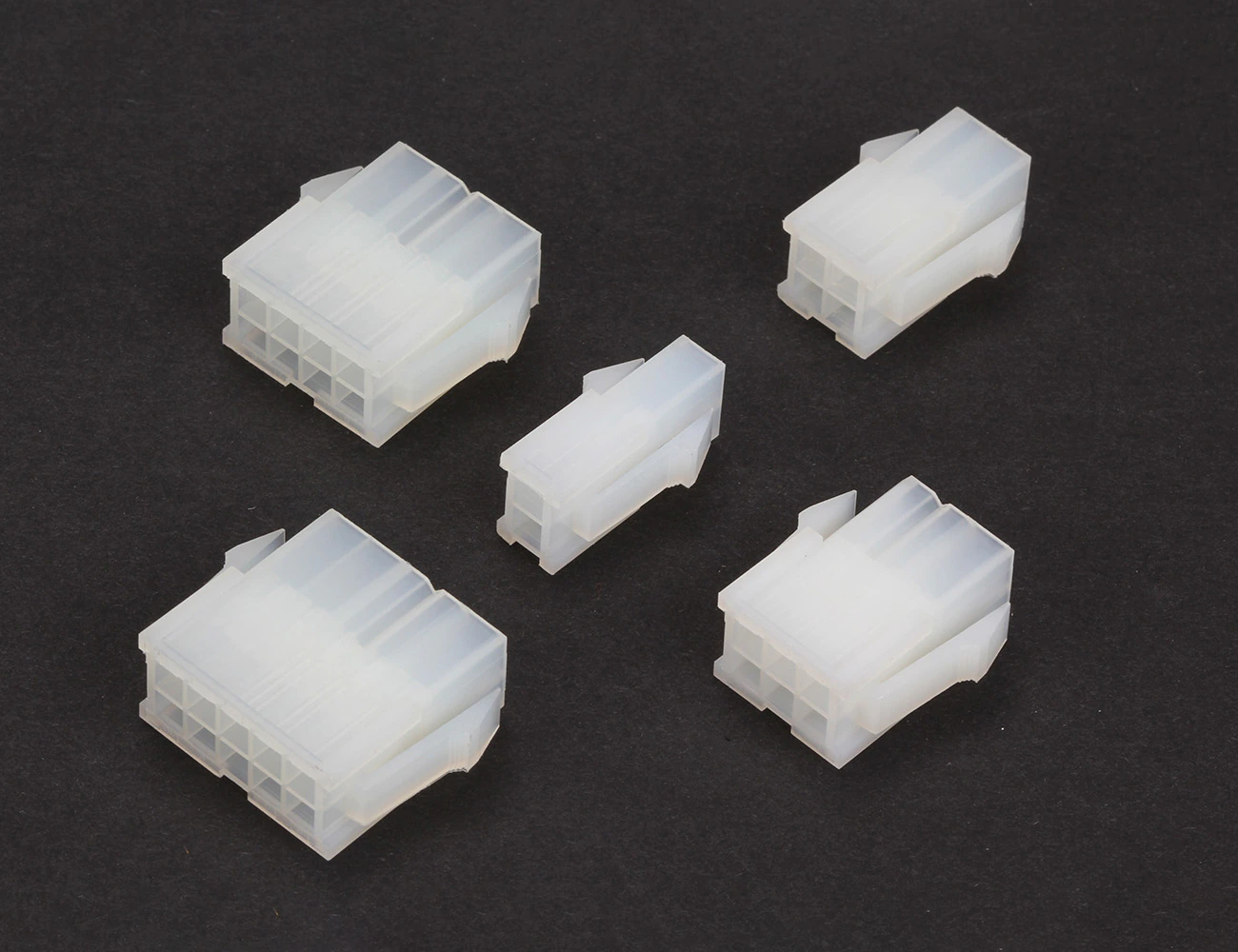

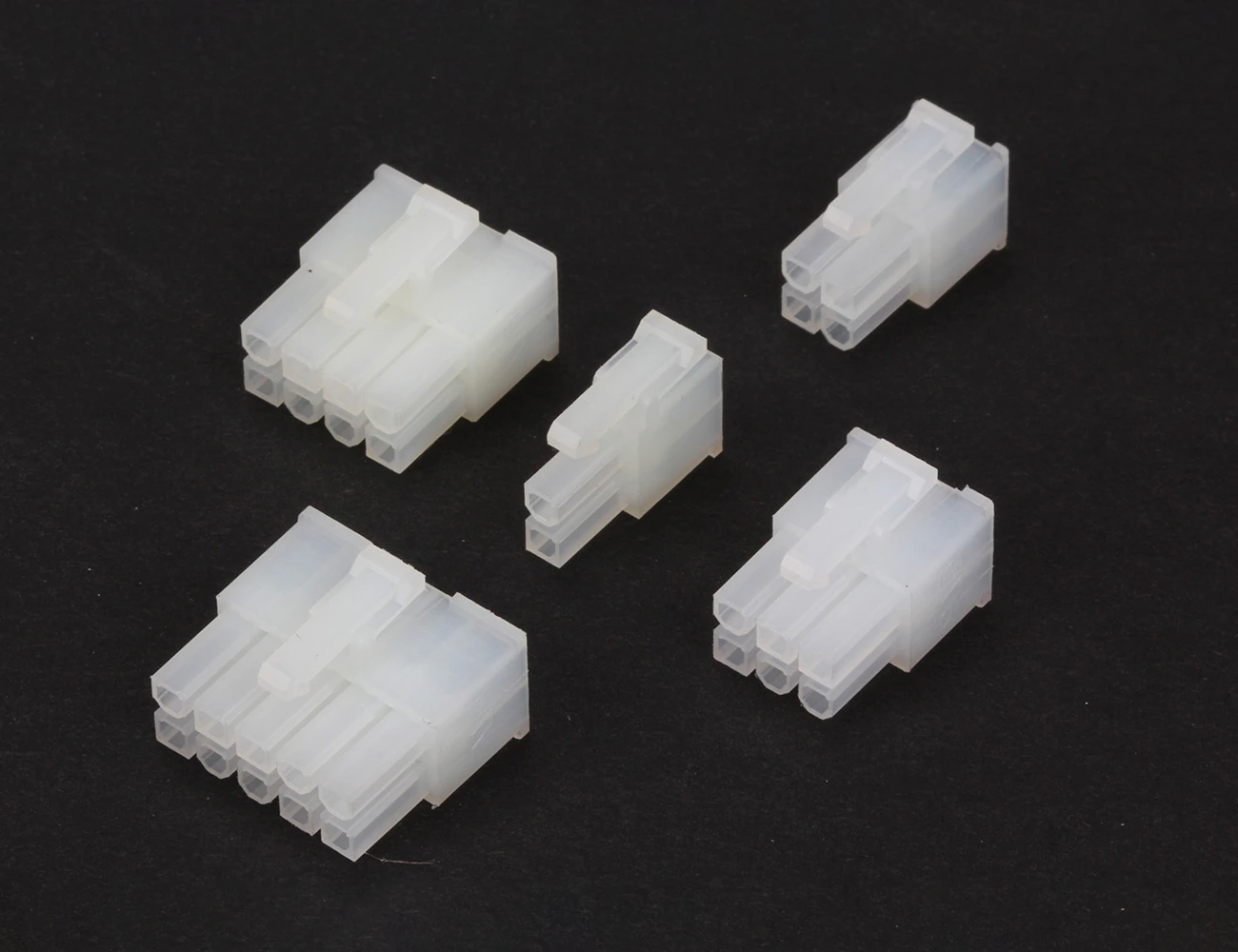

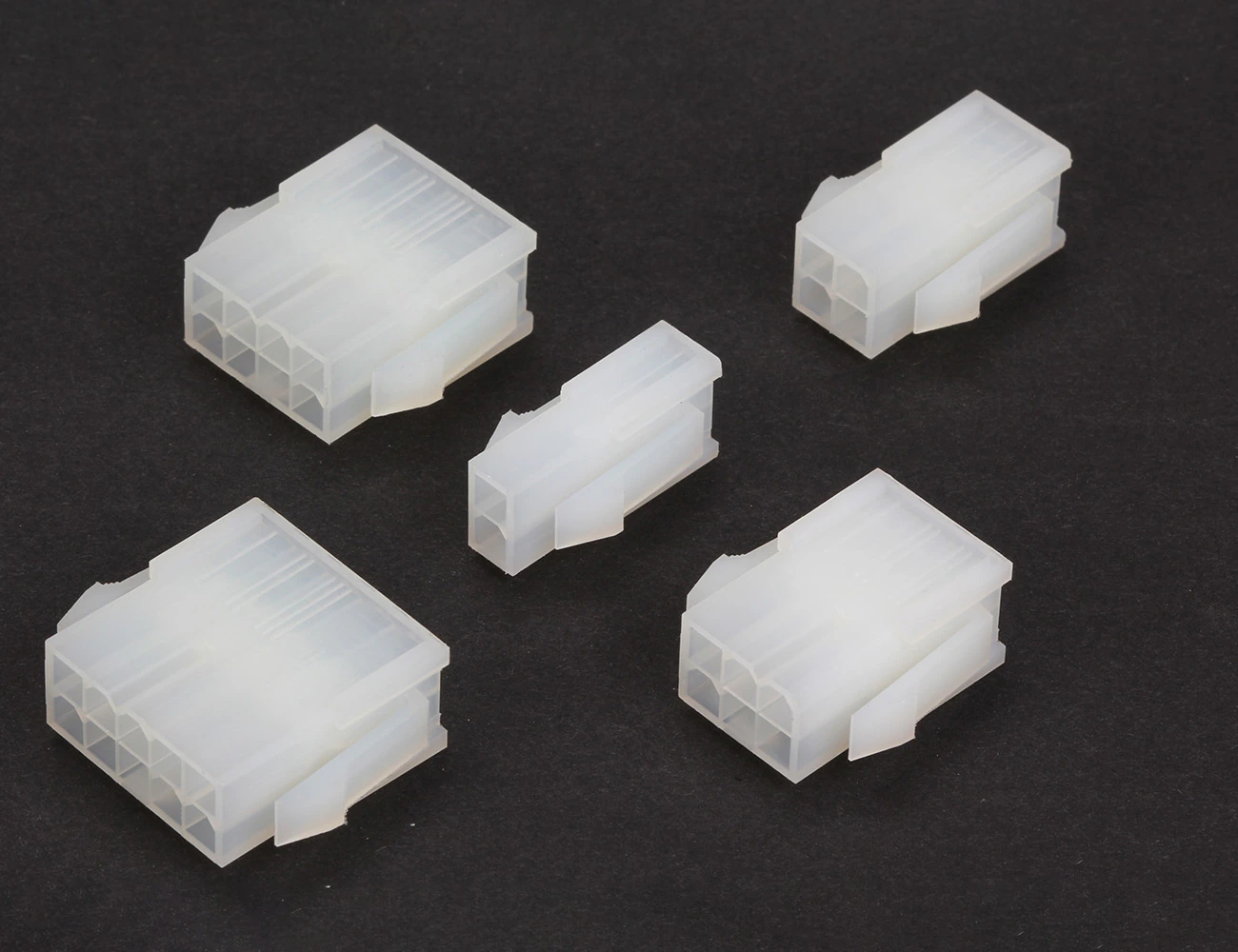

Wire to Wire Power

5557

Part numbers
55575557-02H5557-02W5557-04H5557-04W5557-06H5557-06W5557-08H5557-08W5557-10H5557-10W5557-12H5557-12W5557-14H5557-14W5557-16H5557-16W5557-18H5557-18W5557-20W5557-22H5557-22W5557-24H5557-24W5557-FT5557-MT
Manufacturer
TTAF Elektronik
Datasheet 1 Datasheet 2 Datasheet 3 Datasheet 4 Datasheet 5 Datasheet 6 Datasheet 7 Datasheet 8 Datasheet 9 Datasheet 10 Datasheet 11 Datasheet 12 Datasheet 13 Datasheet 14 Datasheet 15 Datasheet 16 Datasheet 17 Datasheet 18 Datasheet 19 Datasheet 20 Datasheet 21 Datasheet 22 Datasheet 23 Datasheet 24 Datasheet 25 Datasheet 26

Ordering information

Product CodeProduct DescriptionCurrent ValueVoltage ValueWithstand VoltageBody MaterialOperating Temperature
5557-02H2 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-02W2 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-04H4 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-04W4 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-06H6 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-06W6 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-08H8 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-08W8 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-10H10 Pin 4.20mm Female Mini Fit Connector9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-10W10 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-12H12 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-12W12 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-14H14 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-14W14 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-16H16 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-16W16 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-18H18 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-18W18 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-20W20 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-20W20 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-22H22 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-22W22 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-24H24 Pin 4.20mm Double Row Female Mini Fit9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C
5557-24W24 Pin 4.20mm Double Row Male Housing9A600V1500VAC @ 60 s.Nylon 66 UL94V-0-25°C ~ +85°C

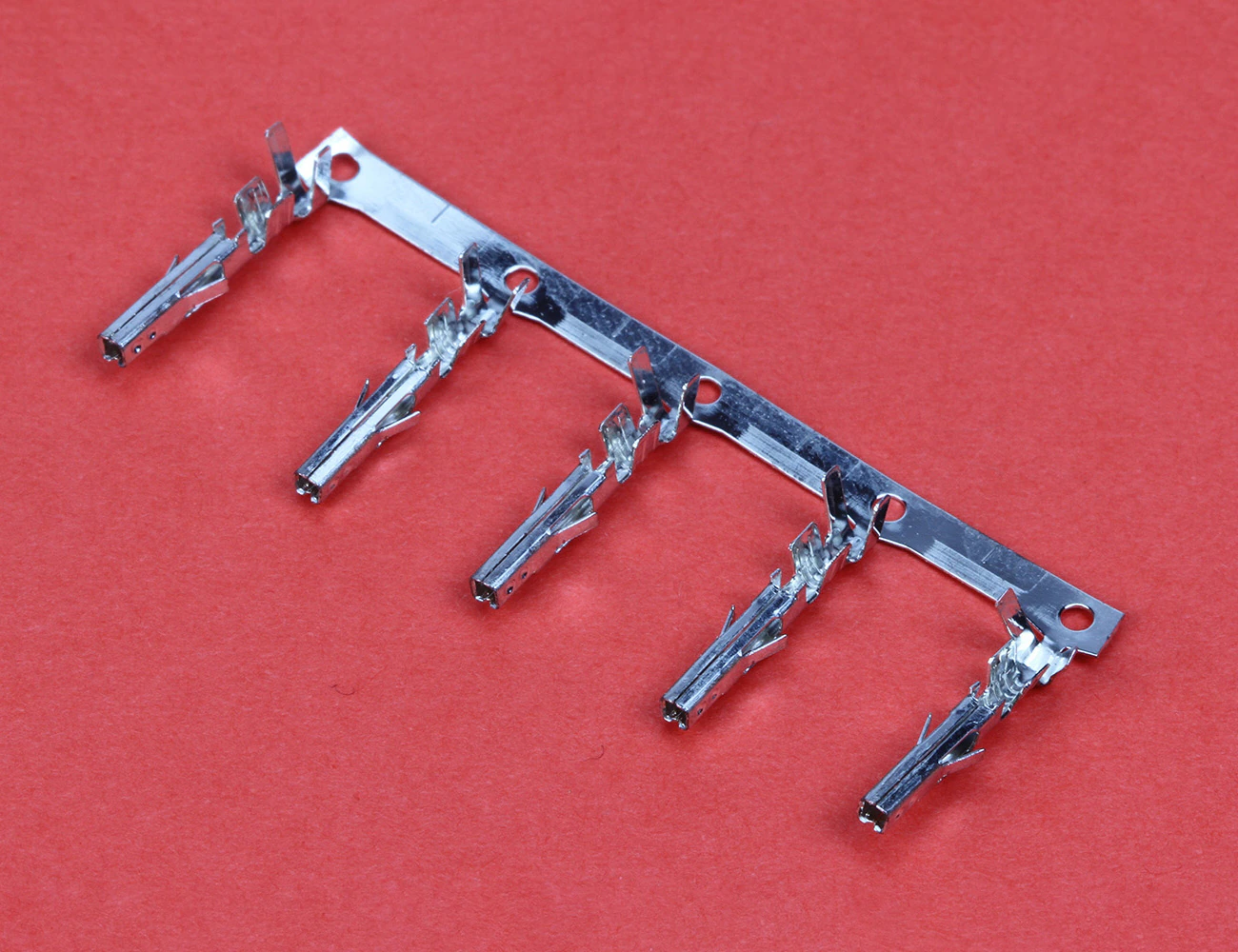

5557-FTCrimp Terminal Female 5557 Series Connector---Brass (Tin Plated)-

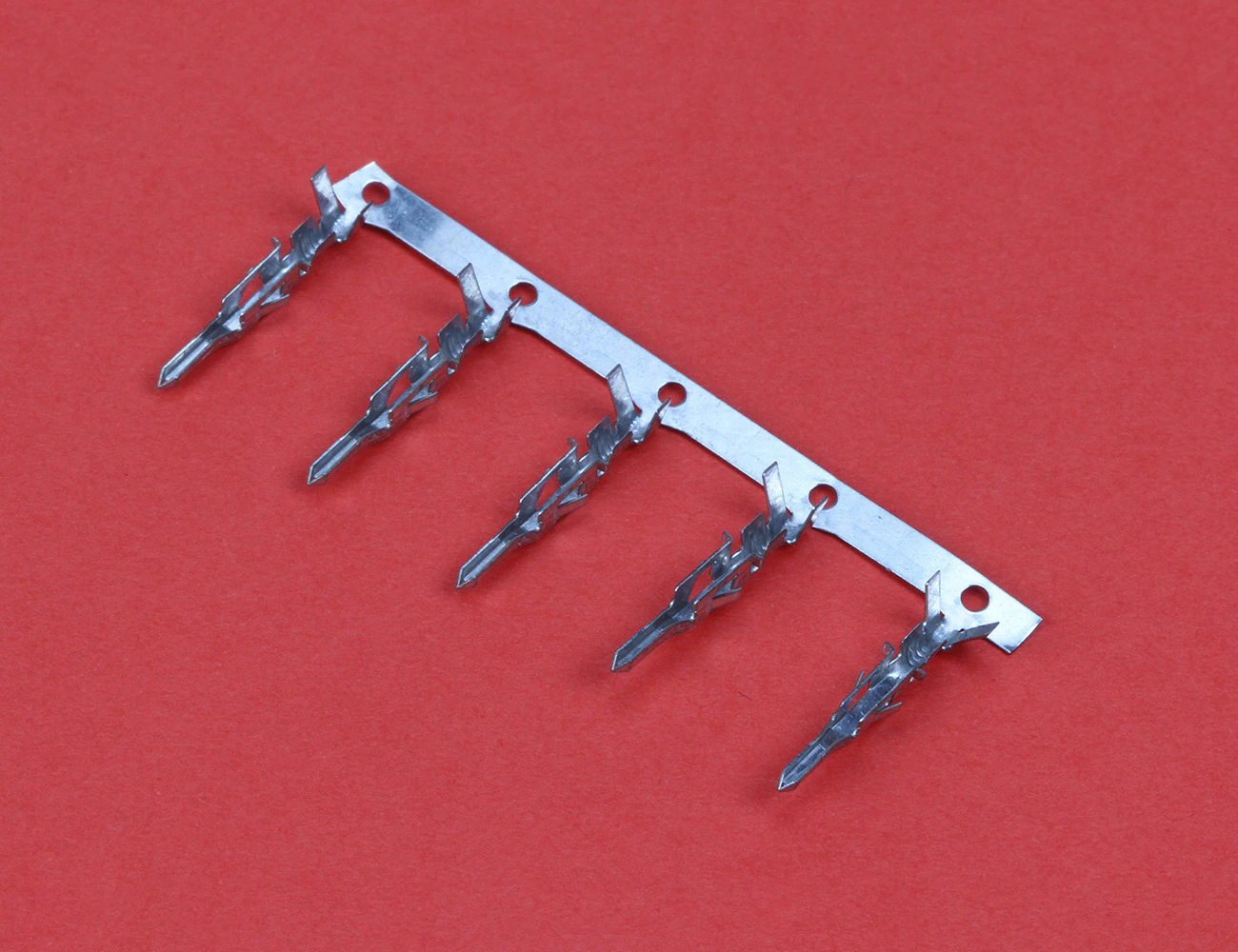

5557-MTCrimp Terminal Male 5557 Series Connector---Brass (Tin Plated)-
