Images are for reference only See Product Specifications
Waterproof Connector Solutions

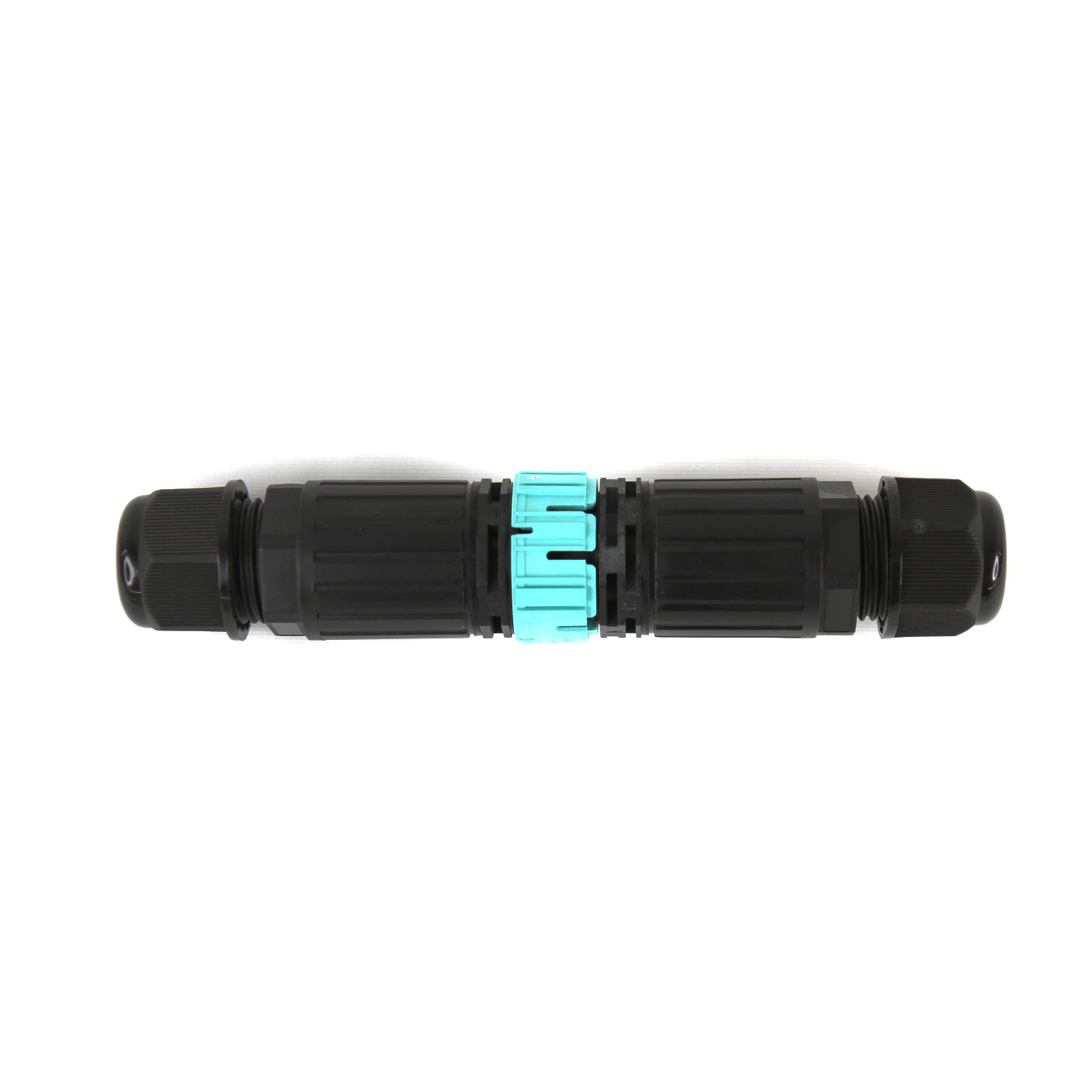

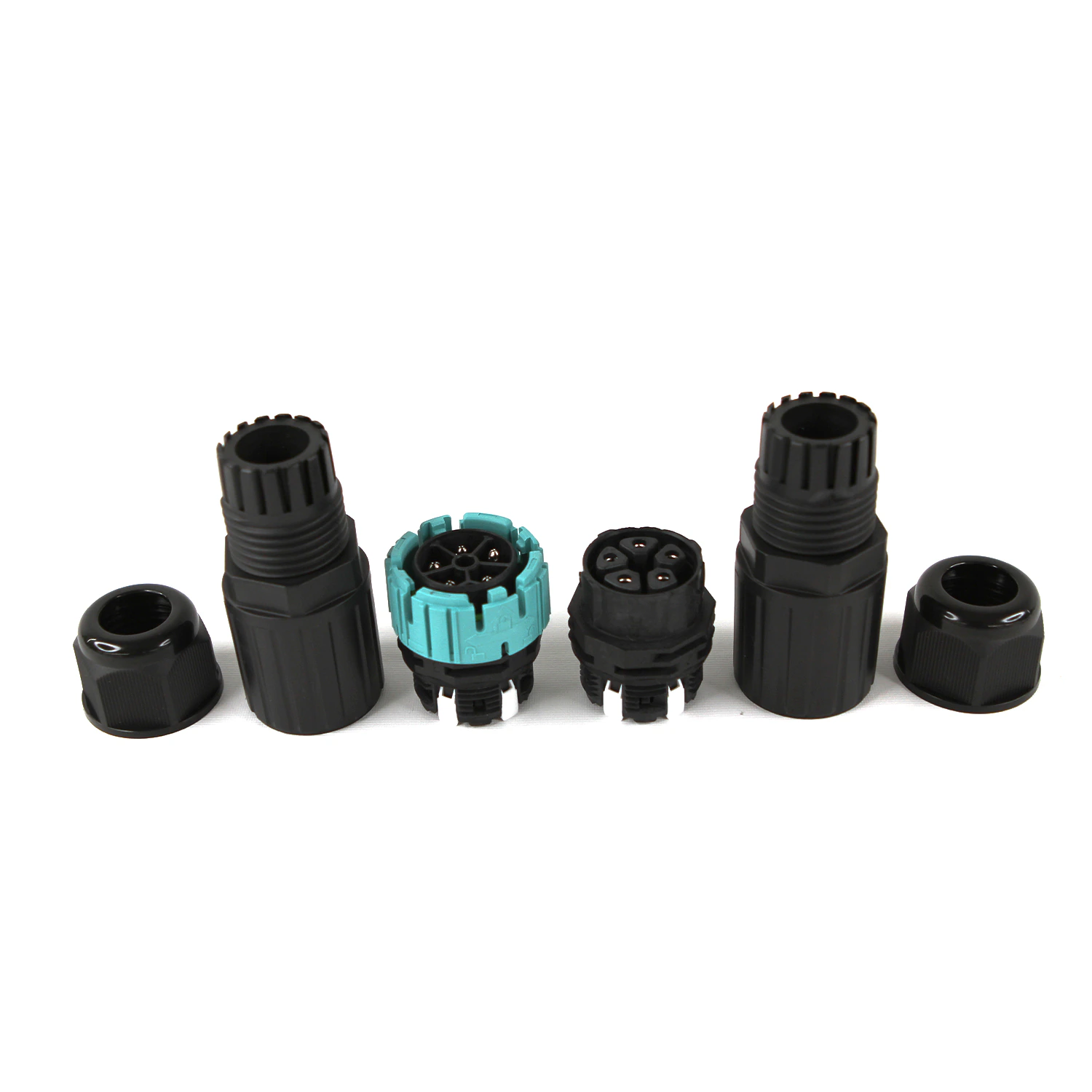

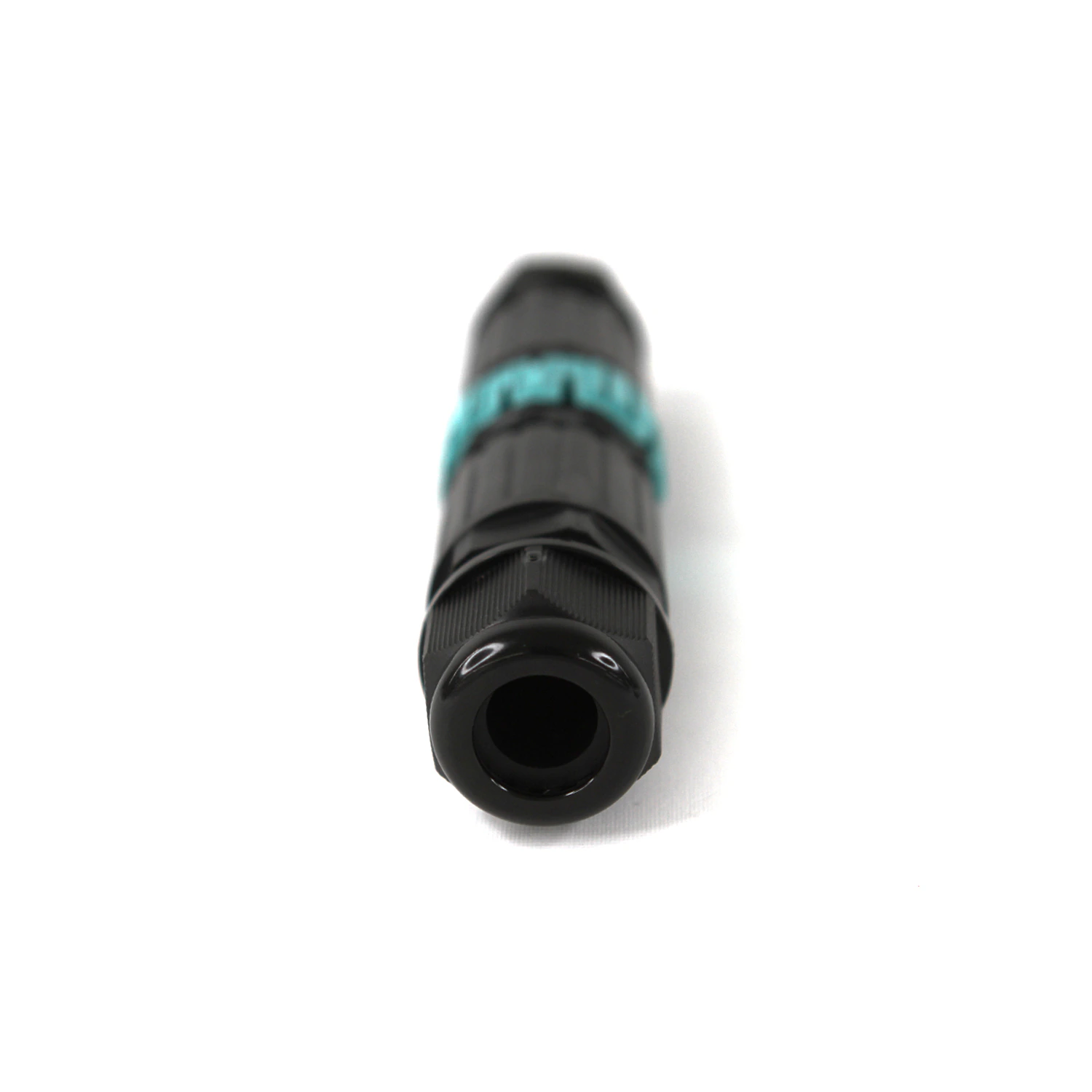

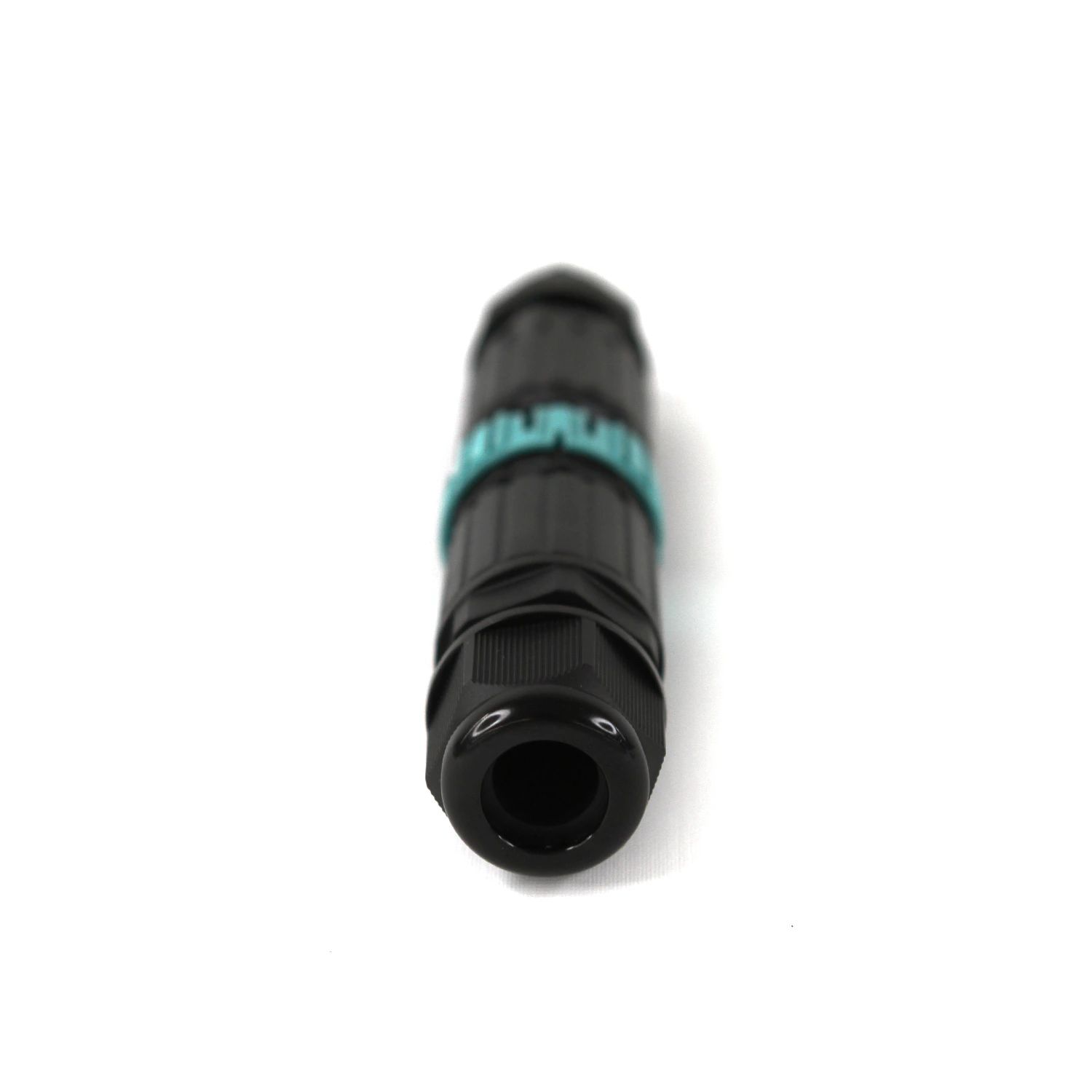

5 Pin Screwless Female-Male Waterproof I Connector
Part number
WPI-P25-MF-05M16 Manufacturer
TTAF Elektronik
WPI-P25-MF-05M16
| Durability Voltage | 2500V |
|---|---|
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP68 |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
| Current Rating | 16A max |
| Voltage Rating | 450VAC max |
Ordering information
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature |
|---|---|---|---|---|---|---|
| WPI-P25-MF-05M16 | 5 Pin Screwless Female-Male Waterproof I Connector | 16A | 450VAC max | 2500V | UL 94 V-0 | -40°C ~ +105°C |
